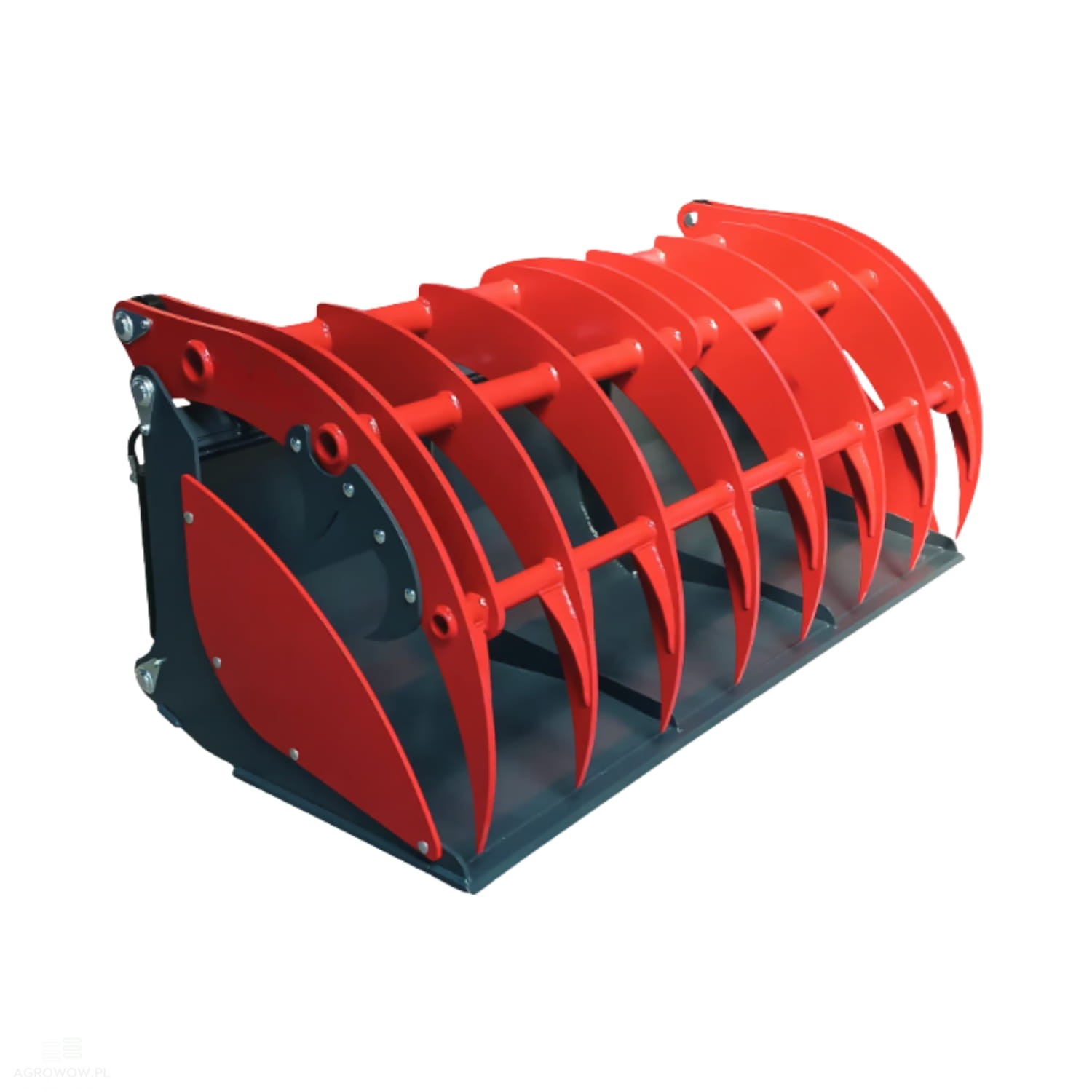

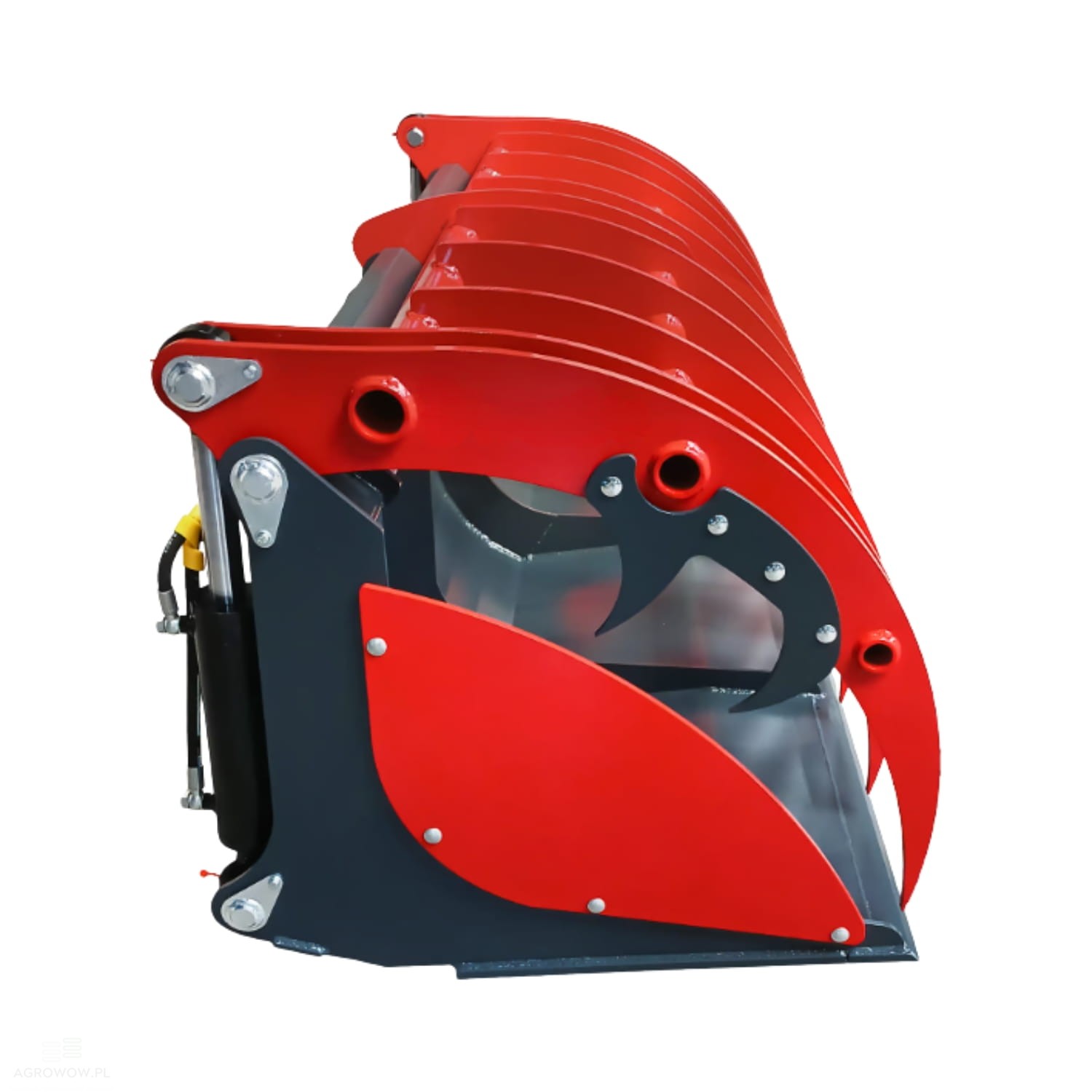

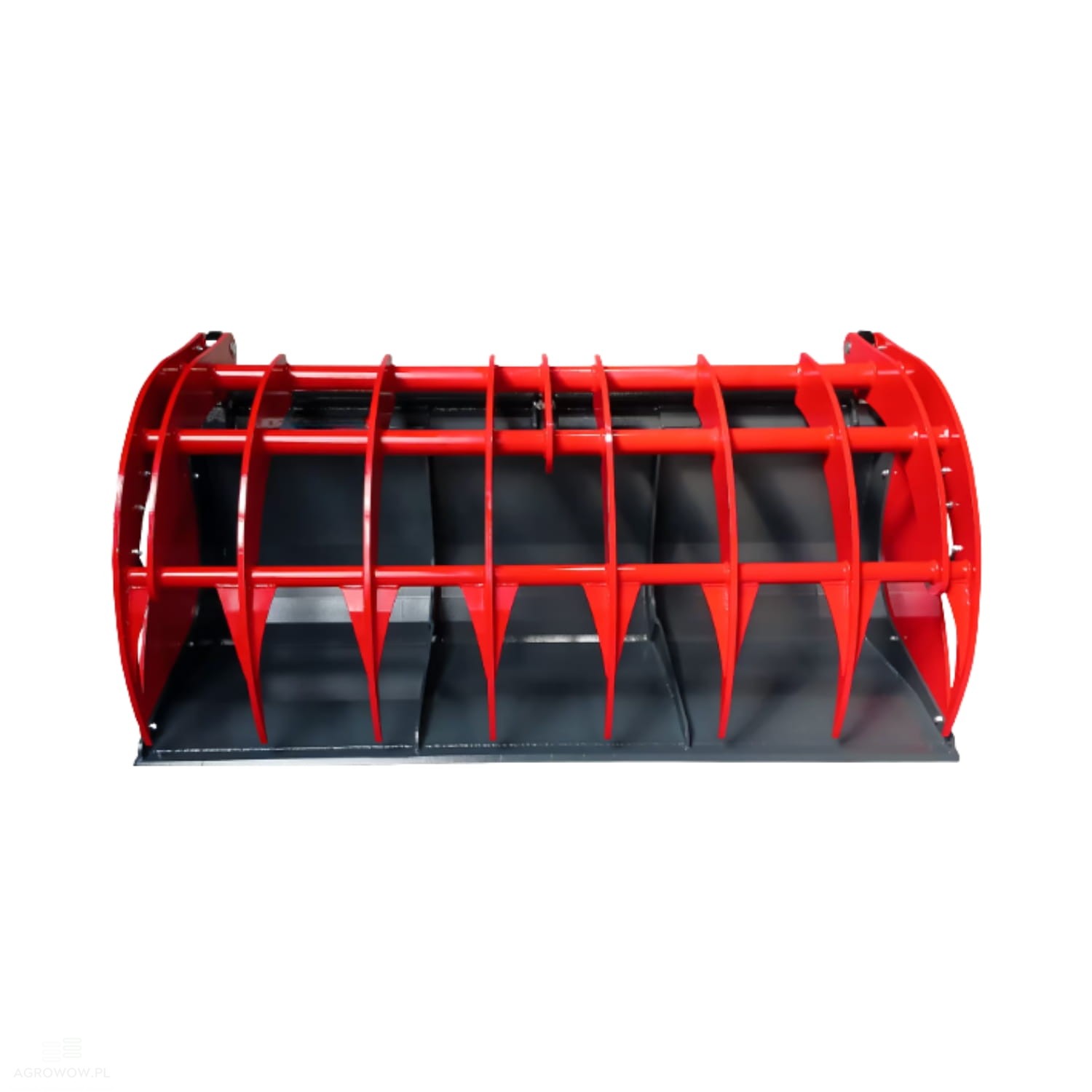

Agrowow 2.2 m grab bucket with a clamp

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW22SD

- Manufacturer's name: Grab bucket with a clamp - profile cut tines

- Width: 2200 mm

- Height: 950 mm

- Depth: 1000 mm

- Weight: 595 kg

- Capacity: 1.0 m³

- Machine weight class: 9-12 T

- Cylinders: 2

- Number of top tines: 9

- Hitch/Mounting: Euro

- Large opening angle of the upper jaw

Optional Extras:

- Mailleux (MX) hitch

A system designed by MX – a manufacturer specializing in front loaders. It features a different design and arrangement of mounting points compared to the Euro standard. It is intended for specific loader models of this brand, ensuring a precise, secure, and durable connection with the attachment.

- Manitou

A solution used on Manitou telehandlers, adapted for intensive work under heavy loads. Frequently utilized in agriculture, orchards, and the construction sector, where reliability and durability are of key importance.

- Weidemann

A compact mounting type used on Weidemann articulated loaders. It enables quick and efficient connection of attachments. Ideal for light farm work, including livestock handling, feed loading, or green area maintenance.

- JCB hitch (Q-Fit or JCB type)

A system intended for JCB telehandlers and wheeled loaders. It offers a robust and secure attachment, even when working with heavy loads. It is available in several variants tailored to the specific machine model.

- SMS hitch (Stoll, Schäffer and others)

Commonly used on compact loaders from brands such as Schäffer, Stoll, or Ålö. It is characterized by a simple design and ease of use, making it popular especially in Western and Northern Europe.

- Other hitch systems (on request)

It is possible to manufacture the attachment with a hitch tailored to less popular or non-standard machines – in accordance with the individual technical requirements of the customer.

Detailed Description:

• The 2200 mm wide grab bucket with a clamp is a durable and high-capacity working tool designed for operation on large agricultural farms, municipal plants, processing facilities, and in demanding industrial environments.

• Engineered for intensive exploitation, its construction combines high working efficiency with outstanding reliability and operational safety.

• With dimensions of 950 mm in height and 1000 mm in depth, and a working volume of 1.0 m³, this attachment performs perfectly in the transport and loading of various materials – ranging from manure and silage, through soil and green waste, to aggregates or construction materials.

• An unladen weight of 595 kg ensures the optimal structural rigidity and resistance necessary when working under heavy loads and on difficult terrain.

• This model is dedicated to cooperating with machines in the 9 to 12-tonne weight class, making it an ideal solution for operators using heavier telehandlers or wheeled loaders.

• Thanks to the large opening angle of the upper jaw, loading material directly against a silo wall or in tight working spaces proceeds smoothly and without complications.

• Two hydraulic cylinders, mounted in the rear section of the device, are responsible for the powerful and even closing of the upper part, providing a stable grip and secure retention of the transported material.

• Nine robust lower tines support efficient material collection, limiting spillage and increasing precision during operation.

• Made of high-grade steel resistant to abrasion and deformation, the structure of the attachment ensures a long service life and minimizes the risk of failure during operation.

• The simple and well-thought-out design facilitates daily operation and maintenance, as well as the quick replacement of working components.

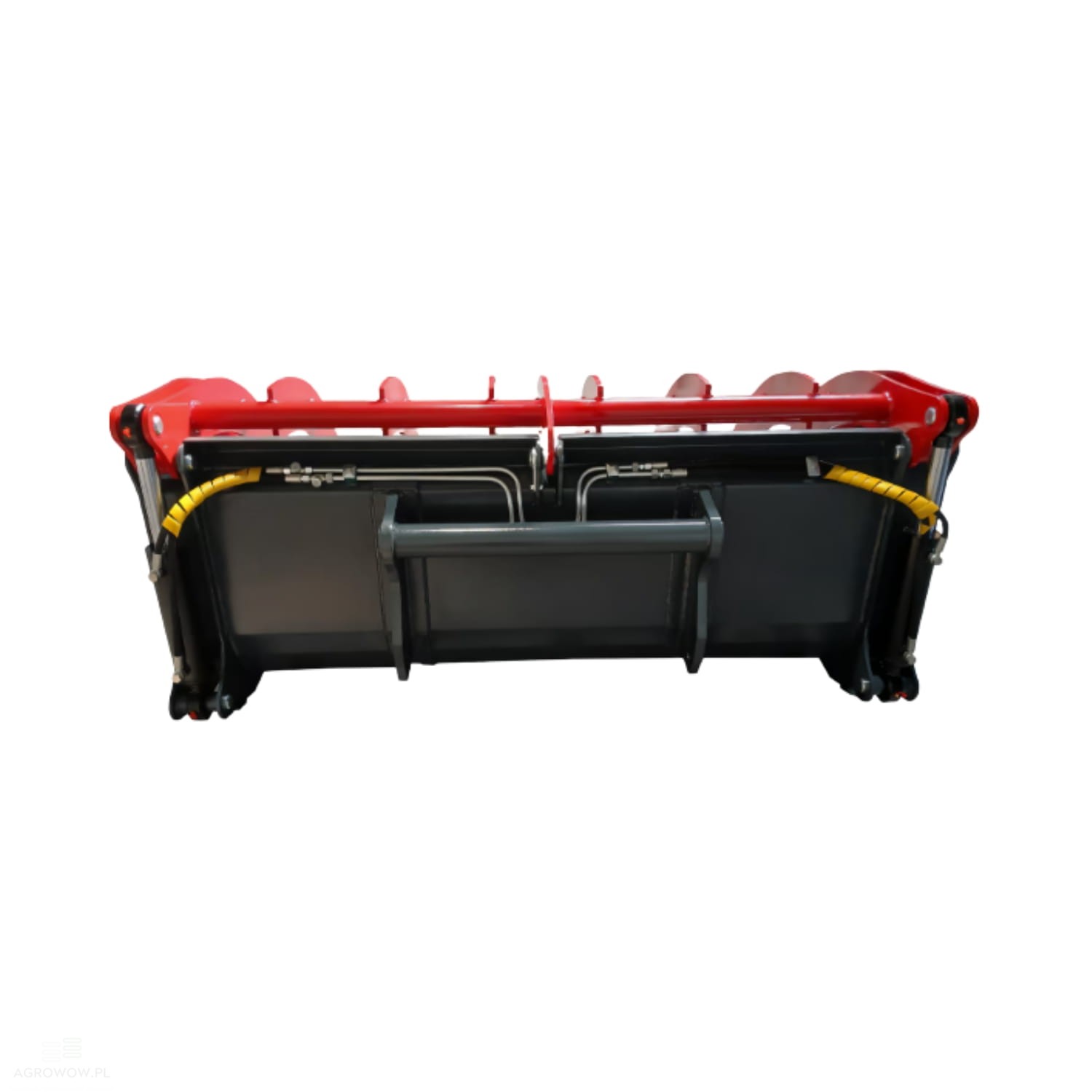

• The standard EURO system mounting guarantees broad compatibility with popular agricultural and construction machinery.

• There is also an option to equip it with an alternative mounting type, tailored to the specific needs of the user and the loader model.

• The 2200 mm grab bucket with a clamp is an excellent choice for professional users seeking a robust, spacious, and reliable tool for daily, intensive work.

• Due to its high functionality and durability, it significantly supports logistical and loading processes in farms and enterprises with high operational demands.
