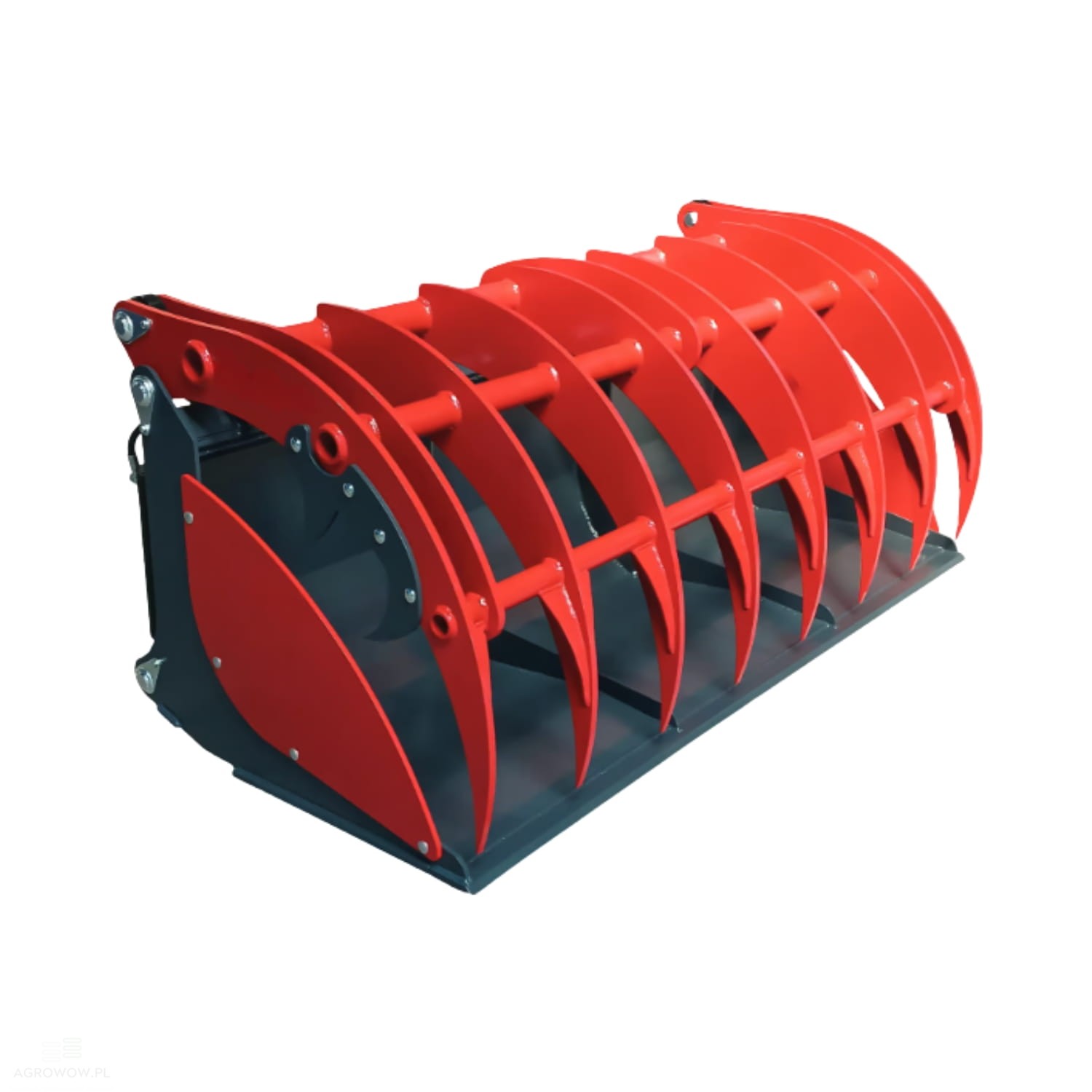

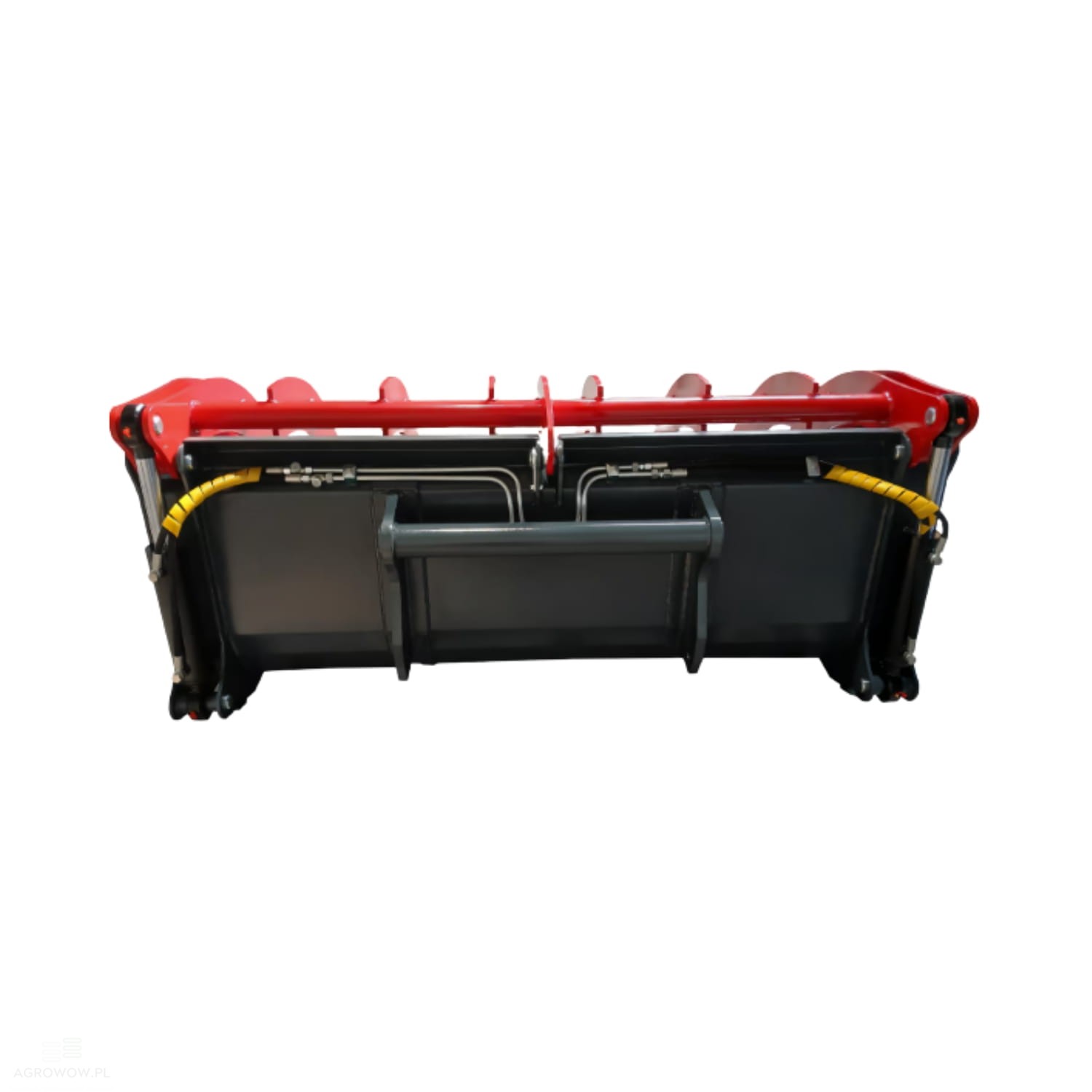

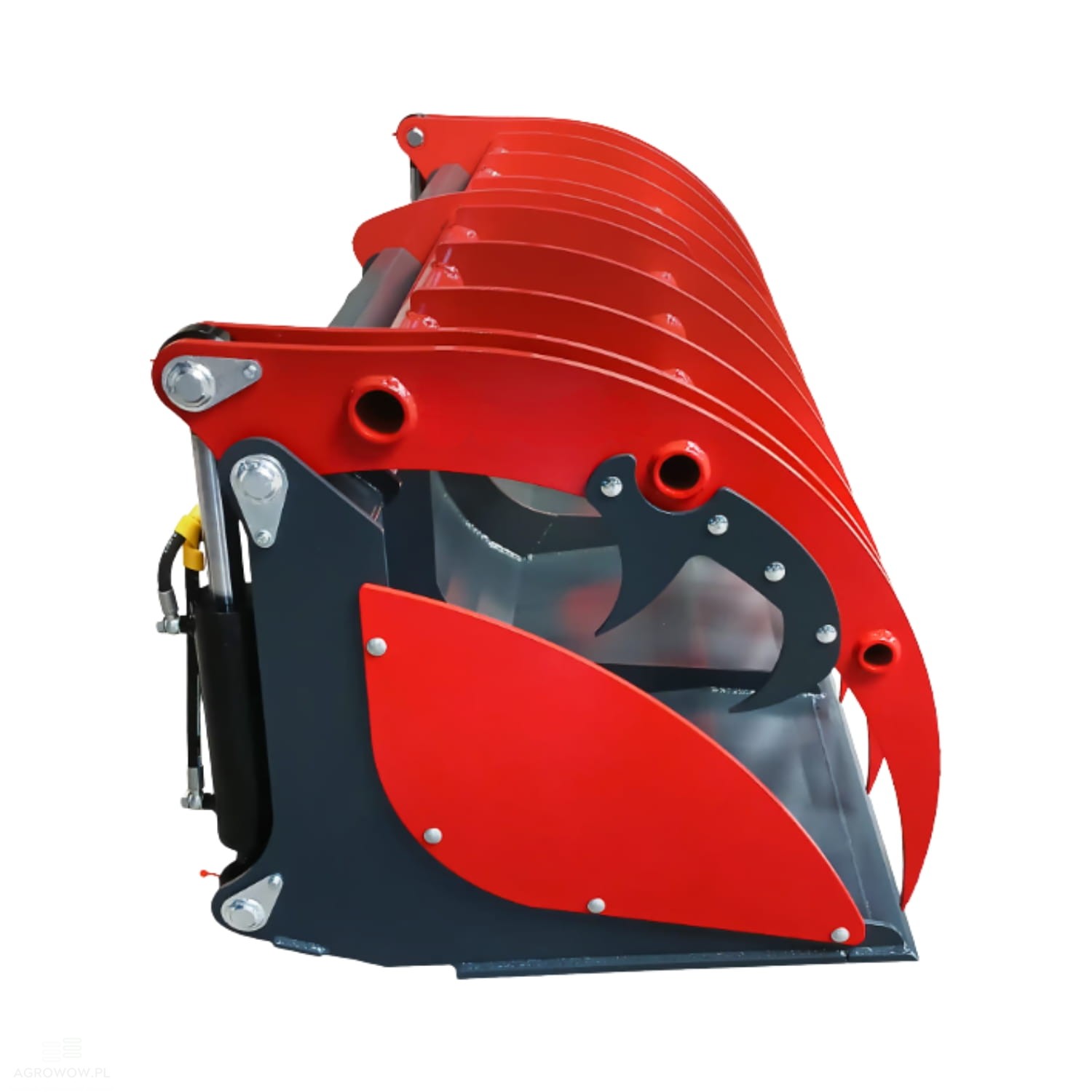

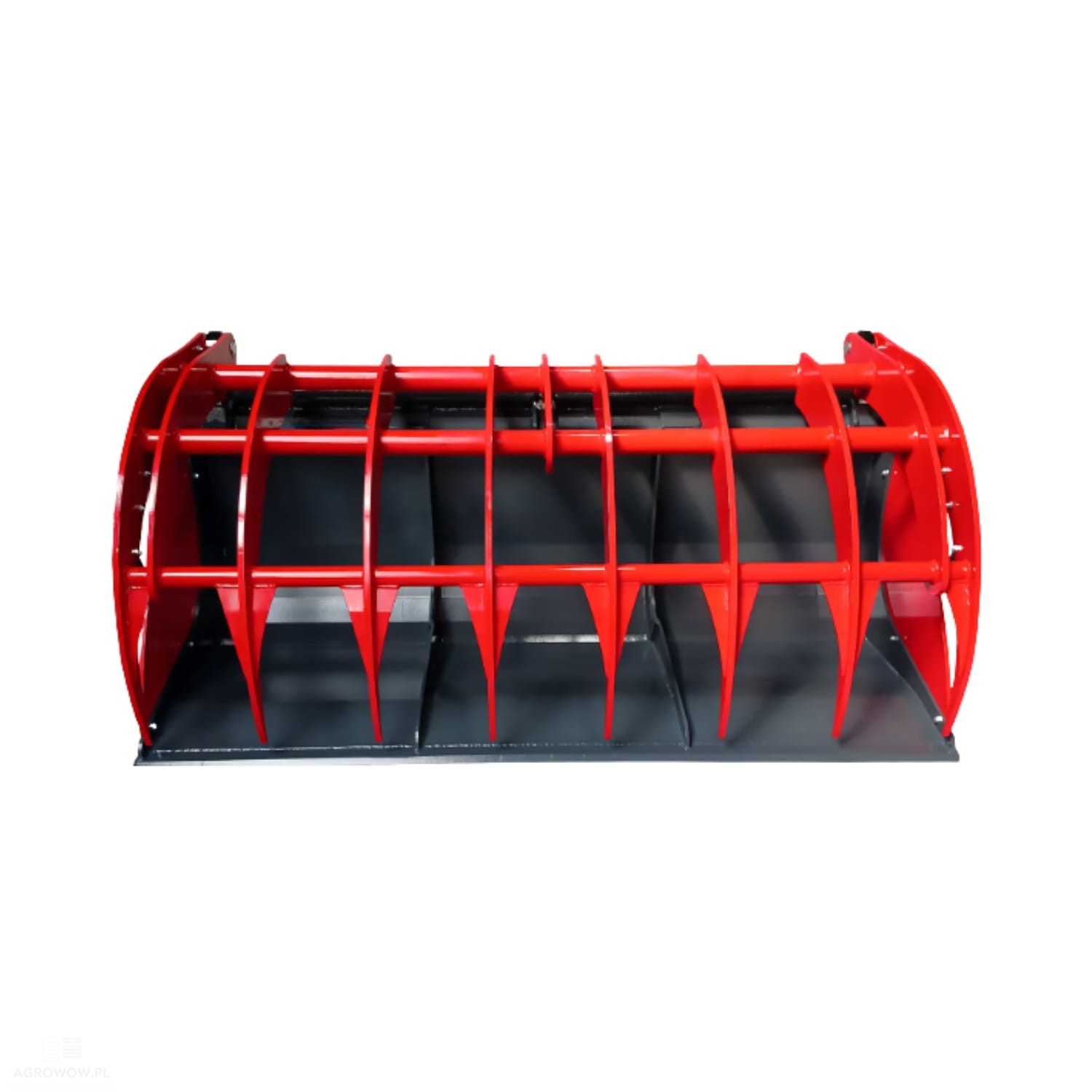

Agrowow 2.4 m grab bucket with a clamp

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW24SD

- Manufacturer's name: Grab bucket with a clamp - profile cut tines

- Width: 2200 mm

- Height: 950 mm

- Depth: 1000 mm

- Weight: 670 kg

- Capacity: 1.1 m³

- Machine weight class: 10-13 T

- Cylinders: 2

- Number of top tines: 10

- Hitch/Mounting: Euro

- Large opening angle of the upper jaw

Optional Extras:

- Mailleux (MX) hitch

A mounting system developed by MX – a well-known manufacturer of front loaders. Unlike the popular Euro hitch, it features a different design and arrangement of attachment points. It is intended for specific loader models of this brand, guaranteeing a durable, precise, and secure connection with the attachment.

- Manitou

A hitch used on Manitou telehandlers. Designed to operate under heavy loads in demanding conditions, it is primarily used in agriculture, orcharding, and construction where reliability and robustness matter.

- Weidemann

A compact system used on Weidemann articulated loaders. It enables quick and convenient connection of working tools. It works excellently for lighter tasks such as livestock handling, feed transport, or green area maintenance.

- JCB hitch (Q-Fit or JCB type)

A mounting system dedicated to JCB wheeled loaders and telehandlers. It ensures a stable and durable connection, even with heavy loads. It is available in several versions depending on the machine model.

- SMS hitch (Stoll, Schäffer and others)

A universal type of mounting used on machines from brands such as Stoll, Schäffer, or Ålö. Its simple and practical design makes it frequently used on compact loaders in Northern and Western European countries.

- Other hitch systems (on request)

Upon customer request, it is possible to manufacture the attachment with a hitch tailored to less common systems – in accordance with individual technical requirements and machine specifications.

Detailed Description:

• The 2200 mm wide grab bucket with a clamp is a robust and high-capacity attachment engineered for the most demanding applications in agriculture, industry, municipal management, and anywhere efficiency and durability are essential.

• Its heavy-duty construction and well-thought-out technical solutions ensure that the device performs perfectly during intensive, daily use in tough working conditions.

• With a height of 950 mm, a depth of 1000 mm, and an increased working volume of up to 1.1 m³, this grab bucket is ideally suited for handling loose, organic, and construction materials – such as silage, manure, soil, green waste, or aggregates.

• An unladen weight of 670 kg translates into outstanding structural stability, ensuring safe use even when transporting heavier loads over uneven terrain.

• The attachment is dedicated to machines in the 10 to 13-tonne weight class, making it an ideal solution for professional operators working with large telehandlers and wheeled loaders.

• The large opening angle of the upper jaw allows for precise material loading in hard-to-reach places – such as against silo walls, in narrow working corridors, or feed pens.

• Two efficient hydraulic cylinders, positioned in the rear section of the frame, guarantee a powerful and even closing of the upper section of the bucket, resulting in effective and secure retention of the load during transport.

• Ten strong profile-cut tines allow for easy penetration into the material and its stable retention without spilling, even when working with large volumes.

• The entire structure is made of high-quality steel resistant to abrasion and deformation, ensuring long-term durability and reducing the risk of mechanical damage.

• The simple, functional design facilitates daily technical maintenance, inspections, and the potential replacement of working components, which improves working comfort and limits downtime.

• The standard EURO mounting system ensures easy compatibility with a wide range of machines available on the market, shortening preparation time.

• For users with other types of loaders, an option to order the attachment with an alternative mounting system is also available – according to individual machine specifications.

• The 2200 mm model with a capacity of 1.1 m³ is the perfect choice for operators expecting performance, durability, and reliability – regardless of the nature of the work performed.

• Its functionality and sturdiness make it excellent for large farms, production plants, and service enterprises alike.
