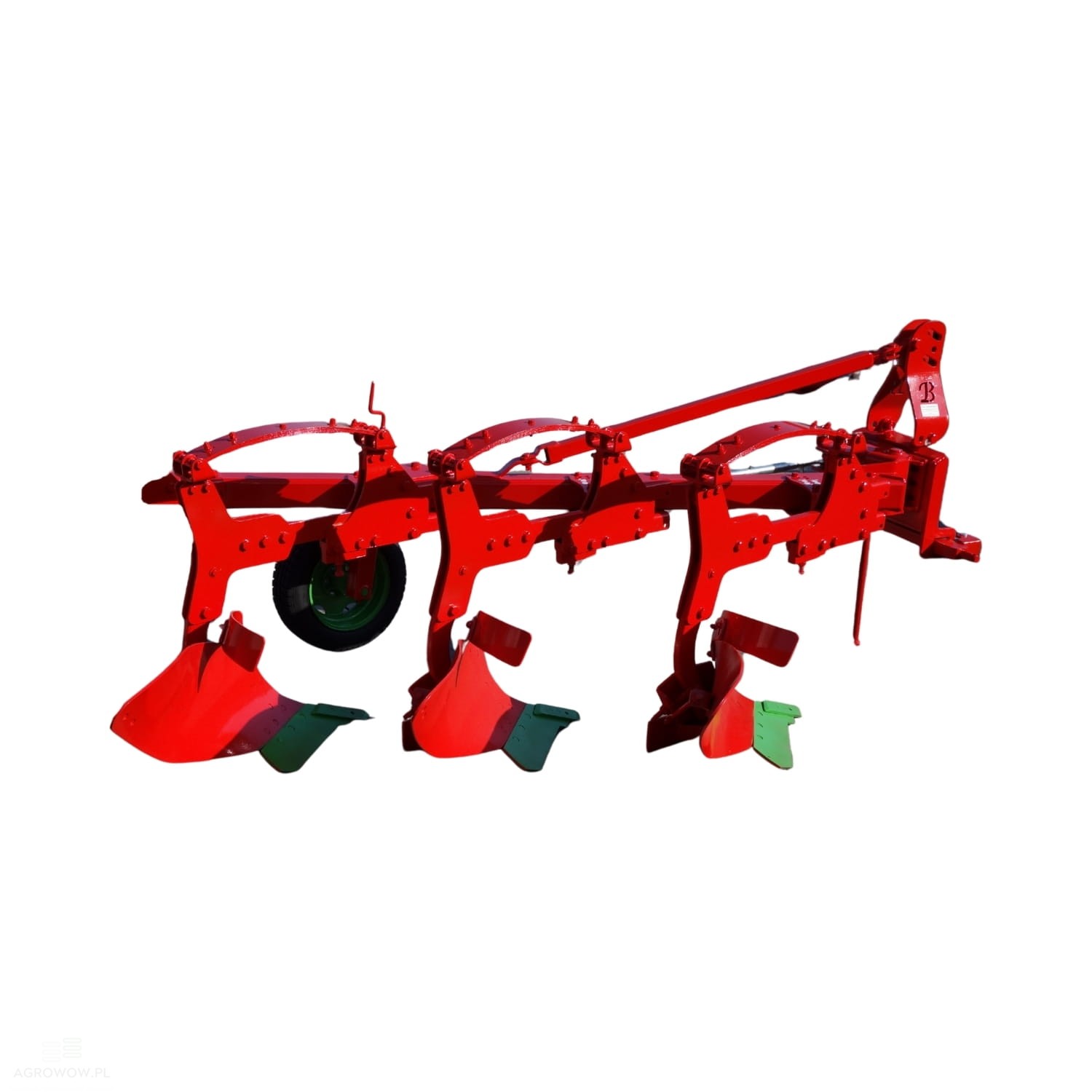

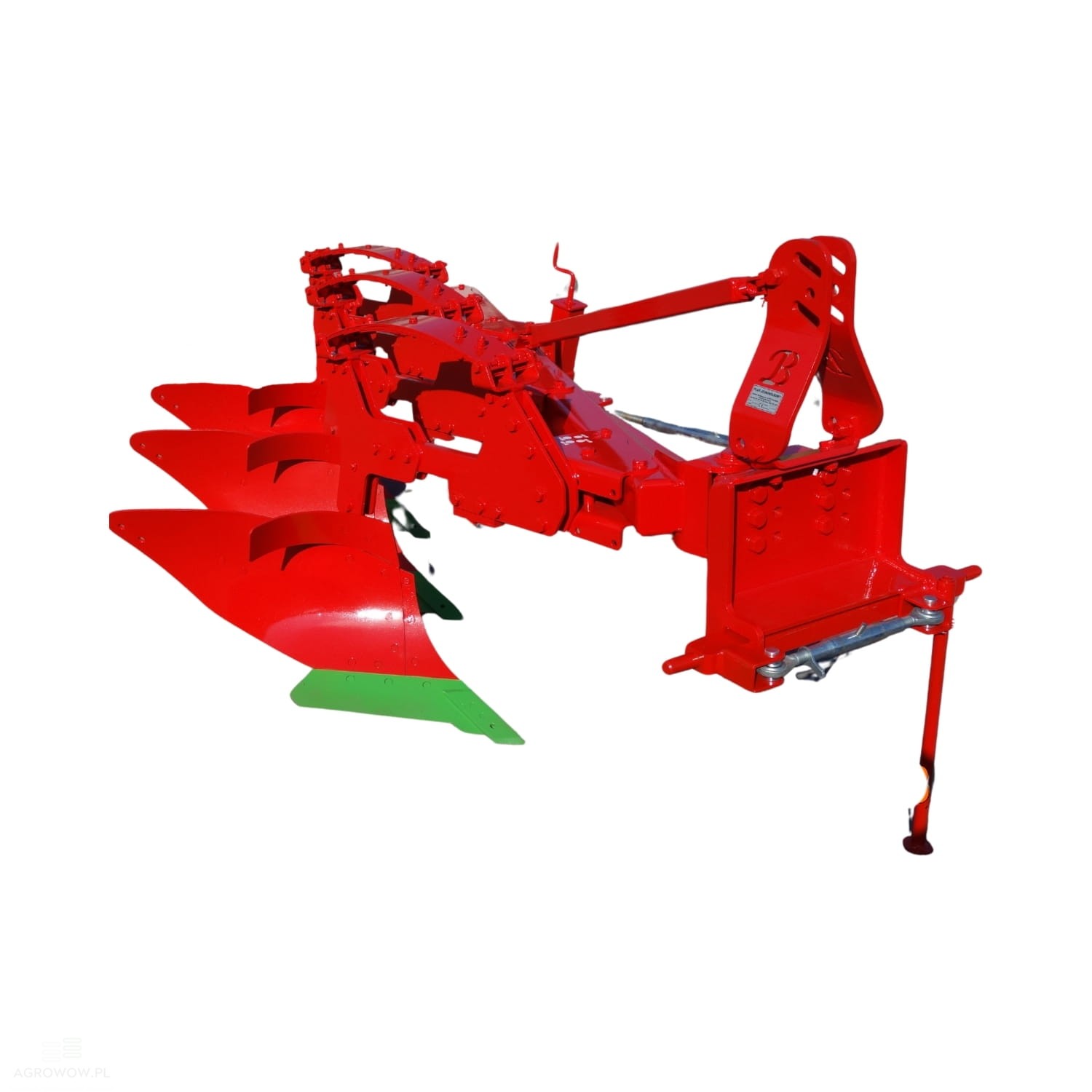

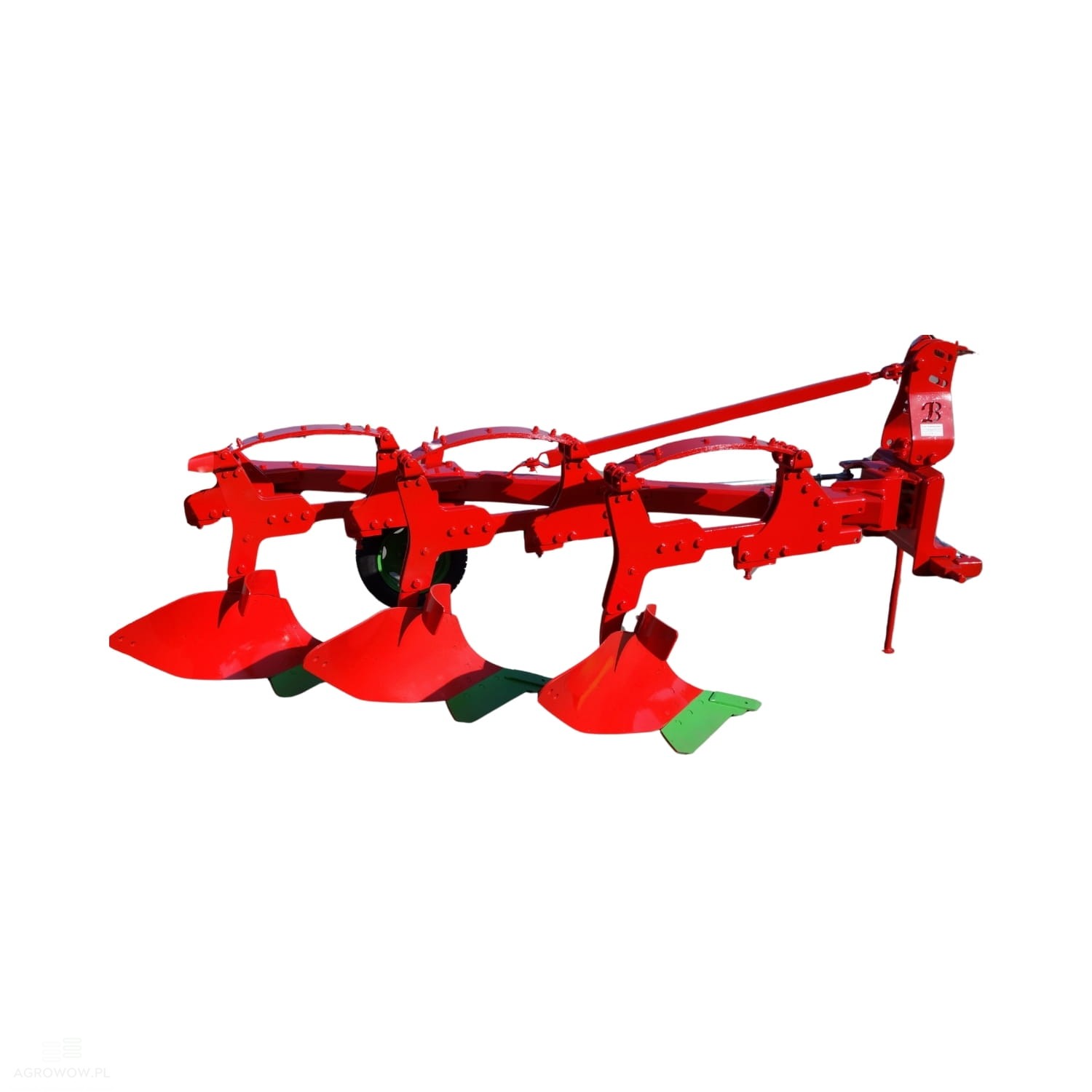

Agrowow 3-bottom agricultural plow with leaf spring protection

Chcesz ustalić parametry i dopasować pług rolniczy do swoich indywidualnych potrzeb?

Jesteśmy w stanie przygotować mocowanie do każdego rodzaju sprzętu — traktora, koparki, ładowarki, wózka widłowego i wielu innych maszyn

Skontaktuj się z naszym inżynierem sprzedaży!

Adres e-mail: sklep@agrowow.pl

Numer telefonu: +48 880 261 210 | +48 504 947 222

Chętnie pomożemy w wyborze odpowiedniej konfiguracji oraz odpowiemy na każde pytanie.

- Manufacturer: Agrowow

- Catalogue number: BA03PJR

- Manufacturer's name: Single-beam plow with leaf spring protection

- Working width: 840–1200 mm

- Weight: 670 kg

- Number of furrows: 3 (3-bottom)

- Power requirement: 85 HP

- Side support wheel

- Protection: leaf spring

- Share: share with chisel

- Step-regulated plowing width: 320, 360, 400, 440 mm

Optional extras:

- Cat. II hitch bar (upon request)

The use of a Category II hitch bar ensures wide compatibility of the plow with popular medium-power tractor models. Thanks to this, the user gains the ability to quickly and easily connect the machine without the need for additional mounting elements or modifications. The solid design of the hitch guarantees stability and secure guidance of the plow even when working in difficult terrain, which positively affects the precision of the performed operations and reduces the wear of working parts. This solution increases both work efficiency and operator comfort.

- Trash boards / Skimmers (upon request)

Trash boards are optional elements mounted on the plow bodies that are responsible for more intensive crumbling and breaking up of the soil after plowing. They effectively eliminate larger clods of earth, improving the structure of the cultivated layer and supporting faster soil settling. Thanks to the use of trash boards, the field surface after plowing becomes more level, which directly translates into better conditions for sowing and uniform plant emergence. Despite their small size, these simple components significantly improve the quality of the plow's work and the overall cultivation efficiency.

- Hydraulically adjustable plowing width (upon request)

The hydraulic plowing width adjustment function allows for instant modification of the working parameters without interrupting the operation. At any time – without leaving the cab – the operator can change the working width in response to changing field conditions, such as soil type, slopes, or row spacing. This solution significantly increases user comfort, enables more precise guidance of the machine, and translates into higher plowing efficiency and better utilization of working time.

Detailed Description:

• The single-beam 3-bottom plow is a compact yet durable tool designed for the efficient plowing of light and medium soils under conditions typical for small and medium-sized farms.

• The machine stands out with its well-thought-out design and solid craftsmanship, which guarantees reliability, easy operation, and a long service life in daily use.

• It is equipped with three working bodies with shares ending in a chisel, which enable effective cutting of the soil and precise furrow shaping, even in more compacted soil structures.

• The total working width ranging from 840 to 1200 mm ensures good performance while maintaining maneuverability, making this model ideal for working on smaller plots or in spaces with limited maneuvering room.

• The step-regulated plowing width (320, 360, 400, 440 mm per furrow) enables quick and convenient adjustment of the operating parameters to the soil type and tractor capabilities, allowing for economical and precise agrotechnical operations.

• The plowing tool comes equipped with a modern leaf spring protection system that protects the working components from overloading and damage when encountering stones, roots, or other underground obstacles.

• This system allows for flexible deflection of the plow body followed by its automatic return to the working position without requiring the machine to stop.

• This solution ensures smooth and safe operation, reducing the risk of breakdowns and improving the continuity of cultivation treatments.

• The machine features a side support wheel that stabilizes the plow during operation and helps maintain a constant plowing depth, resulting in a uniform and well-finished soil structure.

• To operate properly, the agricultural plow requires a tractor with approximately 85 HP, making it compatible with many machinery models available in the medium power class.

• The device's weight of 670 kg ensures adequate downforce on the ground while not restricting maneuverability, which is especially important when working on fields with complex boundary layouts.

• It is a practical and versatile solution for farmers looking for reliable equipment to work in diverse soil conditions, prioritizing efficiency, durability, and user comfort.
