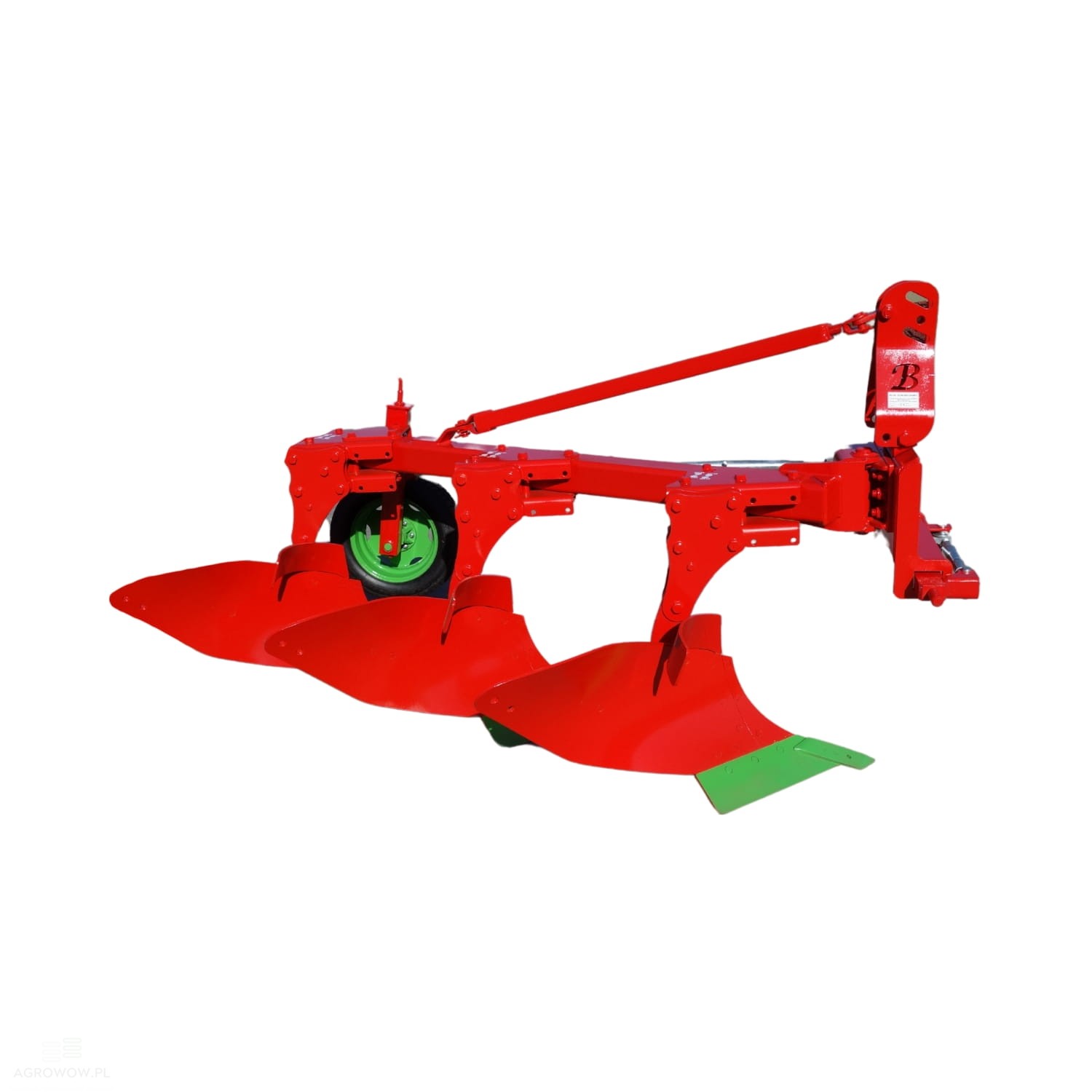

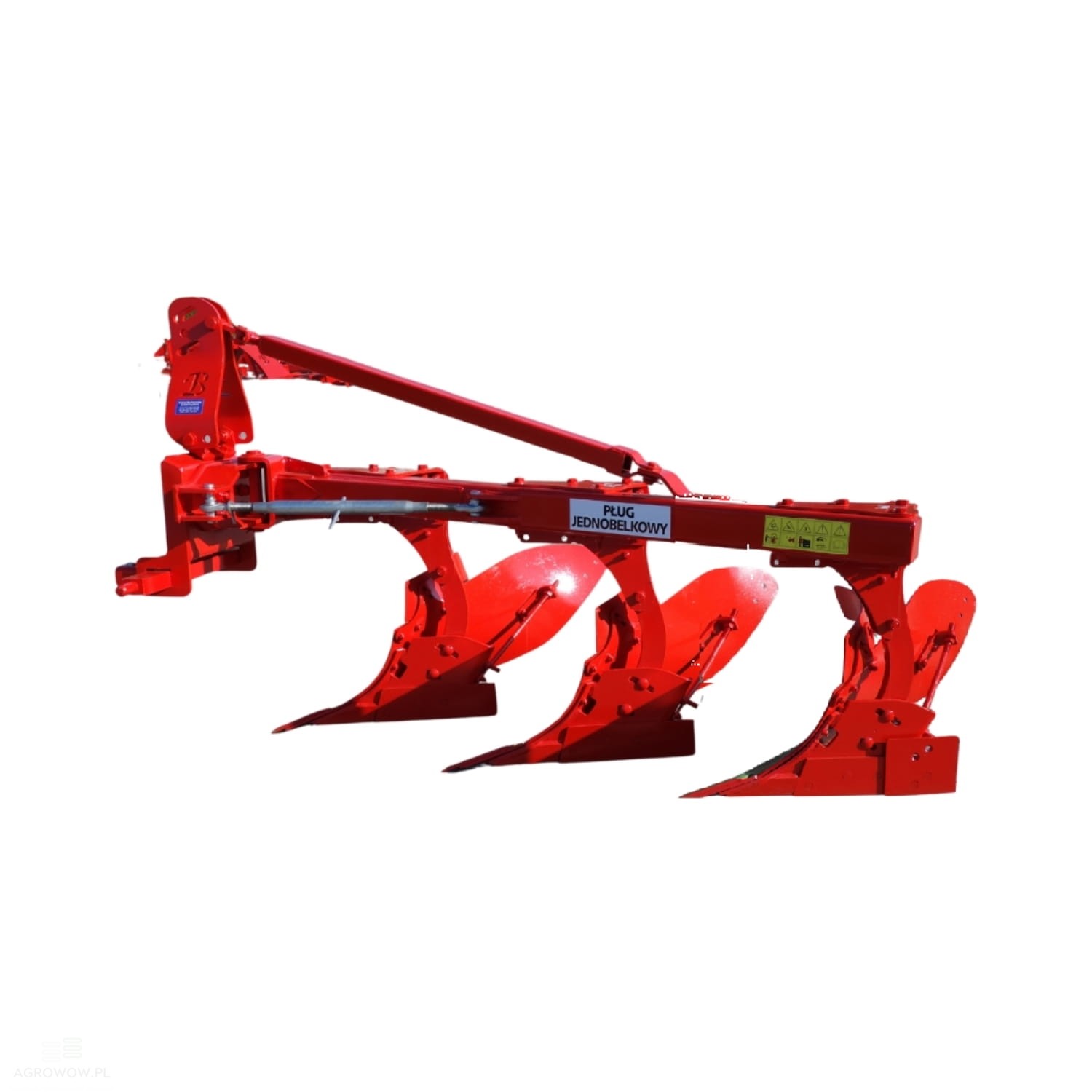

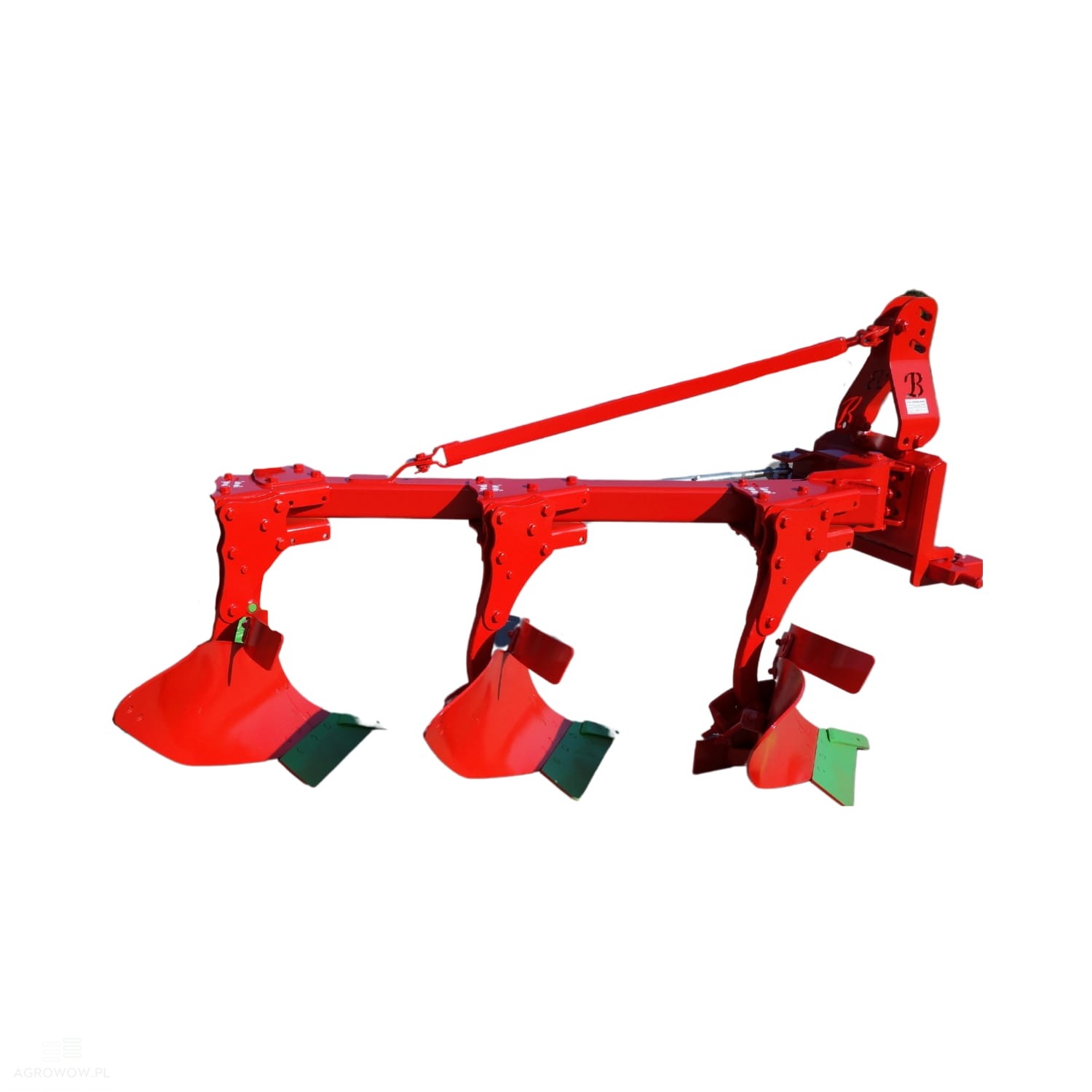

Agrowow 3-bottom agricultural plow with shear bolt protection

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA03PJK

- Manufacturer's name: Single-beam plow with shear bolt protection

- Working width: 840–1200 mm

- Weight: 550 kg

- Number of furrows: 3 (3-bottom)

- Power requirement: 85 HP

- Side support wheel

- Protection: shear bolt (kołkowe)

- Share: share with chisel

- Step-regulated plowing width: 320, 360, 400, 440 mm

Optional extras:

- Cat. II hitch bar (upon request)

The use of a Category II hitch bar ensures wide compatibility of the plow with popular medium-power agricultural tractor models, making the machine a versatile solution for many farms. This standard allows for quick, simple, and safe mounting of the plow without requiring additional adapters or modifications. The solid construction of the hitch guarantees high stability during operation, even in demanding soil conditions. Furthermore, the durable connection to the tractor translates into uniform guidance of the machine during plowing, which affects the precision of the operation and reduces the wear of working elements. This solution increases the convenience of daily operation and minimizes the risk of breakdowns during the most intensive periods of field work.

- Trash boards / Skimmers (upon request)

Trash boards are additional elements mounted on the working bodies of the plow, responsible for more intensive crumbling of the furrow after it is turned. They facilitate the breaking up of large soil fragments, which positively affects its structure and accelerates the natural settling process. Thanks to the use of trash boards, a more level field surface is obtained, which in turn creates more favorable conditions for sowing and promotes uniform plant emergence. This practical solution significantly increases plowing efficiency and raises the quality of agrotechnical work.

- Hydraulically adjustable plowing width (upon request)

Hydraulic plowing width adjustment enables smooth and convenient modification of the working width without needing to stop the machine. The operator can adjust the settings directly from the tractor cab, allowing for a quick response to changing field conditions or terrain layouts. This solution significantly increases working comfort and enhances the overall efficiency of cultivation treatments.

Detailed Description:

• The single-beam 3-bottom plow is a reliable agricultural tool designed for the efficient plowing of light and medium soils.

• Thanks to its compact construction and well-thought-out design, it is ideal for farms that expect durability, simplicity of operation, and precision in performance.

• The machine is equipped with three working bodies featuring shares ending in a chisel, which ensures effective cutting and precise furrow turning even under more demanding conditions.

• The working width starting from 840 mm allows for efficient execution of the plowing treatment while maintaining high maneuverability, which is particularly important in smaller or irregularly shaped plots.

• A major advantage of this model is the step-regulated plowing width in the range of 320, 360, 400, and 440 mm per furrow.

• This enables easy adjustment of the operating parameters to the soil type and tractor power, translating into plowing efficiency and the optimal use of available resources.

• The agricultural plow features a shear bolt protection system, which safeguards the structure against damage in case of striking an obstacle such as a stone or a hard clod of earth.

• This simple yet effective solution increases operational safety and reduces the risk of downtime.

• An additional asset is the side support wheel, which stabilizes the machine during operation and helps maintain a uniform plowing depth across the entire working width.

• The tractor power requirement is 85 HP, allowing the plow to successfully work with popular medium-class agricultural tractors without overloading the drivetrain.

• A low net weight of 550 kg facilitates transport and maneuvering of the equipment in the field.

• The single-beam plow with shear bolt protection for tractors is an ideal choice for farmers seeking durable, efficient, and easy-to-use equipment for daily field work.
