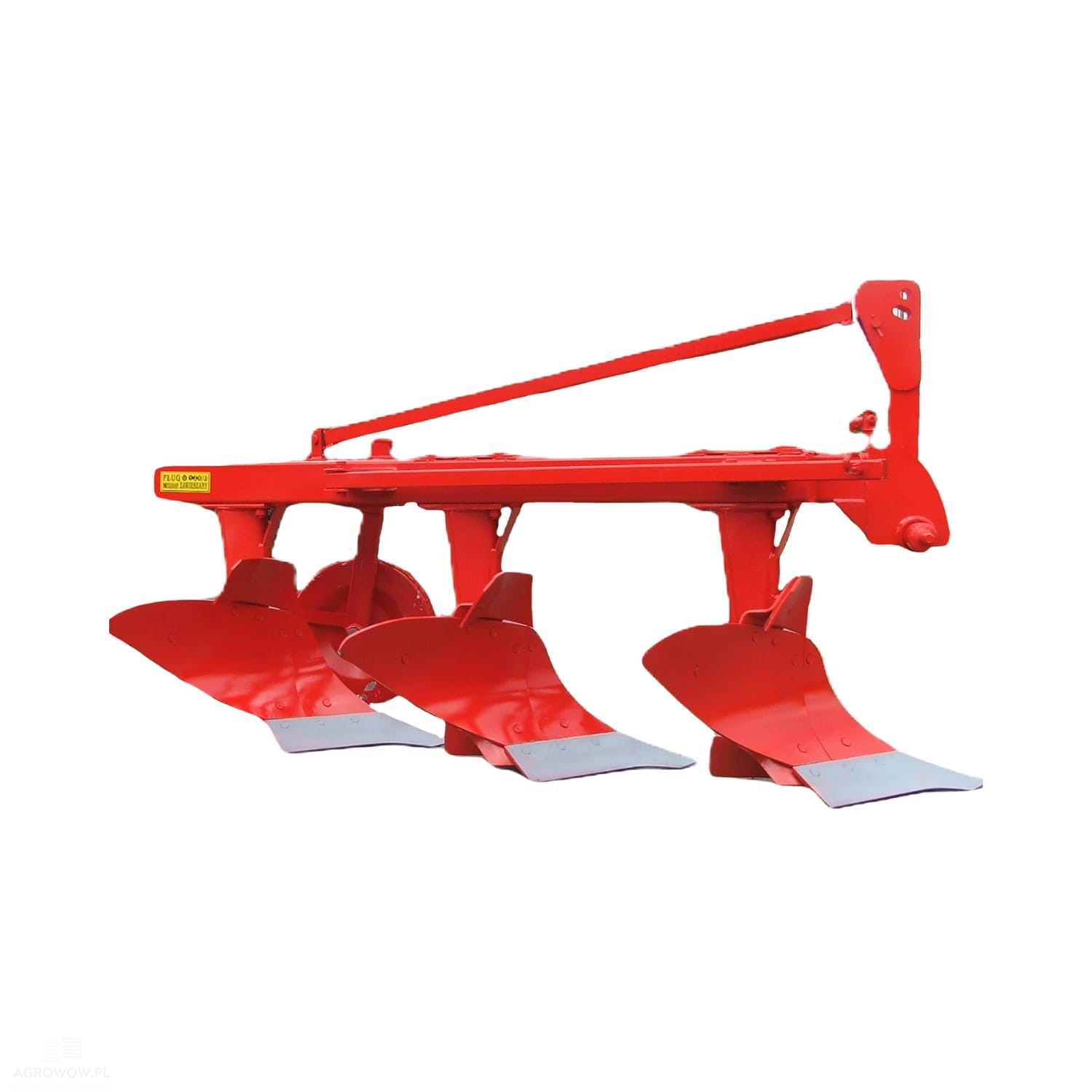

Agrowow 3-bottom bed plow with raised frame

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA03PZP

- Manufacturer's name: High-clearance conventional plow

- Working width: 900 mm

- Weight: 300 kg

- Number of furrows: 3 (3-bottom)

- Power requirement: 48 HP

- Legs with furrow width: 300 mm

- Moldboards: semi-helical

- Under-frame clearance: 700 mm

- Wheel: wide, bushed, metal

- Medium and deep plowing

- Fixed working width

Optional extras:

- Bearing-mounted wheel (upon request)

A wheel equipped with bearings significantly improves the machine's operation, ensuring light and smooth guidance, especially on uneven, demanding terrain. Thanks to the reduction of rolling resistance, wear on components such as the axle and hub is decreased, which leads to less frequent maintenance needs and lowers operating costs. This solution extends the lifespan of the running gear and significantly improves operator comfort – particularly during long hours of field work, when vibration reduction becomes especially important.

- Rubber wheel (upon request)

A rubber support wheel is a functional solution designed for operation in diverse soil conditions. Its flexible surface adapts perfectly to ground irregularities, reducing vibrations and increasing the stability of the plow's guidance. Additionally, this wheel operates more quietly than steel versions and effectively prevents sinking into soft or waterlogged soil. This not only improves the operator's working comfort but also reduces the load on components and extends the machine's lifespan.

- Coulter (upon request)

A coulter is a cutting working element mounted in front of the plow body, whose task is to cut through the soil and organic residues, such as straw, weeds, or catch crops. Thanks to it, the furrow is precisely sliced before being turned over, which improves the cleanliness of the plowing and limits the risk of the machine clogging. The coulter significantly raises cultivation quality, especially in fields with a large amount of plant residue, and its presence allows for an aesthetic and evenly plowed result.

Detailed Description:

• The 3-bottom high-clearance bed plow is a compact yet solid agricultural tool designed for medium and deep plowing on light and medium soils.

• Thanks to its well-thought-out design, this tractor plow is ideally suited for smaller and medium-sized farms where reliability, working precision, and ease of use are what matter most.

• The machine is equipped with three working legs, each operating at a furrow width of 300 mm, resulting in a total working width of 900 mm.

• The fixed working width guarantees repeatable results under all conditions, which significantly contributes to a uniform preparation of the soil for sowing.

• The semi-helical moldboards used in this model ensure effective turning of the furrow, excellent crumbling of the soil, and its thorough mixing with organic residues.

• Thanks to this, the plowing process is more effective, and the soil quickly achieves the proper structure for subsequent stages of cultivation.

• A major advantage of the plow is its under-frame clearance of 700 mm, which allows for operation in conditions with a larger amount of crop residue.

• This solution limits the risk of the machine clogging and allows for workflow continuity, even with a high density of organic matter.

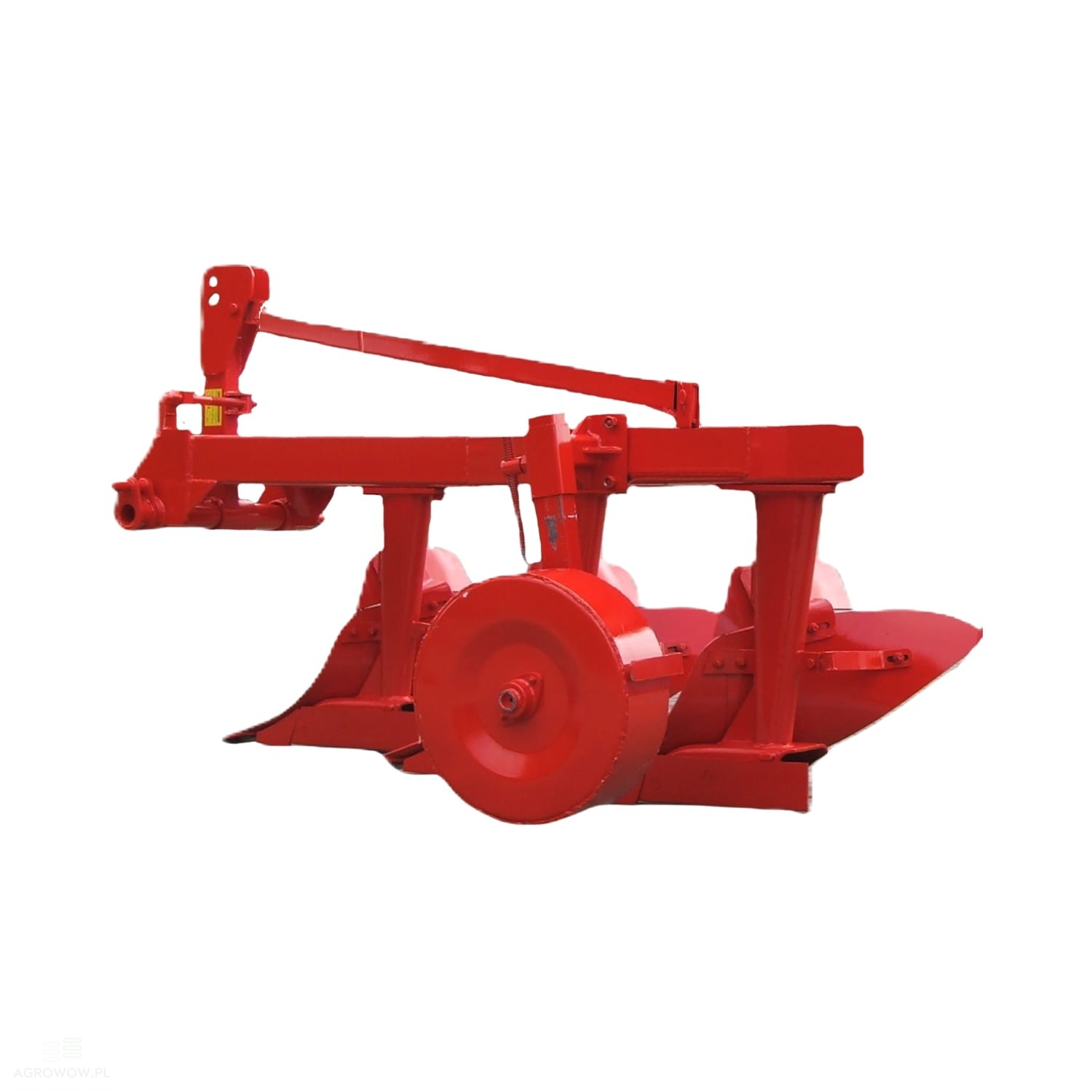

• The standard equipment includes a wide, bushed metal wheel, which not only facilitates the guidance of the machine but is also responsible for maintaining a stable and uniform plowing depth.

• The bushing increases durability and resistance to intensive use, while the metal construction ensures reliability in all terrain conditions.

• With a relatively low net weight of 300 kg and a power requirement of 48 HP, this agricultural plow can be easily paired with most light- and medium-power tractors, making it an exceptionally versatile solution for many types of farms.
