Agrowow 3-bottom bed plow with raised frame – ATLAS

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

Numer telefonu: +48 880 261 210 | +48 504 947 222

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA03PZA

- Manufacturer's name: High-clearance conventional plow ATLAS

- Working width: 1050 mm

- Weight: 400 kg

- Number of furrows: 3 (3-bottom)

- Power requirement: 56 HP

- Legs with furrow width: 350 mm

- Moldboards: long semi-helical

- Under-frame clearance: 700 mm

- Wheel: wide, bushed, metal

Optional extras:

- Bearing-mounted wheel (upon request)

The application of a wheel mounted on bearings is a significant improvement affecting the operating smoothness of the entire machine. Bearings substantially reduce rolling resistance, allowing the plow to be guided lightly and stably, even when working on uneven terrain. This solution limits the wear on the axle and other interacting mechanical components, which directly translates into lower maintenance requirements and a longer machine lifespan. The bearing-mounted wheel also improves operator comfort during long-term plowing operations by reducing vibrations transmitted to the tractor and plow.

- Rubber wheel (upon request)

A rubber support wheel is excellent for diverse and challenging ground conditions. Thanks to its flexibility, it adapts better to the soil surface, effectively dampening vibrations and improving the machine's guidance stability. Additionally, it considerably reduces noise during operation and decreases the risk of the plow getting bogged down on soft, damp ground. The rubber wheel increases operator comfort and extends the lifespan of components exposed to dynamic loads, especially during longer work cycles.

- Coulter (upon request)

A coulter is a specialized cutting element mounted in front of the working plow body, which plays a key role in preparing the soil for turning. Its main task is to cut through the soil and the organic layer (e.g., straw, weeds, catch crops), which significantly facilitates subsequent furrow formation and turning. The coulter improves plowing quality, prevents the bodies from clogging, and allows for a clean, even field surface. It is particularly useful in conditions with a large amount of crop residue or when plowing catch crops.

- Furrow width 400 mm (upon request)

A furrow width of 400 mm is an optimal parameter that ensures efficient plowing while maintaining moderate tractor power requirements. This solution allows for effective field coverage without overloading the machinery, while simultaneously providing precise and uniform soil turning. Thanks to this width, the plow can be utilized in both medium and larger farms, offering high efficiency while maintaining good maneuverability and operational stability.

Detailed Description:

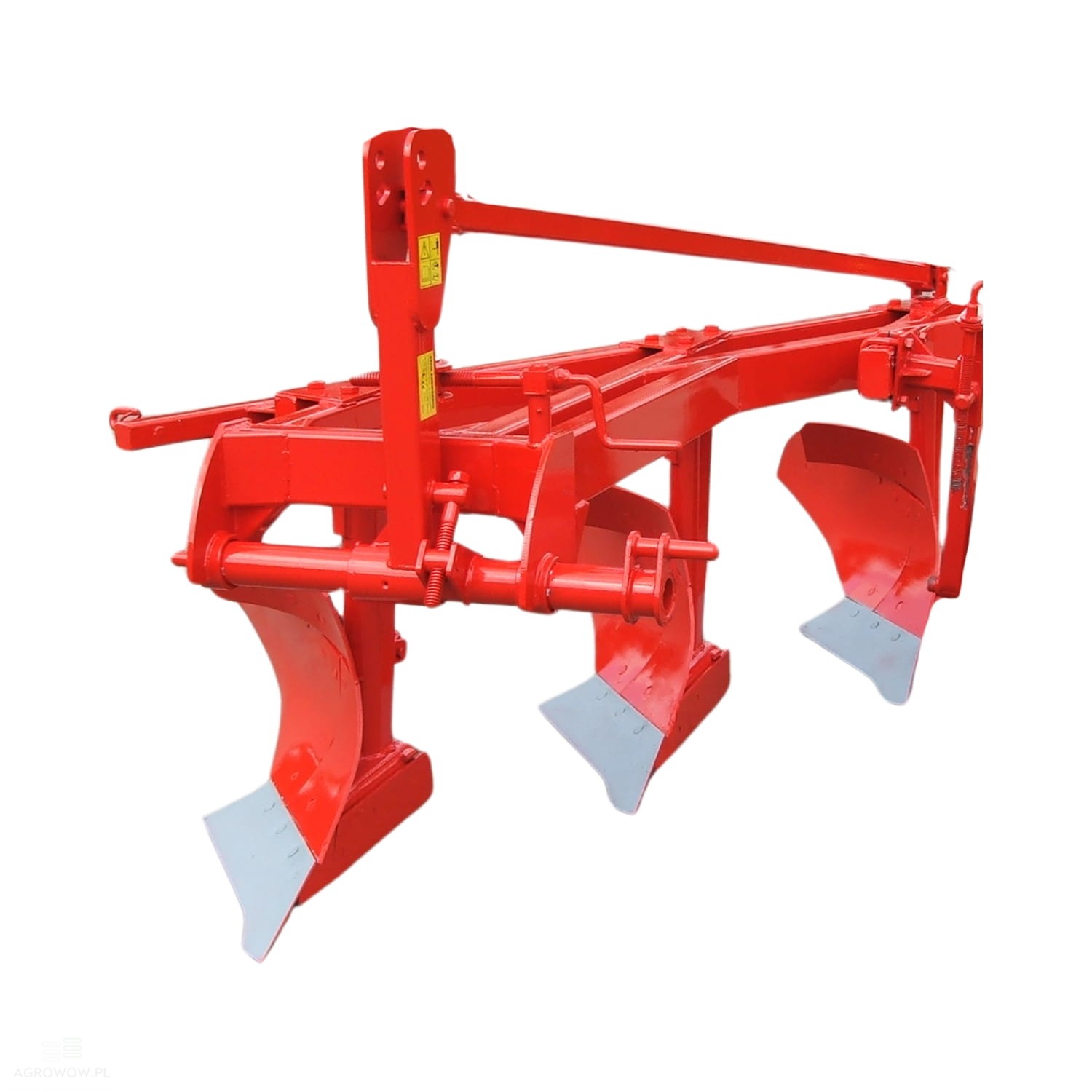

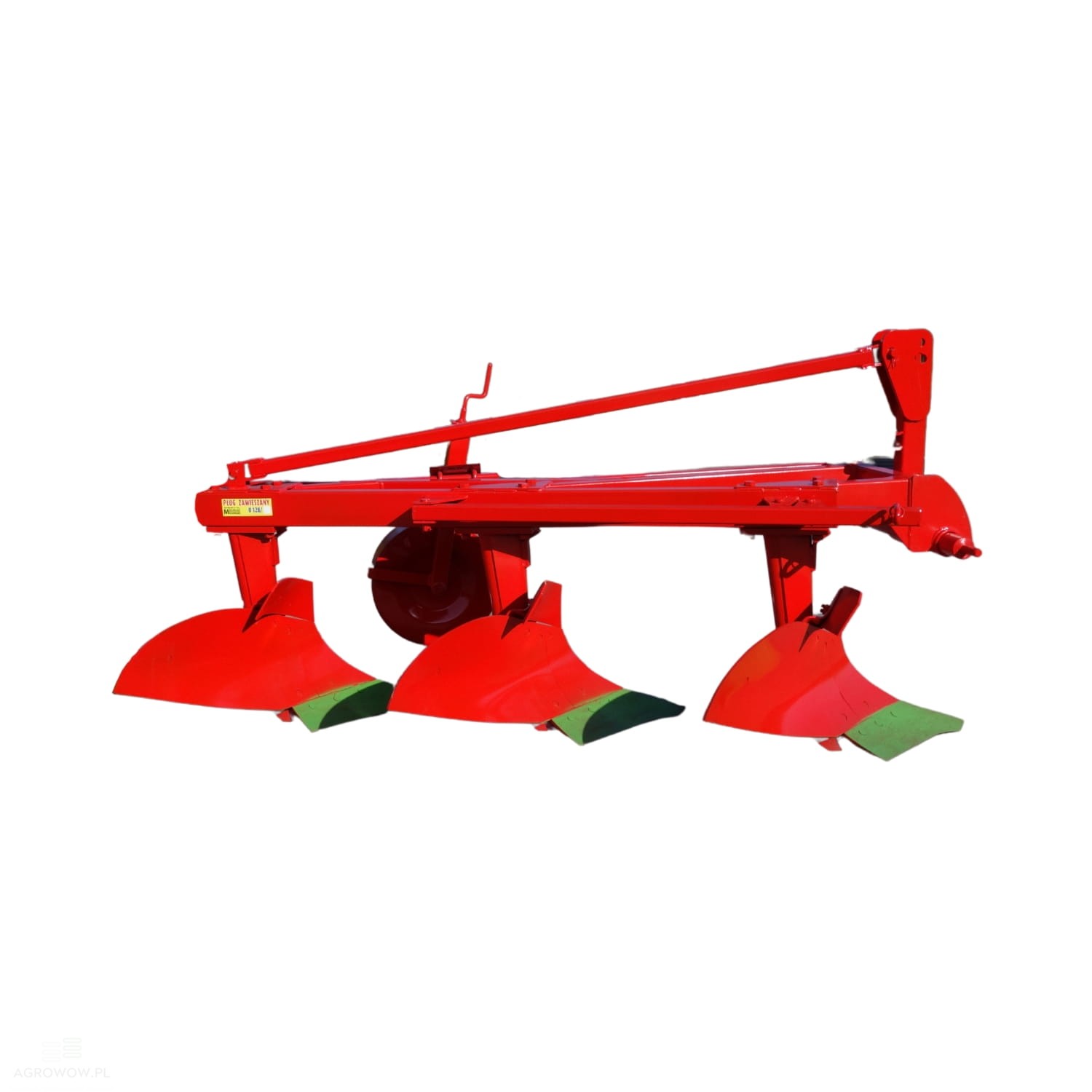

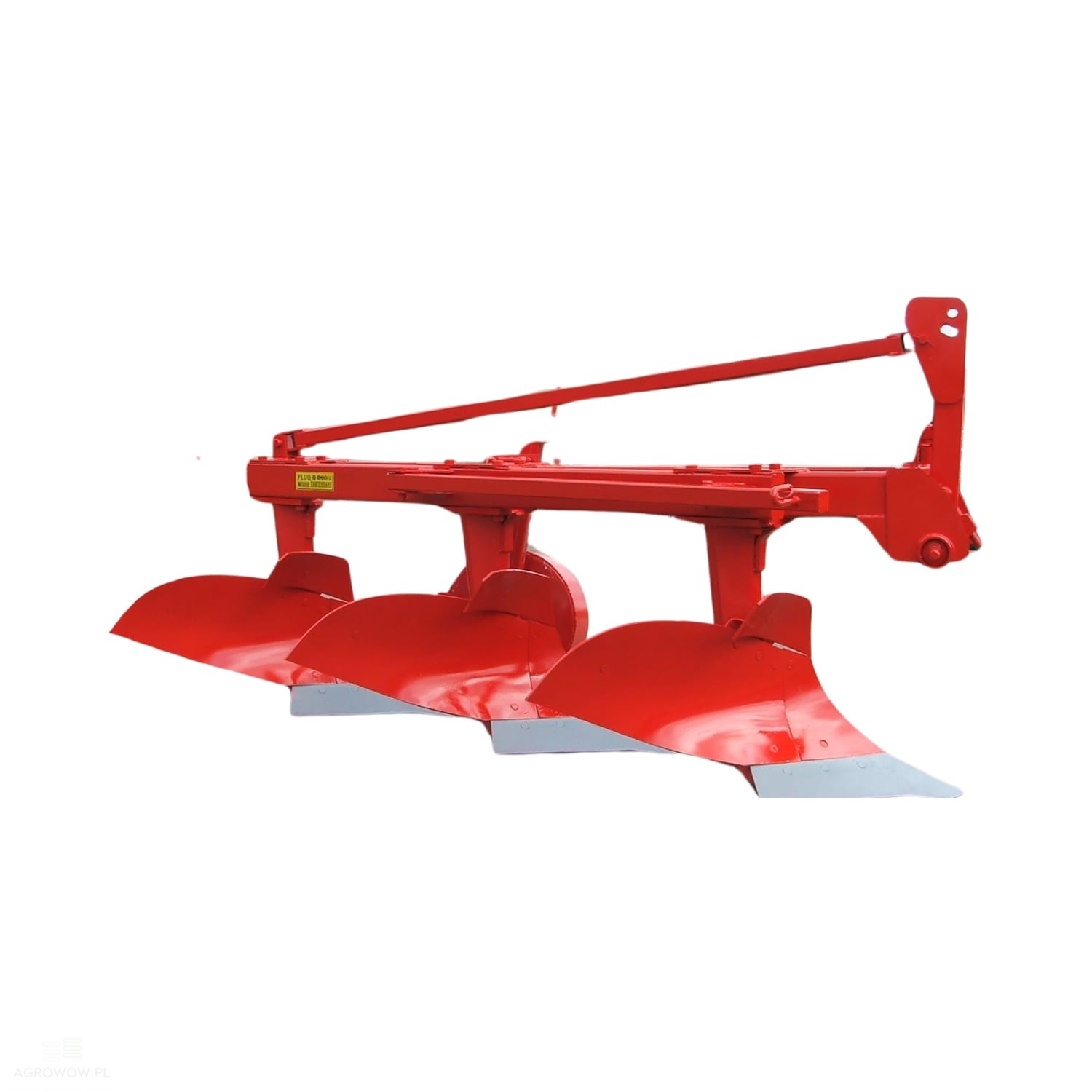

• The 3-bottom ATLAS high-clearance bed plow is a durable and reliable agricultural tool designed for effective plowing on light and medium soils.
• Thanks to its solid, raised construction, it performs excellently in both traditional cultivation and deep plowing, ensuring high work efficiency even in more challenging field conditions.
• The machine is equipped with three working bodies, each featuring a leg with a furrow width of 350 mm.
• The total working width is 1050 mm, allowing for efficient field coverage without losing precision.
• Long semi-helical moldboards effectively turn the furrow, crumble it well, and mix it uniformly with the ground, which translates into a better soil structure and facilitates subsequent agrotechnical operations.
• The agricultural plow features a large under-frame clearance of up to 700 mm, allowing for comfortable operation even in the presence of crop residues or larger amounts of biomass, minimizing the risk of the machine clogging.
• As standard, the ATLAS model is equipped with a wide, bushed metal wheel, which is responsible for stable plow guidance and maintaining a uniform working depth across the entire field surface.
• With a weight of 400 kg and a power requirement of 56 HP, the plow can be successfully used with light- and medium-class tractors, while ensuring good traction and appropriate downforce on the soil.
• This bed plow is an excellent choice for farmers looking for a durable, easy-to-operate, and effective tool for daily work that will perform well in various cultivation conditions and ensure a long, trouble-free lifespan.
