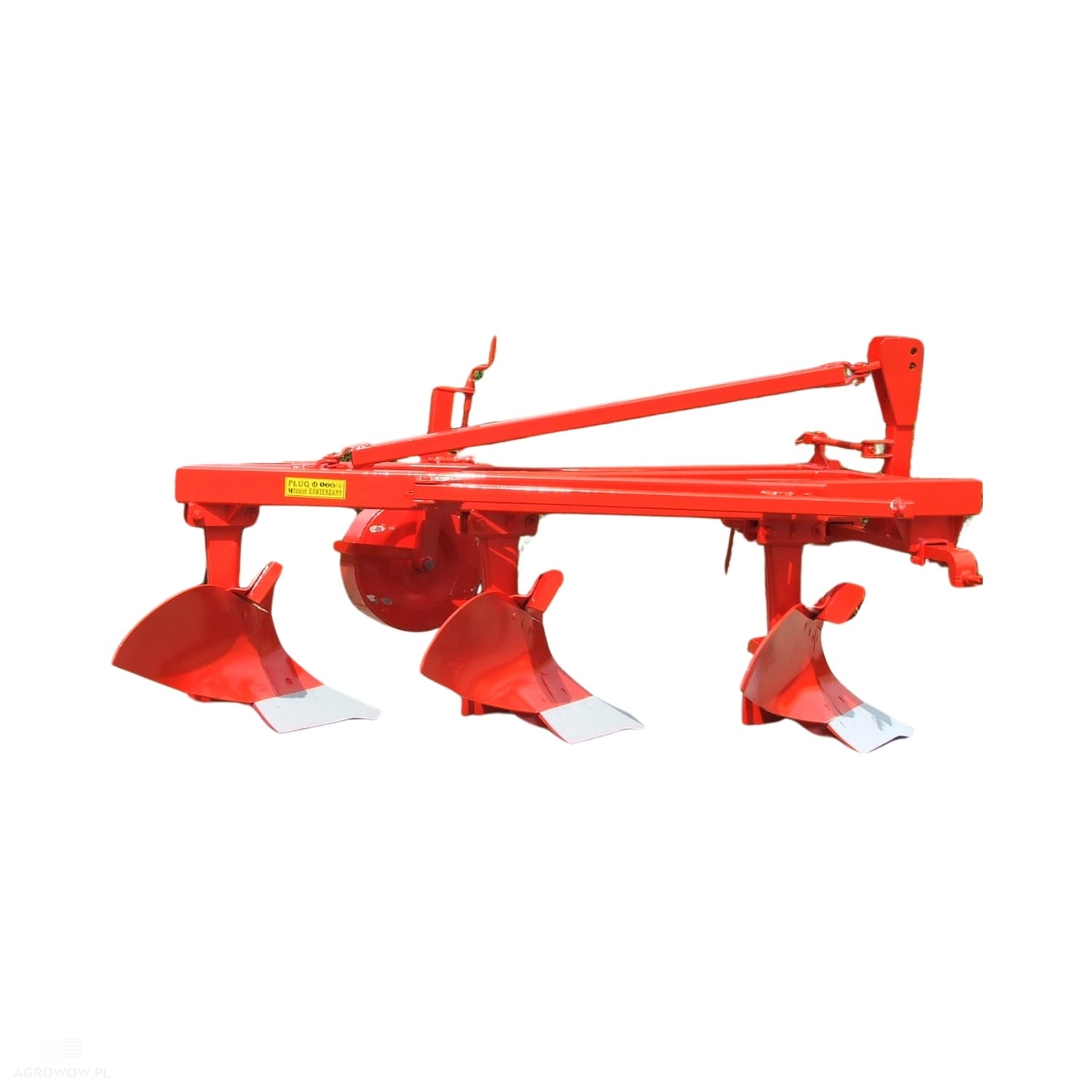

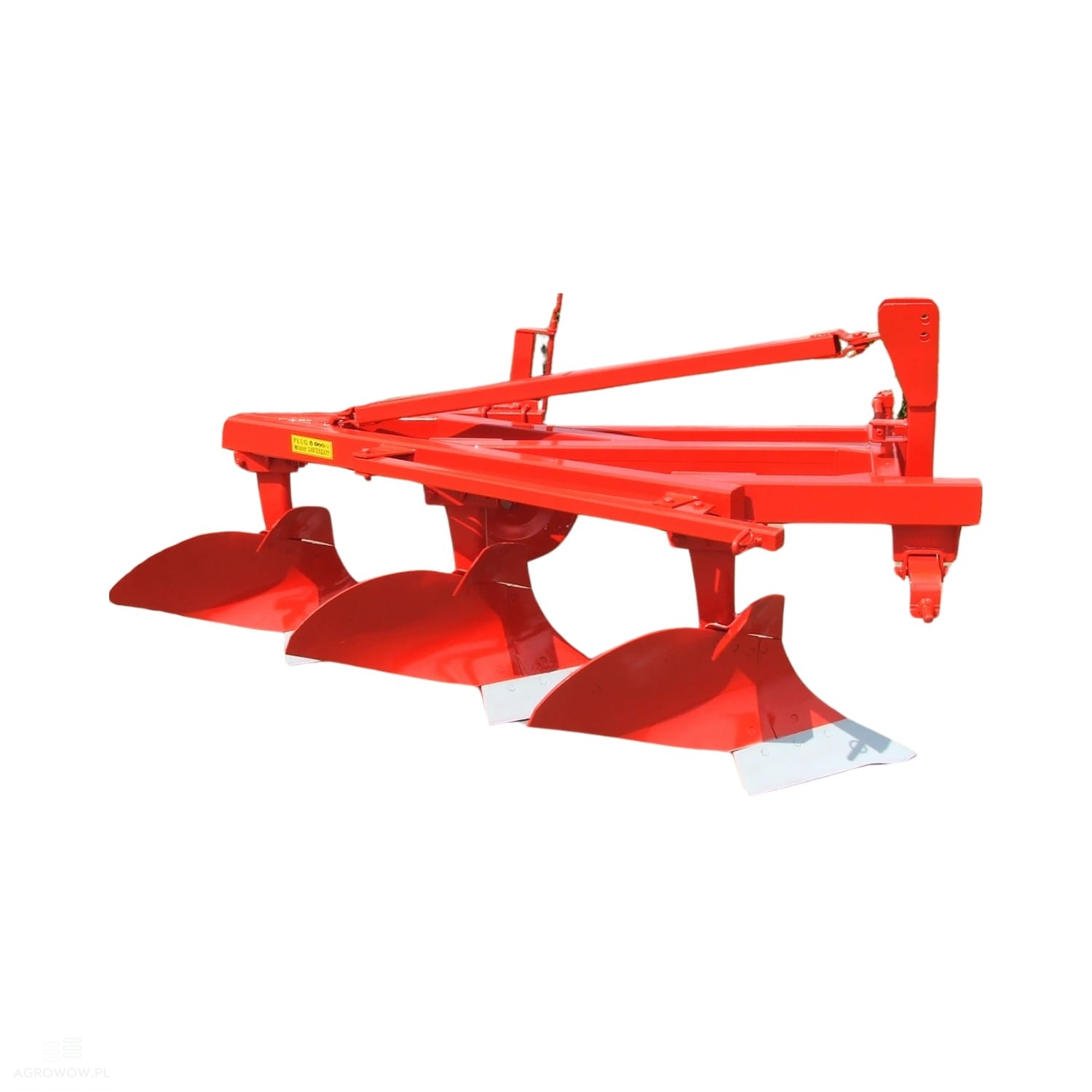

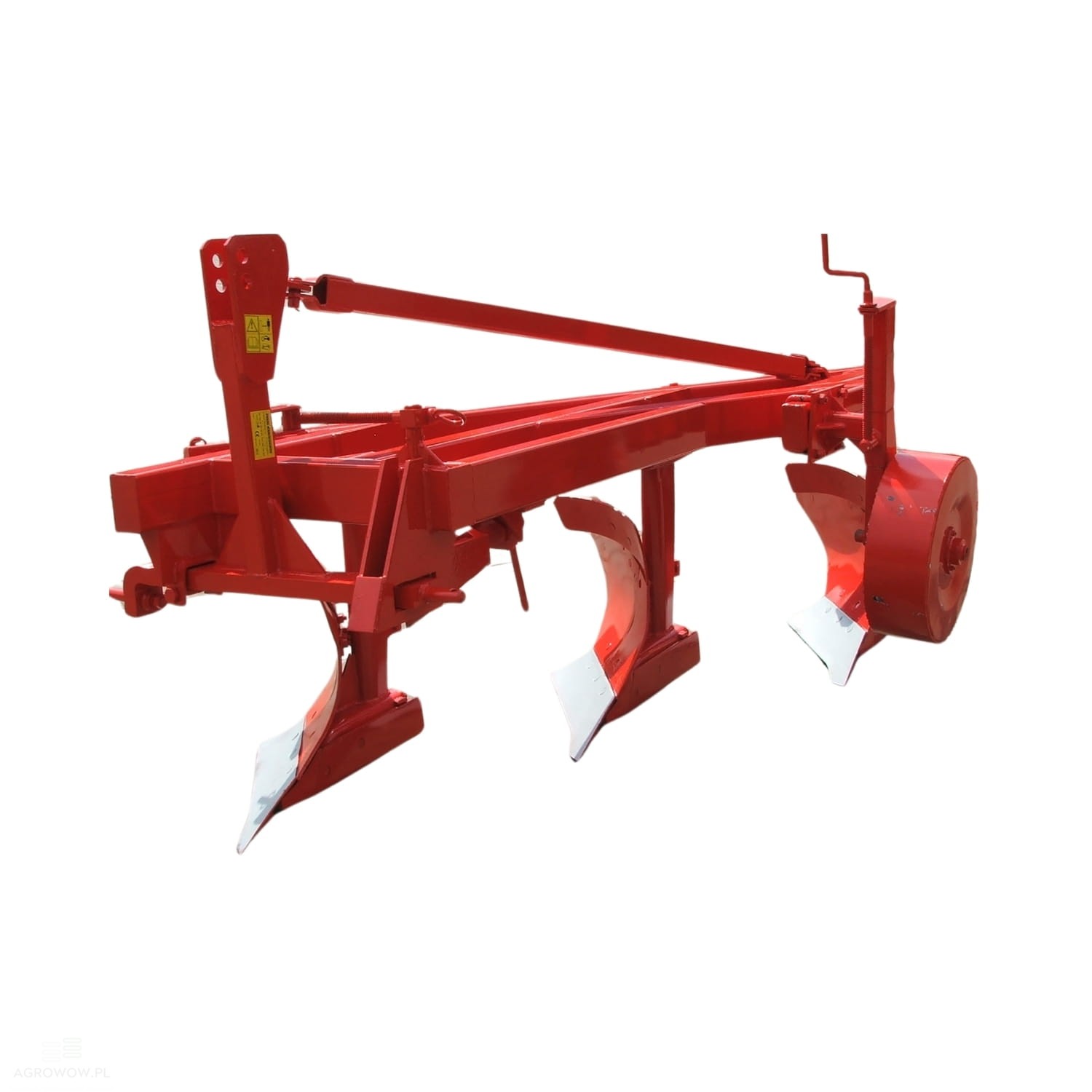

Agrowow 3-bottom bed plow with raised frame and shear bolt protection – ATLAS

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA03PPZ

- Manufacturer's name: High-clearance conventional plow ATLAS with shear bolt protection

- Working width: 1200 mm

- Weight: 450 kg

- Number of furrows: 3 (3-bottom)

- Power requirement: 68 HP

- Legs with furrow width: 400 mm

- Moldboards: long semi-helical

- Under-frame clearance: 700 mm

- Protection: mechanical stone protection

- Wheel: wide, bushed, metal

Opcje dodatkowo płatne:

- Bearing-mounted wheel (upon request)

A wheel mounted on bearings ensures smooth rotation and minimizes rolling resistance during field work. Thanks to the use of bearings, wear on interacting components is reduced and the plow's guidance stability is improved. This solution increases the durability of the running gear as well as the comfort of using the machine, especially during long-term plowing.

- Rubber wheel (upon request)

A rubber wheel improves shock absorption and adapts better to terrain irregularities compared to traditional steel wheels. It ensures quieter and smoother operation of the plow, while reducing the vibrations transferred to the machine's structure. Additionally, its flexible surface reduces the risk of getting bogged down on muddy or soft soils.

- Coulter (upon request)

A coulter is a cutting element mounted in front of the working plow body. Its task is to pre-cut the soil and the layer of plant residues before the main body passes, which facilitates furrow turning and improves plowing quality. The coulter performs particularly well in fields with a large amount of straw, weeds, or in catch crop cultivation, ensuring a cleaner and more uniform working effect.

Detailed Description:

• The 3-bottom plow with mechanical stone protection is a reliable agricultural tool created for efficient soil cultivation under challenging field conditions.

• Thanks to its robust construction and refined technical parameters, it performs excellently during deep plowing on light, medium, and non-uniform soils.

• The machine is equipped with three working legs, each operating at a furrow width of 400 mm, which results in a total working width of 1200 mm.

• An adequate under-frame clearance of 700 mm allows for trouble-free work in the presence of crop residues or in fields with a large amount of organic matter, minimizing the risk of clogging.

• Long semi-helical moldboards are used in this model, ensuring precise turning of the furrow, good crumbling, and uniform mixing of the soil.

• This solution significantly improves soil structure and accelerates its preparation for subsequent cultivation stages.

• The plowing tool is protected mechanically – a shear bolt system protects the working components from damage in the event of striking obstacles such as stones or excessively hard soil fragments.

• This solution is simple, effective, and economical to maintain.

• The standard equipment includes a wide, bushed, metal support wheel, which stabilizes the machine during operation and helps maintain a uniform plowing depth.

• With a low weight of 450 kg and a power requirement of 68 HP, this agricultural plow can be successfully used with most light- and medium-class agricultural tractors.

• It is an ideal choice for farmers who expect durability, functionality, and efficient operation from a plow, even in demanding terrain – without worrying about damage and downtime during the season.
