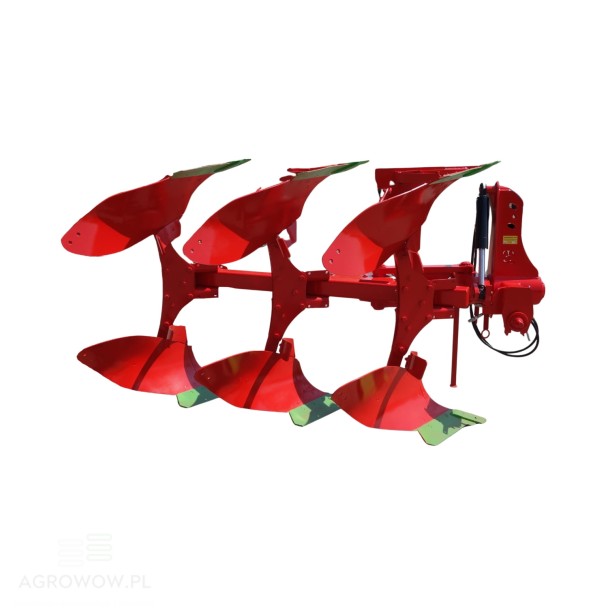

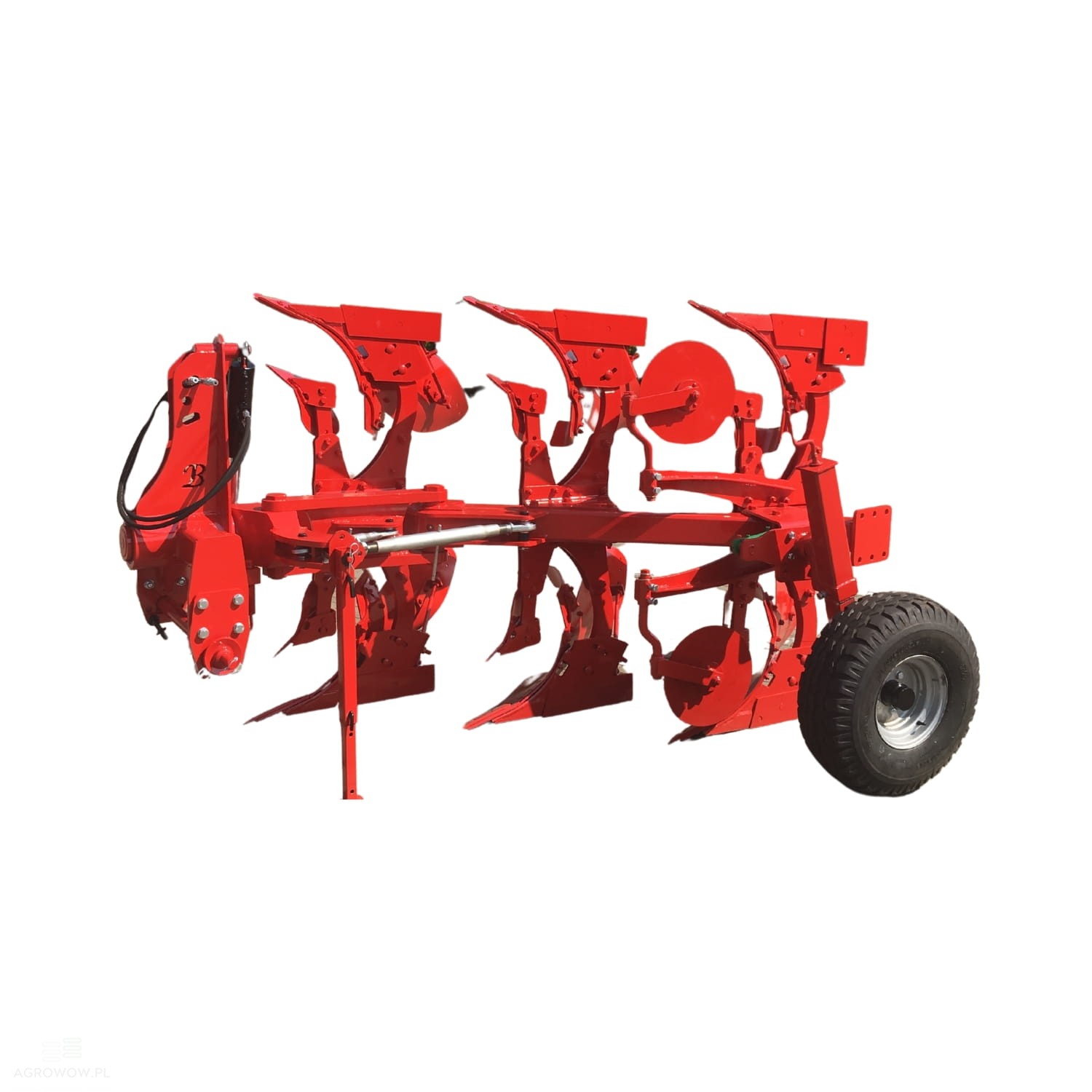

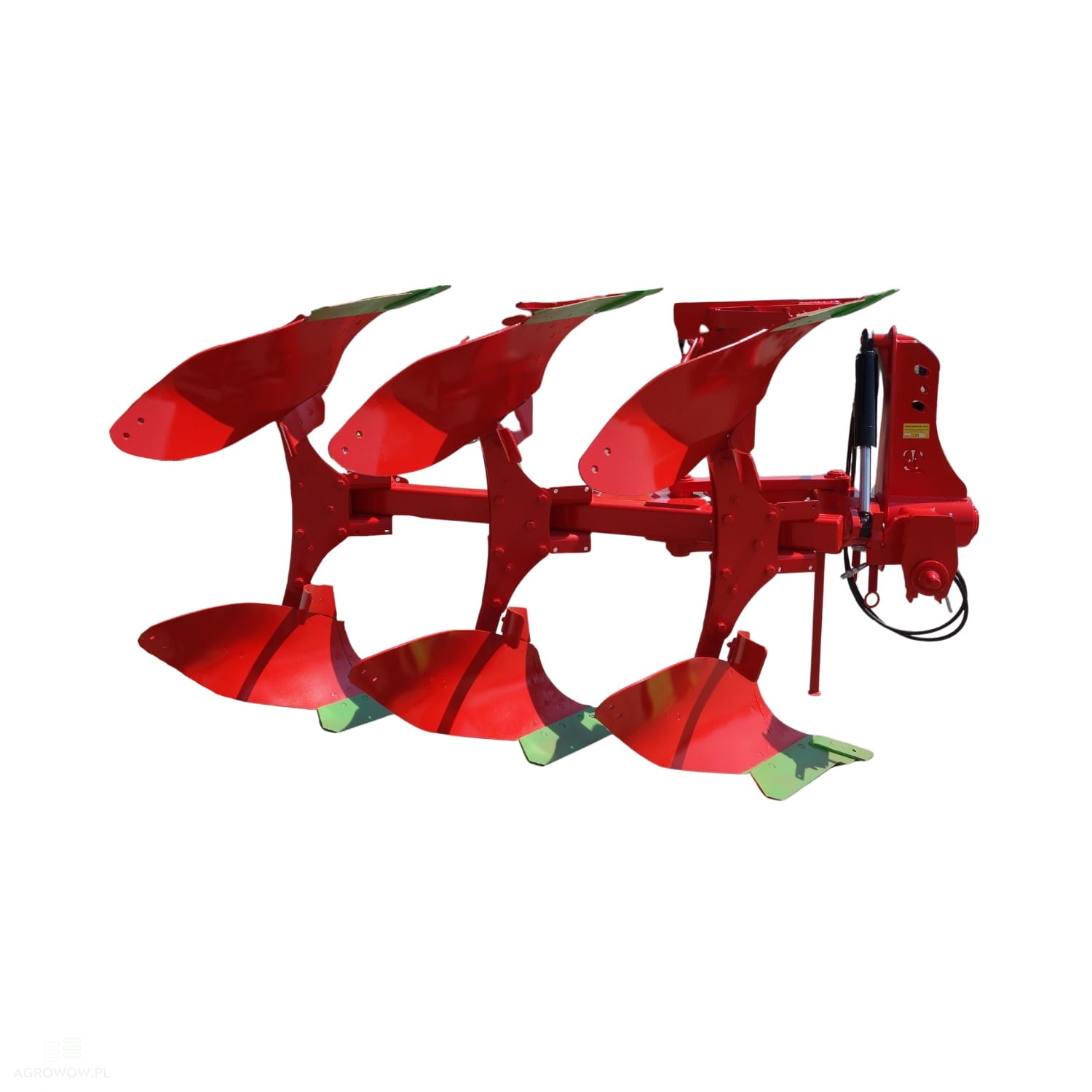

Agrowow 3-bottom reversible agricultural plow

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA03PO

- Manufacturer's name: Reversible plow

- Working width: 840–1200 mm

- Weight: 1000 kg

- Number of furrows: 3 (3-bottom)

- Power requirement: 90 HP

- Side support wheel

- Protection: shear bolt (kołkowe)

- Hitch bar: cat. II

- Share: share with chisel

- Step-regulated plowing width: 320, 360, 400, 440 mm

Optional extras:

- Wheel shock absorber (upon request)

The wheel shock absorber plays an essential role in ensuring the stable and smooth operation of the machine during plowing. Its task is to dampen vibrations and shocks transmitted from the ground to the support wheel and the entire plow structure. By utilizing a shock absorber, operator working comfort is improved, and the working elements are better protected against excessive wear. This solution is particularly useful on uneven or hard soils, where the machine is exposed to greater dynamic loads.

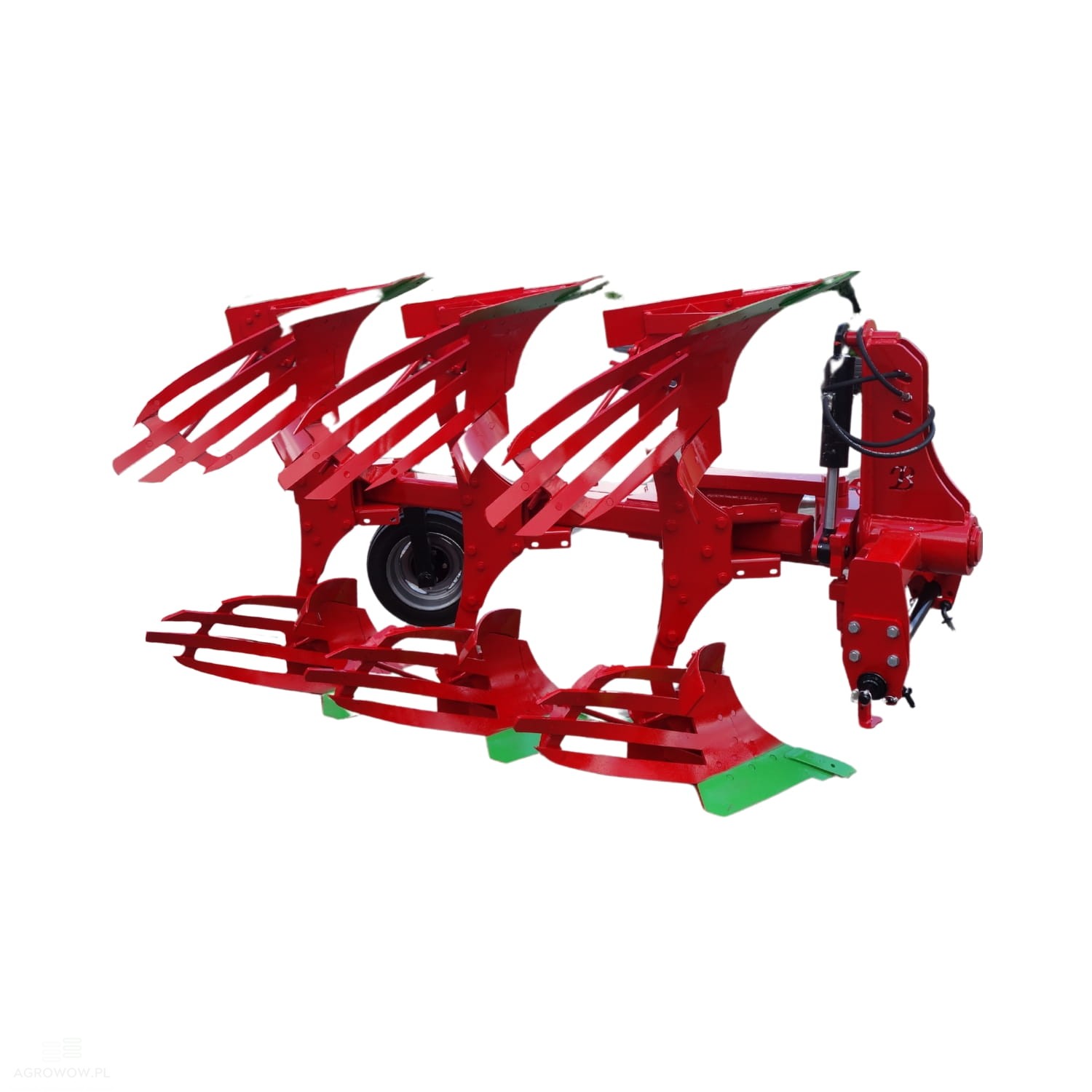

- Trash boards / Skimmers (upon request)

Trash boards are additional elements mounted on the working bodies of the plow, designed for the effective crushing and crumbling of the furrow after it is turned. They facilitate the breaking up of large soil clods, improving the soil structure and accelerating its settling. Using trash boards increases the efficiency of agrotechnical treatments, making it possible to obtain a more level field surface, which is of particular importance before sowing. This practical equipment also positively influences subsequent plant growth and development.

Detailed Description:

• The 3-bottom reversible plow is a reliable agricultural tool designed for intensive deep plowing on light and medium soils.

• Thanks to its robust construction and modern technical solutions, it is ideal for farms seeking efficient and durable equipment for soil cultivation.

• The machine is equipped with three solid working bodies featuring shares ending in a chisel, which translates into high-quality cutting and effective furrow turning even under more difficult soil conditions.

• One of the key advantages of this plow is its step-regulated working width, which allows the plowing width to be adjusted to four levels: 32, 36, 40, or 44 cm per furrow.

• This enables the user to adapt the machine to individual needs and soil types, achieving maximum efficiency with minimal draft resistance.

• The total working width ranges from 840 to 1200 mm, making it an excellent choice for both smaller and medium-sized cultivated acreages.

• The agricultural plow features a shear bolt protection system, which safeguards the working elements from damage when encountering obstacles in the soil.

• This solution ensures operational safety and a long service life for the machine, while maintaining a simple design and low maintenance costs.

• An additional asset is the side support wheel, which stabilizes the plow's operation and helps maintain a uniform working depth throughout the entire pass.

• With a tractor power requirement of 90 HP, the plow can work with a wide range of popular medium-power agricultural tractors, making it an incredibly versatile tool for daily operations.

• The standard Category II hitch bar allows for easy coupling to most tractors available on the market, ensuring quick preparation of the machine for work.

• This plow model performs excellently as a primary plowing tool in both conventional and organic farming.

• It can be successfully utilized as an agricultural tractor plow, as well as a machine for shallow stubble plowing or preparatory treatments in reduced tillage systems.
