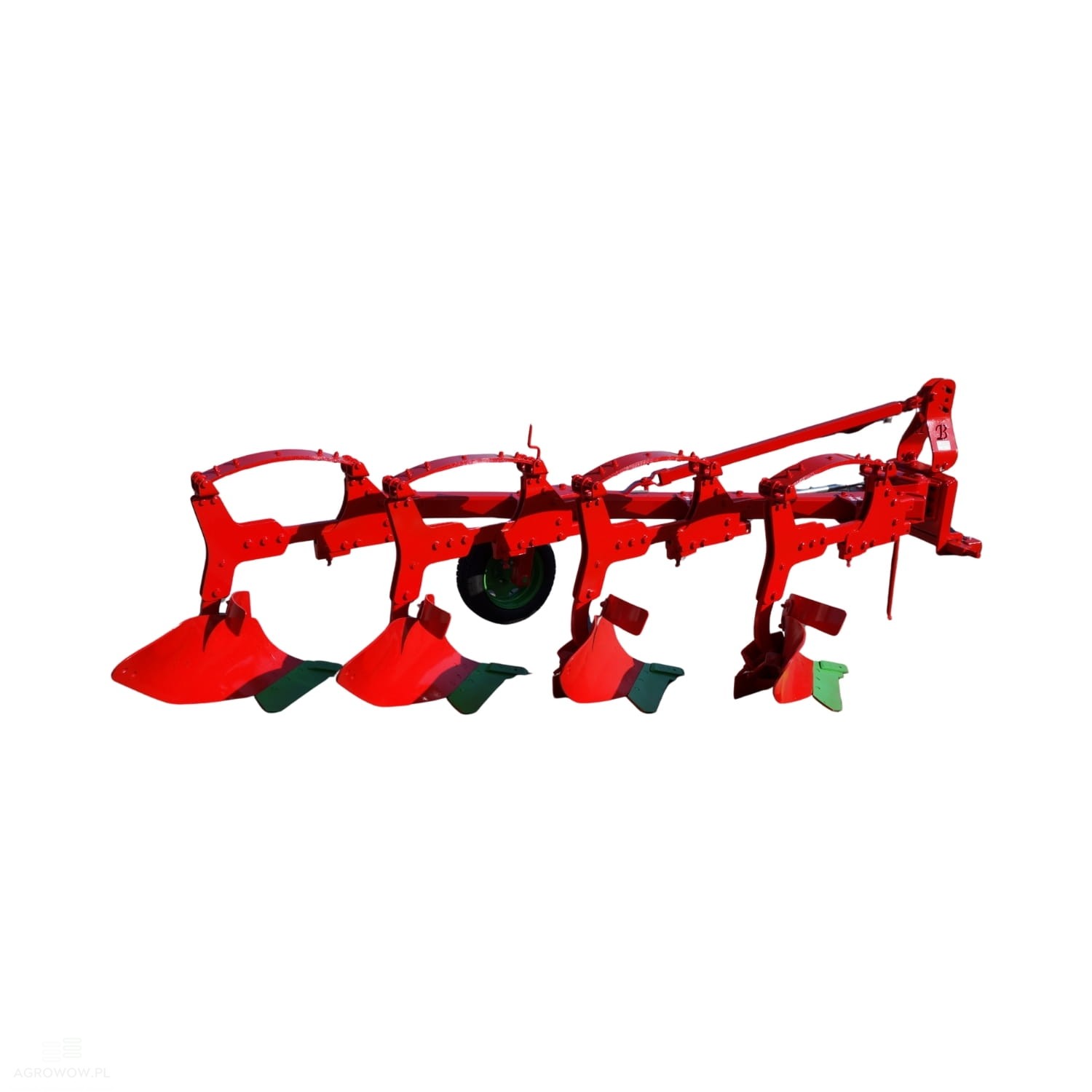

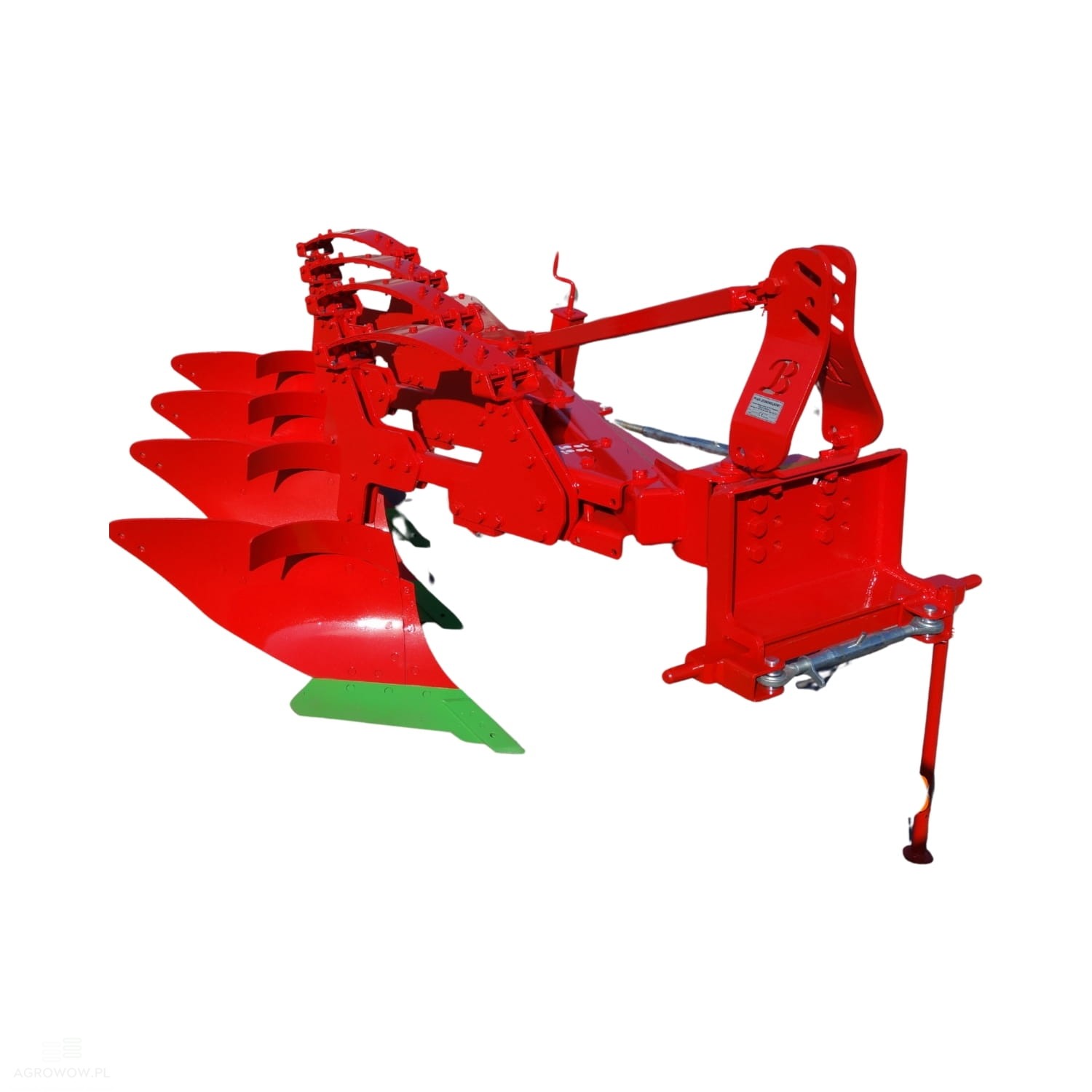

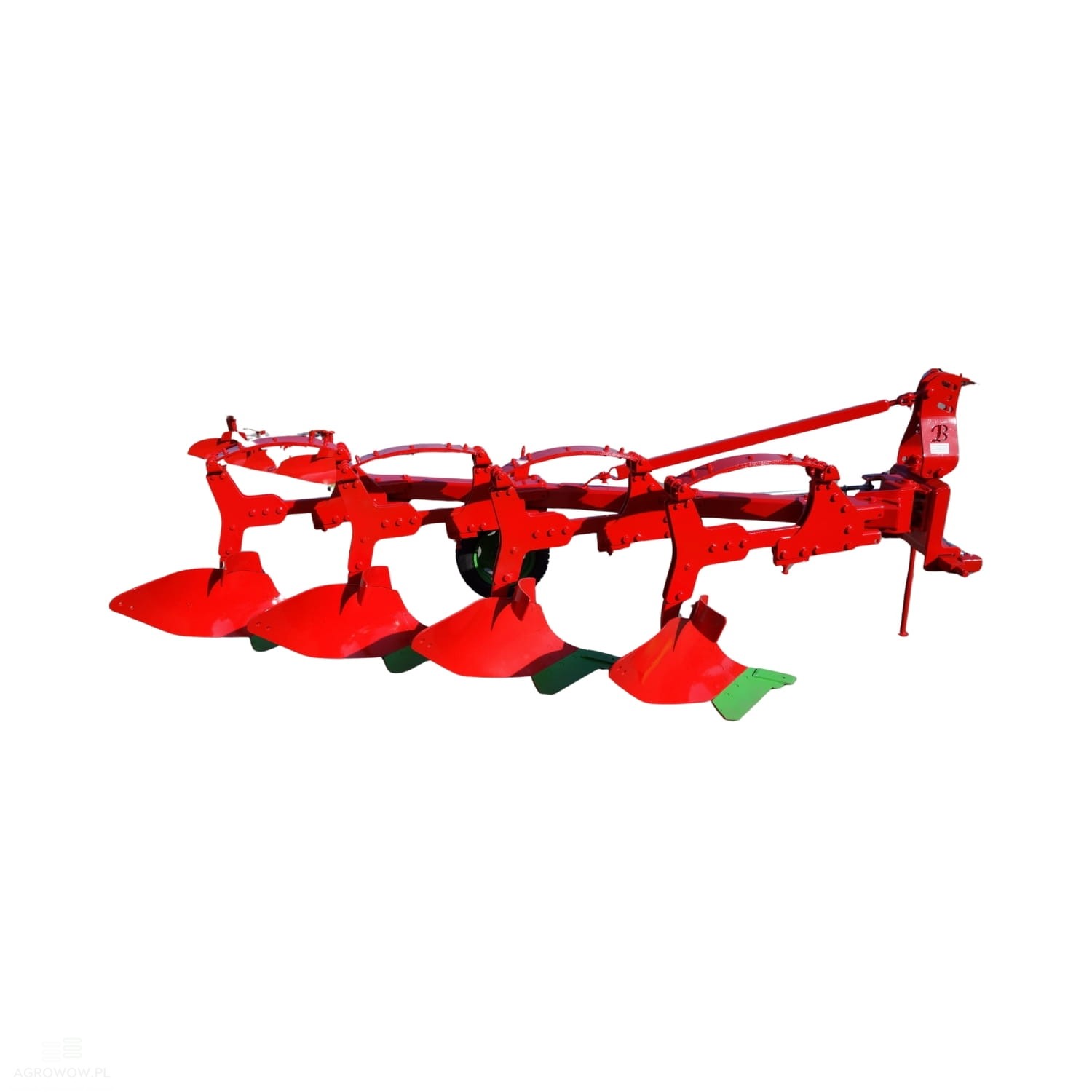

Agrowow 4-bottom agricultural plow with leaf spring protection

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA04PJR

- Manufacturer's name: Single-beam plow with leaf spring protection

- Working width: 1120–1600 mm

- Weight: 810 kg

- Number of furrows: 4 (4-bottom)

- Power requirement: 95 HP

- Side support wheel

- Protection: leaf spring

- Share: share with chisel

- Step-regulated plowing width: 320, 360, 400, 440 mm

Optional extras:

- Cat. II hitch bar (upon request)

The use of a Category II hitch bar enables quick and easy connection of the plow to most medium-class agricultural tractors without requiring additional adapters or equipment modifications. This standard ensures not only versatility but also stable guidance of the machine during operation, even in difficult terrain conditions. The durable and strong construction of the hitch minimizes vibrations and uneven loads, which beneficially affects the lifespan of the working parts and the precision of the plowing. This solution increases work efficiency and simplifies the daily operation of the machine.

- Trash boards / Skimmers (upon request)

Trash boards are additional elements mounted on the plow bodies designed to break up and crumble the soil more thoroughly after the furrow is turned. Thanks to their action, the earth is effectively broken down, which improves soil structure and promotes its faster settling. This makes it possible to obtain a more level field surface, which translates into better conditions for sowing and uniform plant emergence. Despite the simplicity of their construction, trash boards significantly raise plowing quality and streamline subsequent stages of field work.

- Hydraulically adjustable plowing width (upon request)

The hydraulic working width adjustment system allows the operator to quickly and easily adjust the plowing width to the conditions prevailing in the field – without needing to stop the machine. The change in operating parameters can be made directly from the tractor cab, allowing the operator to react to differences in soil type, terrain layout, or the requirements of a specific crop. This solution provides greater flexibility, convenience, and precision, while also translating into time savings and increased overall plowing efficiency.

Detailed Description:

• The single-beam 4-bottom plow is a powerful and reliable agricultural tool created for precise and efficient cultivation of light and medium soils.

• It is excellent for small and medium-sized farms that prioritize build quality and operational efficiency.

• The machine features a robust construction and a functional design, which translates into a long lifespan, easy operation, and high reliability even under intensive use.

• Four working bodies equipped with shares with chisels ensure effective cutting and precise furrow turning, even in soils with a harder structure.

• The chisel extends the lifespan of the share and increases overall plowing efficiency.

• With a total working width ranging from 1120 to 1600 mm, the plow enables efficient cultivation of larger areas while maintaining excellent machine guidance, even in more demanding terrain conditions.

• The option for step-regulated plowing width (320, 360, 400, 440 mm per furrow) allows the machine to be adapted to current needs and soil conditions, as well as to the technical parameters of the tractor.

• This flexible solution increases precision and helps save fuel.

• The modern leaf spring protection system protects the working elements of the plow against damage by allowing them to deflect when encountering underground obstacles such as stones or roots.

• Once passed, the body automatically returns to its working position, ensuring smooth and uninterrupted operation.

• Thanks to this system, the operator does not have to stop working, which significantly maintains operational continuity and reduces the risk of machine breakdown.

• The machine is also equipped with a side support wheel, which is responsible for stable plow guidance and maintaining a uniform plowing depth, resulting in a consistent and well-finished field.

• With a tractor power requirement of 95 HP, the agricultural plow works seamlessly with a wide range of medium-class agricultural tractors, ensuring optimal performance without overloading the machinery.

• The total weight of 810 kg guarantees adequate downforce on the soil, which improves plowing quality while maintaining excellent maneuverability in the field.

• It is a proven and functional plow for farmers who value the combination of durability, efficiency, and user comfort in daily field work.
