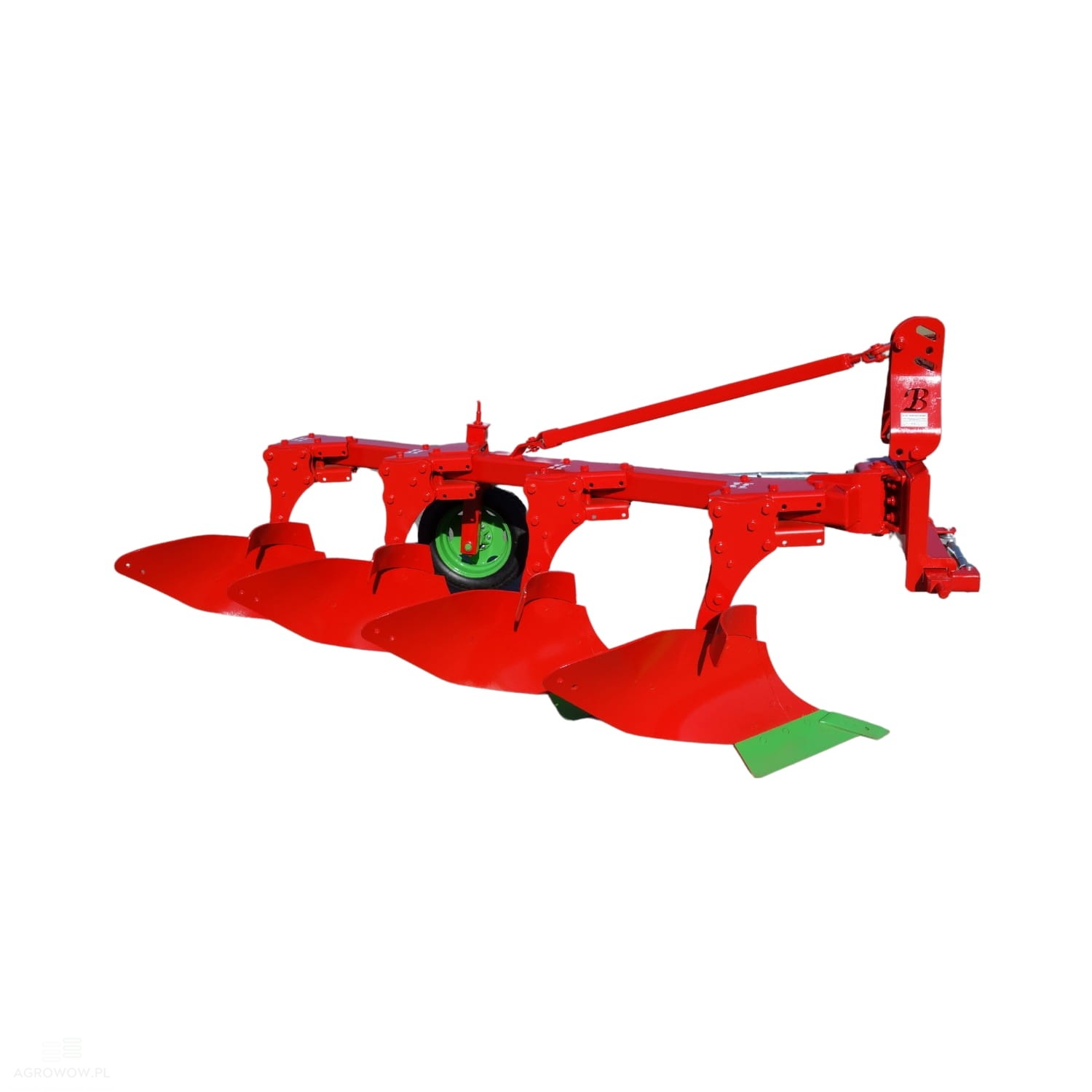

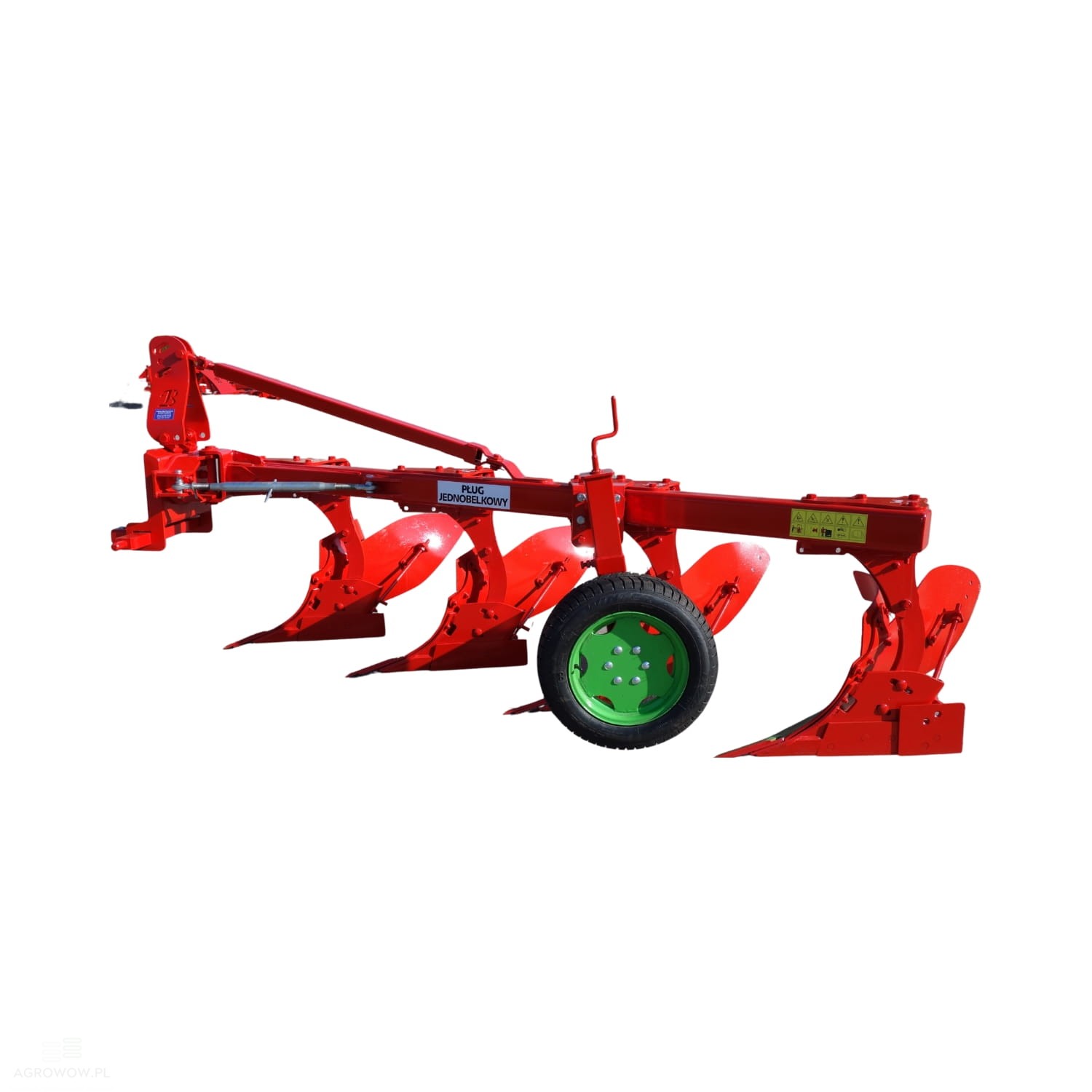

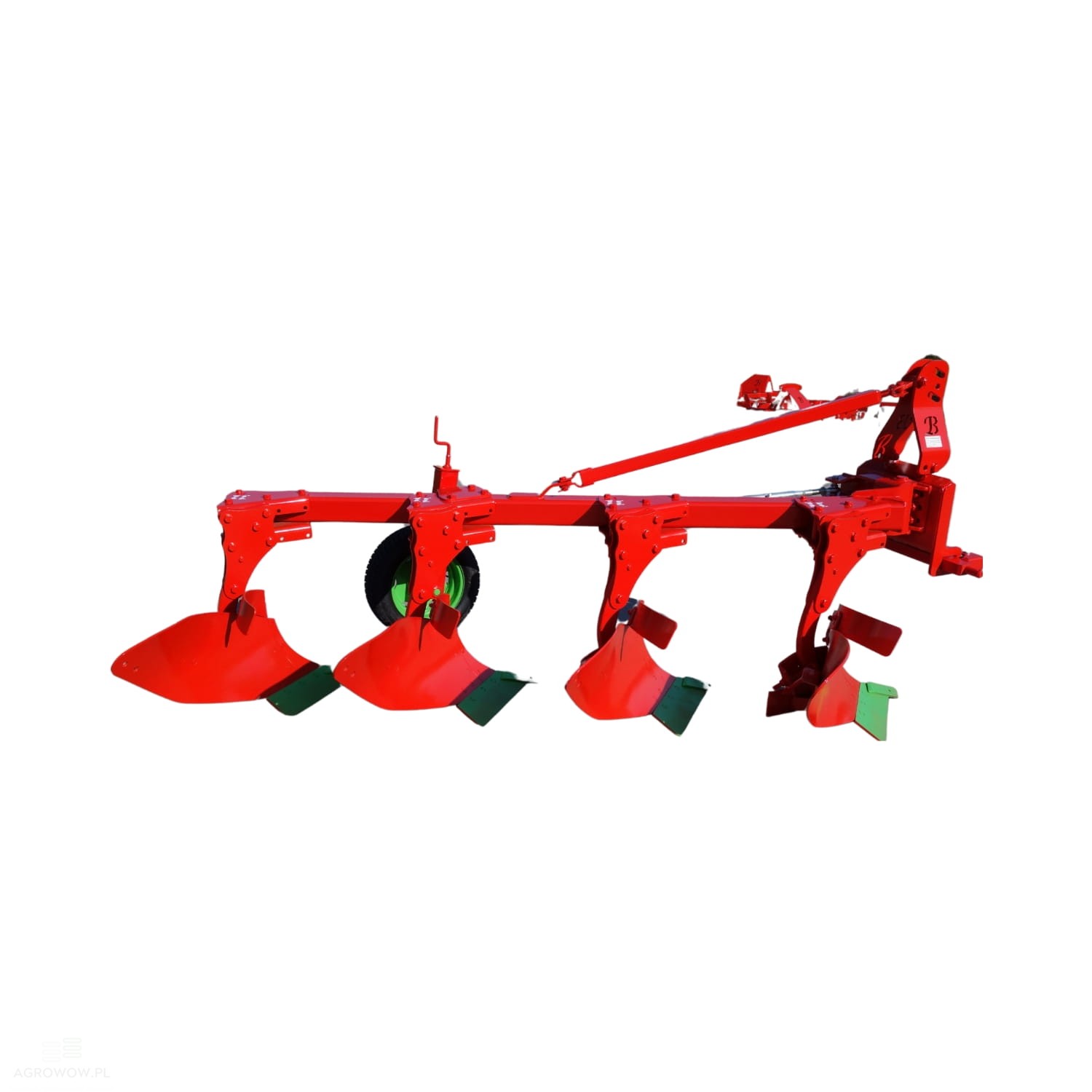

Agrowow 4-bottom agricultural plow with shear bolt protection

Chcesz ustalić parametry i dopasować pług rolniczy do swoich indywidualnych potrzeb?

Jesteśmy w stanie przygotować mocowanie do każdego rodzaju sprzętu — traktora, koparki, ładowarki, wózka widłowego i wielu innych maszyn

Skontaktuj się z naszym inżynierem sprzedaży!

Adres e-mail: sklep@agrowow.pl

Numer telefonu: +48 880 261 210 | +48 504 947 222

Chętnie pomożemy w wyborze odpowiedniej konfiguracji oraz odpowiemy na każde pytanie.

- Manufacturer: Agrowow

- Catalogue number: BA04PJK

- Manufacturer's name: Single-beam plow with shear bolt protection

- Working width: 1120–1600 mm

- Weight: 650 kg

- Number of furrows: 4 (4-bottom)

- Power requirement: 95 HP

- Side support wheel

- Protection: shear bolt (kołkowe)

- Share: share with chisel

- Step-regulated plowing width: 320, 360, 400, 440 mm

Optional extras:

- Cat. II hitch bar (upon request)

The use of a Category II hitch bar ensures that the plow can easily work with most popular medium-power agricultural tractors. This type of hitch provides quick and simple installation of the machine without the need for additional brackets or technical modifications. The durable design of the hitch guarantees a secure and stable connection with the tractor, which is especially important when working on difficult, uneven terrain. As a result, the plow is guided uniformly, and its working elements wear out more slowly, translating into a long service life for the machine and higher user comfort.

- Trash boards / Skimmers (upon request)

Trash boards are practical components mounted on the plow bodies that assist in crumbling the soil after the furrow is turned. Their presence contributes to the effective breaking up of compacted earth clods, which improves the structure of the cultivated layer and accelerates its settling. Well-crumbled soil creates a more uniform seedbed, which in turn leads to better and more even plant emergence. Installing trash boards is a small change in the plow's configuration, but one that significantly impacts the quality of the performed plowing.

- Hydraulically adjustable plowing width (upon request)

The option for hydraulic plowing width adjustment allows the operator to dynamically adapt the working width to current needs without interrupting operation. Controlling the system directly from the tractor cab enables a quick response to changing soil conditions, terrain layout, or crop type. This flexibility translates into greater working comfort and better alignment of plowing parameters, resulting in higher efficiency and precision for the entire operation.

Detailed Description:

• The single-beam 4-bottom plow is a solid and functional agricultural tool designed for the efficient cultivation of light and medium soils in everyday operation.

• Thanks to its well-thought-out build and robust construction, the machine is an excellent choice for farms expecting reliability, simplicity of use, and high-quality craftsmanship.

• Equipped with four working bodies featuring shares ending in a chisel, the plow ensures precise soil cutting and effective furrow turning, even in more compacted and demanding layers of earth.

• The working width ranging from 1120 to 1600 mm enables efficient coverage of a larger area in less time while maintaining good maneuverability of the machine.

• The step-regulated plowing width (320, 360, 400, or 440 mm per furrow) allows the operator to adjust the working parameters to the soil conditions and the tractor's capabilities, which improves performance and optimizes fuel consumption.

• The plow is protected by a shear bolt system, which safeguards the working elements against damage in case of striking obstacles beneath the soil surface, such as stones or roots.

• This proven and economical solution ensures operational safety and reduces the risk of downtime during the season.

• The standard equipment includes a side support wheel, which is responsible for the machine's operational stability and maintaining a constant plowing depth across the entire working width.

• With a power requirement of 95 HP, the agricultural plow pairs perfectly with medium-class tractors, ensuring good traction and operational comfort without excessively overloading the drivetrain.

• The relatively low weight of 650 kg translates into easy maneuvering of the machine and convenient transport both in the field and on access roads.

• It is a durable, versatile, and simple-to-operate plowing tool for applications in small and medium-sized farms that value effectiveness, reliability, and top-tier build quality.
