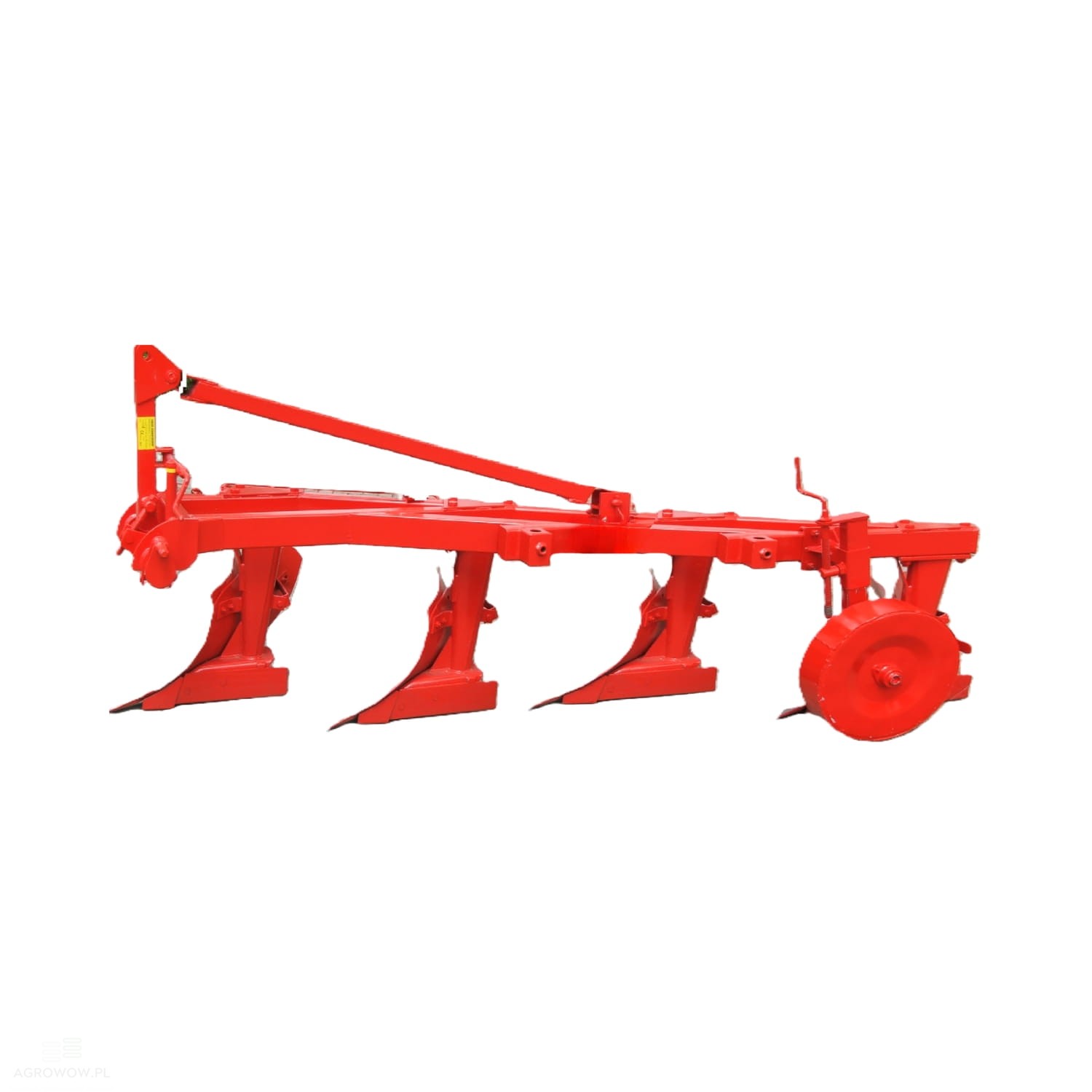

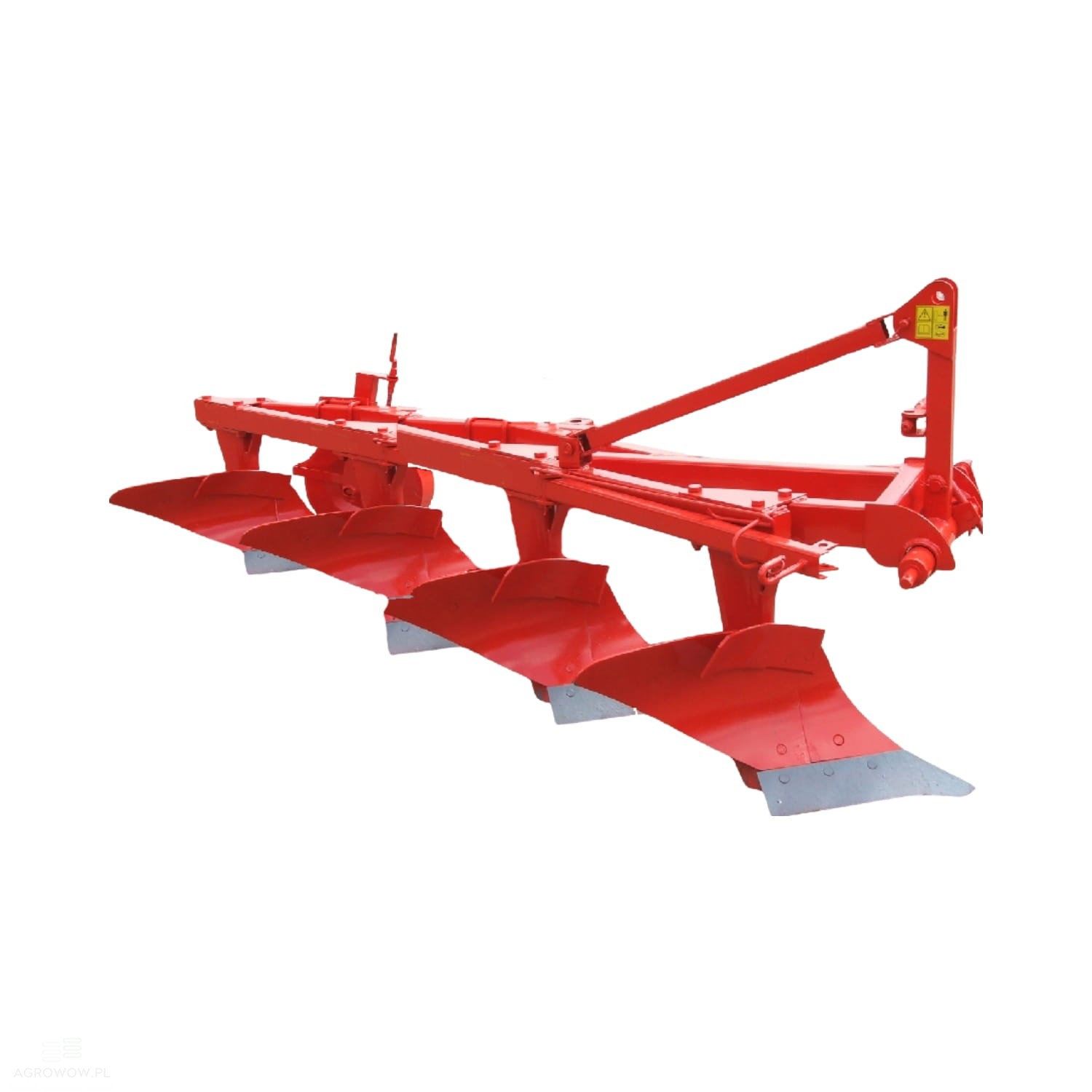

Agrowow 4-bottom bed plow

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA03PZZ

- Manufacturer's name: Conventional plow

- Working width: 900 mm

- Weight: 285 kg

- Number of furrows: 4 (4-bottom)

- Power requirement: 48 HP

- Legs with furrow width: 300 mm

- Moldboards: semi-helical

- Under-frame clearance: 600 mm

- Wheel: narrow, bushed, metal

- Medium plowing

- Fixed working width

Optional extras:

- Bearing-mounted wheel (upon request)

A wheel equipped with bearings significantly improves the machine's guidance, especially in difficult, uneven terrain conditions. Lowering rolling resistance results in less wear on components such as the hub and axle, which in practice means less technical downtime and lower maintenance costs. This solution not only increases the durability of the running gear but also improves the operator's working comfort – particularly during long hours spent in the field, where reducing vibrations is extremely important.

- Rubber wheel (upon request)

A rubber wheel is a functional addition that performs well in varying ground conditions. Thanks to its flexible design, it perfectly adapts to the field surface, effectively dampening vibrations and increasing the stability of the machine. Compared to a steel wheel, it operates more quietly and reduces the risk of getting stuck in wet or soft soil. This type of wheel contributes to a longer lifespan of the working components and provides greater comfort during operation.

- Coulter (upon request)

A coulter is an important working element positioned in front of the plow body, whose task is to pre-cut the soil and cut through the organic residues left on it – e.g., straw, weeds, or catch crops. Its presence allows for easier furrow formation, improves the quality of the plowing procedure, and limits the risk of the machine clogging. The coulter is particularly useful when working in fields with a large amount of organic matter, where it enables an even, aesthetic plow and good soil preparation for the subsequent stages of cultivation.

Detailed Description:

• The 4-furrow conventional plow is a compact yet solid agricultural tool designed for medium plowing on light and medium soils.

• Thanks to its lightweight but durable construction, the machine is ideally suited for small and medium-sized farms, where easy operation, mobility, and reliability during daily work in the field are essential.

• This moldboard plow is equipped with four working legs, each responsible for plowing at a width of 300 mm, resulting in a total working width of 900 mm.

• The fixed working width ensures repeatable and uniform results regardless of the soil type, which facilitates further agrotechnical work.

• The machine utilizes semi-helical moldboards, which effectively turn the furrow, crumbling and mixing the soil well with plant residues.

• In this way, the ground quickly achieves the proper structure that favors subsequent cultivation processes and plant growth.

• The under-frame clearance of 600 mm allows for trouble-free operation even in the presence of a moderate amount of crop residues, limiting the risk of clogging and downtime.

• As standard, this agricultural plow is equipped with a narrow, bushed metal wheel, which is responsible for uniform guidance of the machine and stable maintenance of the set working depth.

• The bushing extends the component's lifespan, and the steel construction performs well even in more difficult terrain.

• With a weight of 285 kg and a power requirement of 48 HP, the machine can be easily paired with tractors of light and medium power, ensuring efficient plowing without excessively overloading the equipment.

• It is a great solution for farmers looking for a durable, lightweight, and easy-to-operate plow that can handle daily challenges on the farm and perform well in various soil conditions.
