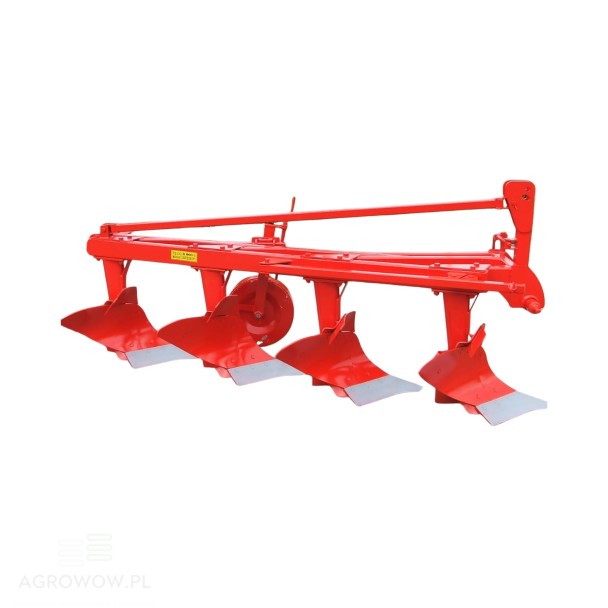

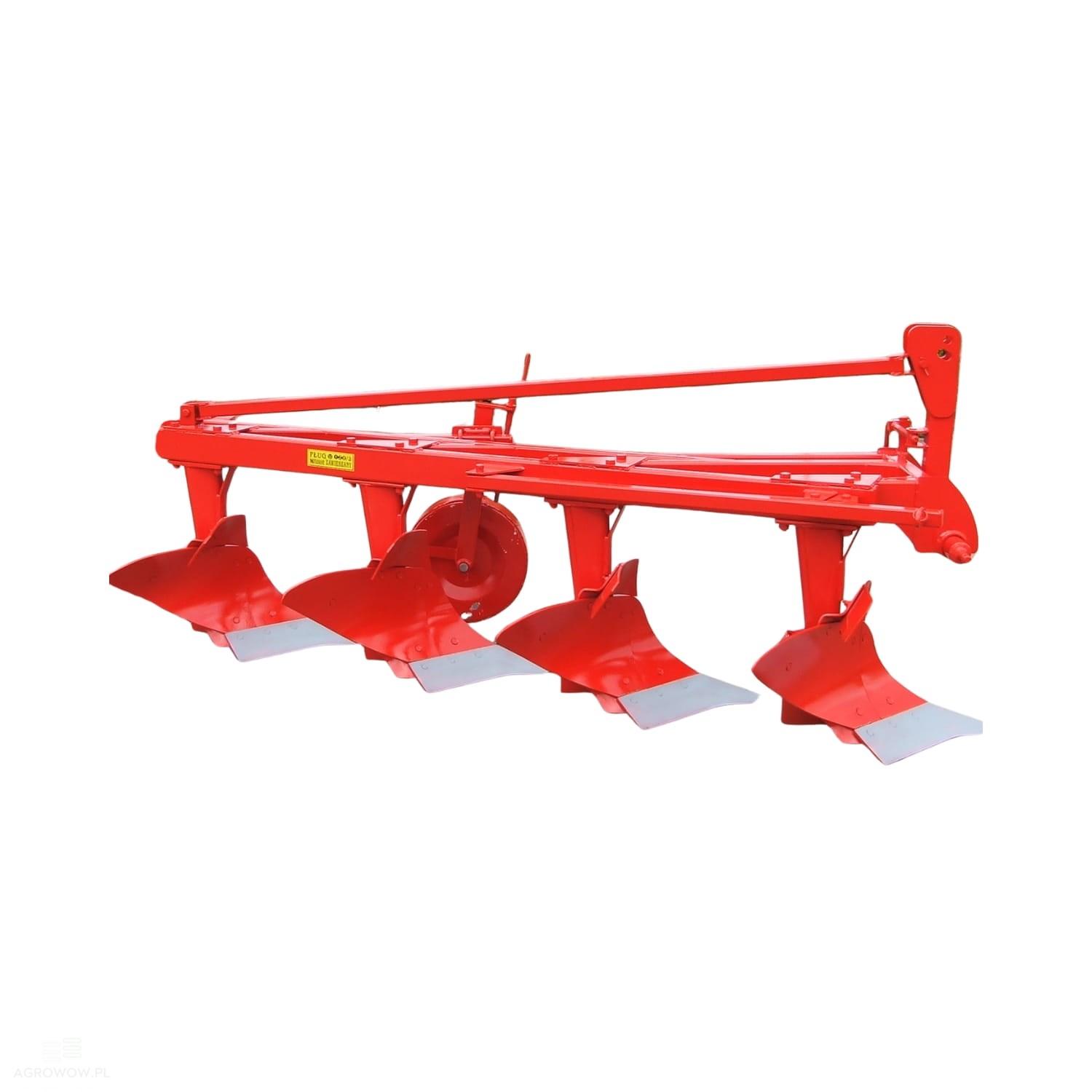

Agrowow 4-bottom bed plow with raised frame

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA04PZP

- Manufacturer's name: High-clearance conventional plow

- Working width: 1200 mm

- Weight: 420 kg

- Number of furrows: 4 (4-bottom)

- Power requirement: 64 HP

- Legs with furrow width: 300 mm

- Moldboards: semi-helical

- Under-frame clearance: 700 mm

- Wheel: wide, bushed, metal

- Medium and deep plowing

- Fixed working width

Optional extras:

- Bearing-mounted wheel (upon request)

A wheel mounted on bearings significantly improves the machine's guidance, especially when working on uneven and difficult terrain. Thanks to the reduction of rolling resistance, wear on components such as the hub and axle is decreased, which translates into less frequent repairs and lower operating costs. This type of solution not only increases the durability of the entire running gear mechanism but also raises operator comfort – particularly during multi-hour work where vibration reduction is of great importance.

- Rubber wheel (upon request)

A rubber wheel is a practical design element created for operation in variable field conditions. The flexible surface of the rubber adapts excellently to terrain irregularities, effectively dampening shocks and improving the stability of the plow's guidance. Furthermore, the rubber wheel operates more quietly than metal wheels and limits the risk of getting stuck in muddy soil. This solution not only increases working comfort but also reduces structural strain, extending its overall lifespan.

- Coulter (upon request)

A coulter is an essential working element mounted in front of the plow body, whose function is to pre-cut the soil and slice through organic residues such as weeds, straw, or catch crops. Its presence significantly facilitates furrow formation and improves plowing quality while limiting the risk of clogging. The coulter is particularly useful in fields with a large amount of crop residue – it allows for an even, clean working result, which translates into better soil preparation for sowing.

Detailed Description:

• The 4-bottom high-clearance bed plow is a durable and practical agricultural tool designed for medium and deep plowing on light and medium-cohesive soils.

• Its compact yet solid construction makes it ideally suited for small and medium-sized farms that prioritize equipment durability, working accuracy, and simplicity of use.

• The machine is equipped with four working legs, each performing plowing at a width of 300 mm, resulting in a total working width of 1200 mm.

• The fixed working width ensures precise, repeatable results regardless of soil type and weather conditions, translating into a better-prepared surface for subsequent agrotechnical operations.

• This model utilizes semi-helical moldboards, which effectively turn the furrow, break up earth clods, and thoroughly mix organic residues with the ground.

• Thanks to this, the soil quickly achieves the proper structure that favors plant germination and growth.

• The large under-frame clearance of 700 mm allows for comfortable operation even in the presence of heavy crop residue, significantly reducing the risk of the machine clogging and improving workflow continuity.

• As standard, the tractor plow is equipped with a wide, bushed metal wheel, which is responsible for guiding the machine while maintaining a uniform working depth.

• The bushing increases wear resistance, and the rugged metal construction ensures the wheel can handle even the most challenging terrain conditions.

• With a weight of 420 kg and a power requirement of 64 HP, this agricultural plow pairs perfectly with light and medium-class tractors without putting excessive strain on them, while simultaneously ensuring optimal depth penetration of the working elements.

• It is a versatile and reliable piece of equipment for farmers looking for a solid tool for daily plowing – easy to operate, durable, and adapted to diverse soil conditions.
