- Manufacturer: Agrowow

- Catalogue number: BA04PZA

- Manufacturer's name: High-clearance conventional plow ATLAS

- Working width: 1400 mm

- Weight: 490 kg

- Number of furrows: 4 (4-bottom)

- Power requirement: 72 HP

- Legs with furrow width: 350 mm

- Moldboards: long semi-helical

- Under-frame clearance: 700 mm

- Wheel: wide, bushed, metal

Optional extras:

- Bearing-mounted wheel (upon request)

A wheel integrated with a bearing significantly improves the machine's performance, ensuring light and smooth guidance even on demanding terrain. It reduces rolling resistance, which translates into lower wear on running components, such as the axle, thereby reducing the frequency of required servicing. Thanks to this solution, not only does the durability of the running gear increase, but also the operator's working comfort – especially during long-term plowing where vibration reduction is highly noticeable.

- Rubber wheel (upon request)

A rubber support wheel is a practical solution for working under variable ground conditions. Its flexible structure allows it to better adapt to uneven surfaces, effectively absorbing shocks and ensuring the stability of the machine's guidance. Furthermore, it reduces noise levels during operation and prevents the wheel from sinking into soft or wet soil. This wheel increases the durability of components exposed to dynamic overloads and provides greater working comfort for the operator.

- Coulter (upon request)

A coulter is a working element mounted in front of the plow body, responsible for pre-cutting the soil and plant residues. Its presence considerably facilitates the furrow turning process and improves the overall quality of the plowing. The coulter handles slicing through straw, weeds, or catch crop residues excellently, reducing the risk of clogging and ensuring an aesthetic, evenly plowed field. It is a particularly useful solution in conditions of intensive use or with a large amount of organic matter.

- Furrow width 400 mm (upon request)

A furrow with a width of 400 mm is a versatile and efficient solution that allows for effective field coverage without puting excessive strain on the tractor. This working spacing enables precise and uniform soil turning, which positively impacts the structure of the cultivated layer. This parameter is ideally suited for medium and larger farms, offering good work efficiency while maintaining stability and easy guidance of the machine.

Detailed Description:

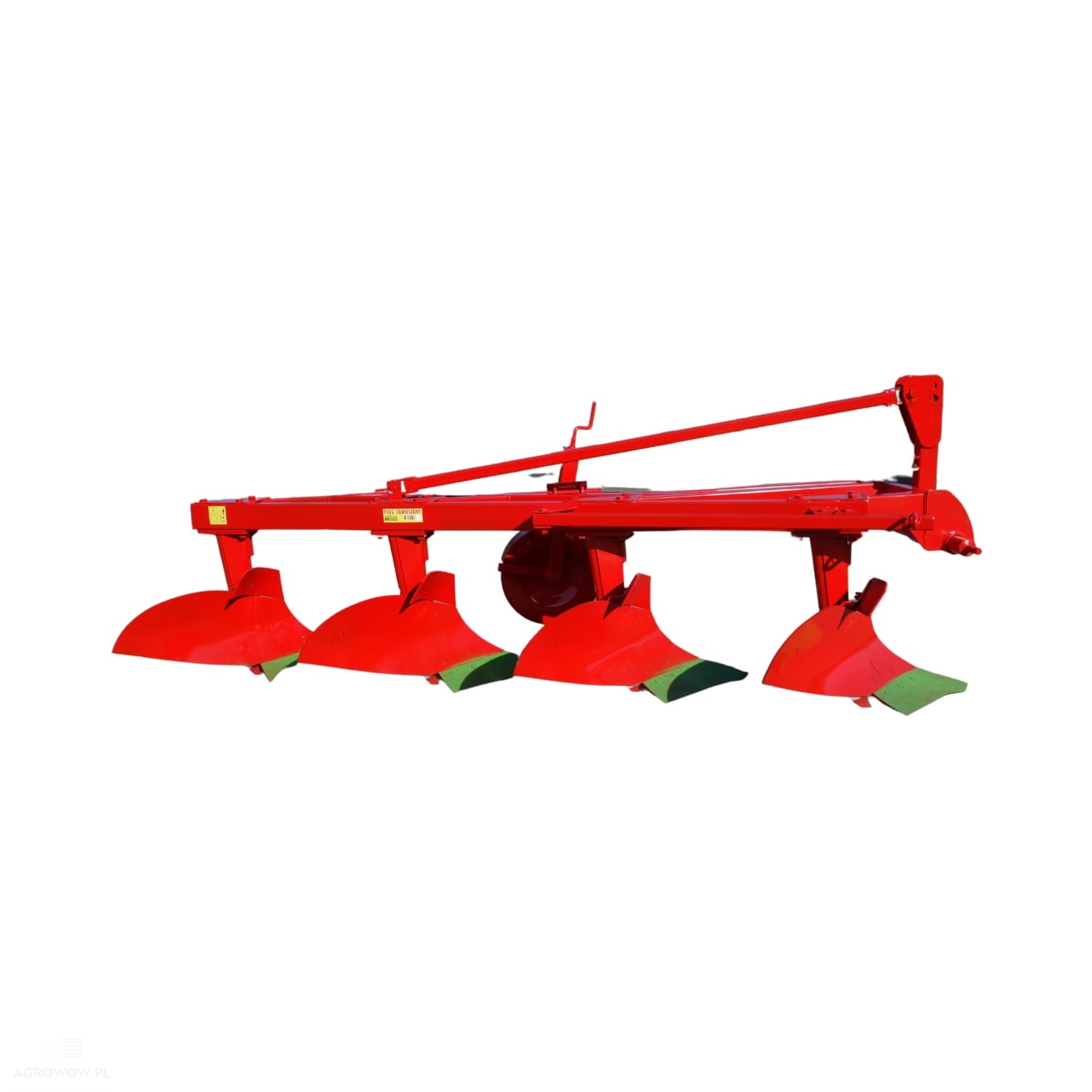

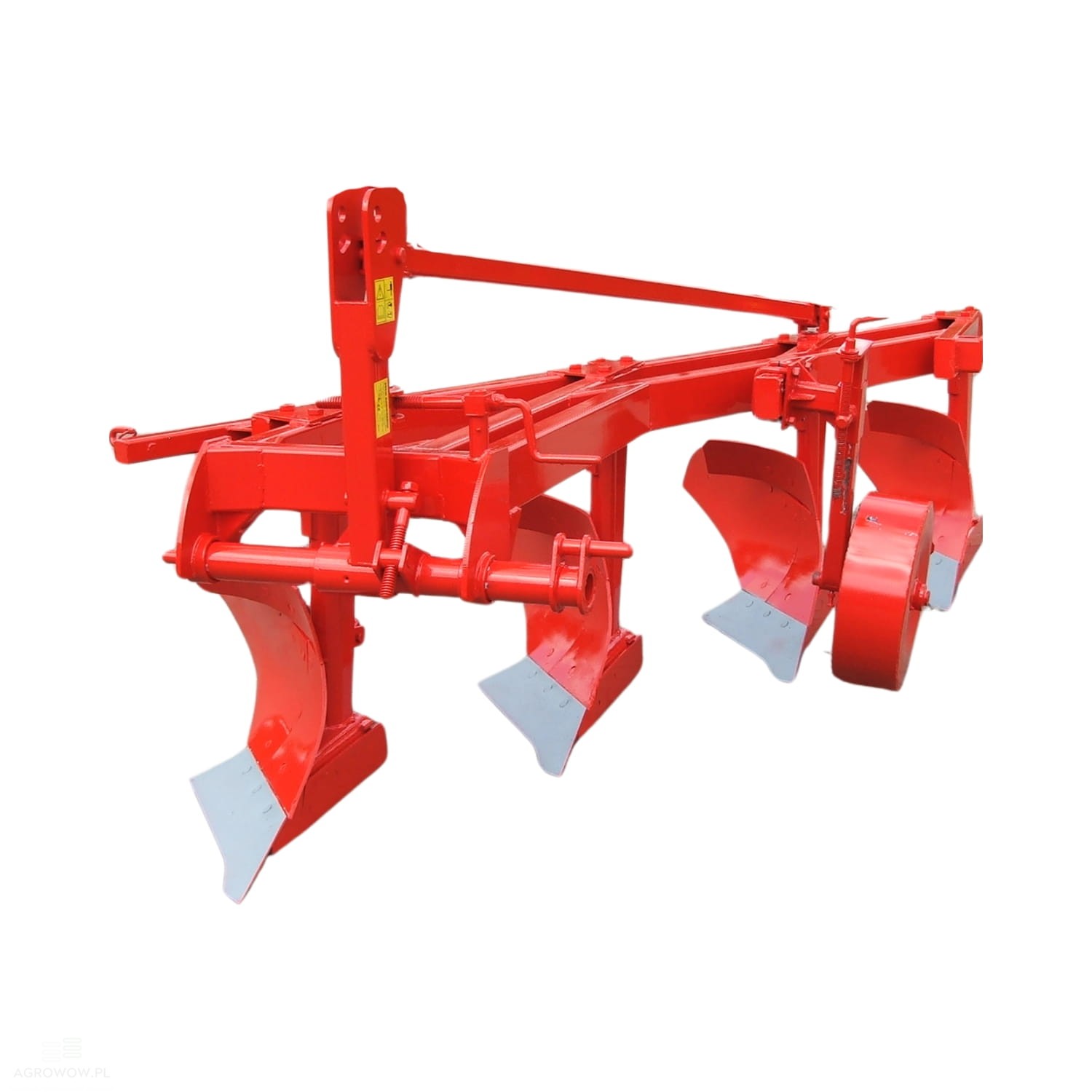

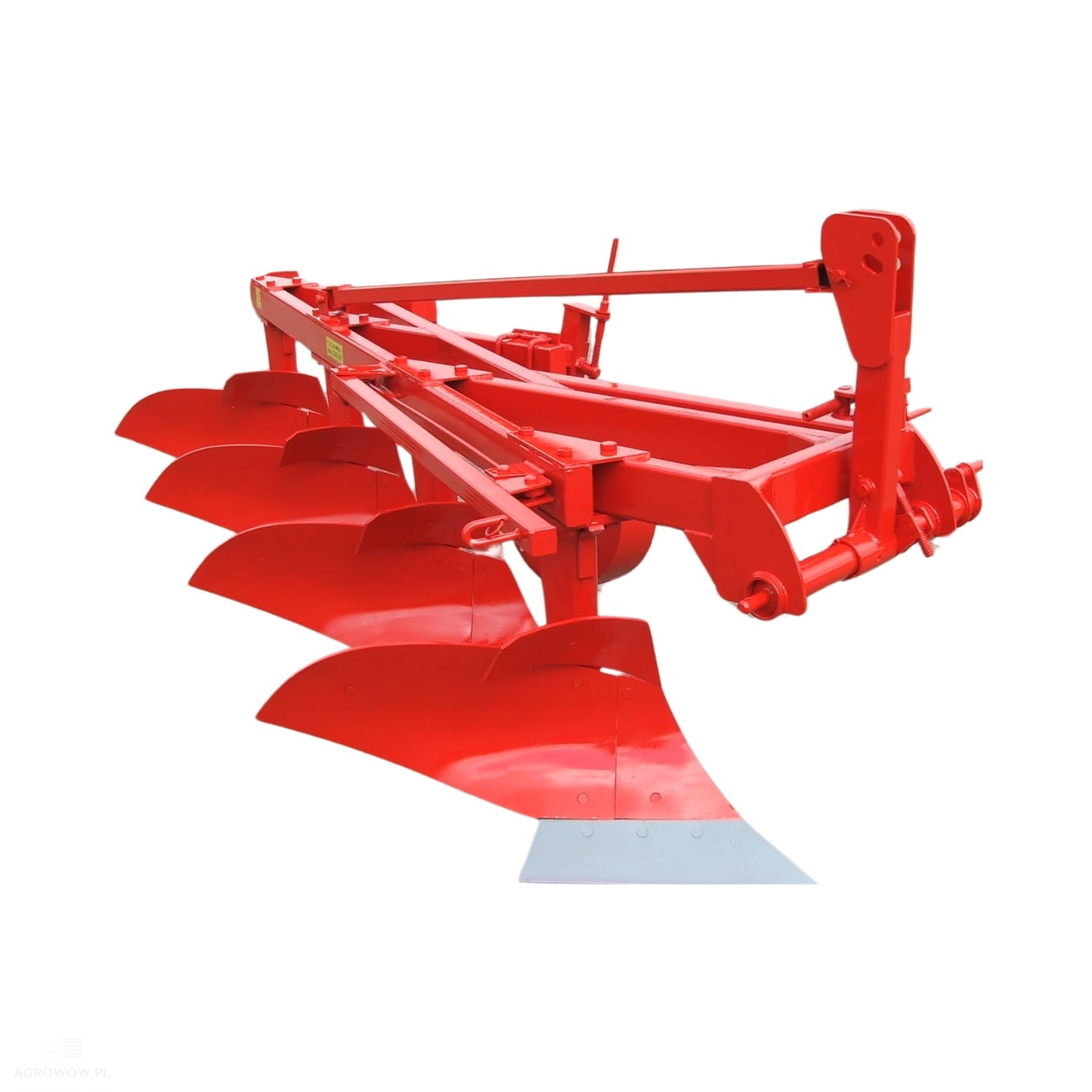

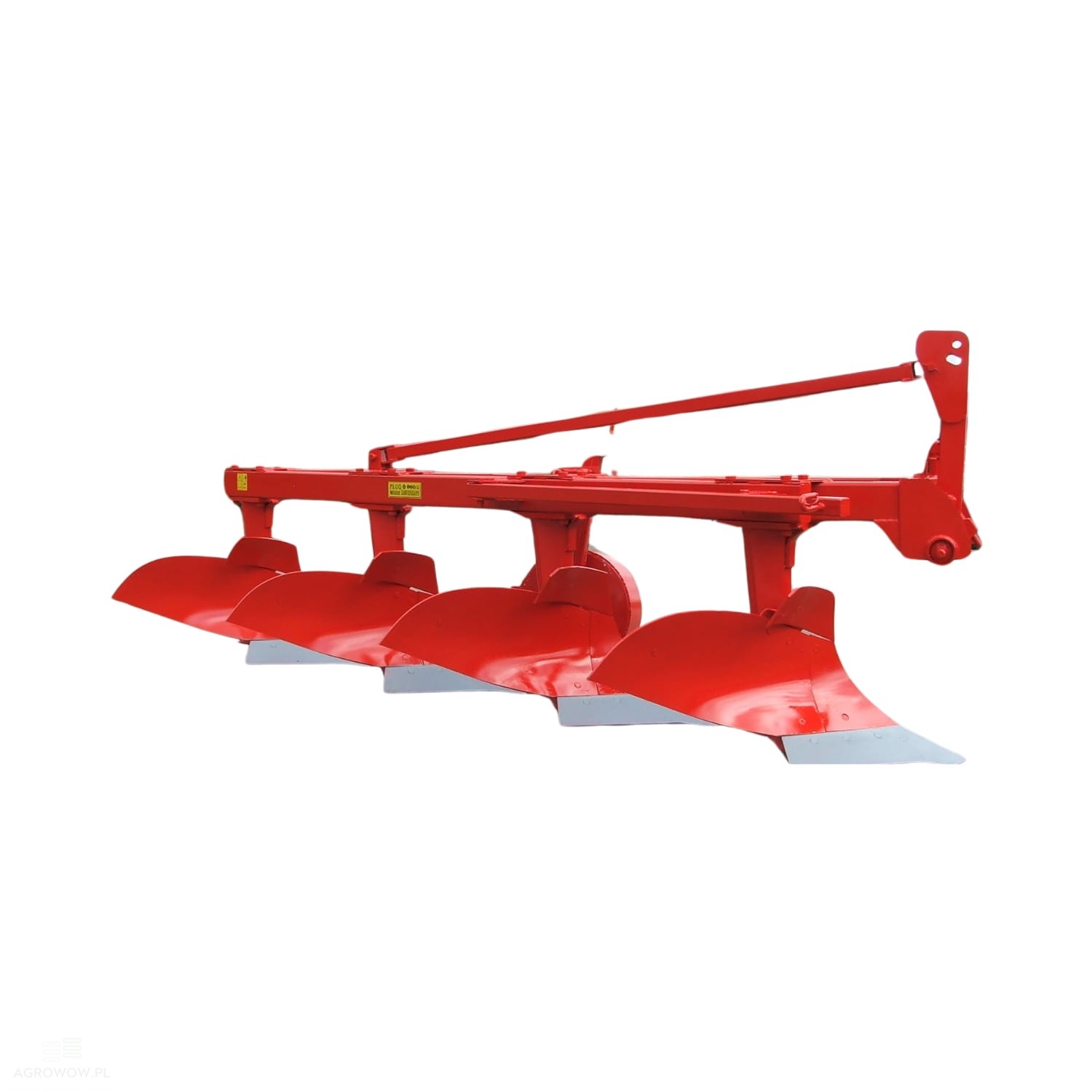

• The 4-bottom high-clearance bed plow is a solid and proven tool designed for intensive plowing of light and medium soils.
• Thanks to its reinforced, raised construction, it performs excellently during both classical cultivation and deep plowing, guaranteeing efficiency and reliability in diverse field conditions.
• The machine is equipped with four working bodies, each featuring a leg with a furrow width of 350 mm.
• In total, this provides a working width of 1400 mm, allowing for efficient coverage of larger areas in less time without losing plowing accuracy.
• The long semi-helical moldboards utilized are responsible for precise turning of the furrow, as well as its good fragmentation and mixing with the ground.
• Thanks to this, the soil is uniformly loosened and prepared for subsequent procedures, resulting in better conditions for crop development.
• The large under-frame clearance of 700 mm ensures unimpeded operation even in fields with a large amount of crop residue, reducing the risk of the machine clogging and improving its workflow continuity.
• The standard wide, bushed metal wheel provides stable guidance of the plow and maintains an even working depth across the entire working width.
• With a weight of 490 kg and a power requirement of 72 HP, this agricultural plow pairs well with medium-class tractors, offering appropriate downforce on the soil without overloading the machinery.
• It is a reliable and efficient solution for farmers who need a versatile plow for daily work – durable, easy to operate, and effective in various soil conditions.
