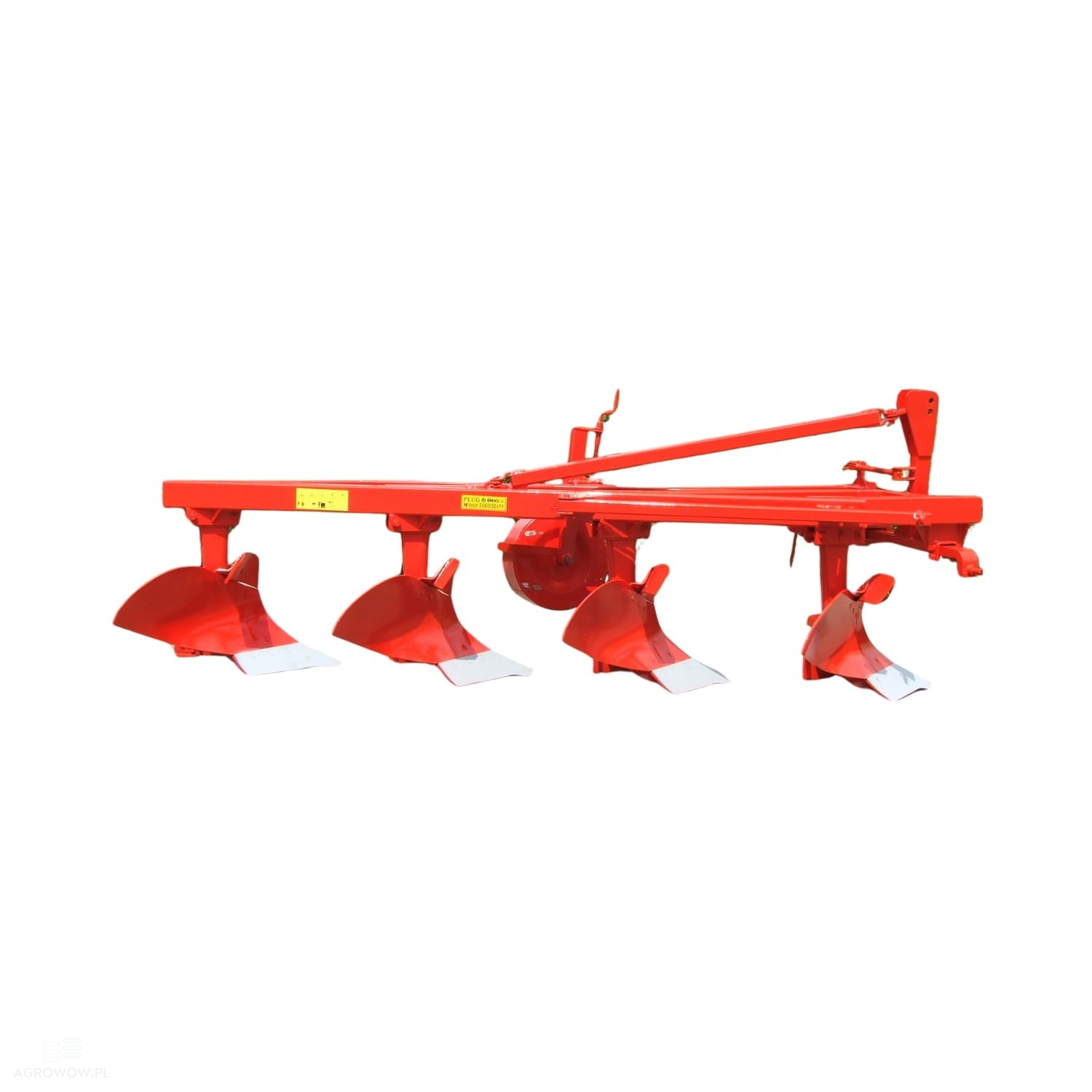

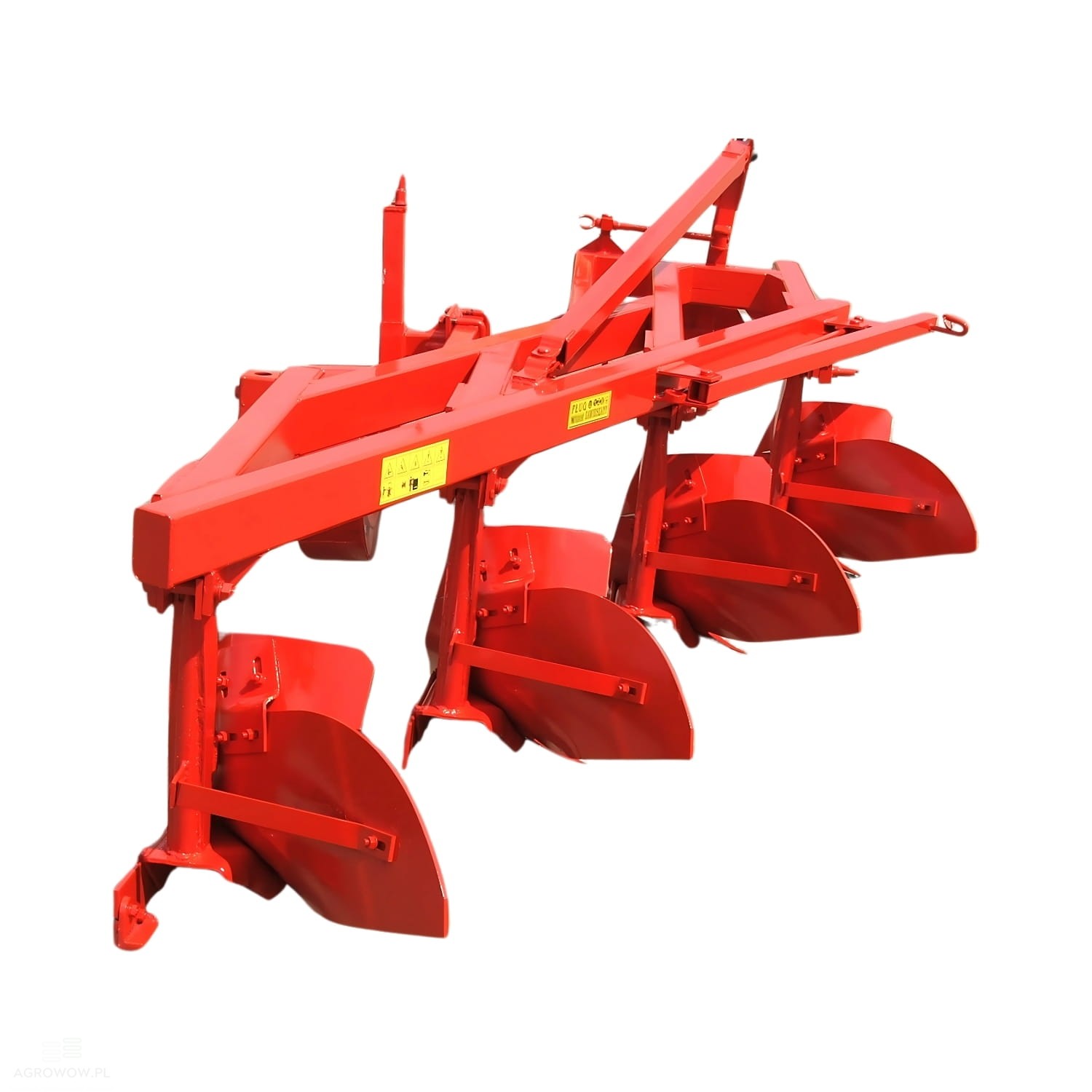

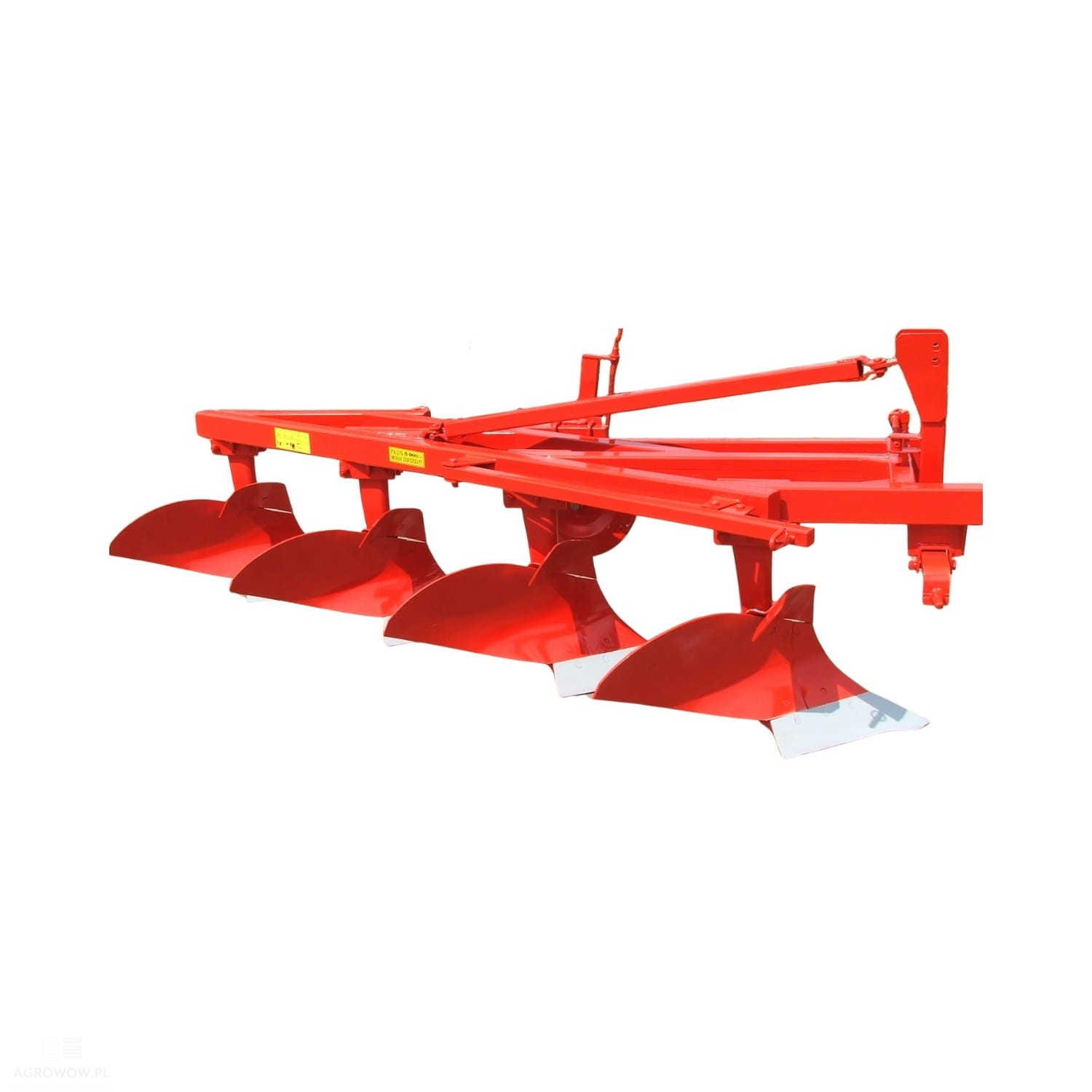

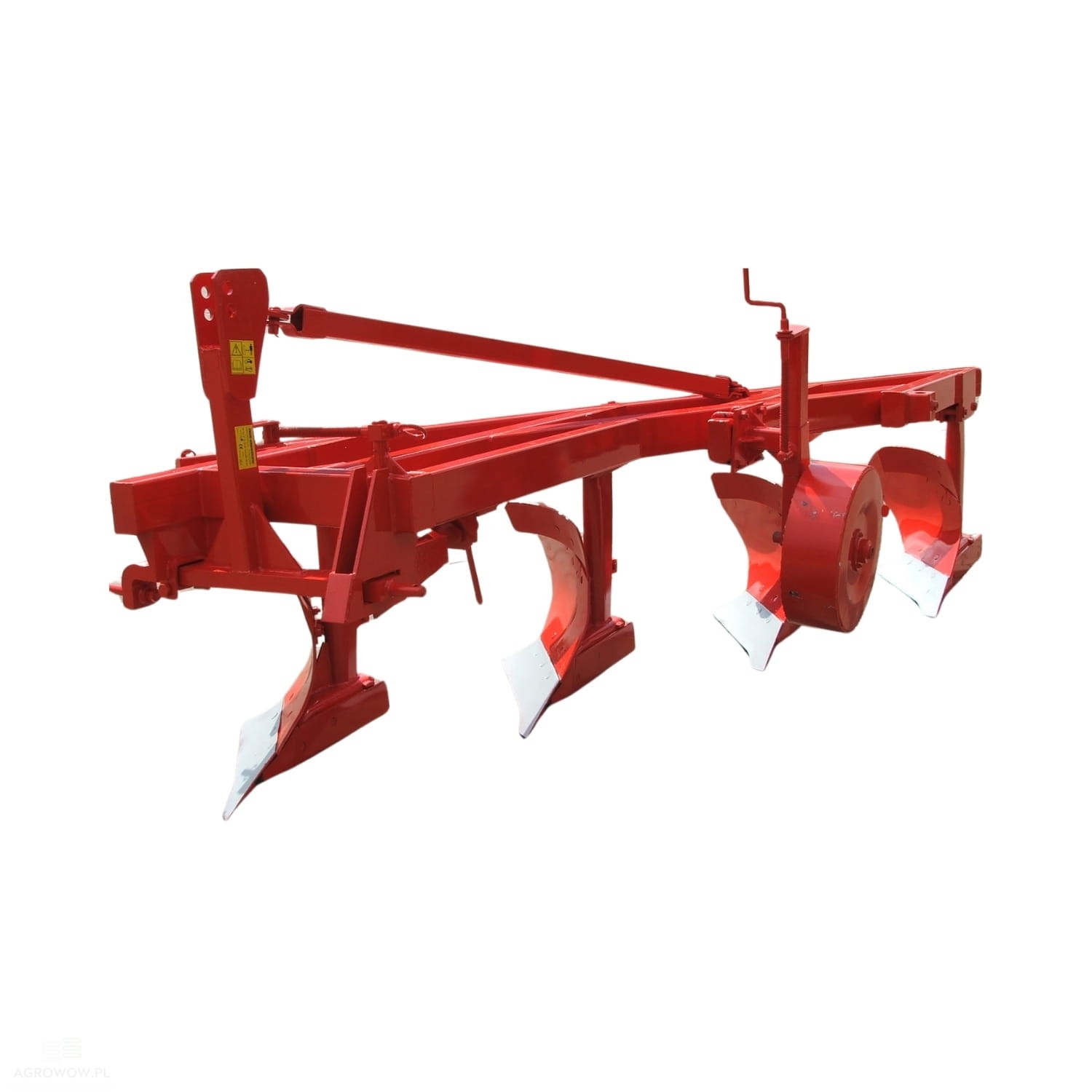

Agrowow 4-bottom bed plow with raised frame and shear bolt protection – ATLAS

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA04PPZ

- Manufacturer's name: High-clearance conventional plow ATLAS with shear bolt protection

- Working width: 1600 mm

- Weight: 550 kg

- Number of furrows: 4 (4-bottom)

- Power requirement: 74 HP

- Legs with furrow width: 400 mm

- Moldboards: long semi-helical

- Under-frame clearance: 700 mm

- Protection: mechanical stone protection

- Wheel: wide, bushed, metal

Optional extras:

- Bearing-mounted wheel (upon request)

The use of a wheel mounted on bearings ensures its free and smooth rotation, which significantly reduces rolling resistance during field work. The presence of bearings minimizes wear on interacting components and improves the machine's guidance stability. Thanks to this, the durability of the entire running gear is increased, and the operator can count on greater comfort during hours of plowing.

- Rubber wheel (upon request)

A wheel made of rubber effectively dampens shocks and adapts better to terrain irregularities than traditional metal wheels. It enables quieter, smoother operation while limiting the transfer of vibrations to the plow structure. Additionally, due to its flexibility, it reduces the risk of sinking into soft ground, which is particularly important on damp and muddy soils.

- Coulter (upon request)

A coulter is a precise cutting element mounted in front of the actual plow body, whose task is to pre-cut the soil and plant residues. This procedure considerably facilitates subsequent furrow turning and improves the overall quality of the plow's work. The coulter proves particularly useful in fields with a large amount of crop residue, weeds, or catch crops, where it ensures clean and even plowing.

Detailed Description:

• The 4-bottom plow with mechanical stone protection is a solid and effective tool created for intensive soil cultivation in more challenging terrain conditions.

• Its durable construction and precisely selected parameters make it perform excellently during deep plowing on light, medium, and mosaic soils.

• The machine is equipped with four working legs, each operating at a furrow width of 400 mm, which translates into a total working width of 1600 mm.

• The large under-frame clearance of 700 mm enables efficient work also in fields with a large amount of crop residue, limiting the risk of the machine clogging during operation.

• The agricultural plow is equipped with long semi-helical moldboards, which effectively turn the furrow, crumble the soil, and ensure its uniform mixing – which significantly improves the quality of field preparation for sowing.

• The mechanical protection system in the form of shear bolts protects the plow structure from damage when encountering obstacles such as stones or hard clumps.

• This is a proven and economical solution that increases the machine's reliability and reduces operating costs.

• As standard, this plowing tool is equipped with a wide, bushed metal wheel, which stabilizes the machine's operation and facilitates maintaining a constant plowing depth across the entire field surface.

• With a net weight of 550 kg and a power requirement of 74 HP, the plow can work with a wide range of medium-power tractors without overloading them, while ensuring high work efficiency.

• It is an excellent solution for farmers who value reliability, simplicity of operation, and effectiveness – even during demanding field work.
