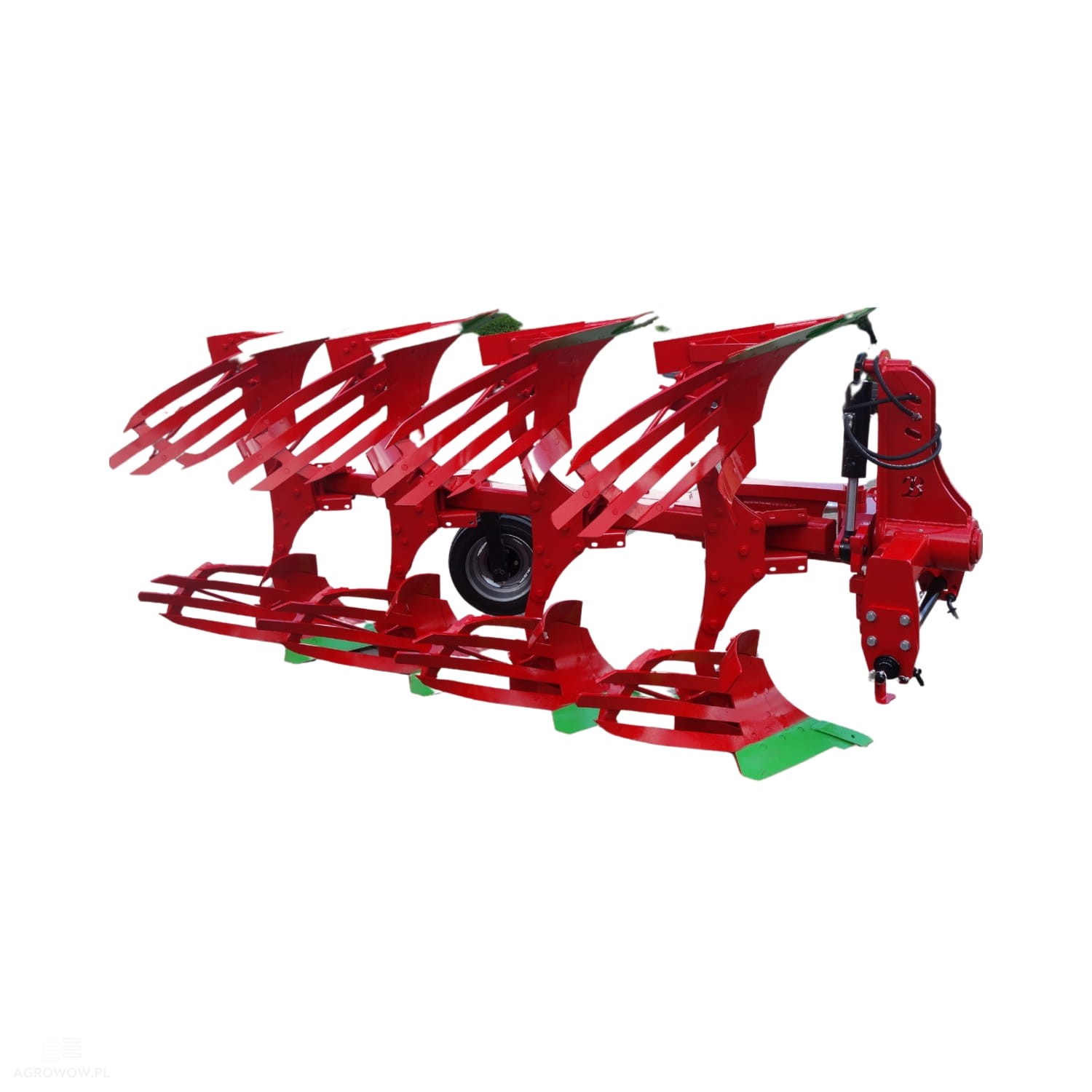

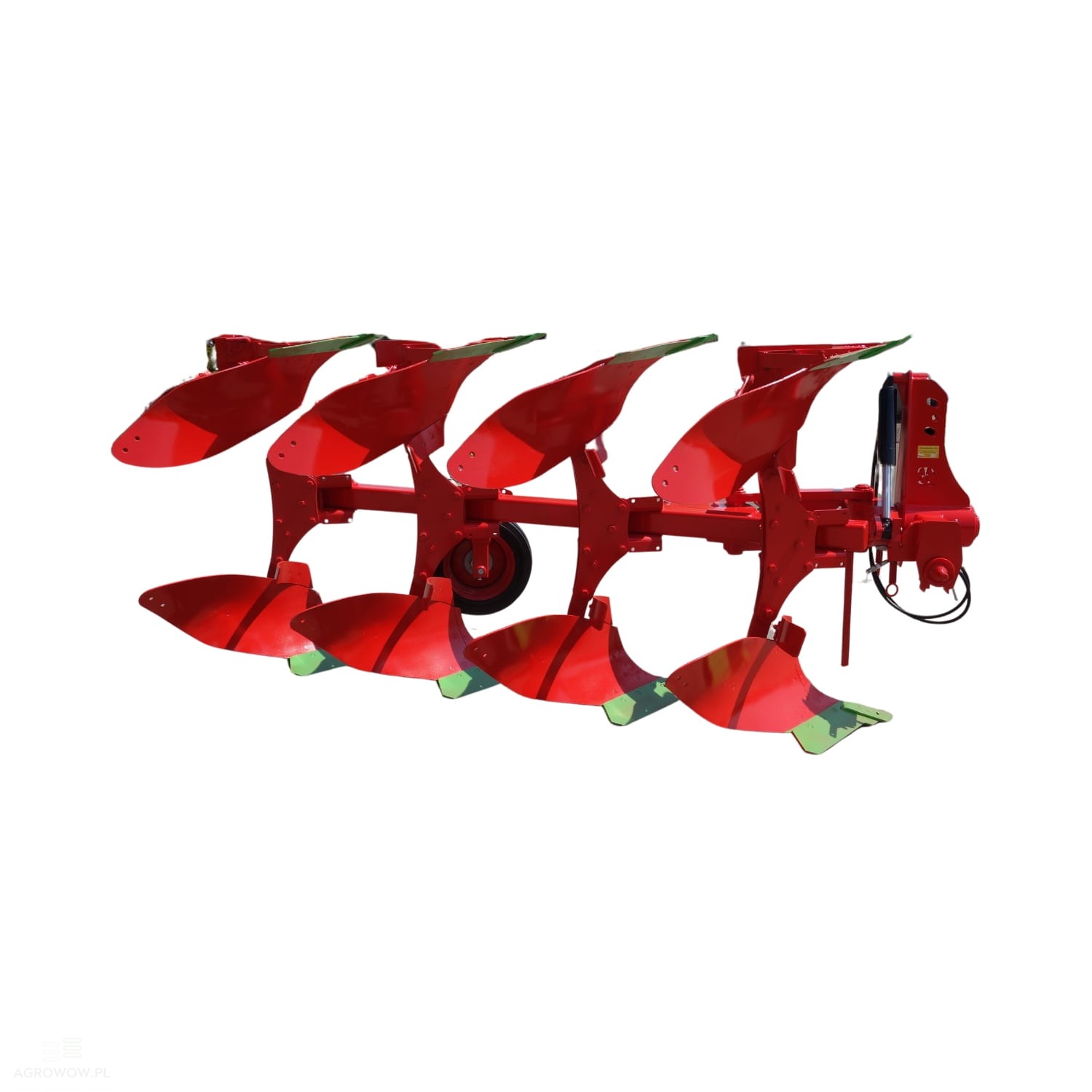

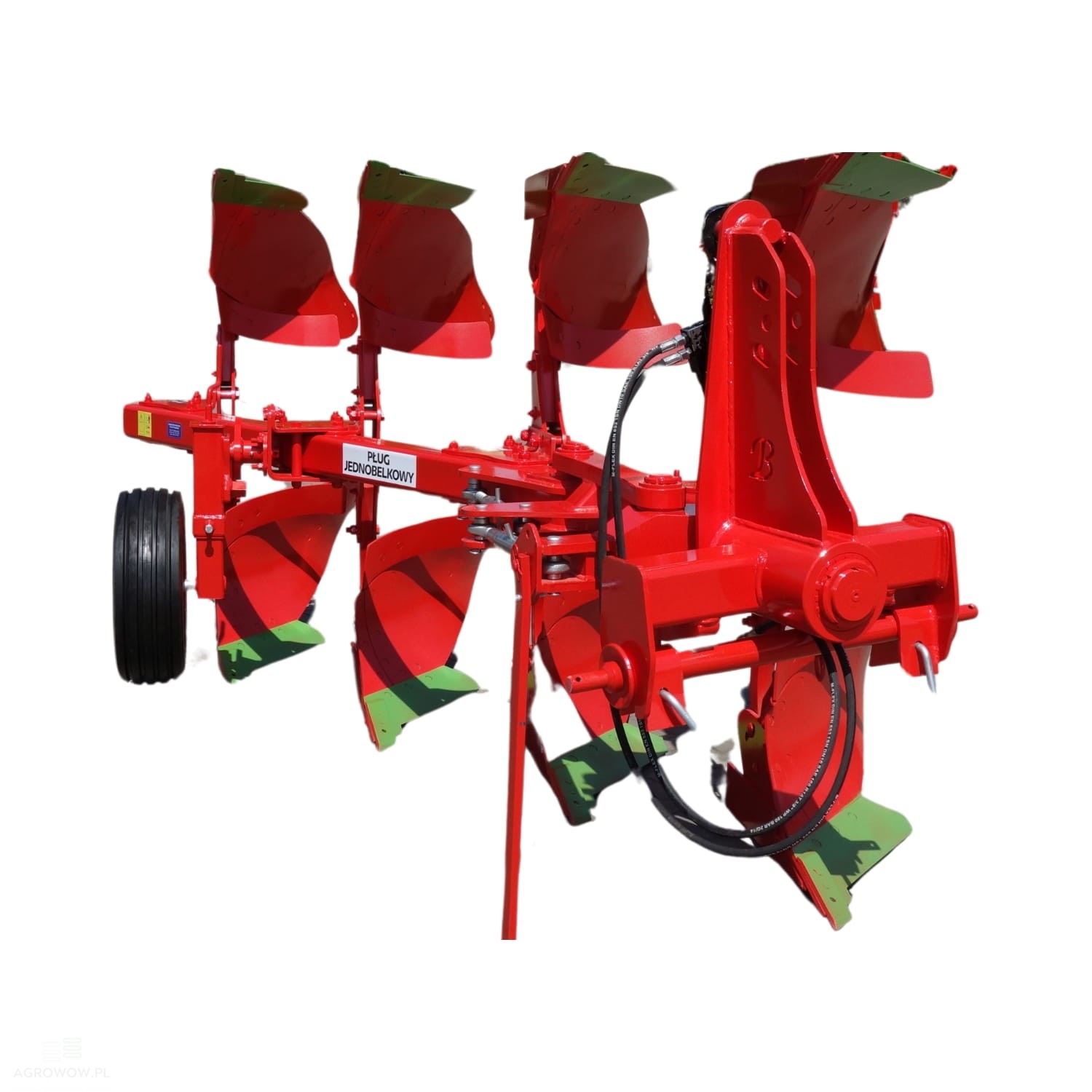

Agrowow 4-bottom reversible agricultural plow

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA04PO

- Manufacturer's name: Reversible plow

- Working width: 1120–1600 mm

- Weight: 1200 kg

- Number of furrows: 4 (4-bottom)

- Power requirement: 110 HP

- Side support wheel

- Protection: shear bolt

- Hitch bar: cat. II

- Share: share with chisel

- Step-regulated plowing width: 320, 360, 400, 440 mm

Optional extras:

- Wheel shock absorber (upon request)

The wheel shock absorber plays an important role in maintaining the stability and smoothness of the plow's operation during plowing. Its main task is to reduce vibrations and shocks resulting from the support wheel's contact with uneven ground. This significantly decreases the transfer of loads to the machine frame, extending the service life of components and increasing operator working comfort. This solution is particularly effective in fields with a varied structure, where hard clods or terrain contours generate additional stress.

- Trash boards / Skimmers (upon request)

Trash boards are optional equipment mounted directly on the plow bodies used for more thorough crumbling of the furrow after it is turned. Their presence significantly facilitates the breaking up of compacted soil clods, improving the overall soil structure and promoting faster settling. Thanks to the trash boards, the field becomes more level after plowing, which translates into better seedbed conditions and uniform plant emergence. This simple yet highly effective solution raises the quality of agrotechnical treatments.

Detailed Description:

• The 4-bottom reversible plow is an efficient and durable agricultural tool designed for deep plowing on light and medium soils under intensive operating conditions.

• Its modern, reinforced construction and well-thought-out technical solutions make this model an ideal choice for farmers seeking robust equipment to cultivate large acreages.

• The machine is equipped with four strong working bodies, each featuring a share with a chisel, ensuring effective soil cutting and precise furrow turning even under demanding soil conditions.

• One of the main functional features of the plow is the step-regulated plowing width, offering four settings to choose from: 32, 36, 40, and 44 cm per furrow.

• This solution allows for adapting the operating parameters to the soil type, expected efficiency, and tractor capabilities, increasing effectiveness while reducing draft resistance.

• The total working width ranges from 1120 to 1600 mm, allowing for the quick and effective cultivation of larger areas in less time.

• This model features a reliable shear bolt protection system.

• This mechanism protects the plowing implement against damage when encountering subsurface obstacles like stones or hard clods.

• The advantage of this technology lies not only in effective machine protection but also in its simple operation and low maintenance and repair costs.

• A side support wheel is provided as standard, which functions to stabilize the machine during operation and maintain a uniform plowing depth across the entire working width.

• The plow is designed to work with tractors of at least 110 HP, making it an excellent fit for farms utilizing medium- and higher-class machinery.

• The integration of a Category II hitch bar allows for quick and trouble-free coupling of the plow to most standard agricultural tractors.

• This 4-bottom plow model is perfectly suited for both traditional plowing and reduced tillage systems, serving as an effective tool for shallow stubble plowing and seedbed preparation.

• It is a versatile solution for conventional and organic farms alike, as well as those prioritizing high efficiency and reliability in daily operations.
