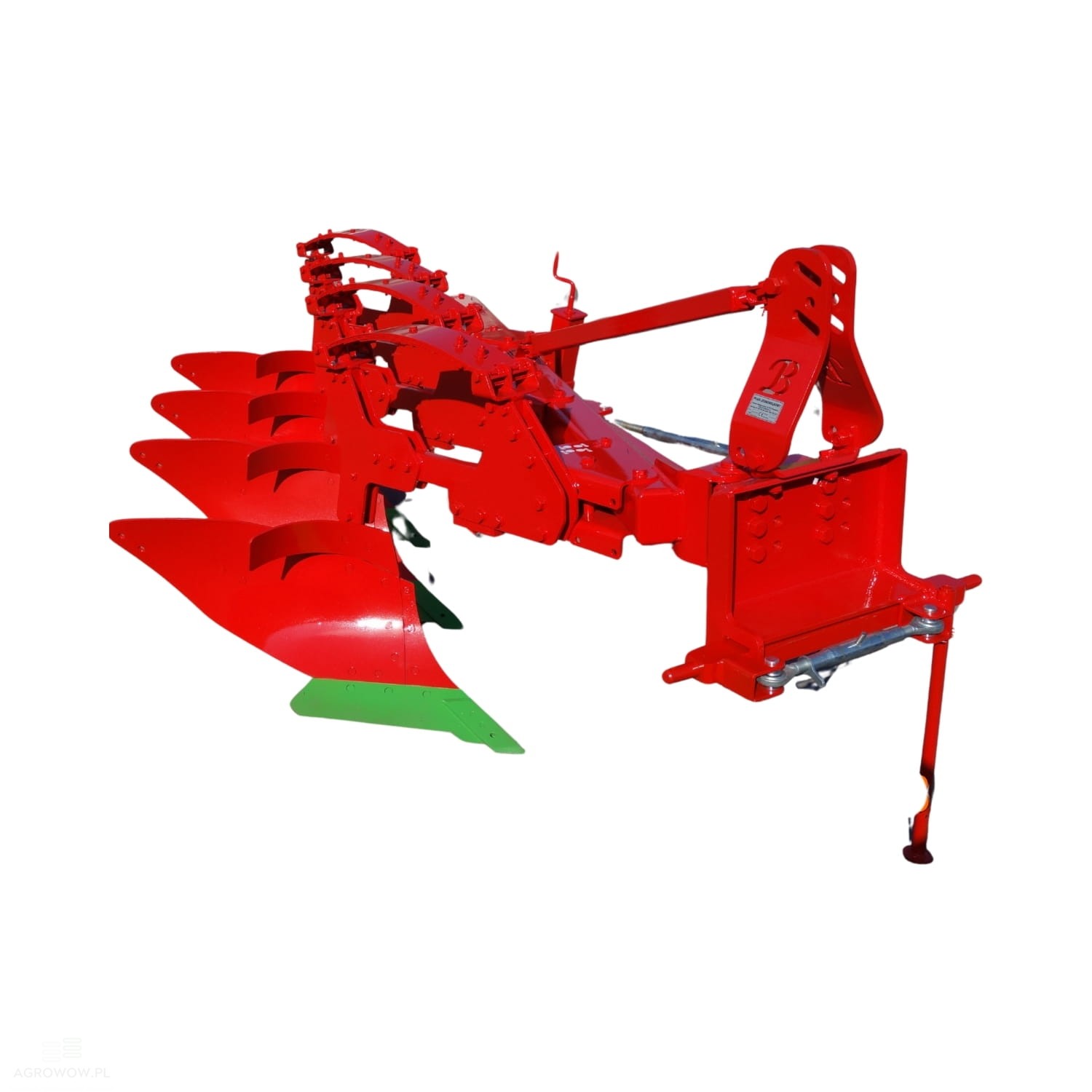

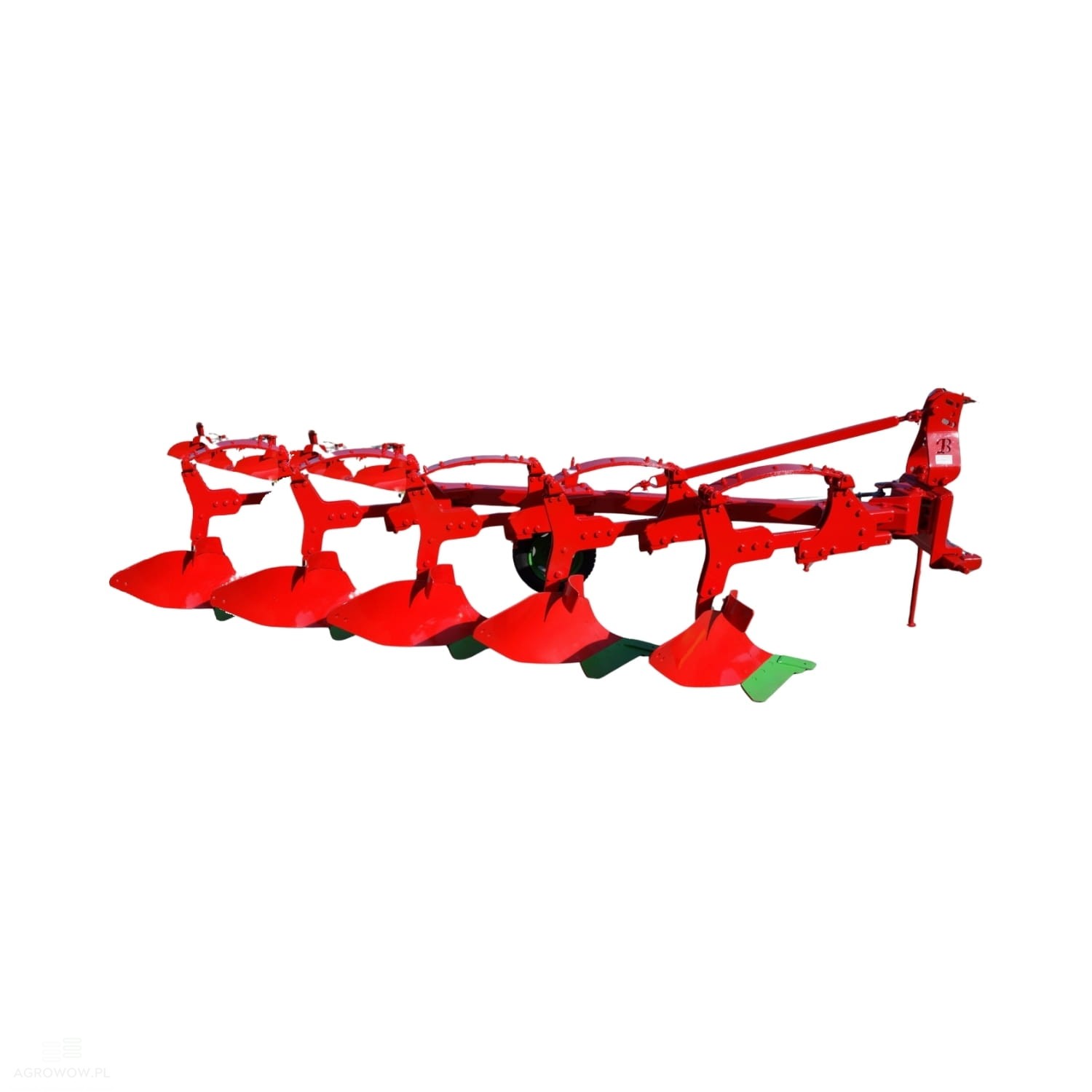

Agrowow 5-bottom agricultural plow with leaf spring protection

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA05PJR

- Manufacturer's name: Single-beam plow with leaf spring protection

- Working width: 1400–2000 mm

- Weight: 950 kg

- Number of furrows: 5 (5-bottom)

- Power requirement: 110 HP

- Side support wheel

- Protection: leaf spring

- Share: share with chisel

- Step-regulated plowing width: 320, 360, 400, 440 mm

Optional extras:

- Cat. II hitch bar (upon request)

The standard Category II hitch bar allows for quick and trouble-free connection of the plow to most medium-class agricultural tractors without requiring additional accessories or modifications. This solution ensures versatility as well as a solid, secure connection that guarantees stable guidance of the machine during operation – even on difficult terrain. The heavy-duty design of the bar effectively reduces vibrations and overloading, which beneficially affects the lifespan of the working components and increases the accuracy of the performed operations. It is a practical and convenient solution that significantly facilitates the daily operation of the plow.

- Trash boards / Skimmers (upon request)

Trash boards are practical additions mounted on the plow bodies aimed at effectively breaking and crumbling the soil after it is turned. Thanks to their action, it is possible to break down larger clods of earth more thoroughly, which significantly improves the structure of the cultivated soil layer and accelerates its natural settling. The result is a more level field surface, which promotes uniform emergence and facilitates subsequent agrotechnical treatments. Despite their small size, trash boards significantly improve plowing quality and the overall working efficiency of the machine.

- Hydraulically adjustable plowing width (upon request)

The hydraulic working width adjustment system allows the operator to quickly change operating parameters during plowing – without needing to leave the cab or stop the tractor. This makes it possible to adjust the working width on the fly to changing field conditions, such as soil type, terrain configuration, or the requirements of a specific crop. This solution increases operating comfort, provides higher working precision, and allows the full potential of the machine to be utilized, improving efficiency and saving valuable time during the season.

Detailed Description:

• The manufacturer's technical specifications provided above represent the model variant.
• The description below details the design and operational characteristics of this single-beam leaf-spring protected product line.
• The single-beam agricultural plow is a powerful and reliable tool created for precise and efficient cultivation of light and medium soils.
• It is excellent for farms that prioritize build quality and operational efficiency.
• The machine features a robust construction and a functional design, which translates into a long lifespan, easy operation, and high reliability even under intensive use.
• The working bodies are equipped with shares with chisels to ensure effective cutting and precise furrow turning, even in soils with a harder structure.
• The chisel extends the lifespan of the share and increases overall plowing efficiency. With a working width ranging from 1400 to 2000 mm, the plow enables efficient cultivation of larger areas while maintaining excellent machine guidance, even in more demanding terrain conditions.
• The step-regulated plowing width option (320, 360, 400, 440 mm per furrow) allows the machine to be adapted to current needs and soil conditions, as well as to the technical parameters of the tractor.
• This flexible solution increases precision and helps save fuel.
• The modern leaf spring protection system protects the working elements of the plow against damage by allowing them to deflect when encountering underground obstacles such as stones or roots.
• Once passed, the body automatically returns to its working position, ensuring smooth and uninterrupted operation.
• Thanks to this system, the operator does not have to stop working, which significantly maintains operational continuity and reduces the risk of machine breakdown.
• The machine is also equipped with a side support wheel, which is responsible for stable plow guidance and maintaining a uniform plowing depth, resulting in a consistent and well-finished field.
• With a tractor power requirement of 110 HP, the plow works seamlessly with a wide range of medium-to-heavy class agricultural tractors, ensuring optimal performance without overloading the machinery.
• The total weight of 950 kg guarantees adequate downforce on the soil, which improves plowing quality while maintaining excellent maneuverability in the field.
• It is a proven and functional plow for farmers who value the combination of durability, efficiency, and user comfort in daily field work.
