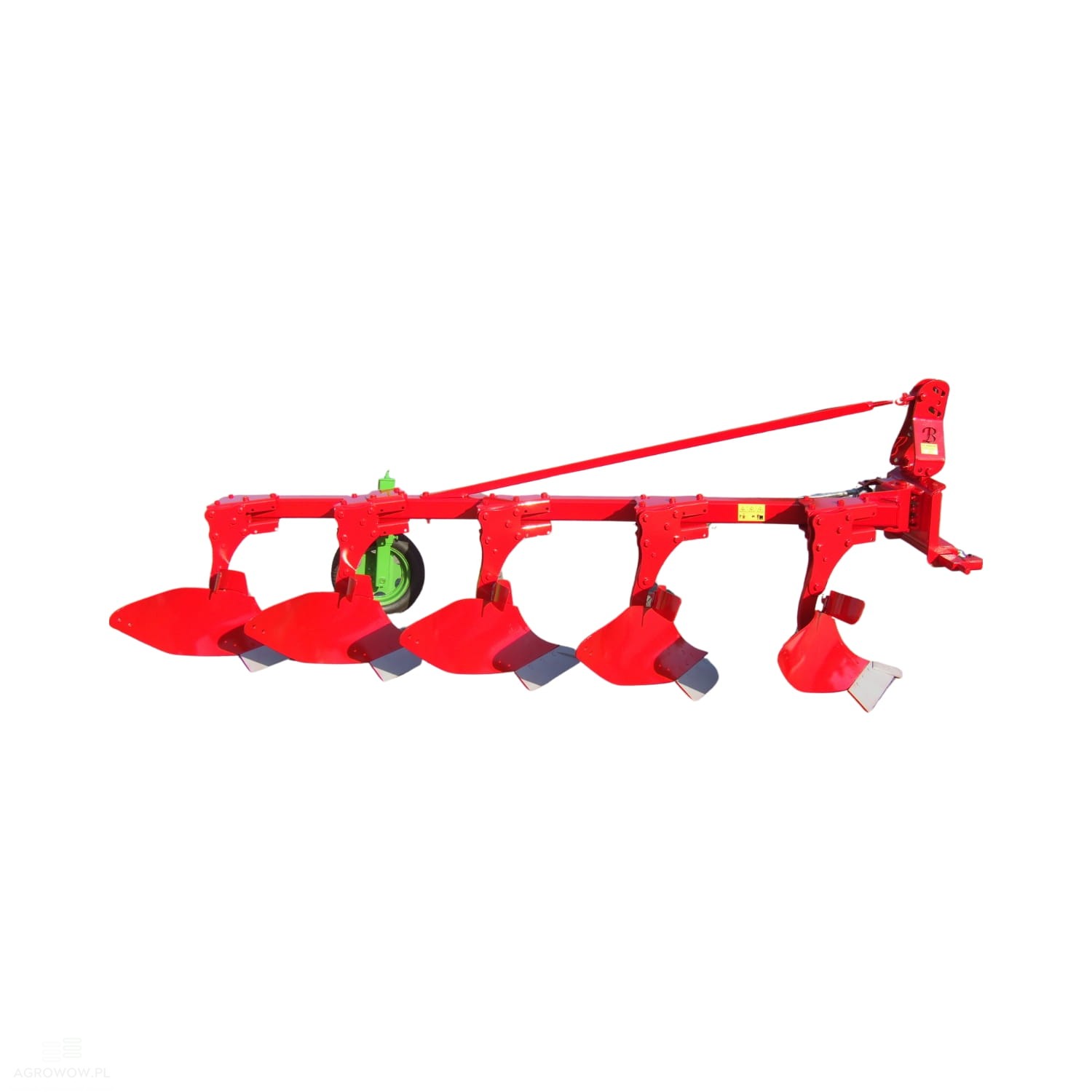

Agrowow 5-bottom agricultural plow with shear bolt protection

Chcesz ustalić parametry i dopasować pług rolniczy do swoich indywidualnych potrzeb?

Jesteśmy w stanie przygotować mocowanie do każdego rodzaju sprzętu — traktora, koparki, ładowarki, wózka widłowego i wielu innych maszyn

Skontaktuj się z naszym inżynierem sprzedaży!

Adres e-mail: sklep@agrowow.pl

Numer telefonu: +48 880 261 210 | +48 504 947 222

Chętnie pomożemy w wyborze odpowiedniej konfiguracji oraz odpowiemy na każde pytanie.

- Manufacturer: Agrowow

- Catalogue number: BA05PJK

- Manufacturer's name: Single-beam plow with shear bolt protection

- Working width: 1400–2000 mm

- Weight: 750 kg

- Number of furrows: 5 (5-bottom)

- Power requirement: 110 HP

- Side support wheel

- Protection: shear bolt (kołkowe)

- Share: share with chisel

- Step-regulated plowing width: 320, 360, 400, 440 mm

Optional extras:

- Cat. II hitch bar (upon request)

Equipping the plow with a Category II hitch bar guarantees its compatibility with most medium-power agricultural tractors. This hitch standard enables quick and trouble-free connection of the machine without the need for additional adapters or technical modifications. The solid construction of the hitch ensures durability and stability during operation, even in difficult terrain. Uniform guidance of the plow reduces the wear of working parts and translates into plowing precision, while simultaneously improving operator working comfort and the reliability of the entire tractor-implement setup.

- Trash boards / Skimmers (upon request)

Trash boards are additional working elements mounted on the plow bodies that are responsible for more efficient crumbling of the soil after the furrow is turned. Thanks to them, compacted clods of earth are broken down more effectively, which positively affects the structure of the cultivated layer and accelerates its settling. The more level field surface obtained in this way promotes uniform plant emergence and creates optimal conditions for further agrotechnical treatments. Despite their simplicity, trash boards significantly raise the quality of the performed plowing.

- Hydraulically adjustable plowing width (upon request)

Hydraulic working width adjustment enables smooth and quick adaptation of operating parameters without needing to leave the tractor cab. The operator can instantly react to changing field conditions, such as soil type, terrain slope, or row spacing. This operational flexibility not only increases handling comfort but also allows for greater precision and overall plowing efficiency, eliminating downtime and improving cultivation quality.

Detailed Description:

• The single-beam 5-bottom plow is a durable and efficient agricultural tool designed for the intensive cultivation of light and medium soils on farms that demand reliability and high efficiency.

• Thanks to its robust construction and refined design, the machine performs excellently during daily operation, offering simplicity of use, durability, and a high quality of plowing.

• The model is equipped with five working bodies featuring shares ending in a chisel, allowing for effective cutting and turning of the furrow, even under more difficult soil conditions.

• The working width ranging from 1400 to 2000 mm ensures high work efficiency while maintaining satisfactory maneuverability, which is particularly important on larger acreages and in varied terrain.

• Thanks to the step-regulated plowing width (320, 360, 400, 440 mm per furrow), the user can easily adapt the machine to the soil conditions and the power of their tractor, allowing for more economical and precise cultivation.

• The agricultural plow features shear bolt protection, which safeguards the working components against damage in case of contact with obstacles such as stones or roots.

• This practical and proven technical solution increases operational safety and reduces the risk of unplanned downtime during the plowing season.

• An additional piece of equipment is the side support wheel, which is responsible for maintaining a uniform working depth and ensuring the stability of the entire machine, even on uneven terrain profiles.

• The plow requires a tractor with a minimum of 110 HP, making it an ideal solution for modern farms utilizing medium- to higher-class tractors.

• The machine's weight of 750 kg provides adequate downforce on the ground while enabling agile maneuvering and easy transport both in the field and during transits between plots.

• It is a versatile, solid, and easy-to-operate tool that will meet the expectations of farmers seeking high plowing quality paired with equipment durability and reliability.
