Agrowow 5-bottom bed plow

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA05PZZ

- Manufacturer's name: Conventional plow

- Working width: 1200 mm

- Weight: 400 kg

- Number of furrows: 5 (5-bottom)

- Power requirement: 64 HP

- Legs with furrow width: 300 mm

- Moldboards: semi-helical

- Under-frame clearance: 600 mm

- Wheel: narrow, bushed, metal

- Medium plowing

- Fixed working width

Optional extras:

- Bearing-mounted wheel (upon request)

A wheel mounted on bearings significantly facilitates the machine's guidance, especially on uneven and demanding terrain. Thanks to reduced rolling resistance, the wear on components such as the axle and hub is limited, which translates into less need for maintenance and lower operating costs. This solution not only increases the durability of the running gear but also enhances the operator's working comfort – particularly during long-term tasks, where vibration reduction is highly important for ease of operation.

- Rubber wheel (upon request)

A wheel made of rubber is a practical component that increases the convenience of using the machine in varying field conditions. Its flexible structure allows it to effectively eliminate ground irregularities, ensuring better stability and fewer vibrations during operation. Additionally, the rubber wheel operates more quietly than steel versions and helps prevent digging into marshy terrain. Its application positively affects both the durability of the working components and the overall comfort of the operator.

- Coulter (upon request)

A coulter is a working element mounted in front of the plow body, whose main task is to pre-cut the soil and plant residues, such as weeds, straw, or catch crops. Thanks to its operation, the furrow is better formed, which increases plowing quality and minimizes the risk of the machine clogging. The coulter performs particularly well when working in conditions with a large amount of organic residue, ensuring an even, clean plow and effective soil preparation for subsequent cultivation treatments.

Detailed Description:

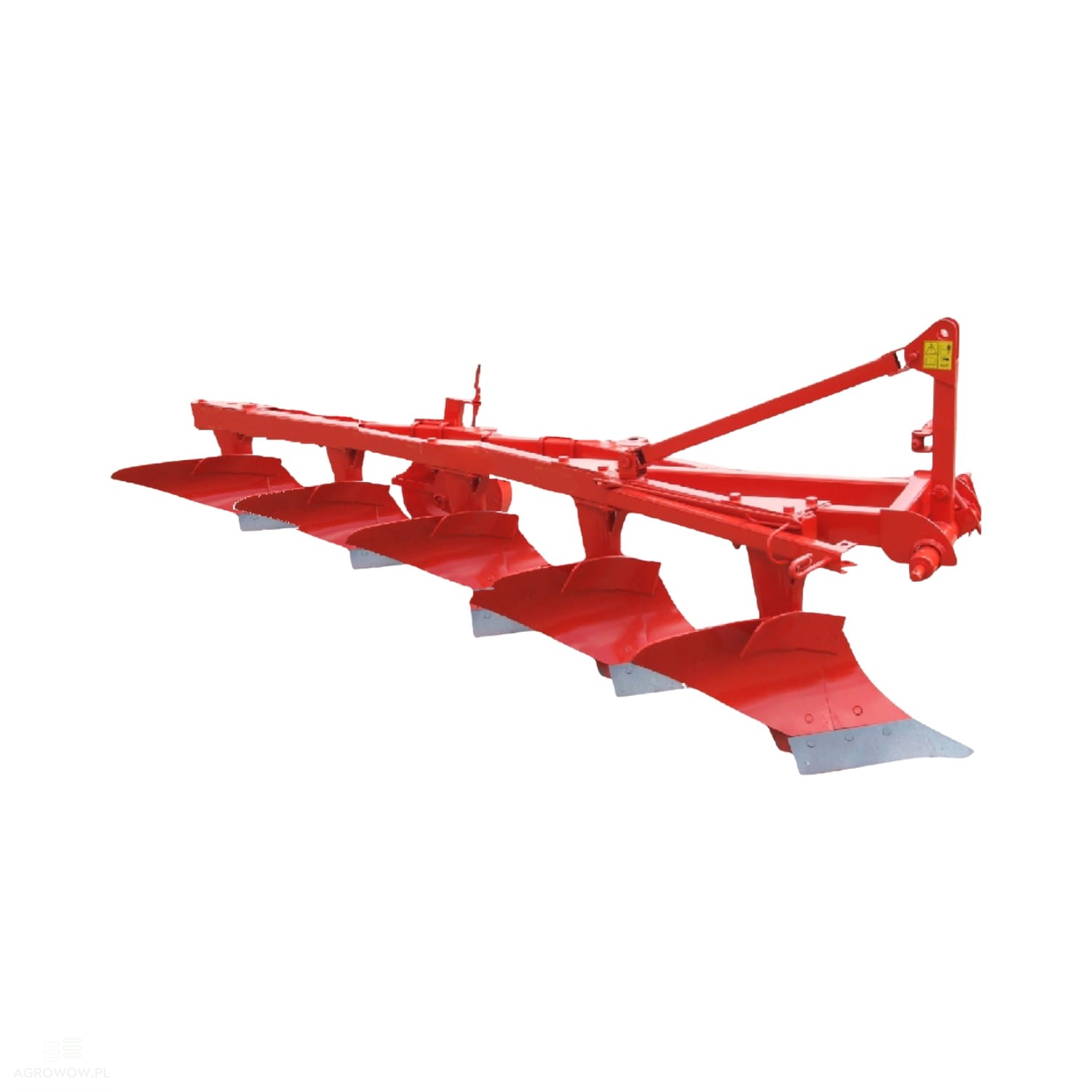

• The 5-furrow conventional plow is a practical and solidly built agricultural tool designed for medium-depth plowing on light and medium-cohesive soils.

• Thanks to its well-thought-out, reinforced construction, the machine performs excellently in daily operation, especially on small and medium-sized farms that expect durability, ease of use, and reliability.

• The machine is equipped with five working legs, each performing plowing at a width of 300 mm, resulting in a total working width of 1200 mm.

• The fixed working width allows for repeatable, even results regardless of soil type and weather conditions, which translates into better quality of the prepared ground.

• This model utilizes semi-helical moldboards, which effectively turn and crumble the furrow, mixing the soil with plant residues.

• As a result, the soil structure is improved, and its proper aeration and organic matter decomposition promote healthy plant development.

• The under-frame clearance of 600 mm provides adequate working space even with a moderate amount of crop residues, reducing the risk of the machine clogging and increasing operational continuity.

• The standard equipment includes a narrow, bushed metal wheel, which supports maintaining a uniform plowing depth and stable guidance of the machine.

• The bushing increases the wheel's resistance to wear, and its metal construction allows for trouble-free use even in more difficult terrain conditions.

• With a weight of 400 kg and a power requirement of 64 HP, the plow works perfectly with light and medium-class tractors, offering high plowing efficiency without excessively overloading the equipment.

• It is an ideal solution for farmers looking for a durable, easy-to-operate 5-furrow plow that will ensure efficient field work and perform well in diverse soil conditions.
