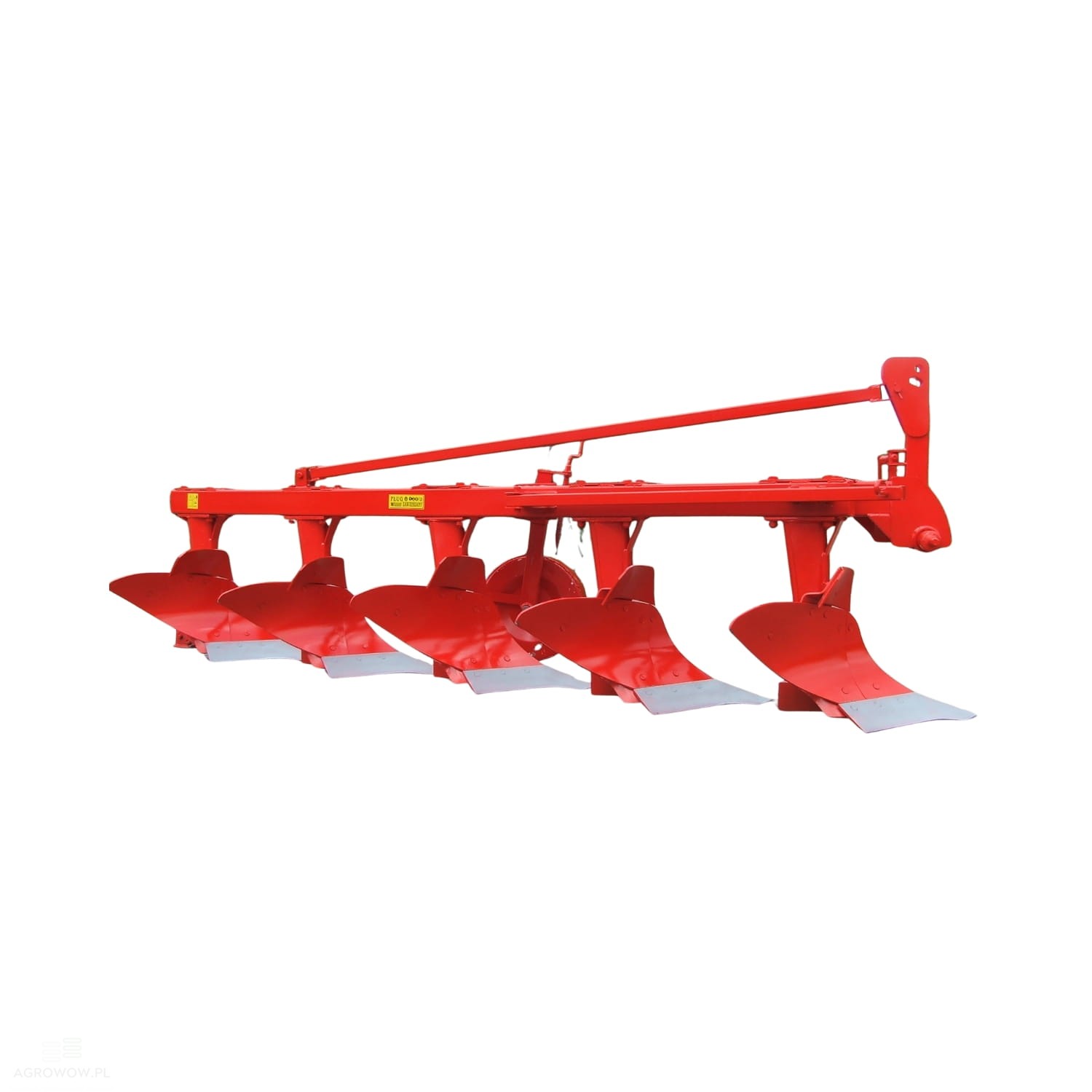

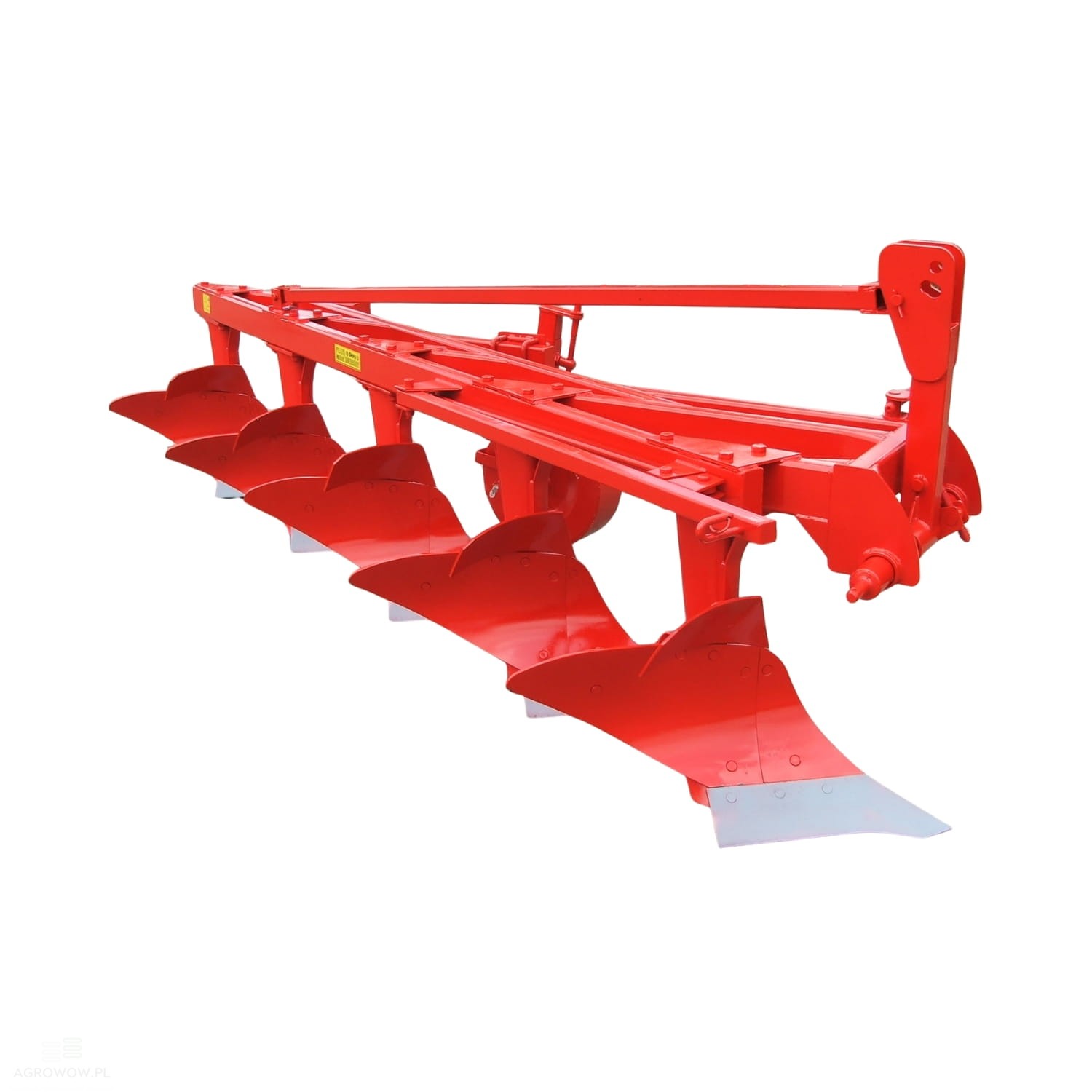

Agrowow 5-bottom bed plow with raised frame

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA05PZP

- Manufacturer's name: High-clearance conventional plow

- Working width: 1500 mm

- Weight: 460 kg

- Number of furrows: 5 (5-bottom)

- Power requirement: 80 HP

- Legs with furrow width: 300 mm

- Moldboards: semi-helical

- Prześwit pod ramą: 700 mm

- Wheel: wide, bushed, metal

- Medium and deep plowing

- Fixed working width

Optional extras:

- Bearing-mounted wheel (upon request)

The use of a wheel mounted on bearings significantly improves the machine's operating smoothness, especially on uneven and demanding ground. Thanks to reduced rolling resistance, wear on components such as the hub and axle is limited, which translates into less frequent servicing and lower operating costs. This type of running gear increases the durability of the structure and improves operator comfort, particularly during multi-hour field operations where vibration reduction is of significant importance.

- Rubber wheel (upon request)

A rubber support wheel is a versatile solution adapted for operation in diverse terrain conditions. Thanks to its flexible tread, the wheel better adapts to ground irregularities, effectively absorbing shocks and increasing the stability of the machine. It operates more quietly than metal wheels and reduces the risk of digging into wet, soft soil. This provides not only greater comfort for the operator but also lower loads on the plow frame and a longer lifespan for the entire machine.

- Coulter (upon request)

A coulter is an important working element mounted in front of the actual plow body, responsible for pre-cutting the soil and cutting through organic residues – such as catch crops, weeds, or straw. Its presence considerably facilitates subsequent furrow formation, improving plowing quality and reducing the risk of the machine clogging. Particularly useful in fields with a large amount of crop residue, the coulter allows for an even, clean surface ready for further agrotechnical procedures.

Detailed Description:

• The 5-bottom high-clearance bed plow is a solid and reliable agricultural machine designed for efficient medium and deep plowing on light and medium-cohesive soils.

• Thanks to its compact yet durable construction, this model performs excellently on medium-sized farms where equipment durability, accuracy of operations, and simplicity of use are what matter most.

• The machine is equipped with five working legs, each with a width of 300 mm, resulting in a total working width of 1500 mm.

• The fixed working width guarantees consistency and uniformity of plowing, regardless of soil type or weather conditions, which translates into better field preparation for subsequent work.

• As standard, semi-helical moldboards are used, which effectively turn the furrow, break up the soil, and mix it with plant residues.

• This action promotes achieving the proper soil structure, ensuring better aeration and faster decomposition of organic matter – key elements in the plant growth process.

• Thanks to an under-frame clearance of 700 mm, this agricultural plow handles large amounts of crop residue well, reducing the risk of clogging and ensuring operational continuity in diverse conditions.

• The tractor plow is also equipped with a wide, bushed metal wheel, which stabilizes the machine and helps maintain a uniform working depth across the entire width.

• The bushing increases the wheel's wear resistance, and its rugged construction guarantees trouble-free operation even in difficult terrain.

• With a weight of 460 kg and a power requirement of 80 HP, the plow can be easily paired with medium-class tractors, offering both high efficiency and appropriate downforce on the soil without overloading the machinery.

• It is a versatile, easy-to-operate, and exceptionally durable moldboard plow, ideal for farmers who expect efficiency, reliability, and precision in their daily field work.
