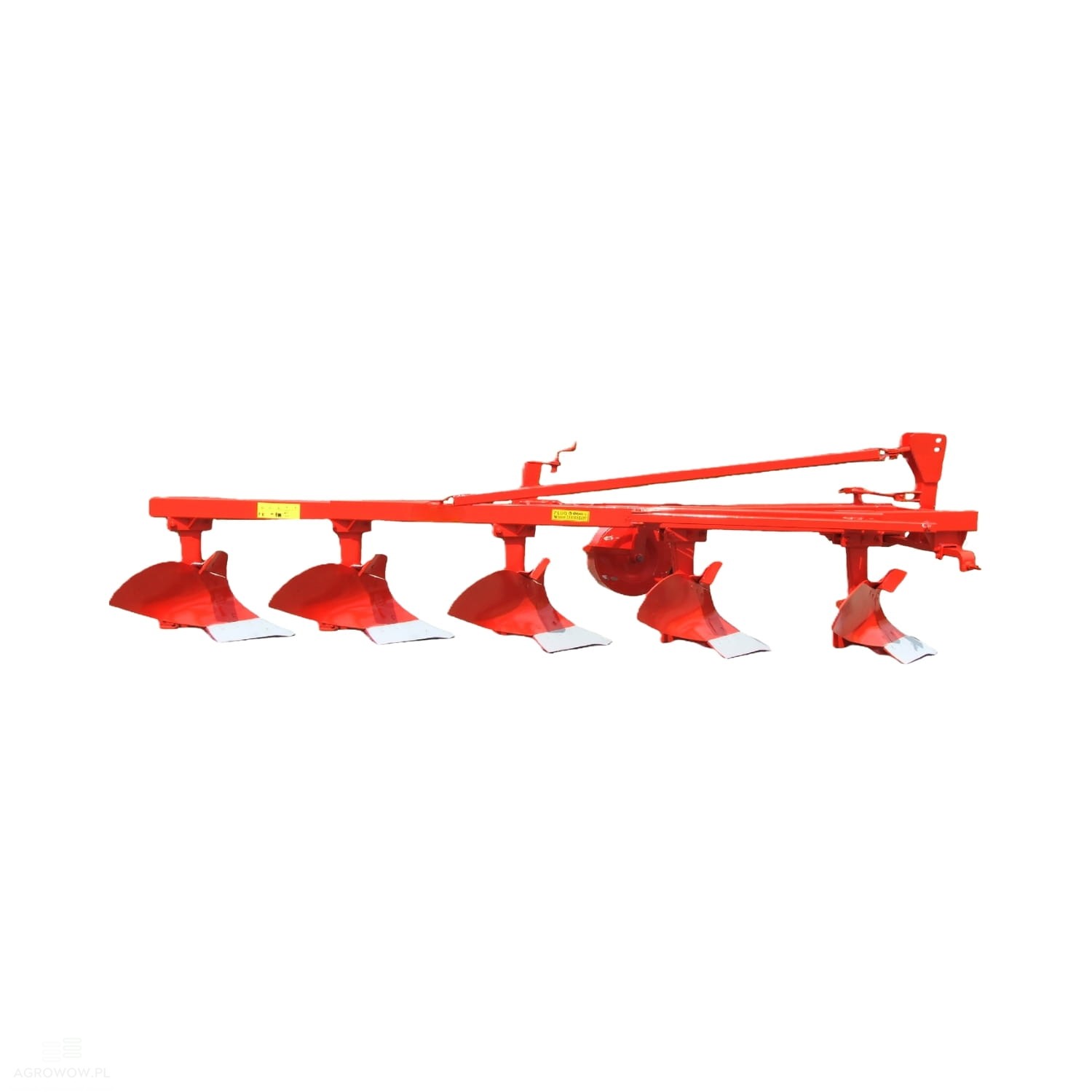

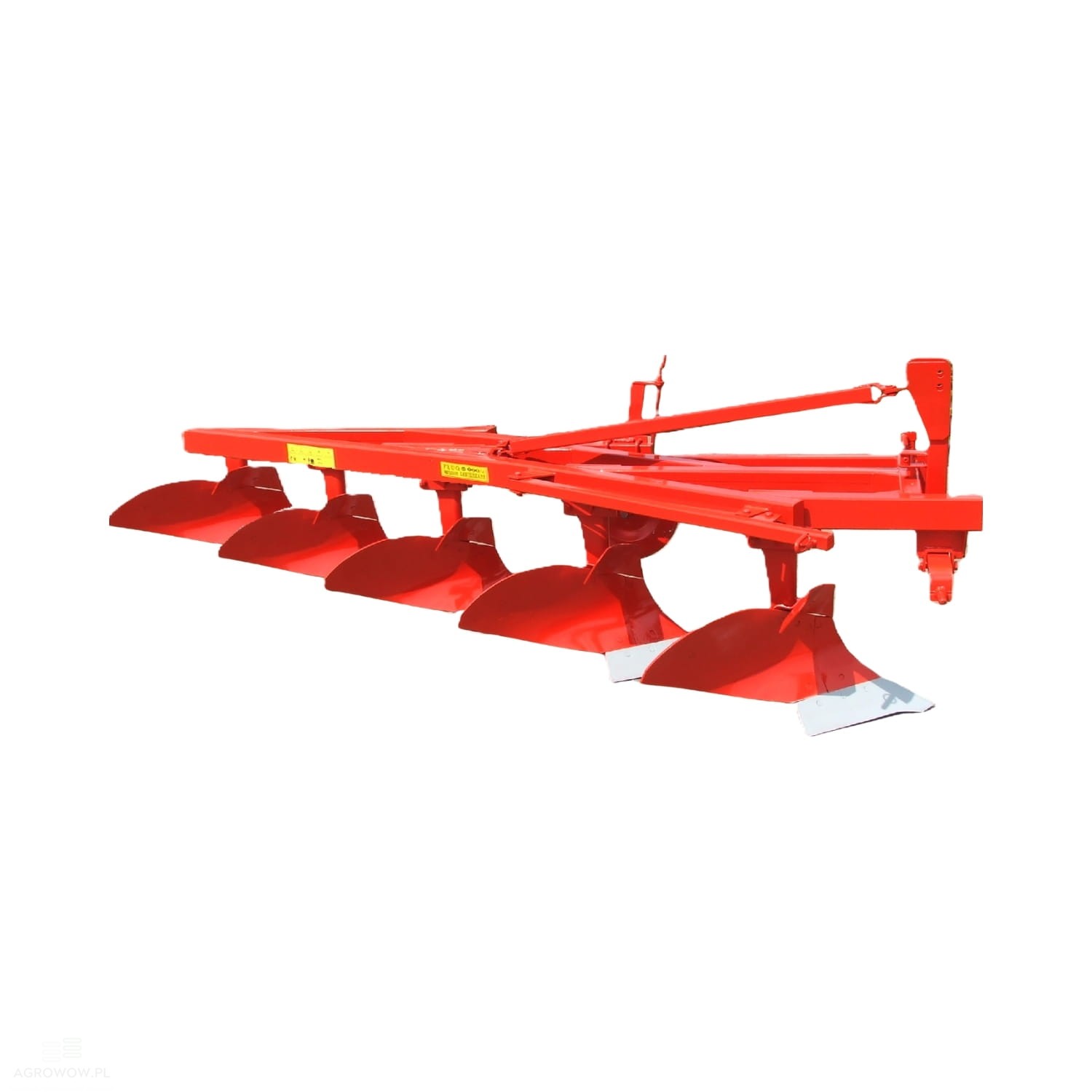

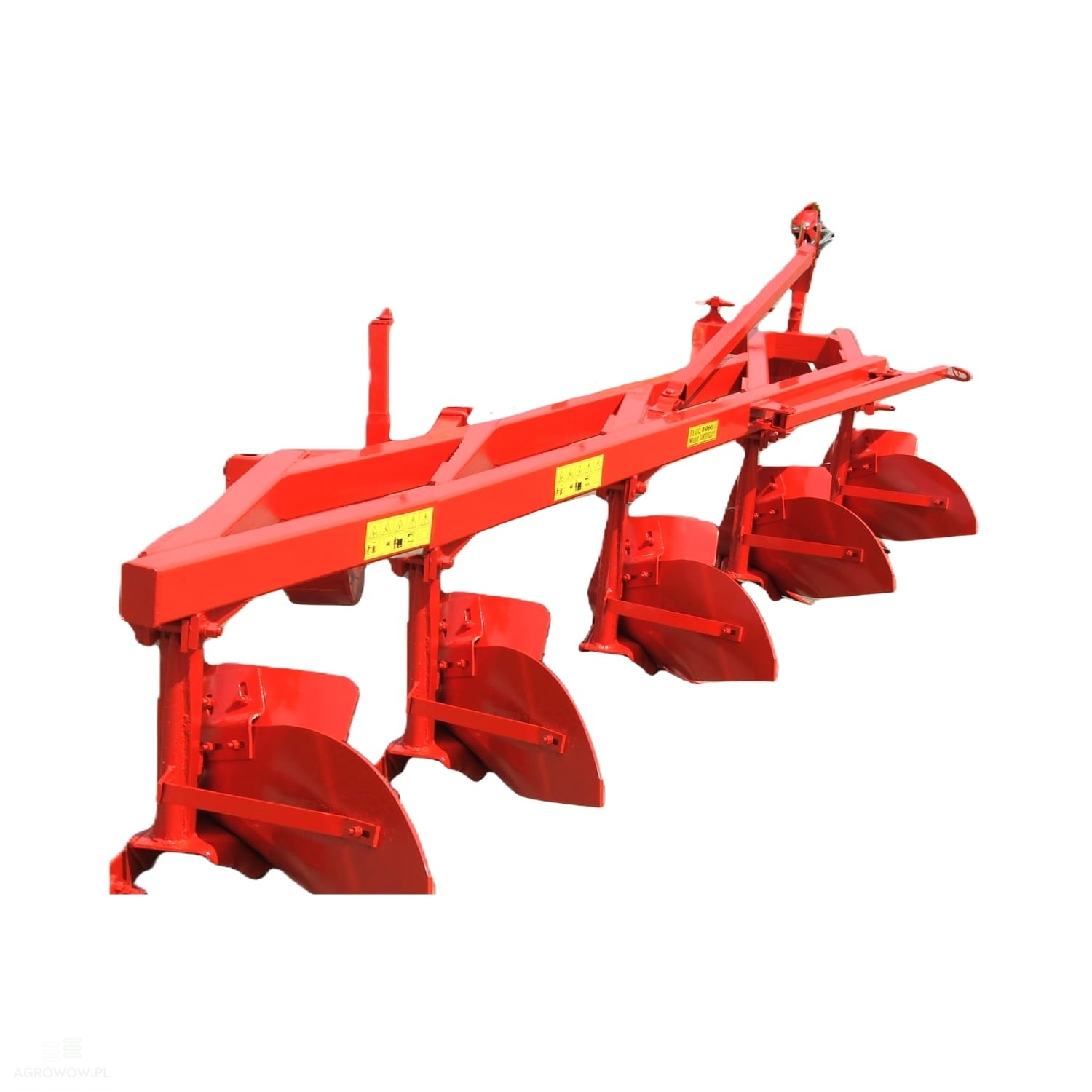

Agrowow 5-bottom bed plow with raised frame and shear bolt protection – ATLAS

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA05PPZ

- Manufacturer's name: High-clearance conventional plow ATLAS with shear bolt protection

- Working width: 2000 mm

- Weight: 650 kg

- Number of furrows: 5 (5-bottom)

- Power requirement: 90 HP

- Legs with furrow width: 400 mm

- Moldboards: long semi-helical

- Under-frame clearance: 700 mm

- Protection: mechanical stone protection

- Wheel: wide, bushed, metal

Optional extras:

- Bearing-mounted wheel (upon request)

A wheel equipped with bearings enables smooth and trouble-free rolling during field work while simultaneously reducing rolling resistance. Thanks to the bearing design, the wear on interacting components is lowered and the precision of the plow's guidance is increased. This translates into better operational stability, a longer lifespan for the running elements, and higher operator comfort, especially during long plowing sessions.

- Rubber wheel (upon request)

A rubber wheel perfectly eliminates vibrations and ensures better traction on uneven surfaces than traditional steel wheels. It facilitates smooth guidance of the machine, limits the transfer of vibrations to the plow structure, and minimizes noise. Additionally, its flexible surface prevents sinking into damp and soft soils, making it an ideal solution for more challenging terrain conditions.

- Coulter (upon request)

A coulter is a specialized working element mounted in front of the plow body, whose task is to cut through the soil and plant residues before the furrow is turned. Its action improves the entire plowing process, ensuring cleaner and more uniform results. It is particularly useful in conditions with a large amount of straw, weeds, or catch crops, enhancing work quality and field aesthetics after the pass.

Detailed Description:

• The 5-bottom plow with mechanical stone protection is a durable and functional agricultural machine designed for efficient soil cultivation under challenging soil conditions.

• Thanks to its robust construction and refined working parameters, it performs excellently during deep plowing on light, medium, and non-uniform soils, ensuring reliability and high operational efficiency.

• The machine is equipped with five working legs, each covering a furrow width of 400 mm, which results in an impressive total working width of 2000 mm – ideal for quickly covering large acreages.

• The under-frame clearance of 700 mm allows for trouble-free plowing in the presence of crop residues and larger amounts of organic matter, minimizing the risk of the bodies clogging.

• Long semi-helical moldboards are used in the design, which effectively turn the furrow and uniformly mix the soil, ensuring good aeration and preparation for future crops.

• The mechanical protection system based on shear bolts protects key elements of the plow from damage when encountering obstacles such as stones or compact clumps.

• This reliable and low-cost-to-operate solution increases the machine's durability and operational safety.

• The standard equipment includes a wide, bushed metal wheel, which stabilizes the plow during passes and facilitates maintaining a uniform working depth across the entire plowing width.

• With a net weight of 650 kg and a required tractor power of 90 HP, the machine works perfectly with popular models of medium-class tractors without causing excessive load on the drivetrain components.

• It is an indispensable tool for farms that focus on efficiency, durability, and trouble-free use in daily field work – regardless of the soil type or terrain conditions.
