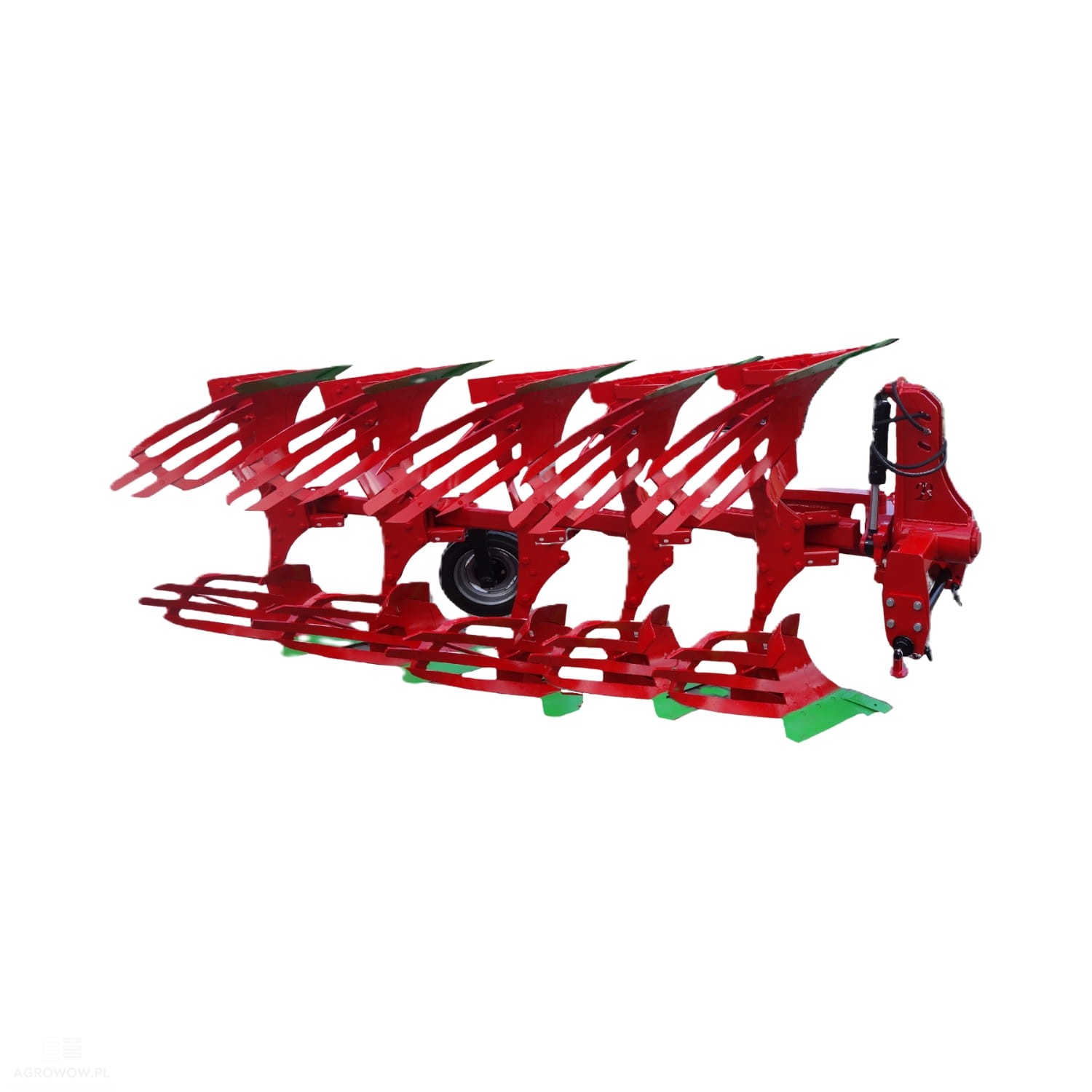

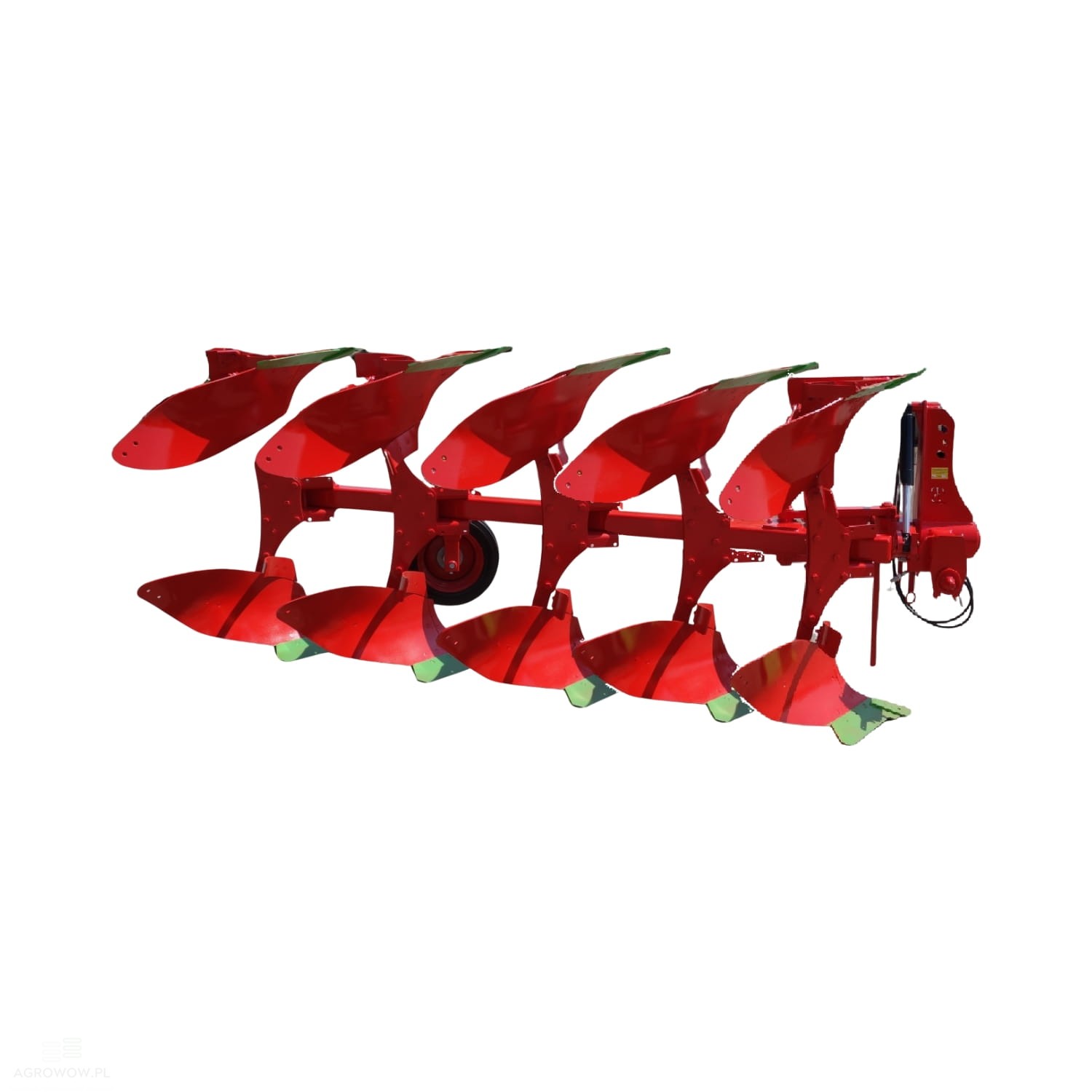

Agrowow 5-bottom reversible agricultural plow

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: BA05PO

- Manufacturer's name: Reversible plow

- Working width: 1400–2000 mm

- Weight: 1400 kg

- Number of furrows: 5 (5-bottom)

- Power requirement: 130 HP

- Side support wheel

- Protection: shear bolt (kołkowe)

- Hitch bar: cat. II

- Share: share with chisel

- Step-regulated plowing width: 320, 360, 400, 440 mm

Optional extras:

- Wheel shock absorber (upon request)

The wheel shock absorber plays a key role in ensuring the smooth and stable operation of the plow during cultivation. Its function is to effectively dampen vibrations and oscillations caused by the contact of the support wheel with uneven terrain. This limits the transfer of shocks to the machine's structure, which promotes a longer service life for the components and increases operator comfort. This element is particularly useful when working in fields with a variable soil structure, where hard clods or irregular surface contours create additional loads.

- Trash boards / Skimmers (upon request)

Trash boards are additional elements mounted on the working bodies of the plow, responsible for more intensive crumbling of the furrow after it is turned. They facilitate the breaking up of large soil fragments, which positively affects its structure and accelerates the natural settling process. Thanks to the use of trash boards, a more level field surface is obtained, which in turn creates more favorable conditions for sowing and promotes uniform plant emergence. This practical solution significantly increases plowing efficiency and raises the quality of agrotechnical work.

Detailed Description:

• The 5-bottom reversible plow is a professional agricultural tool designed for deep plowing on large-scale farms that require reliable and efficient solutions in daily field work.

• Thanks to its solid, reinforced construction and a high net weight of 1400 kg, the machine handles even the most difficult soil conditions perfectly, ensuring durability and operational stability during intensive use.

• This model is equipped with five working bodies, each featuring a share ending in a chisel, which guarantees effective soil cutting, precise furrow turning, as well as good crumbling and mixing of crop residues.

• A major advantage of the plow is its step-regulated working width, offering four settings – 32, 36, 40, and 44 cm per furrow – allowing for precise adaptation of the plowing width to current soil conditions and the type of crop being cultivated.

• The total working width of this model ranges from 1400 to 2000 mm, enabling quick and effective soil preparation across large acreages with a minimal number of passes.

• The agricultural plow comes equipped with a proven and easy-to-use shear bolt protection system, which safeguards the working bodies from damage when encountering stones or other obstacles beneath the soil surface.

• This solution ensures a high level of safety during operation and reduces the risk of costly downtime, while allowing for a quick return to work after replacing the broken bolt.

• A side support wheel is included as standard equipment, which is responsible for maintaining a constant plowing depth and improving the machine's stability, especially on uneven or heavy terrain.

• The tractor power requirement is 130 HP, making this plow an ideal partner for medium and large tractors used in intensive farming.

• The use of a Category II hitch bar enables quick and trouble-free coupling of the plow to most popular tractor models, increasing its versatility and user comfort.

• The 5-bottom tractor plow performs excellently in both classic tillage and reduced tillage systems, as well as during shallow stubble plowing, effectively preparing the soil for subsequent agrotechnical treatments.

• It is a modern and comprehensive solution for farms that prioritize high efficiency, durability, and equipment versatility, aiming to reduce labor time while maintaining premium cultivation quality.
