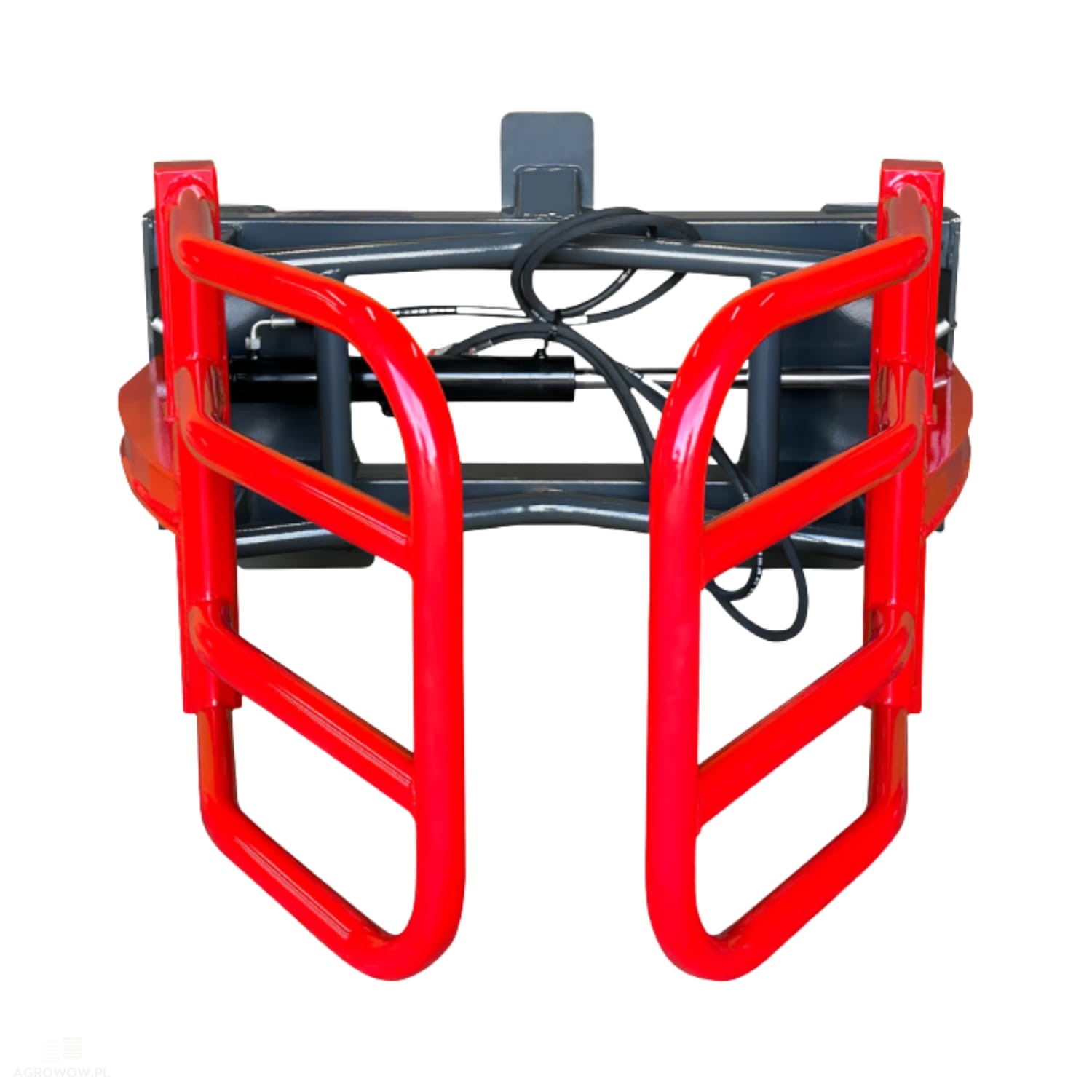

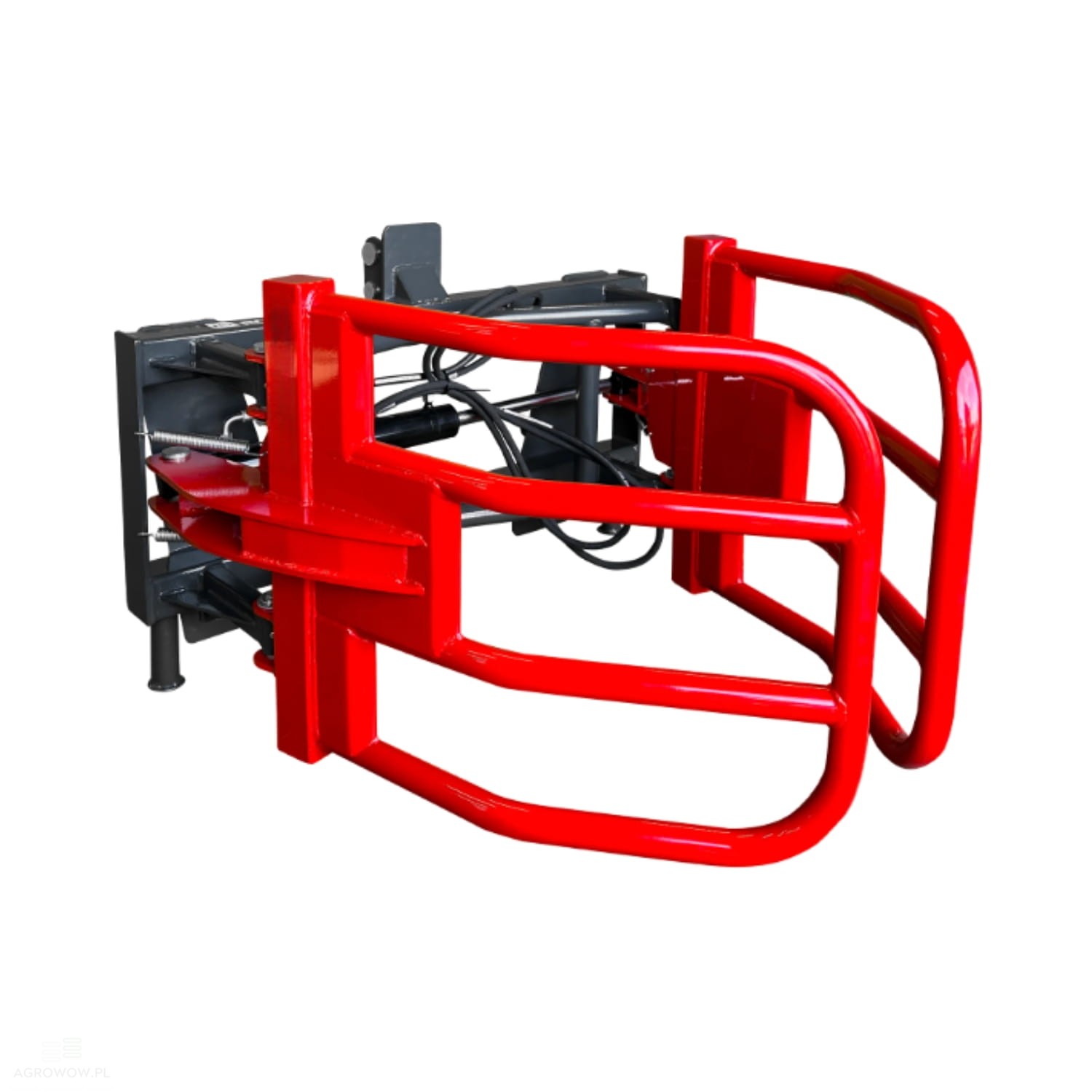

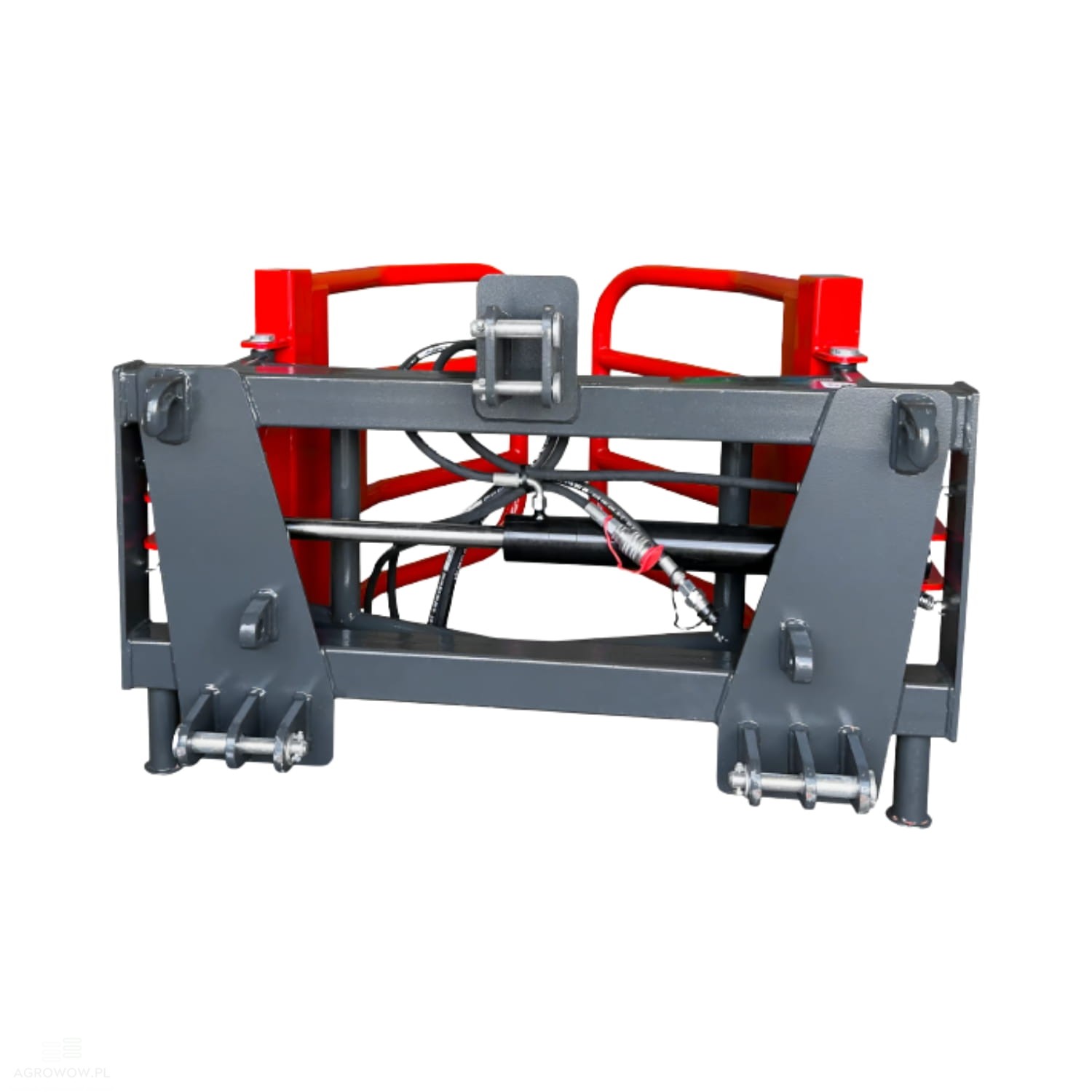

Agrowow M1 single-cylinder bale gripper

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW01M1

- Manufacturer's name: M1 bale gripper

- Width: 1200 mm

- Height: 760 mm

- Depth: 1300 mm

- Weight: 155 kg

- Maximum arm span: 1700 mm

- Spring-stabilized arms

- Gripper for bale diameters: 700-1500 mm

- Number of cylinders: 1

- Lifting capacity: 800 kg

- Arms made of pipe: 48.3 x 2.9 mm

- Hitch/Mounting: Euro

Optional Extras:

- SMS hitch (Stoll, Schäffer and others)

A universal system used primarily on compact front and articulated loaders from brands such as Stoll, Schäffer, or Ålö. It is characterized by a simple construction and high durability, making it especially popular in Western and Northern European countries. It enables efficient and convenient connection of various types of attachments.

- TŁOK hitch (Pin/Ram type)

A traditional hitch type mainly used on older models of domestic front loaders. It operates based on a system of sleeves and pins – the so-called "pin-on" or "ram" mounting. It is not a quick-coupler system, so installation requires manual securing with pins. Despite its simple design, it falls short in terms of convenience compared to modern solutions like the EURO standard.

- Mailleux (MX) hitch

A specialized hitch system created by MX, intended exclusively for loaders of this brand. It stands out for its unconventional design and a different arrangement of mounting points than popular standards. It guarantees a precise fit and durability, but without the use of an appropriate adapter, it is not compatible with the EURO system.

- KOMBI hitch (EURO + Three-Point Linkage Cat. I/II)

A solution combining the EURO standard with a rear tractor three-point linkage (TUZ) of category I or II. This allows the attachment to be mounted both on a front loader and directly onto the tractor's rear lift. This system provides high versatility and enables more efficient utilization of a single attachment across different applications.

Detailed Description:

• The M1 model hydraulic bale gripper is a modern and reliable tool designed for the daily handling of straw, hay, and silage bales.

• Thanks to its compact dimensions – a width of 1200 mm, a height of 760 mm, and a depth of 1300 mm – it fits perfectly on both smaller and medium-sized farms, ensuring ease of maneuverability and full control over the load.

• The device has been engineered to handle bales with a diameter from 700 to 1500 mm, and its maximum arm span of 1700 mm enables a safe and precise grip.

• The arms are manufactured from durable steel pipe with a cross-section of 48.3 x 2.9 mm, translating into a long service life and resistance to mechanical damage.

• Additionally, the spring stabilization of the arms ensures they open and close evenly, effectively reducing the risk of accidental damage to the bale wrap – which is particularly critical with silage.

• The gripper is equipped with a single hydraulic cylinder responsible for the smooth and reliable operation of the entire mechanism.

• The device's design allows for a lifting capacity of up to 800 kg, which is fully sufficient for handling most bales used on agricultural farms.

• An unladen weight of 155 kg ensures that the attachment remains lightweight yet stable enough to work in varied field conditions.

• The standard EURO hitch guarantees full compatibility with popular front loaders, making this model an excellent choice as a bale loader for the Ursus C-360, Zetor, and other machines equipped with this coupling standard.

• The M1 model is a robust and proven bale gripper that, thanks to its construction, efficiency, and reliability, will perform perfectly both in field operations and during the routine transport of crop materials.

• It is a practical and functional solution that increases operator comfort and safety while protecting the condition of the transported load.
