Agrowow M2 large bale gripper

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

Numer telefonu: +48 880 261 210 | +48 504 947 222

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW01M2

- Manufacturer's name: M2 large bale gripper

- Width: 1370 mm

- Height: 780 mm

- Depth: 1250 mm

- Weight: 195 kg

- Maximum arm span: 2100 mm

- Spring-stabilized arms

- Gripper for bale diameters: 800-1800 mm

- Number of cylinders: 1

- Lifting capacity: 1000 kg

- Arms made of pipe: 60.3 x 3.2 mm

- Hitch/Mounting: Euro

- Extendable storage legs welded into the gripper frame for easy machine storage

Optional Extras:

- Mailleux (MX) hitch

This is a dedicated mounting system developed by MX, designed specifically for loaders of this brand. It features a specific construction and a different layout of hitch points compared to standard solutions like EURO. It provides a secure and durable connection with the attachment, but an appropriate adapter is required for cooperation with other systems.

Detailed Description:

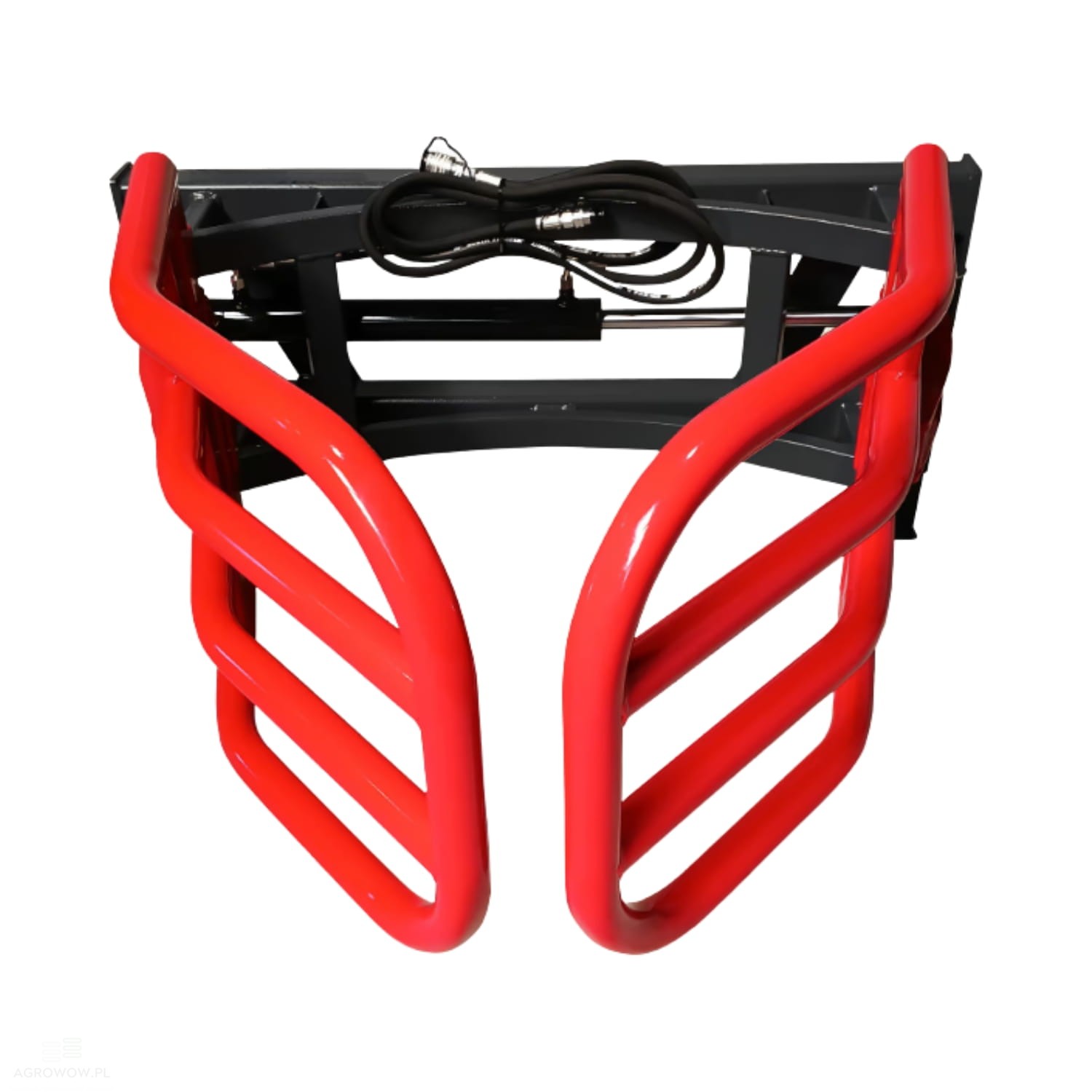

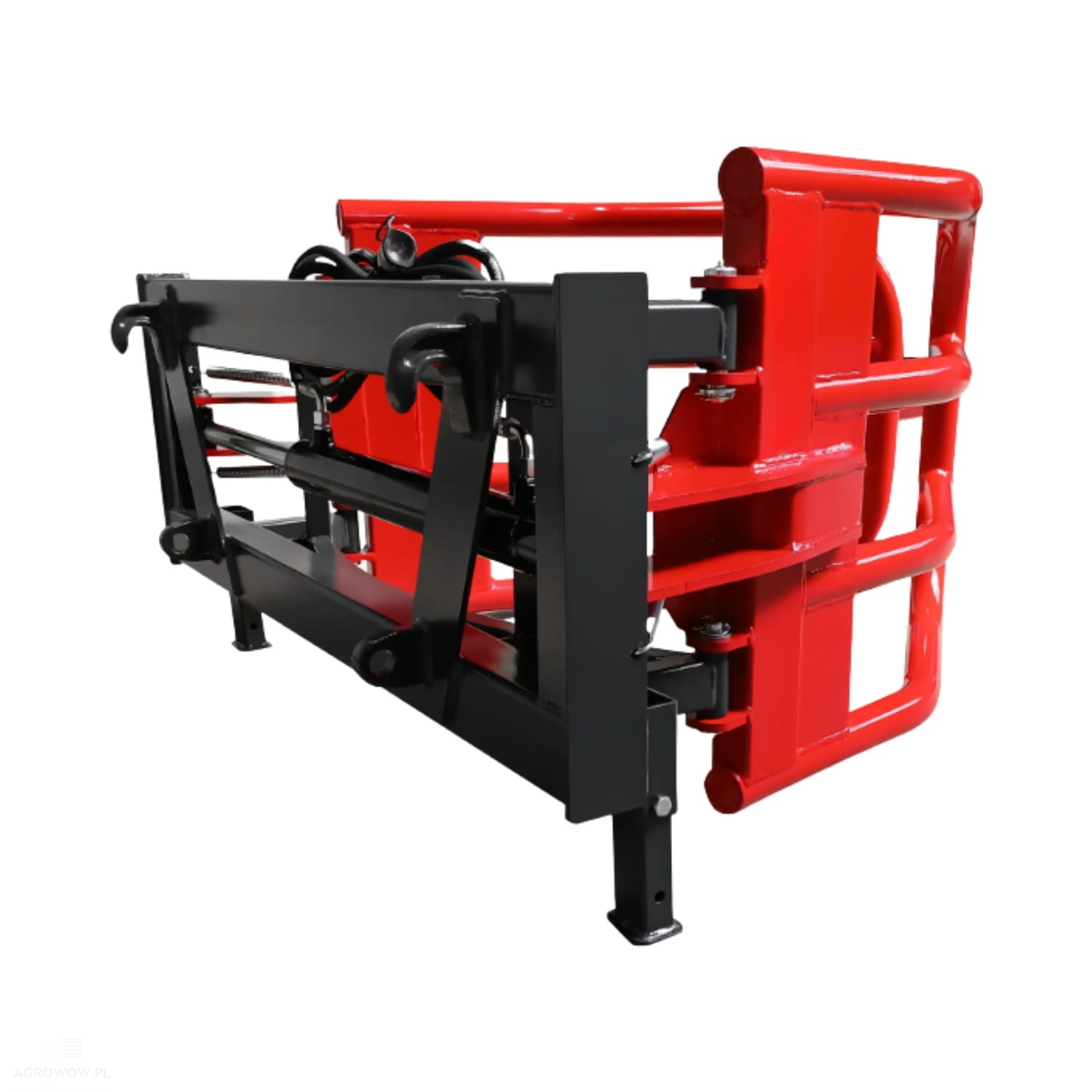

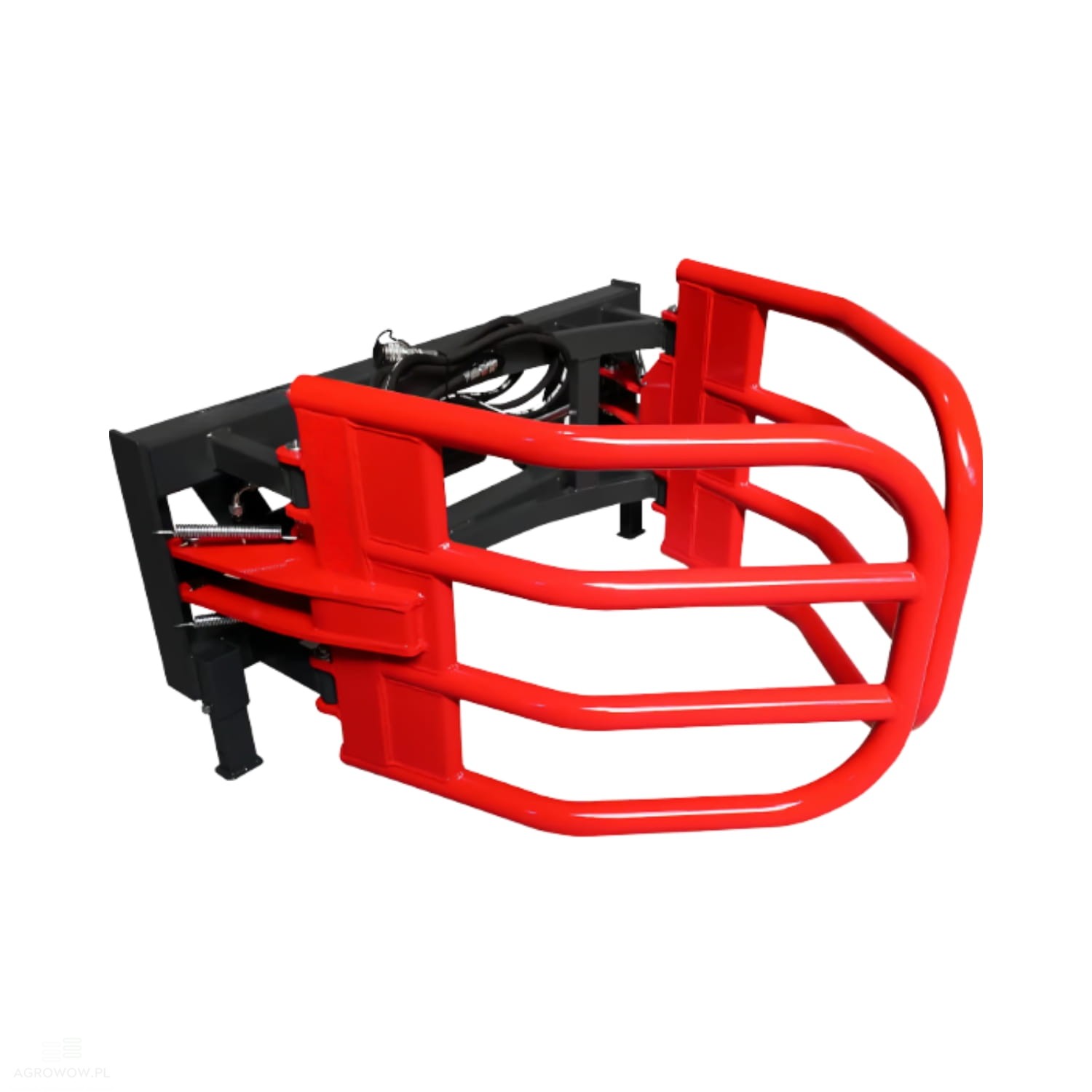

• The M2 model hydraulic bale gripper is a durable and functional device designed for the daily handling of hay, straw, and silage bales on both small and larger agricultural farms.

• This model is characterized by a robust construction and a well-thought-out design – its dimensions are 1370 mm in width, 780 mm in height, and 1250 mm in depth, which ensures an optimal balance between compactness and working efficiency.

• The device is adapted to handle bales with a diameter from 800 to 1800 mm, and thanks to a maximum arm span of 2100 mm, it guarantees a secure and safe grip on even large bales.

• The steel gripper arms are made of pipes with a diameter of 60.3 mm and a wall thickness of 3.2 mm, which ensures exceptional durability and resistance to intensive exploitation.

• Additionally, the arms are spring-stabilized, enabling them to open and close evenly, thus protecting the bale wrap film from accidental damage – which is particularly important in the case of silage.

• The gripper is equipped with one hydraulic cylinder, which ensures smooth and reliable operation of the entire mechanism while maintaining low hydraulic requirements.

• With a lifting capacity of up to 1000 kg, the M2 model perfectly handles most bales used in agricultural practice, offering great versatility and transport safety.

• The unladen weight of the gripper is 195 kg – this construction provides high stability without unnecessarily overloading the loader, which facilitates maneuverability and reduces fuel consumption.

• The standard EURO hitch makes the attachment compatible with most popular front loaders, such as those mounted on the Ursus C-360, Zetor, or other tractors – making it an ideal choice for working with various types of agricultural machines.

• The M2 model is also equipped with practical, extendable storage legs welded directly into the gripper frame.

• They facilitate the safe storage of the attachment, protecting it from damage and ensuring order in the workspace.

• This is a reliable rear tractor bale gripper and a front loader bale attachment in one – versatile, strong, and safe, ideal for all types of bales in daily agricultural use.
