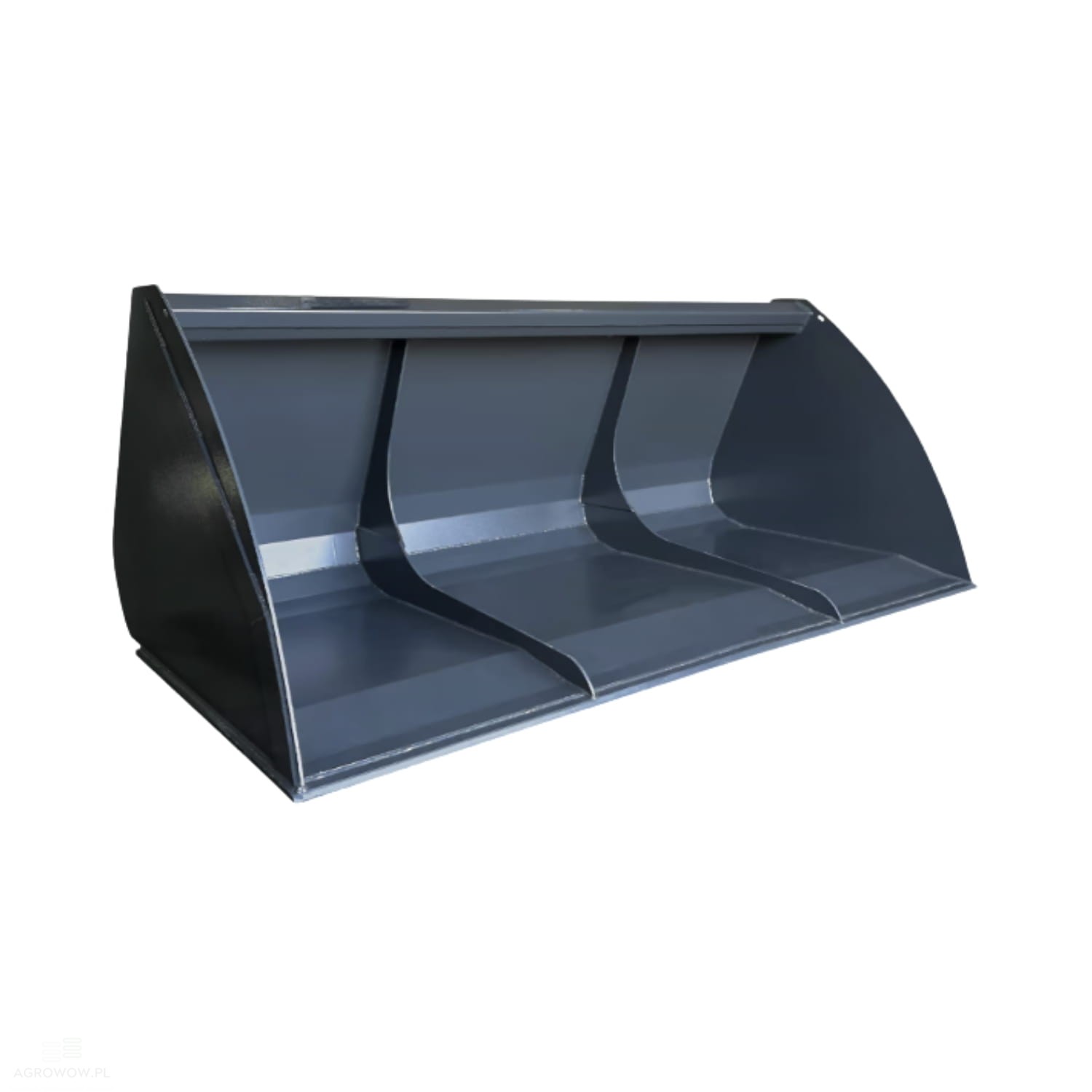

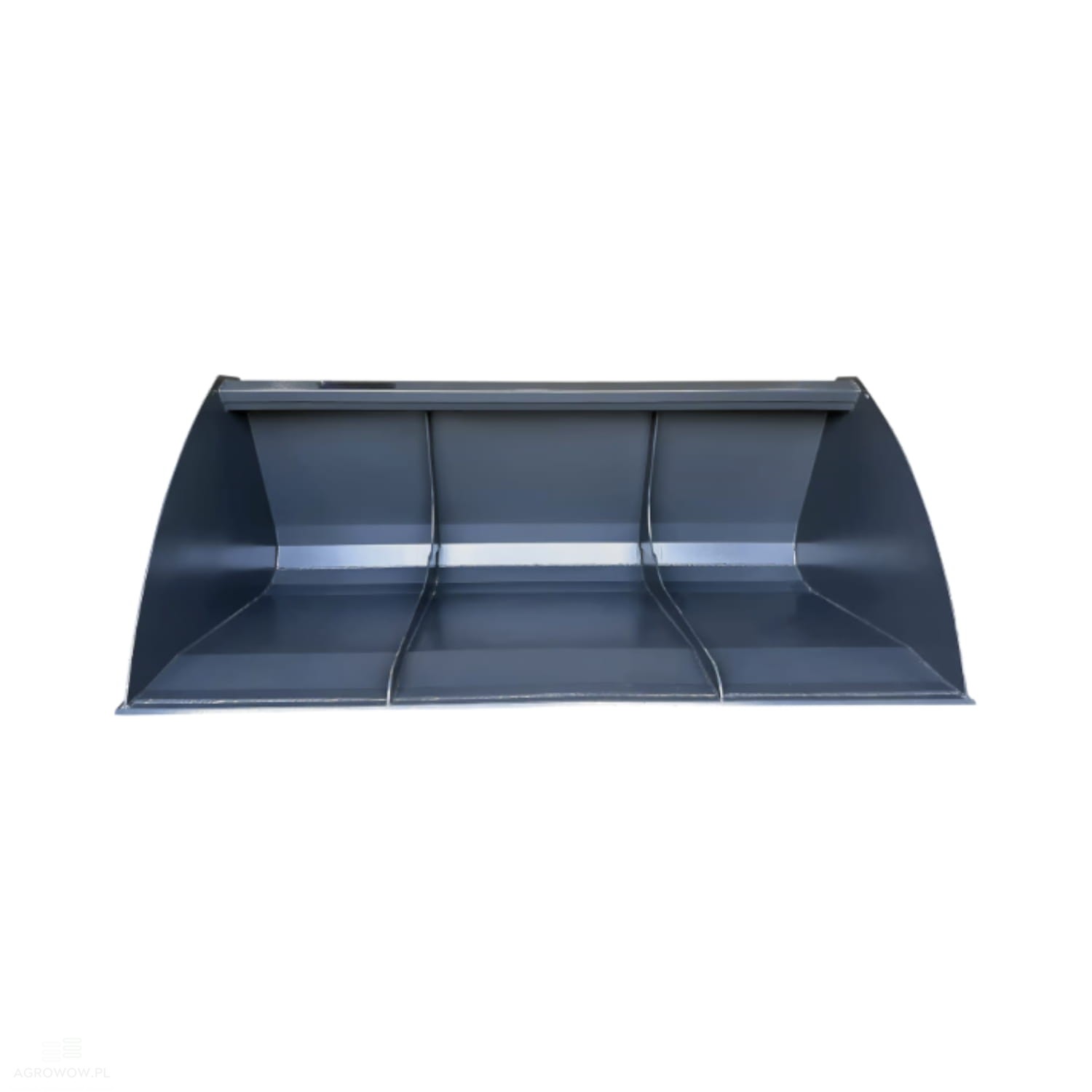

Agrowow MAX high-capacity bucket 2.2 x 0.95 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW22SO

- Manufacturer's name: MAX high-capacity bucket

- Width: 2200 mm

- Height: 950 mm

- Depth: 1200 mm

- Weight: 430 kg

- Volume: 1.3 m³

- Machine weight class: 8-10 T

- Recommended for smaller loaders

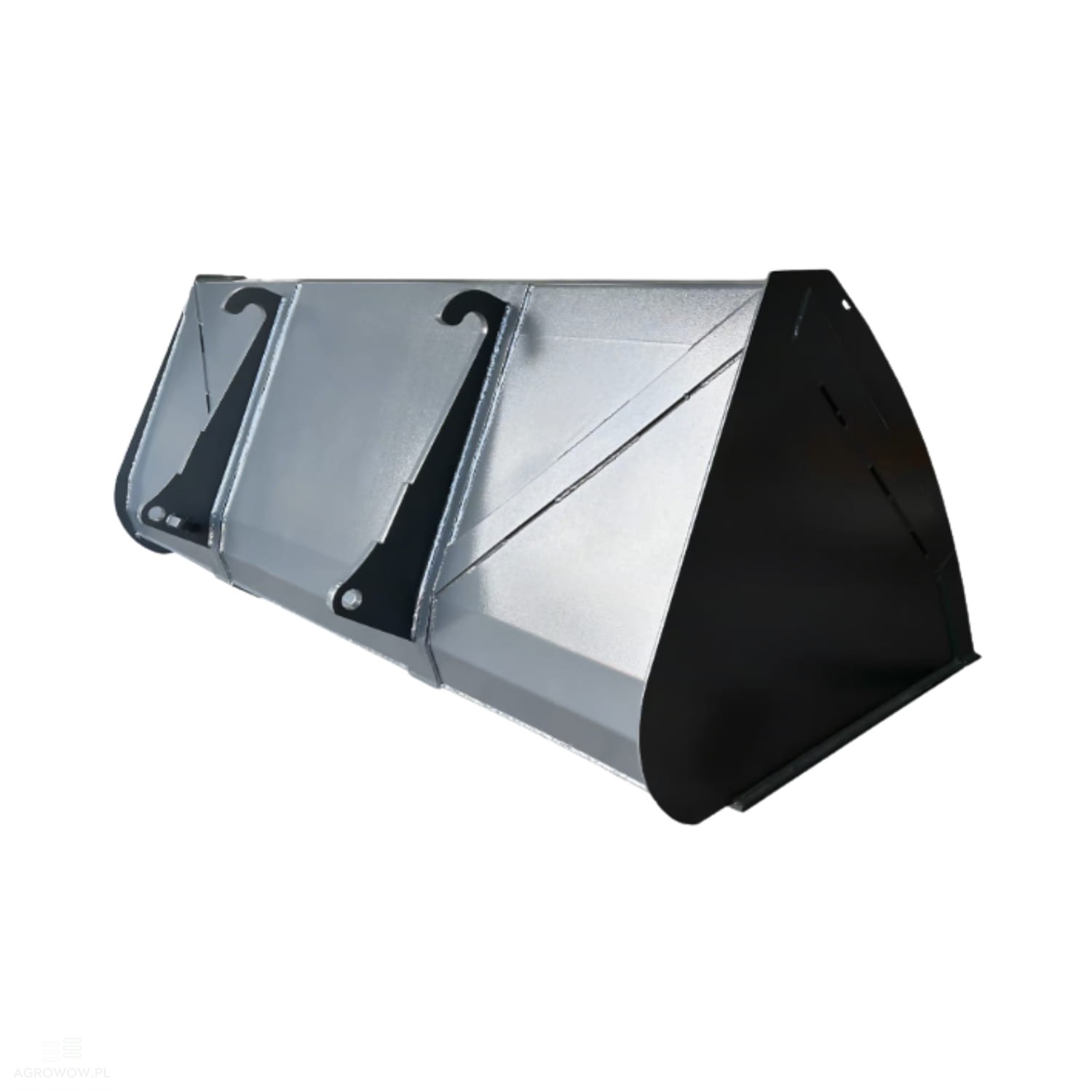

- Hitch/Mounting: Euro

Optional Extras:

- Mailleux (MX) hitch

A mounting system designed by MX, intended exclusively for loaders of this brand. It features a different layout of hitch points compared to the standard EURO hitch, ensuring a perfect fit with the attachment. To use tools of a different type, a special adapter must be used.

- Manitou

A specialized hitch system created for Manitou telehandlers. It has been designed with heavy-load operation in mind, offering a durable and secure connection. It is widely used in agriculture, the construction sector, and field services.

- Weidemann

A compact hitch used on Weidemann articulated loaders. It enables quick and convenient attachment connection, significantly accelerating work. It performs excellently in light tasks such as feed handling, cleaning, or cleanup chores on agricultural farms.

- JCB

A hitch available in a Q-Fit or classic JCB-type version, designed for telehandlers and wheeled loaders of this brand. Known for its solidity and durability, it ensures a reliable connection even during intensive operation with heavy loads.

- SMS

A versatile hitch type utilized on loaders from brands such as Stoll, Schäffer, Ålö, and others. It combines a simple design with high resistance to mechanical damage. Frequently found on compact machines in Western and Northern European countries.

- Other hitch types (on request)

Upon special customer request, it is possible to manufacture the attachment with a non-standard hitch type. Each solution is individually adapted to the specific machine model and user requirements.

Detailed Description:

• The MAX high-capacity bucket with a width of 2200 mm is a professional attachment designed to work with loaders with an operating weight from 8 to 10 tons.

• Due to its design and large operating capacity of 1.3 m³, this model is perfectly suited for intensive handling and transport work – both in the agricultural sector as well as municipal or service industries.

• The dimensions – 950 mm in height and 1200 mm in depth – guarantee a large loading space that facilitates fast and effective transport of bulk materials while maintaining comfortable operation and good machine maneuverability.

• The bucket is perfectly suited for handling a wide range of materials – from grain and silage, through fertilizers and plant waste, to compost, wood chips, and other light organic and industrial raw materials.

• Thanks to its weight of 430 kg, the bucket maintains high stability during loading, transport, and emptying, while not overloading the machine it operates with.

• Although intended for loaders from a higher weight class, this model can also be successfully used with modern compact loaders of appropriate lifting capacity parameters.

• The construction is manufactured from durable steel resistant to abrasion, cracking, and mechanical damage – which translates into a long service life and reliability of the attachment, even under intensive exploitation.

• Properly profiled side walls, the rear edge, and the bottom of the bucket facilitate uniform filling and complete emptying of the content, reducing material losses and increasing work efficiency.

• Being equipped with a universal EURO hitch makes the bucket compatible with a wide range of front loaders and tractors of various brands, such as John Deere, Fendt, Massey Ferguson, or Claas.

• The possibility of quick connection without the need for adapters translates into convenience of use and reduces work downtime.

• The MAX 2200 mm model is a proposition for users who expect a combination of high efficiency, robust manufacturing, and versatility of application in daily work with bulk materials.

• It will perform excellently on large farms, transshipment points, service facilities, and everywhere reliability and the pace of completed tasks matter.
