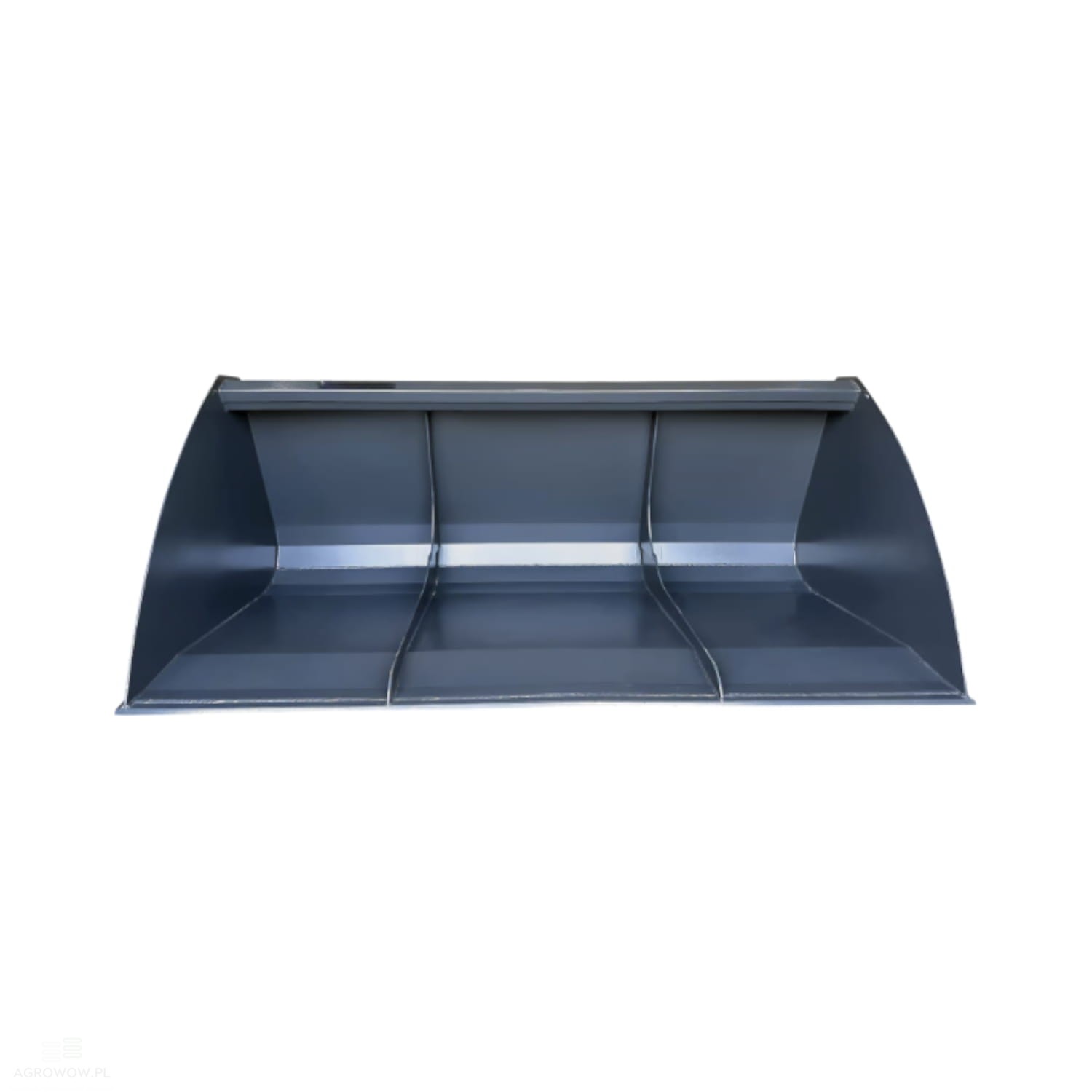

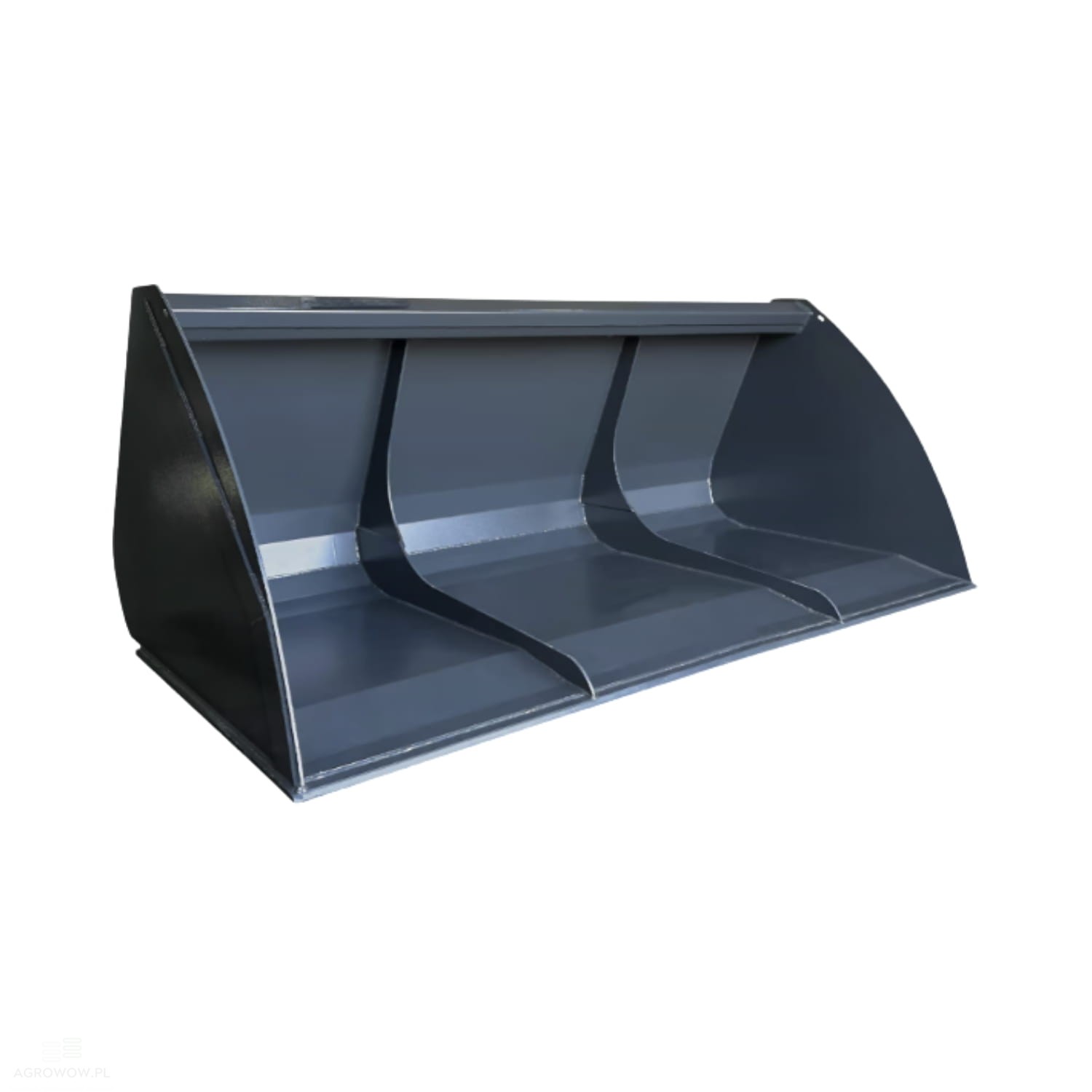

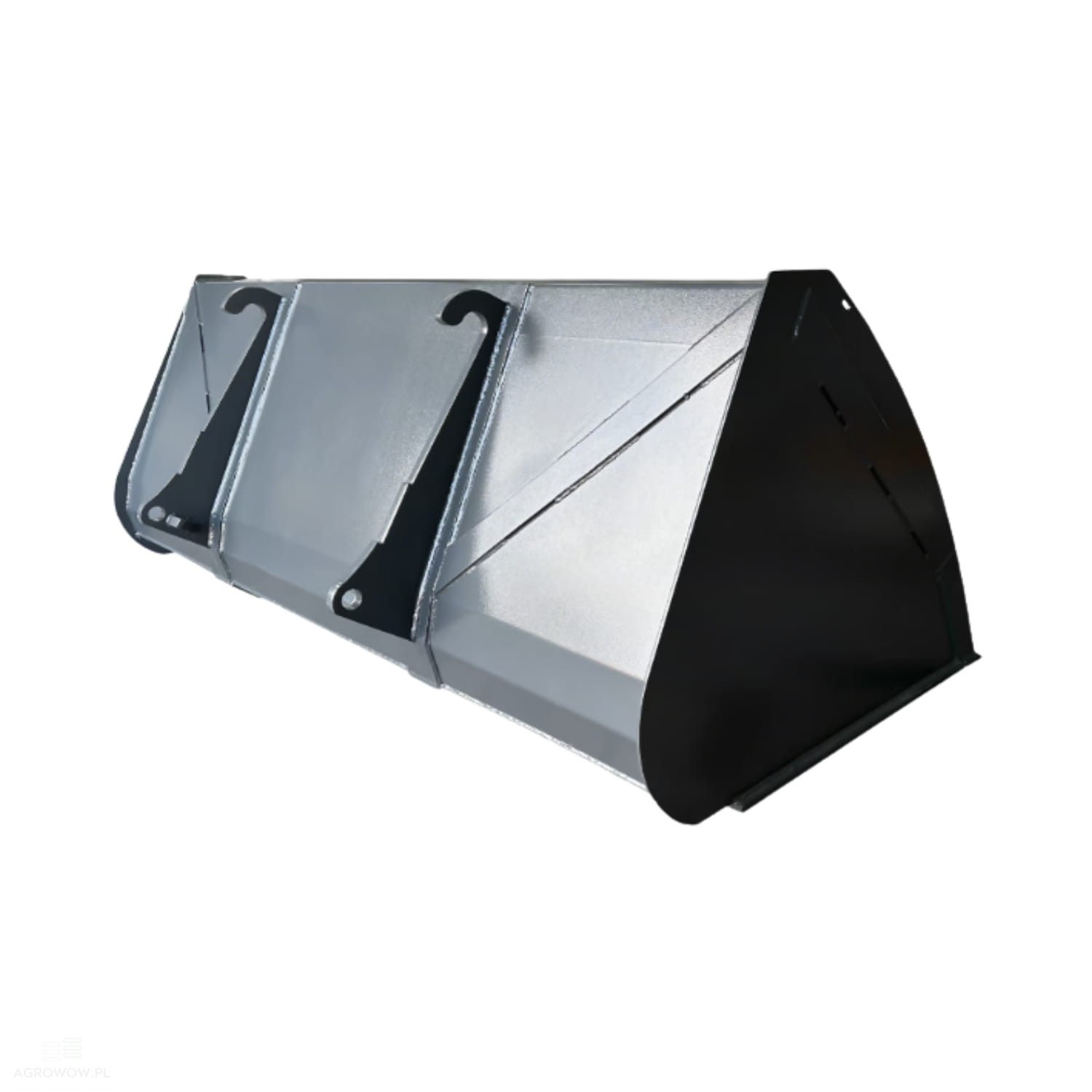

Agrowow MAX high-capacity bucket 2.4 x 0.95 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW24SO

- Manufacturer's name: MAX high-capacity bucket

- Width: 2400 mm

- Height: 950 mm

- Depth: 1200 mm

- Weight: 475 kg

- Volume: 1.4 m³

- Machine weight class: 9-11 T

- Recommended for smaller loaders

- Hitch/Mounting: Euro

Optional Extras:

- Mailleux (MX) hitch

A system designed by MX, dedicated exclusively to their front loaders. It differs from the popular EURO hitch due to the specific layout of its mounting points, allowing for a perfect fit with the attachment. If you need to use tools with a different type of hitch, an appropriate adapter is required.

- Manitou

A system developed specifically for Manitou telehandlers, adapted to operate under heavy loads. It provides a robust and stable attachment connection, making it widely used in agriculture, construction, and field services.

- Weidemann

A compact mounting system used on articulated loaders of this brand. It facilitates quick connection of working tools and is particularly useful during light-duty tasks such as animal feeding, cleanup, or feed distribution.

- JCB

Available in a Q-Fit or standard version, this system is designed for JCB telehandlers and wheeled loaders. It stands out for its high durability and reliability, even during intensive use with heavy attachments.

- SMS

A universal mounting solution used on loaders from brands such as Stoll, Schäffer, or Ålö, among others. It combines a simple design with high durability, making it a frequent choice for compact machines, especially in Northern and Western European countries.

- Other hitch types (on request)

For non-standard requirements, it is possible to manufacture the attachment with a dedicated mounting type. Each project is implemented individually and tailored to the specific machine and the user's expectations.

Detailed Description:

• The MAX high-capacity bucket with a width of 2400 mm is an efficient and durable tool designed to work with loaders with an operating weight from 9 to 11 tons.

• Thanks to its large operating capacity of 1.4 m³, it is ideal for intensive tasks related to the transport and handling of bulk materials – both on agricultural farms and in service, municipal, and industrial companies.

• The compact height of 950 mm and depth of 1200 mm provide adequate loading space while maintaining good maneuverability.

• This design enables fast loading and emptying of materials such as grain, silage, fertilizers, green waste, sawdust, or light industrial raw materials.

• With a weight of 475 kg, the bucket offers excellent stability during operation without negatively affecting the machine's mobility.

• Although it is dedicated to loaders from a higher weight class, it can also be successfully used with modern, compact machines of appropriate lifting capacity.

• The robust construction made of steel with increased resistance to abrasion and mechanical damage ensures a long service life and reliability – even during long-term, intensive exploitation.

• The ergonomically shaped bottom and side walls facilitate efficient filling and emptying, minimizing material losses and increasing operational efficiency.

• The bucket is equipped with a standard EURO mounting system, making it compatible with a wide range of front loaders and agricultural tractors from popular brands – without the need for additional adapters.

• Fast attachment connection translates into time savings and increased workflow smoothness.

• The MAX 2400 mm model is an excellent solution for professionals seeking a durable, spacious, and universal tool for daily work with bulk materials – both in agriculture and the broadly defined technical services sector.
