Agrowow disc harrow ALFA V2 1.4 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: STAV2/14

- Manufacturer's name: Disc harrow ALFA V2

- Width: 1400 mm

- Number of discs: 10

- Disc diameter: 460 / 510 / 560 mm

- Number of bearings: 4

- Weight: 340 kg

- Power requirement: 18-24 HP

- Efficiency: 1.0-2.2 ha/h

- Polish 510 mm boron steel disc

- Reinforced construction

- Automatic hitch beam

- Powder-coated components

- Disc row spacing 120 cm

- 6-hole hubs

- Rubber roller damping system

- Universal hitch system for Cat. II and Cat. III suspension

- Rear tubular or string roller

Optional extras (at additional cost):

- String roller Ø300

A smaller version of the string roller, ideal for precise soil leveling. It effectively crushes small soil clods, improving the ground structure before sowing. Its lightweight construction minimizes rolling resistance. It performs excellently in crops requiring gentle soil processing.

- Disc Ø560

A standard 560 mm diameter disc made of durable steel. It is used in disc harrows for cutting plant residues, soil mixing, and loosening. Resistance to abrasive wear ensures a long service life. Its optimal shape enables effective soil penetration even under difficult conditions.

- String roller Ø500

A larger string roller, dedicated to more intensive leveling and crushing of the soil surface. It improves aeration and the soil's moisture retention capacity, preventing its excessive compaction. It is particularly effective when cultivating crops that require a uniform ground.

- Tubular roller Ø500

A solid construction providing good soil stabilization. Used mainly to compact the soil after treatment with a disc harrow, which helps maintain proper moisture in the cultivated layer. Additionally, its tubular design reduces the risk of excessive soil packing, leaving an optimal structure.

- Packer roller Ø500

Designed for intensive soil compaction and the breaking up of larger clods of earth. Thanks to its construction, it improves moisture retention and stabilizes the ground, which promotes better plant rooting. Its application increases cultivation efficiency, especially in dry soil conditions.

- Roof roller Ø500

Excellent for operation on light and medium soils. Its design prevents soil drying and improves its moisture storage capacity. Additionally, it limits the risk of erosion. Thanks to its profile, it effectively levels the field, eliminating terrain unevenness and facilitating subsequent cultivation treatments.

- Croskill roller Ø500

A specialized solution for intensive crushing and leveling of the soil surface. The double construction allows for the effective elimination of compacted layers and improves the soil structure, increasing its moisture absorption capacity. It performs particularly well in crops requiring perfectly prepared ground before sowing.

Detailed Description:

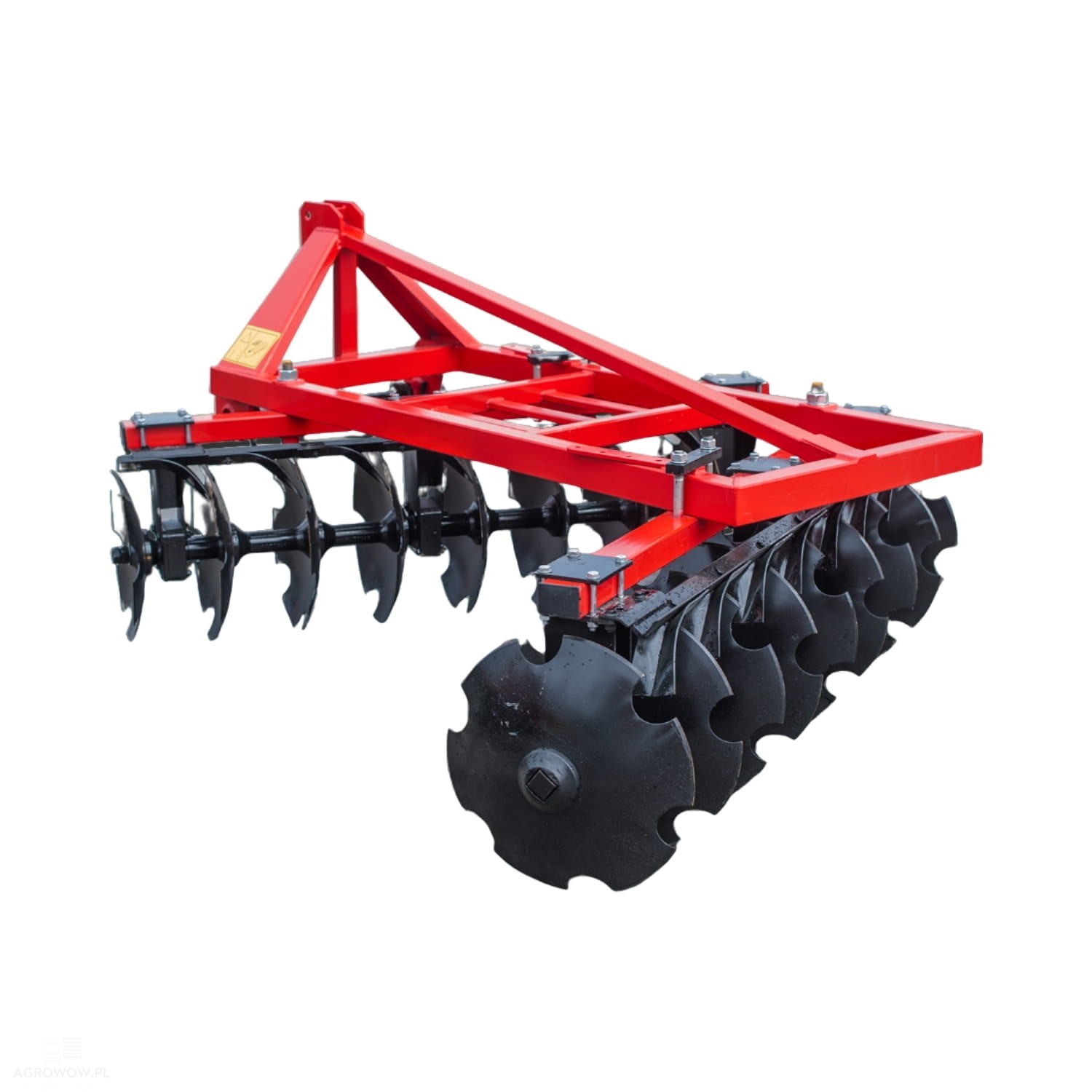

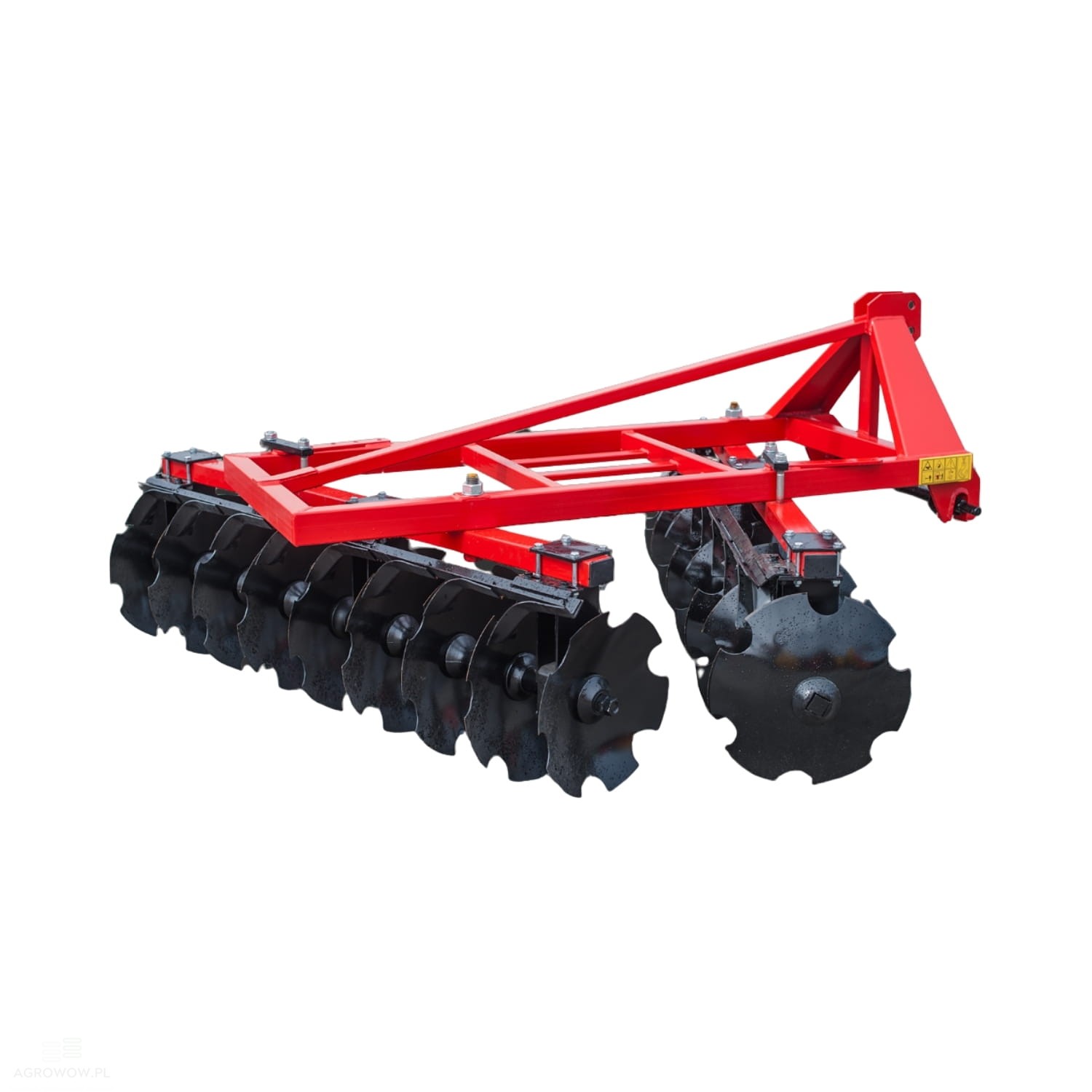

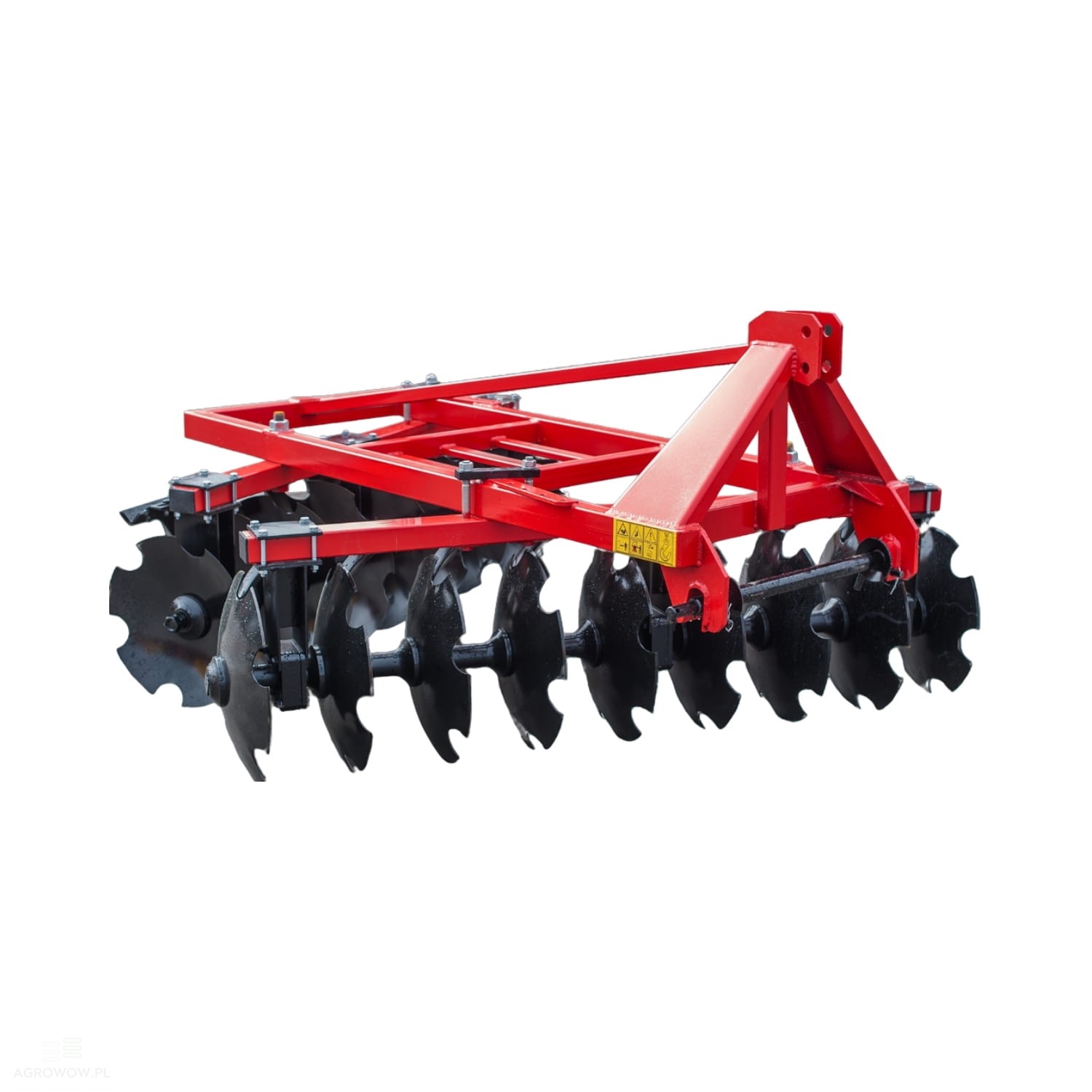

• The Agrowow ALFA V2 1.4 m disc harrow is a compact and versatile agricultural machine created for effective pre-sowing cultivation and other field works.

  Its solid construction and modern solutions make it ideally suited for soil loosening, compacting, breaking up compacted clods, and covering seeds after sowing, which ensures optimal conditions for plant growth.

  Thanks to a working width of 1400 mm and 10 discs arranged in two rows, the machine ensures even mixing and aeration of the soil.

  The discs, with a diameter of 460, 510, or 560 mm, are made of high-quality boron steel, which guarantees their resistance to abrasive wear and a long service life.

  The disc row spacing of 120 cm allows for effective soil crushing and its proper preparation for cultivation.

  The reinforced construction and the 6-hole hubs ensure stability and durability, even under difficult working conditions.

  The applied damping system based on rubber rollers effectively reduces vibrations and protects the structure against overloads, which increases comfort of use.

  Thanks to the automatic hitch beam and the universal suspension system for categories II and III, the harrow can be quickly and easily connected to various tractor models.

  The machine works perfectly both in traditional cultivation and in reduced tillage technology, enabling weed elimination, mixing of mineral and organic fertilizers, and preparation of the field for subsequent sowing.

  An additional advantage is the option to cooperate with a seed drill, which allows for simultaneous cultivation and sowing in a single pass, thereby increasing work efficiency and reducing fuel consumption.

  The disc harrow features a low power requirement in the range of 18-24 HP, allowing it to cooperate with a wide range of tractors.

  Its efficiency, amounting to 1.0-2.2 ha/h, allows for quick and effective soil preparation for sowing, significantly accelerating field works.

  An additional element increasing the functionality of the machine is the rear tubular or string roller, which levels the soil surface and improves its moisture retention capacity.

  All parts of the machine have been finished with a powder coating, which provides protection against corrosion and mechanical damage, thereby extending the service life of the device.

  The Agrowow ALFA 1.4 m disc harrow is an excellent solution for farmers looking for a durable, effective, and easy-to-operate machine that significantly increases work productivity and improves crop quality.
