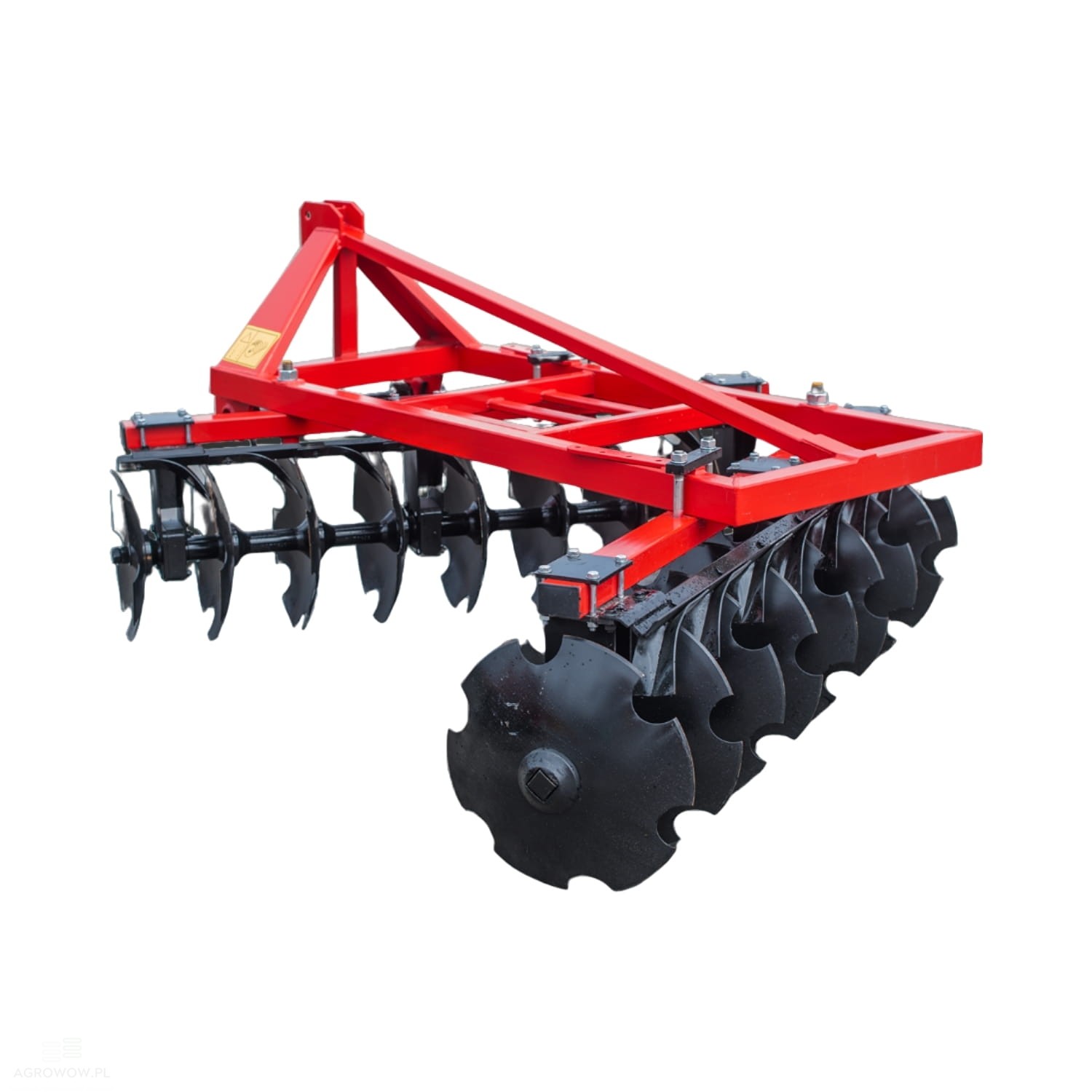

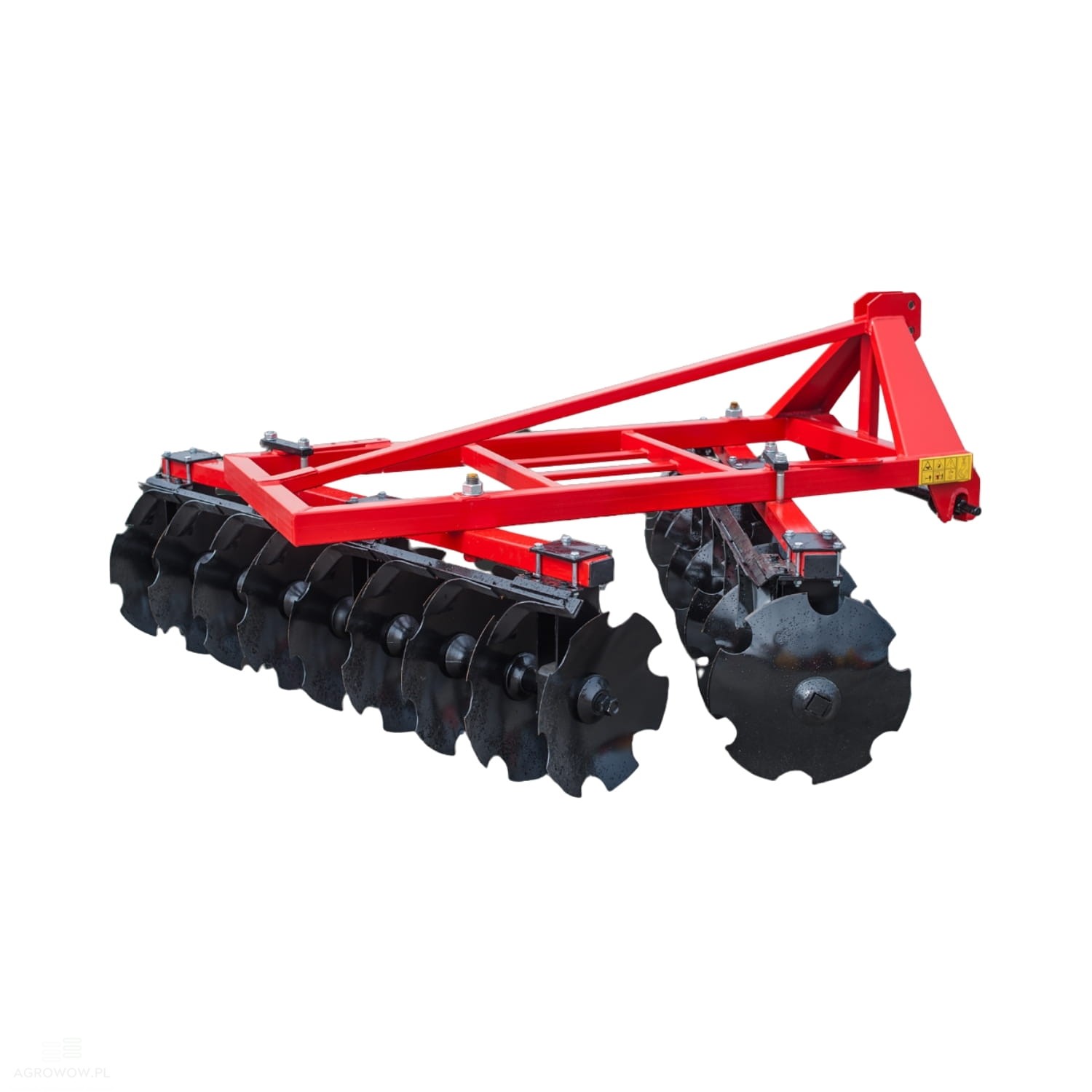

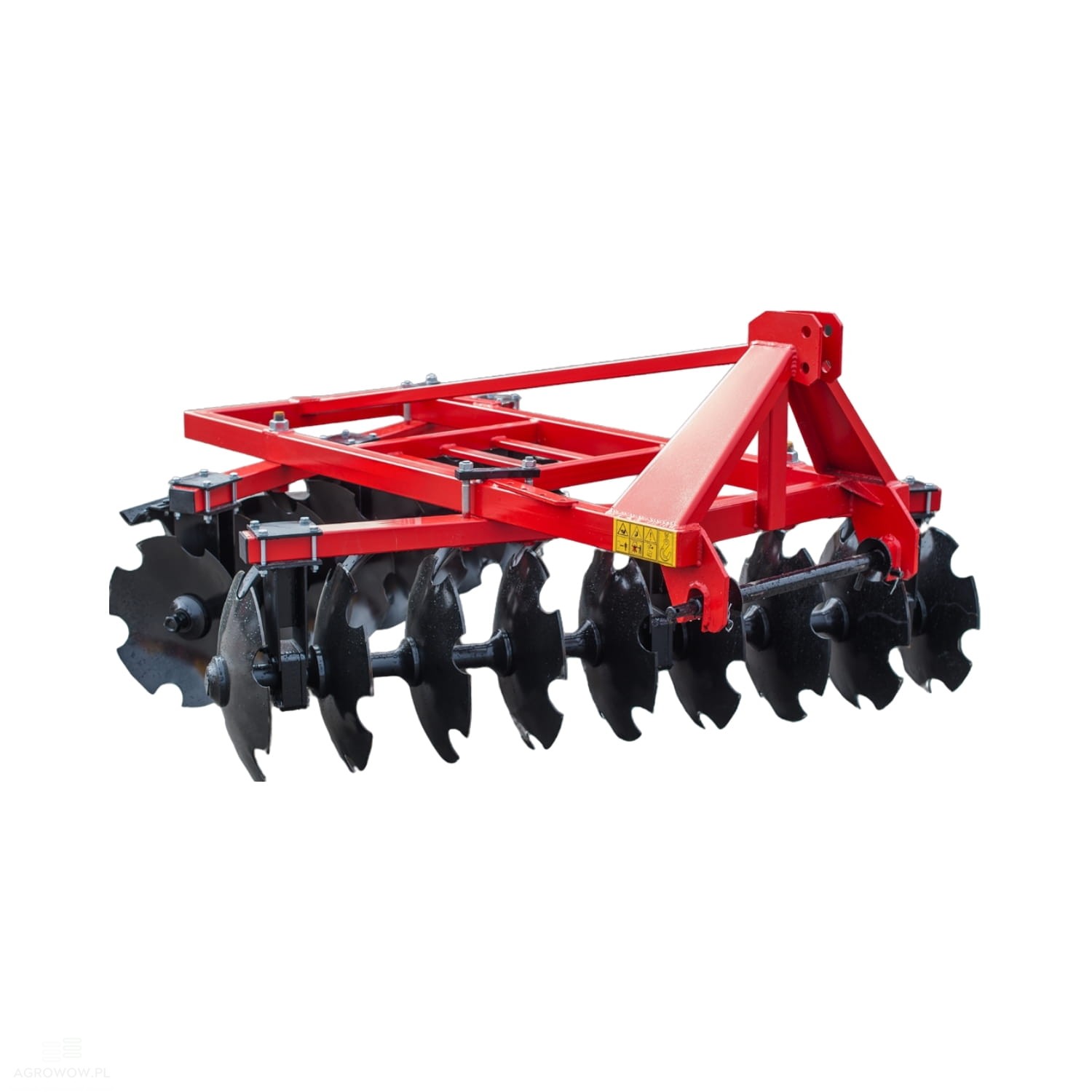

Agrowow disc harrow ALFA V2 1.6 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: STAV2/16

- Manufacturer's name: Disc harrow ALFA V2

- Width: 1600 mm

- Number of discs: 12

- Disc diameter: 460 / 510 / 560 mm

- Number of bearings: 4

- Weight: 375 kg

- Power requirement: 20-28 HP

- Efficiency: 1.1-2.2 ha/h

- Polish 510 mm boron steel disc

- Reinforced construction

- Automatic hitch beam

- Powder-coated components

- Disc row spacing 120 cm

- 6-hole hubs

- Rubber roller damping system

- Universal hitch system for Cat. II and Cat. III suspension

- Rear tubular or string roller

Optional extras (at additional cost):

- String roller Ø300

A compact version of the string roller, designed for precise soil surface leveling. It perfectly crushes small soil clods, improving the ground structure before sowing. Thanks to its lightweight construction, it generates minimal rolling resistance, making it easy to use. It works great in crops requiring gentle soil processing.

- Disc Ø560

A standard 560 mm diameter disc made of high-quality steel, used in disc harrows for cutting plant residues, soil mixing, and loosening. It features high resistance to abrasive wear, which ensures its long service life. The optimal shape of the disc facilitates its soil penetration even in difficult conditions.

- String roller Ø500

A larger string roller designed for more intensive leveling and crushing of the soil surface. It effectively aerates the ground and supports moisture retention, preventing its excessive compaction. Ideal for crops requiring uniform soil crushing and proper pre-sowing preparation.

- Tubular roller Ø500

A solid roller designed for soil stabilization after operation with a disc harrow. Its design allows for efficient compaction of the ground, which helps maintain the appropriate moisture level. Thanks to its tubular construction, it prevents excessive soil packing, leaving an optimal structure for further field works.

- Packer roller Ø500

Designed for intensive soil compaction and the effective breaking up of larger clods of earth. Its specialized construction improves the soil's moisture retention capacity and stabilizes the ground, which promotes better plant rooting. Ideal for use in crops requiring an even and well-prepared soil.

- Roof roller Ø500

Adapted for operation on light and medium soils, where it effectively levels and loosens the field surface. Its unique design prevents excessive soil drying and improves its moisture storage capacity. Additionally, it reduces the risk of erosion and levels the terrain, facilitating subsequent agrotechnical treatments.

- Croskill roller Ø500

An advanced solution for intensive crushing and leveling of the soil. Thanks to its double construction, it effectively eliminates compacted layers, improving the soil structure and its moisture absorption capacity. It performs perfectly in crops requiring perfectly prepared ground before sowing.

Detailed Description:

• The Agrowow ALFA V2 1.6 m disc harrow is a modern and compact agricultural machine designed for effective pre-sowing cultivation and other necessary field works.

• Its solid construction and innovative technological solutions make it ideally suited for soil loosening, compacting, crushing compacted clods, and covering seeds after sowing, which creates optimal conditions for plant growth.

• Thanks to a working width of 1600 mm and 12 discs arranged in two rows, the machine guarantees even mixing and aeration of the soil.

• The discs, with a diameter of 460, 510, or 560 mm, made of high-quality boron steel, feature high resistance to abrasive wear and a long service life.

• The disc row spacing of 120 cm allows for effective soil crushing and its proper preparation for cultivation.

• The reinforced construction and the use of 6-hole hubs ensure exceptional stability and durability of the machine even in difficult operating conditions.

• The damping system with rubber rollers effectively dampens vibrations, protecting the structure against overloads and increasing the operator's work comfort.

• An automatic hitch beam and a universal suspension system of category II and III allow for quick and easy connection of the machine to various tractor models.

• The harrow is perfectly suited both for traditional cultivation systems and for reduced tillage technology, enabling weed elimination, mixing of organic and mineral fertilizers, and preparation of the field for subsequent sowing.

• The option to cooperate with a seed drill allows for simultaneous cultivation and sowing in a single pass, which increases work efficiency and reduces fuel consumption.

• A power requirement in the range of 20-28 HP enables the machine to cooperate with a wide range of tractors.

• The harrow's efficiency at a level of 1.1-2.2 ha/h ensures quick and effective soil preparation for sowing, significantly accelerating field works.

• The rear tubular or string roller additionally levels the soil surface, improving its moisture retention capacity and facilitating further cultivation works.

• The construction components have been finished with a powder coating, which effectively protects the machine against corrosion and mechanical damage, extending its service life.

• The Agrowow ALFA 1.6 m disc harrow is an excellent solution for farmers looking for an efficient, durable, and easy-to-operate machine that allows for increased work productivity and improved crop quality.
