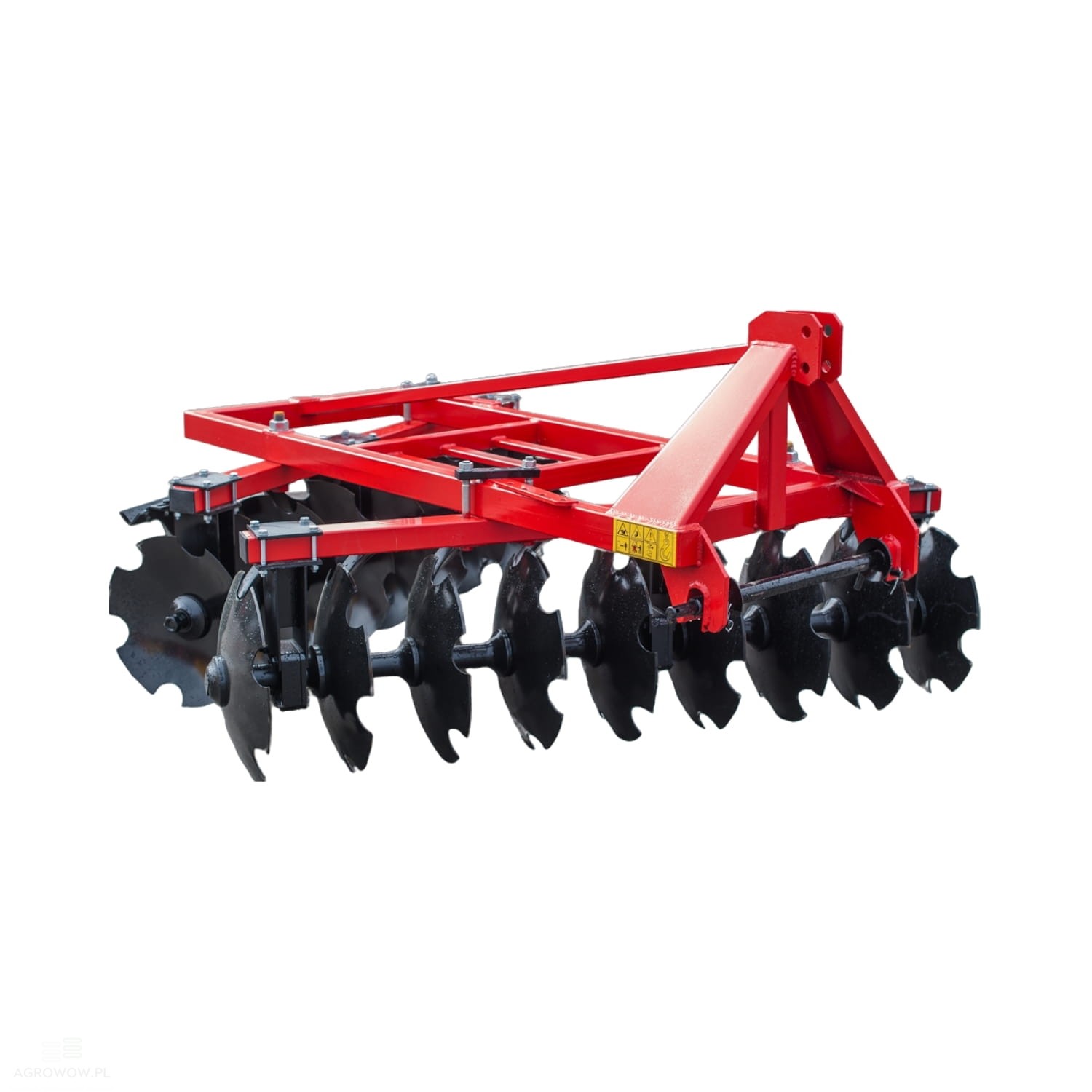

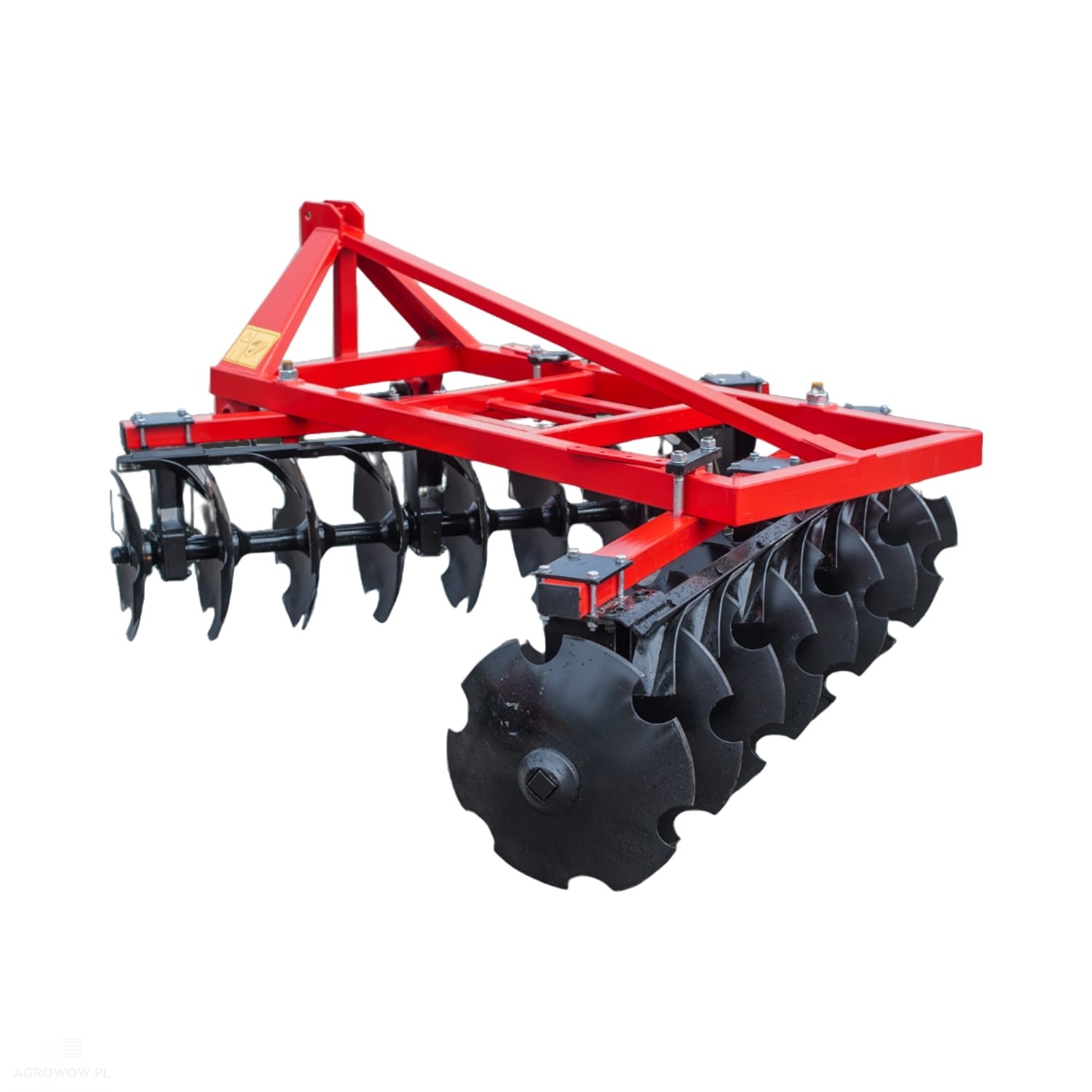

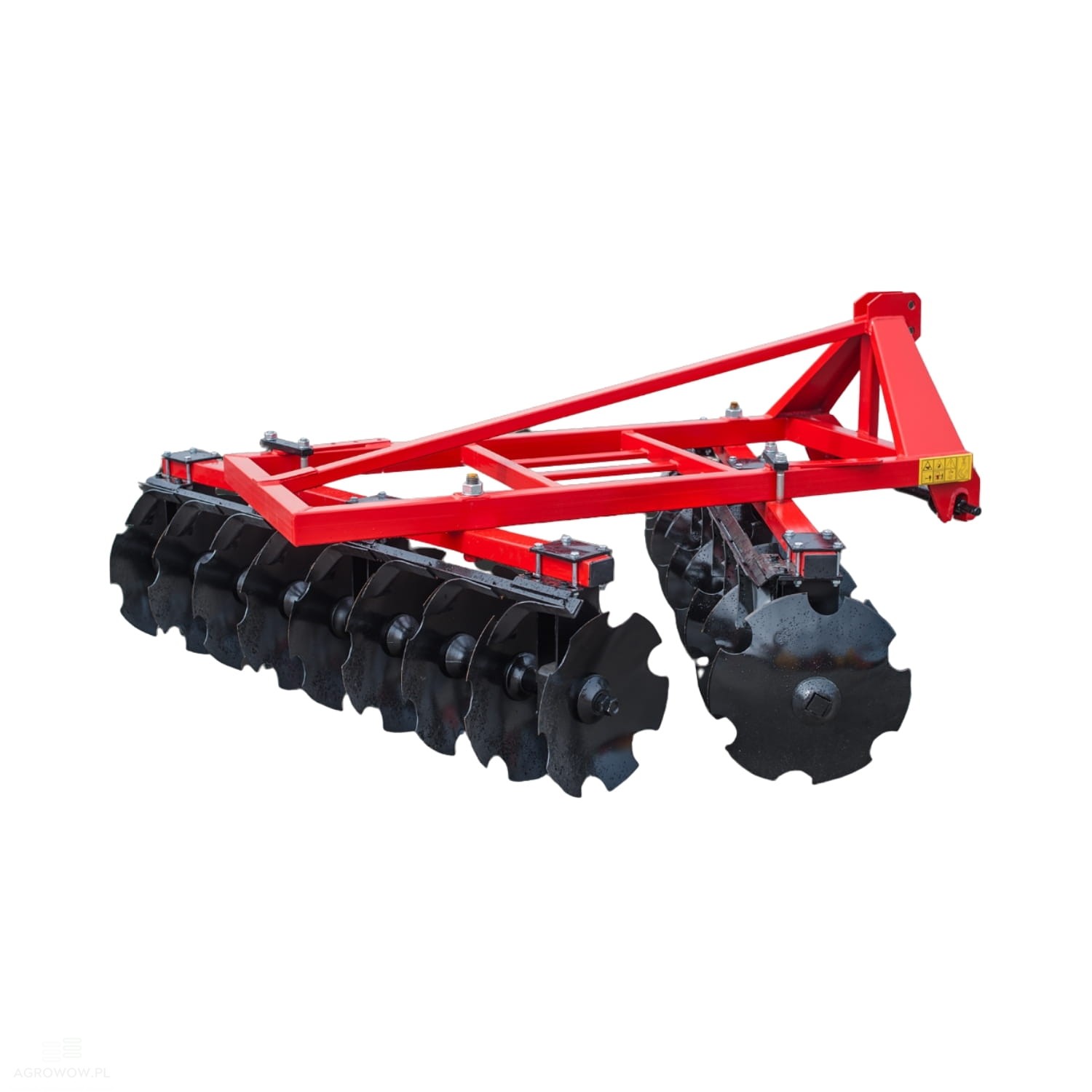

Agrowow disc harrow ALFA V2 1.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: STAV2/18

- Manufacturer's name: Disc harrow ALFA V2

- Width: 1800 mm

- Number of discs: 14

- Disc diameter: 460 / 510 / 560 mm

- Number of bearings: 4

- Weight: 410 kg

- Power requirement: 25-32 HP

- Efficiency: 1.2-2.8 ha/h

- Polish 510 mm boron steel disc

- Reinforced construction

- Automatic hitch beam

- Części malowanie proszkowo

- Rozstaw rzędów talerzy 120 cm

- 6-hole hubs

- Rubber roller damping system

- Universal hitch system for Cat. II and Cat. III suspension

- Rear tubular or string roller

Optional extras (at additional cost):

- String roller Ø300

A small string roller designed for precise soil leveling. It performs perfectly in crushing small soil clods, improving the ground structure before sowing. Its lightweight construction minimizes rolling resistance, making its operation easier. Ideal for crops requiring gentle soil processing, ensuring a uniform surface.

- Disc Ø560

A high-quality 560 mm diameter disc made of durable steel, used in disc harrows for efficient cutting of plant residues, soil mixing, and loosening. Resistance to abrasive wear guarantees a long service life, and the optimal shape allows for effective soil penetration even in difficult field conditions.

- String roller Ø500

A larger model of the string roller, which intensively levels and crushes the soil surface. Its action supports soil aeration and its moisture retention capacity, preventing excessive compaction. It works great for crops requiring a uniform ground and effective pre-sowing preparation.

- Tubular roller Ø500

A durable tubular roller construction providing appropriate soil stabilization after application of a disc harrow. It effectively compacts the ground, helping to maintain proper soil moisture. Thanks to its tubular design, it limits the risk of excessive packing, leaving an optimal structure for further agricultural work.

- Packer roller Ø500

A specialized roller for intensive soil compaction and the breaking up of larger clods of earth. Thanks to its construction, it improves the soil's moisture retention capacity and provides its stability, which promotes better plant rooting. Excellent for crops requiring a well-prepared and leveled field surface.

- Roof roller Ø500

Adapted for operation on light and medium soils, it effectively loosens and levels the field surface. Its unique design limits soil drying and improves its moisture storage capacity. Additionally, it prevents erosion and levels the terrain, facilitating subsequent agrotechnical treatments.

- Croskill roller Ø500

An advanced croskill roller construction that effectively breaks up compacted soil layers, ensuring its uniform structure. Thanks to its double construction, it improves the soil's moisture absorption capacity, which translates into better plant growth conditions. Ideal for crops requiring perfectly prepared ground before sowing.

Detailed Description:

• The Agrowow ALFA V2 1.8 m disc harrow is a modern and compact agricultural machine designed for effective pre-sowing cultivation and other essential field works.

• Its solid construction and modern technological solutions ensure efficient soil loosening, compacting, crushing of compacted clods, and covering seeds after sowing, which translates into better plant growth conditions.

• Thanks to a working width of 1800 mm and 14 discs arranged in two rows, the machine guarantees even mixing and aeration of the soil.

• The discs, with a diameter of 460, 510, or 560 mm, are made of high-grade boron steel, which ensures their high resistance to abrasive wear and a long service life.

• The disc row spacing of 120 cm allows for effective soil crushing and its proper preparation for cultivation.

• The reinforced construction and the use of 6-hole hubs guarantee the stability and durability of the machine even in demanding operating conditions.

• The damping system using rubber rollers effectively dampens vibrations, protecting the structure against overloads and increasing the operator's work comfort.

• An automatic hitch beam and a universal suspension system of category II and III enable quick and trouble-free connection of the machine to various tractor models.

• The harrow works perfectly both in traditional cultivation methods and in reduced tillage technology, allowing for weed elimination, mixing of organic and mineral fertilizers, and preparation of the field for subsequent sowing.

• The option to cooperate with a seed drill allows for simultaneous cultivation and sowing in a single pass, which increases work efficiency and reduces fuel consumption.

• Providing a power requirement in the range of 25-32 HP, the machine cooperates with a wide range of agricultural tractors.

• The harrow's efficiency, amounting to 1.2-2.8 ha/h, guarantees quick and effective soil preparation for sowing, significantly accelerating field works.

• The rear tubular or string roller additionally levels the soil surface, improving its moisture retention capacity and facilitating further cultivation works.

• All construction components have been finished with a powder coating, which effectively protects the machine against corrosion and mechanical damage, extending its service life.

• The Agrowow ALFA 1.8 m disc harrow is an ideal solution for farmers looking for a durable, efficient, and easy-to-operate machine that significantly increases work productivity and improves crop quality.
