Agrowow disc harrow ALFA V2 2.0/3 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: STAV2/20/3

- Manufacturer's name: Disc harrow ALFA V2

- Width: 2000 mm

- Number of discs: 18

- Disc diameter: 460 / 510 / 560 mm

- Number of bearings: 4

- Weight: 455 kg

- Power requirement: 34-52 HP

- Efficiency: 1.3-3.5 ha/h

- Polish 510 mm boron steel disc

- Reinforced construction

- Automatic hitch beam

- Powder-coated components

- Disc row spacing 120 cm

- 6-hole hubs

- Rubber roller damping system

- Universal hitch system for Cat. II and Cat. III suspension

- Rear tubular or string roller

Optional extras (at additional cost):

- String roller Ø300

A compact string roller, ideal for precise soil surface leveling. Its design allows it to effectively crush small soil clods, which improves the ground structure before sowing. Thanks to its lightweight construction, it generates minimal rolling resistance, making its operation easier. Perfect for crops requiring gentle processing, ensuring a homogeneous and even surface.

- Disc Ø560

A durable 560 mm diameter disc made of high-quality steel, used in disc harrows. Suitable for efficient cutting of plant residues, soil mixing, and loosening. High resistance to abrasive wear ensures long-term use. An optimally profiled shape facilitates soil penetration, even in difficult field conditions.

- String roller Ø500

A larger version of the string roller, designed for intensive leveling and crushing of the soil surface. Its application improves ground aeration and increases the soil's moisture retention capacity, which counteracts its excessive compaction. It works well in crops requiring a uniform ground and thorough pre-sowing preparation.

- Tubular roller Ø500

A solid tubular roller effectively stabilizing the soil after operation with a disc harrow. Its design enables efficient soil compaction, helping to maintain an optimal moisture level. Thanks to its construction, it prevents excessive soil packing, leaving a well-prepared layer for further agricultural work.

- Packer roller Ø500

A roller designed for intensive soil compaction and the breaking up of larger clods of earth. The special construction improves the soil's moisture retention capacity and stabilizes the ground, which promotes better plant rooting. An excellent solution for crops requiring perfectly prepared, leveled soil.

- Roof roller Ø500

A roller designed for operation on light and medium soils, effectively loosening and leveling the field surface. Its special design limits excessive soil drying and improves its moisture retention capacity. Additionally, it prevents erosion and eliminates terrain unevenness, which favors better organization of subsequent agrotechnical treatments.

- Croskill roller Ø500

A technologically advanced croskill roller that effectively breaks up compacted soil layers, improving its structure. Thanks to its double construction, it increases the soil's moisture absorption capacity, which beneficially affects plant development. It performs perfectly in crops requiring a perfectly prepared ground before sowing.

Detailed Description:

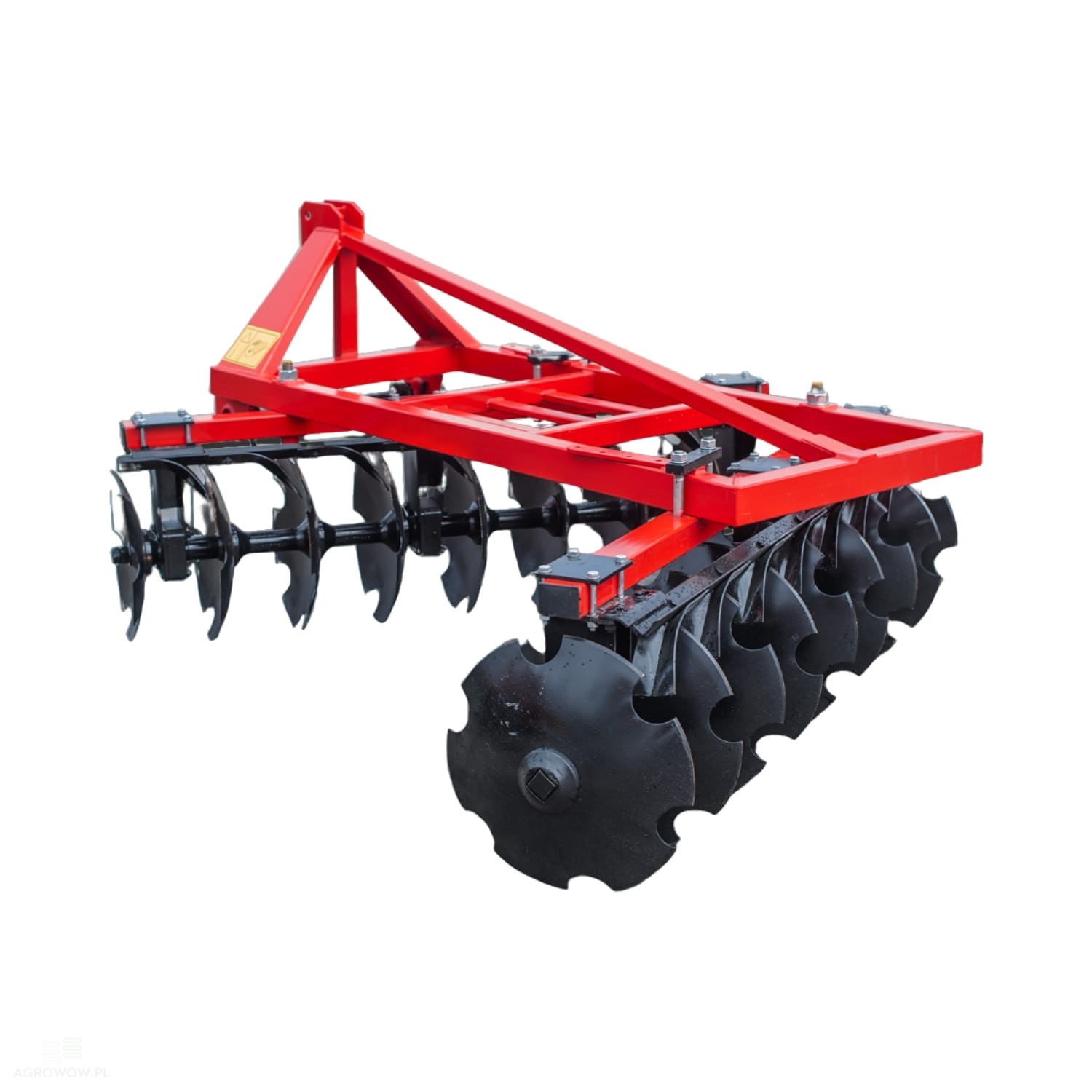

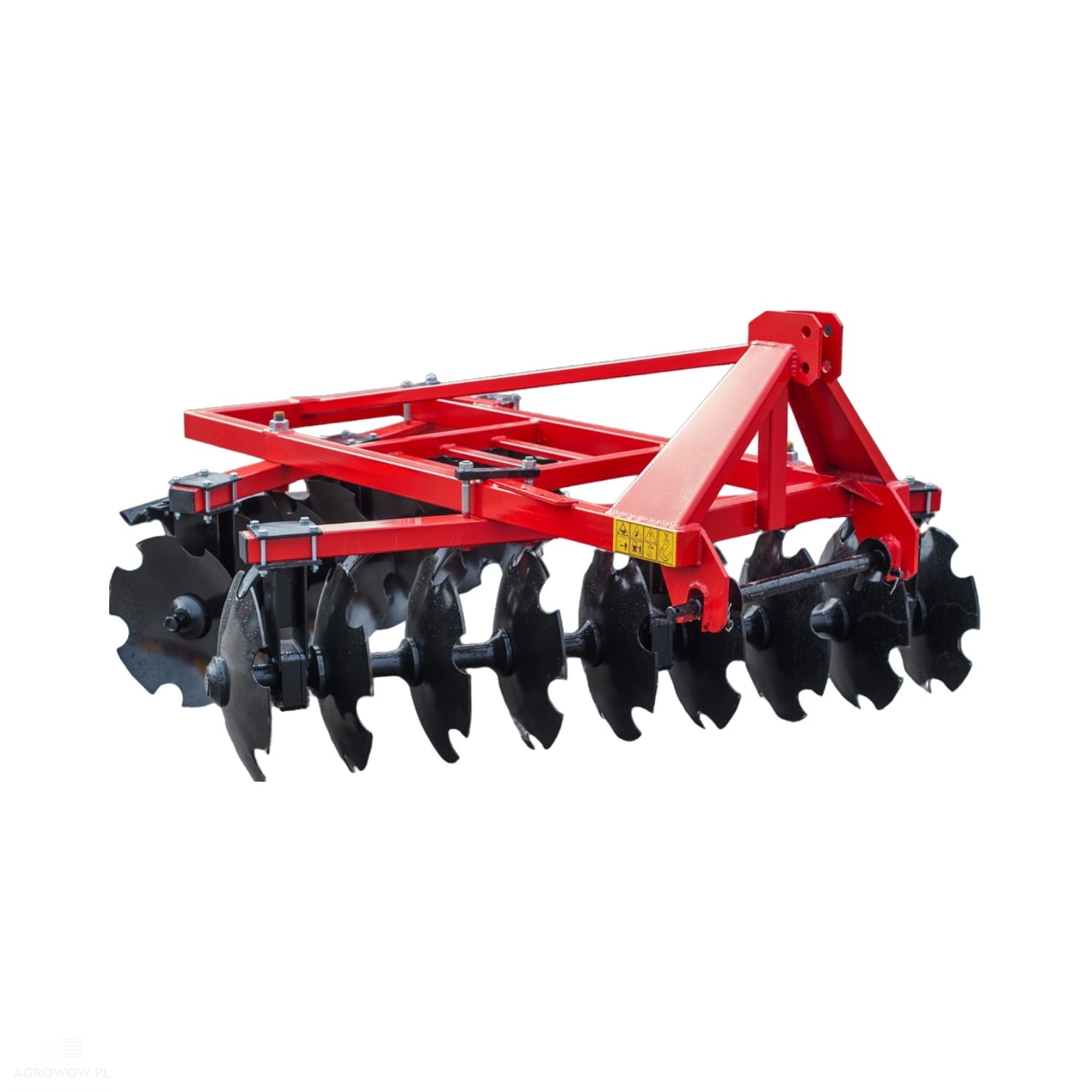

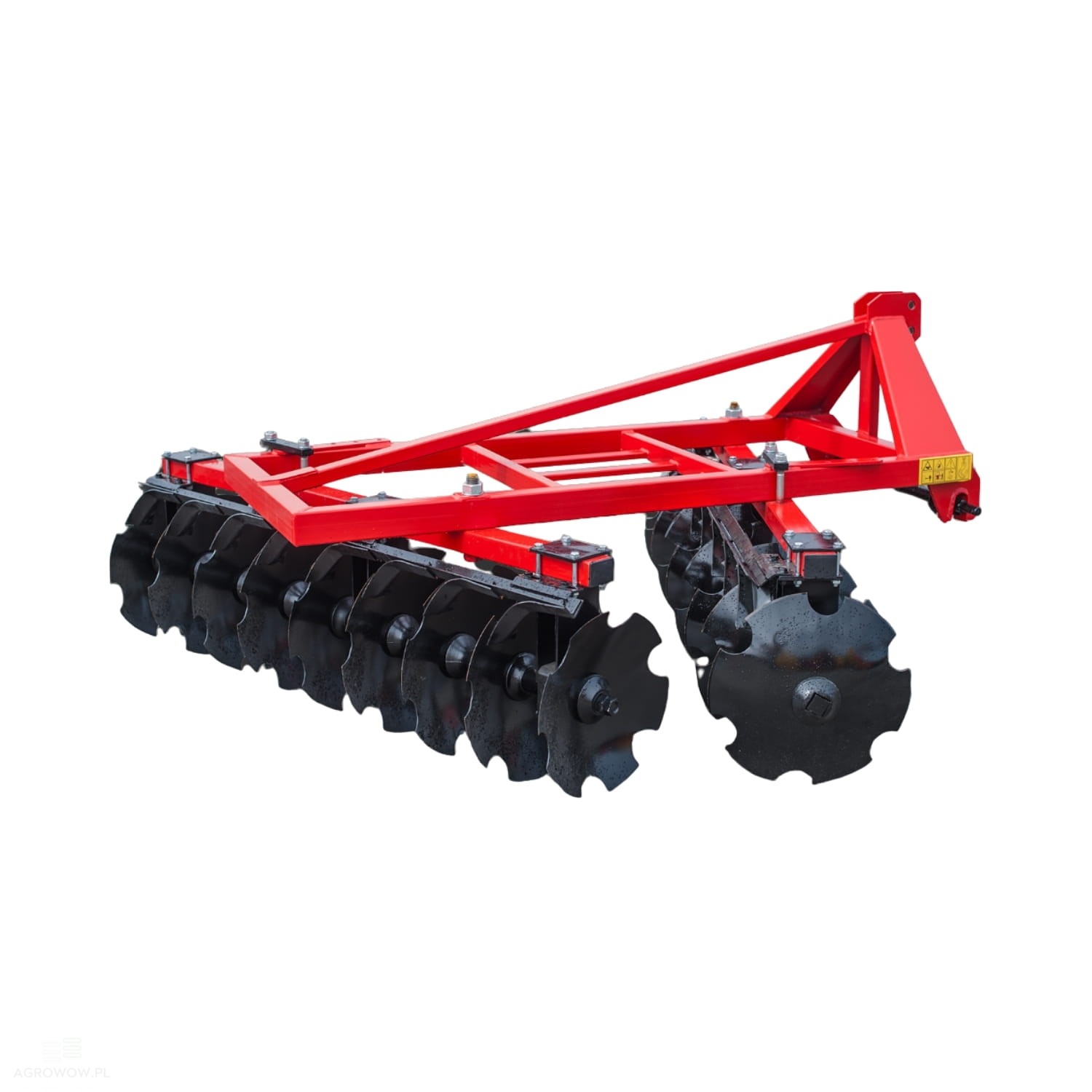

• The Agrowow ALFA V2 2.0 m disc harrow is a durable and multi-functional agricultural machine designed for effective pre-sowing cultivation and other works related to soil preparation.

• Its modern construction and the use of innovative technologies allow for efficient loosening, compacting, and crushing of the soil, as well as its leveling and covering seeds after sowing, which creates optimal conditions for plant growth.

• Thanks to a working width of 2000 mm and 18 discs arranged in two rows, the harrow ensures even mixing and aeration of the soil, which positively affects its structure.

• The discs, with a diameter of 460, 510, or 560 mm, have been made of high-grade boron steel, which guarantees their high resistance to abrasive wear and a long service life even in difficult conditions.

• The optimal disc row spacing of 120 cm enables effective soil crushing and its proper preparation for subsequent cultivation stages.

• The reinforced construction and the use of 6-hole hubs ensure stability and durability, which translates into a long service life of the machine even under intensive use.

• The damping system utilizing rubber rollers effectively dampens vibrations, protecting the structure against overloads and increasing the operator's work comfort.

• An automatic hitch beam and a universal suspension system of category II and III enable quick and convenient connection of the machine to various tractor models.

• The disc harrow works perfectly both in traditional cultivation and in reduced tillage technology, supporting weed elimination, mixing of mineral and organic fertilizers, and preparation of the field for subsequent sowing.

• The option to cooperate with a seed drill allows for simultaneous cultivation and sowing in a single pass, which significantly increases work efficiency and reduces fuel costs.

• Thanks to a power requirement in the range of 34-52 HP, the machine is compatible with a wide range of agricultural tractors.

• The efficiency at a level of 1.3-3.5 ha/h allows for quick and effective soil preparation for sowing, significantly accelerating field works.

• The rear tubular or string roller additionally levels the soil surface, supporting its moisture storage capacity and facilitating further cultivation treatments.

• All construction components have been finished with a powder coating, which provides effective protection against corrosion and mechanical damage, extending the durability of the machine.

• The Agrowow ALFA 2.0 m disc harrow is a reliable solution for farmers seeking a durable, efficient, and easy-to-operate machine that significantly increases work productivity and improves crop quality.
