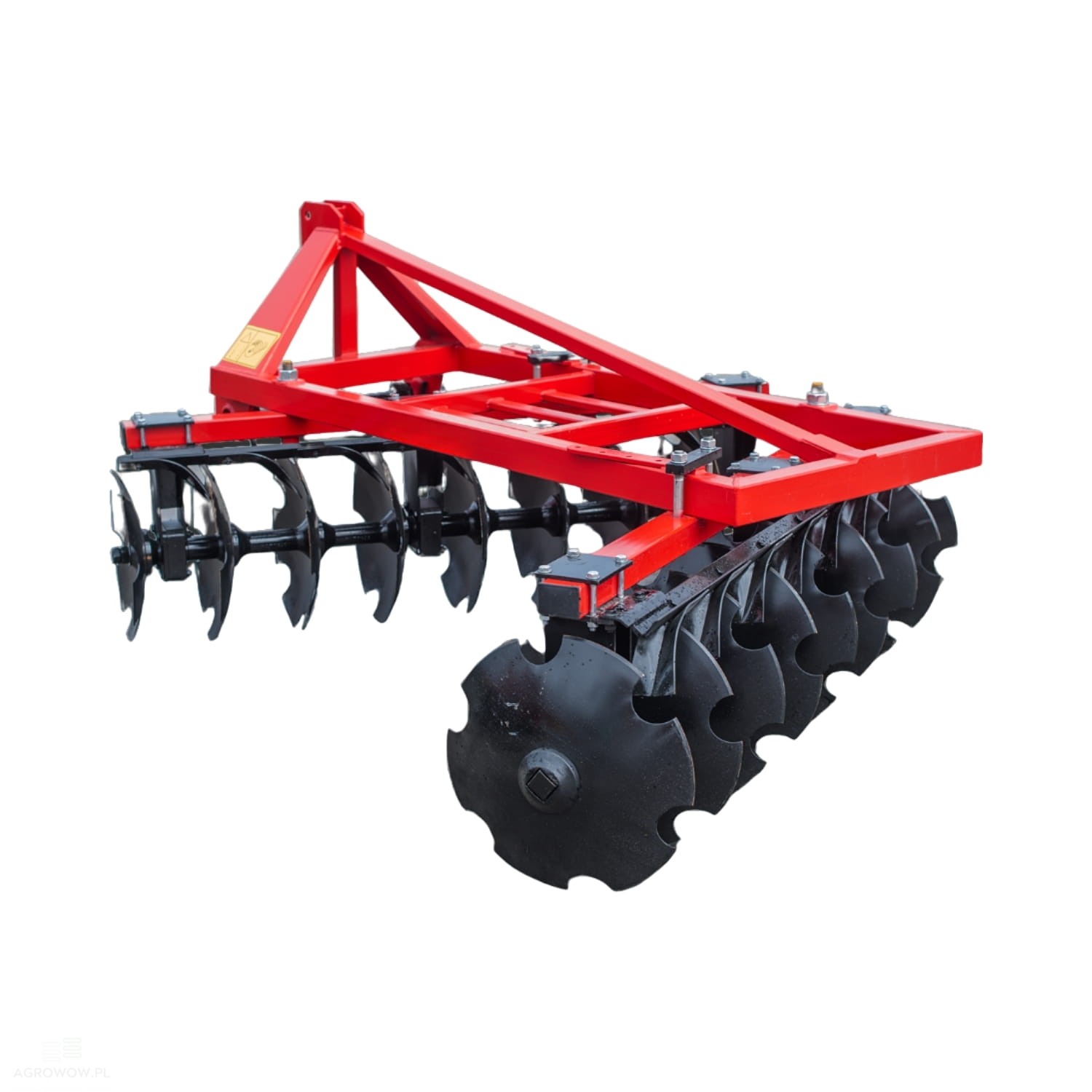

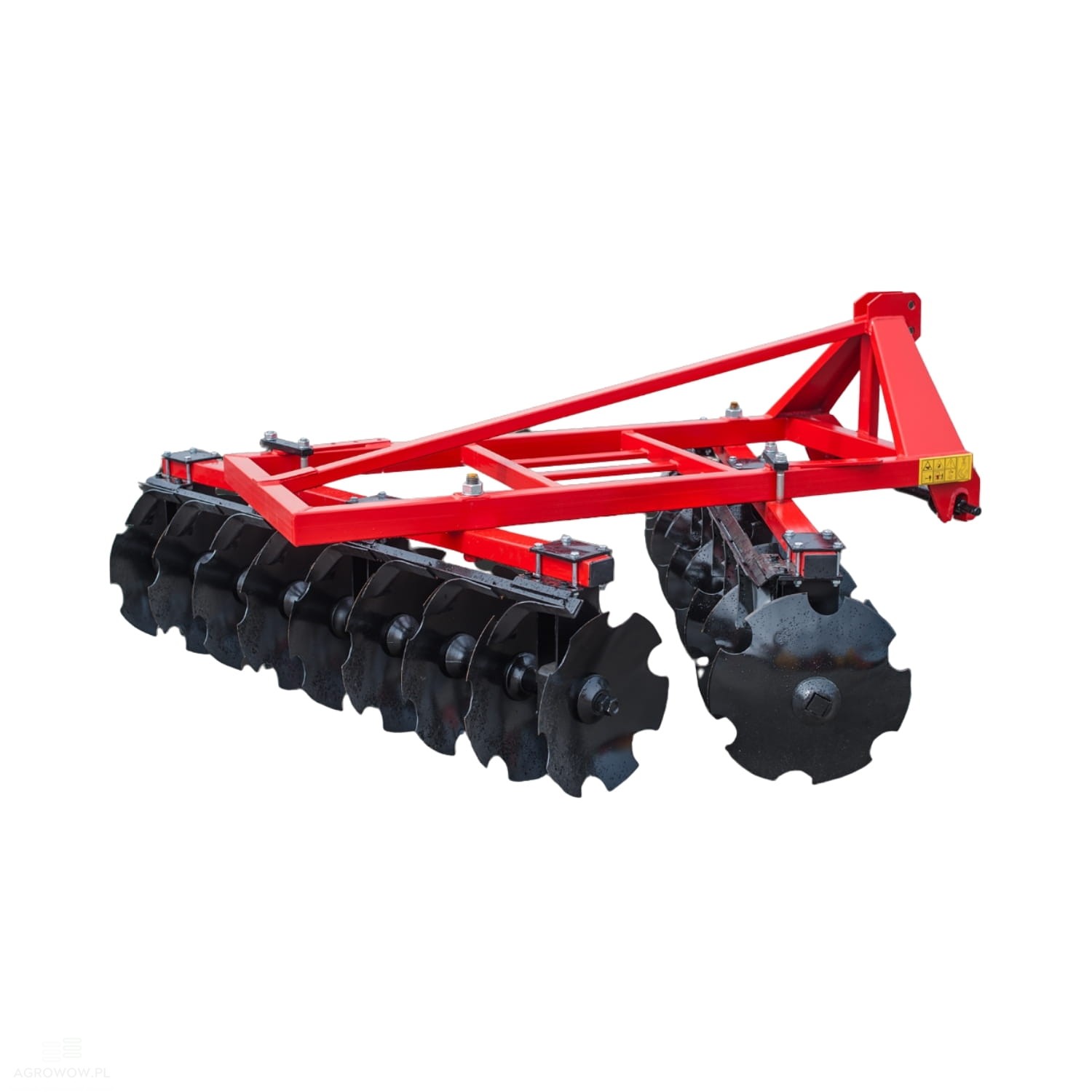

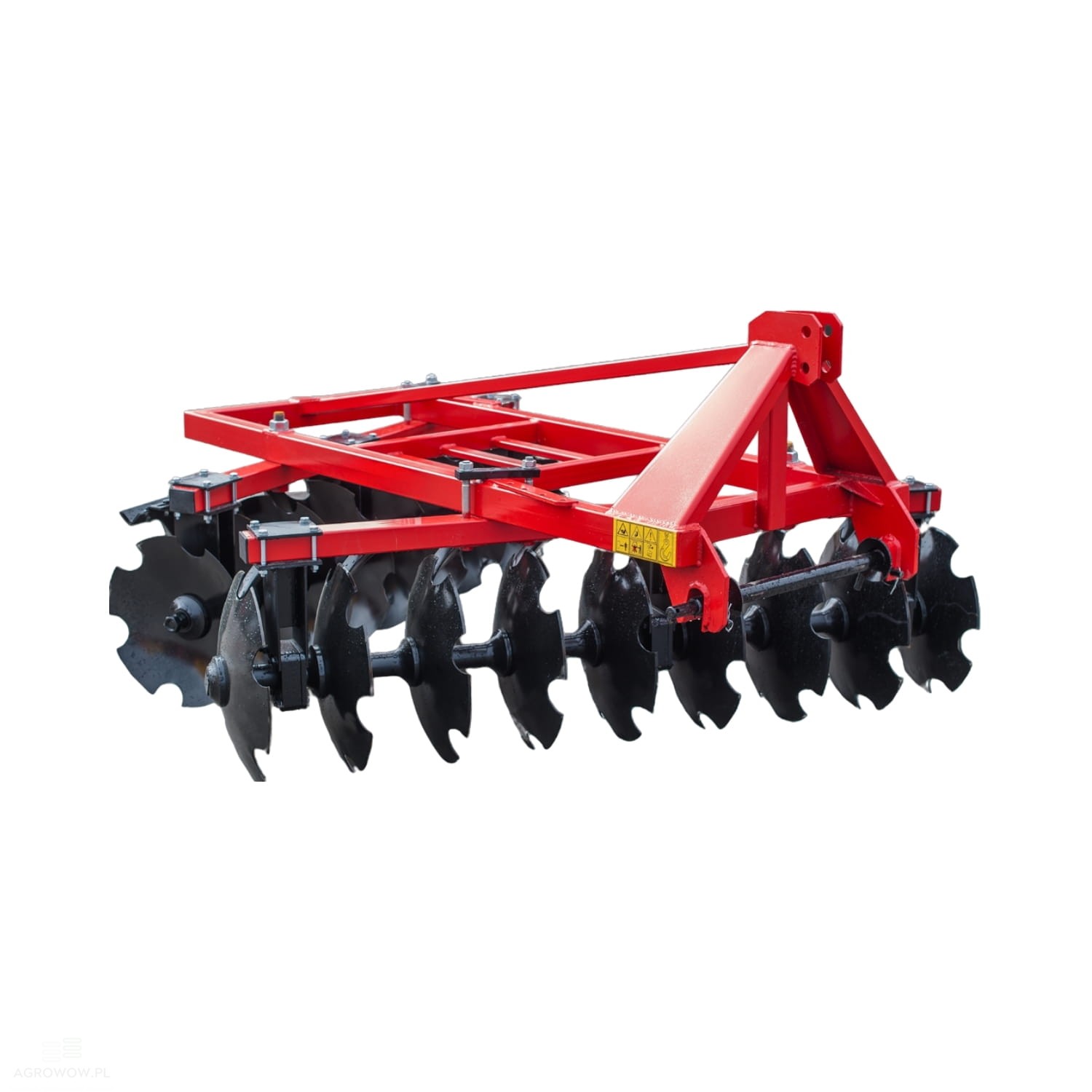

Agrowow disc harrow ALFA V2 2.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: STAV2/20

- Manufacturer's name: Disc harrow ALFA V2

- Width: 2000 mm

- Number of discs: 16

- Disc diameter: 460 / 510 / 560 mm

- Number of bearings: 4

- Weight: 440 kg

- Power requirement: 34-52 HP

- Efficiency: 1.3-3.5 ha/h

- Polish 510 mm boron steel disc

- Reinforced construction

- Automatic hitch beam

- Powder-coated components

- Disc row spacing 120 cm

- 6-hole hubs

- Rubber roller damping system

- Universal hitch system for Cat. II and Cat. III suspension

- Rear tubular or string roller

Optional extras (at additional cost):

- String roller Ø300

A small string roller, perfectly suited for precise soil leveling. Its design enables efficient crushing of small soil clods, improving the ground structure before sowing. Thanks to its lightweight construction, it generates minimal rolling resistance, making it easy to use. It performs excellently in crops requiring gentle processing, guaranteeing a uniform soil surface.

- Disc Ø560

A robust 560 mm diameter disc made of high-grade steel, which is used in disc harrows. Suitable for efficient cutting of plant residues, soil mixing, and loosening. High resistance to abrasive wear ensures a long service life. Its optimal profile facilitates soil penetration even under demanding conditions.

- String roller Ø500

A larger version of the string roller, designed for intensive soil leveling and crushing. It improves aeration and the soil's moisture retention capacity, counteracting its excessive compaction. It works great in crops requiring a uniform ground and precise pre-sowing preparation.

- Tubular roller Ø500

A durable tubular roller that effectively stabilizes the ground after treatment with a disc harrow. Its design allows for efficient soil compaction, helping to maintain the appropriate moisture level. Thanks to its construction, it minimizes the risk of excessive packing, leaving an optimal soil structure for further agricultural work.

- Packer roller Ø500

A roller designed for intensive soil compaction and the breaking up of larger clods of earth. Thanks to its construction, it improves moisture retention and stabilizes the ground, promoting better plant rooting. It performs ideally in crops that require well-prepared and leveled soil.

- Roof roller Ø500

Adapted for operation on light and medium soils, it effectively loosens and levels the field surface. Its unique design reduces the risk of excessive soil drying and improves its moisture storage capacity. Additionally, it counteracts erosion and levels the terrain, facilitating subsequent agrotechnical treatments.

- Croskill roller Ø500

An advanced croskill roller that effectively breaks up compacted soil layers and improves its structure. Thanks to its double construction, it increases the soil's moisture absorption capacity, which translates into better plant growth conditions. It performs perfectly in crops requiring precisely prepared ground before sowing.

Detailed Description:

• The Agrowow ALFA V2 2.0 m disc harrow is a versatile and compact agricultural machine created for effective pre-sowing cultivation and other necessary field works.

• Its solid construction and modern technologies enable efficient soil loosening, compacting, crushing of compacted clods, and covering seeds after sowing, which translates into better plant growth conditions.

• Thanks to a working width of 2000 mm and 16 discs arranged in two rows, the machine ensures even mixing and aeration of the soil.

• The discs, with a diameter of 460, 510, or 560 mm, are made of high-grade boron steel, which ensures their resistance to abrasive wear and a long service life.

• The disc row spacing of 120 cm allows for effective soil crushing and its proper preparation for cultivation.

• The reinforced construction and the use of 6-hole hubs guarantee exceptional stability and durability of the machine, even in demanding operating conditions.

• The damping system using rubber rollers effectively dampens vibrations, protecting the structure against overloads and increasing the operator's work comfort.

• An automatic hitch beam and a universal suspension system of category II and III allow for quick and trouble-free connection of the machine to various tractor models.

• The harrow works perfectly both in traditional cultivation and in reduced tillage technology, enabling weed elimination, mixing of organic and mineral fertilizers, and preparation of the field for subsequent sowing.

• The option to cooperate with a seed drill allows for simultaneous cultivation and sowing in a single pass, which increases work efficiency and reduces fuel consumption.

• A power requirement in the range of 34-52 HP allows the machine to cooperate with a wide range of agricultural tractors.

• The harrow's efficiency, amounting to 1.3-3.5 ha/h, guarantees quick and effective soil preparation for sowing, significantly accelerating field works.

• The rear tubular or string roller additionally levels the soil surface, improving its moisture retention capacity and facilitating further agrotechnical treatments.

• All construction components have been finished with a powder coating, which effectively protects the machine against corrosion and mechanical damage, extending its service life.

• The ALFA disc harrow is an excellent solution for farmers looking for a durable, efficient, and easy-to-operate machine that significantly increases work productivity and improves crop quality.
