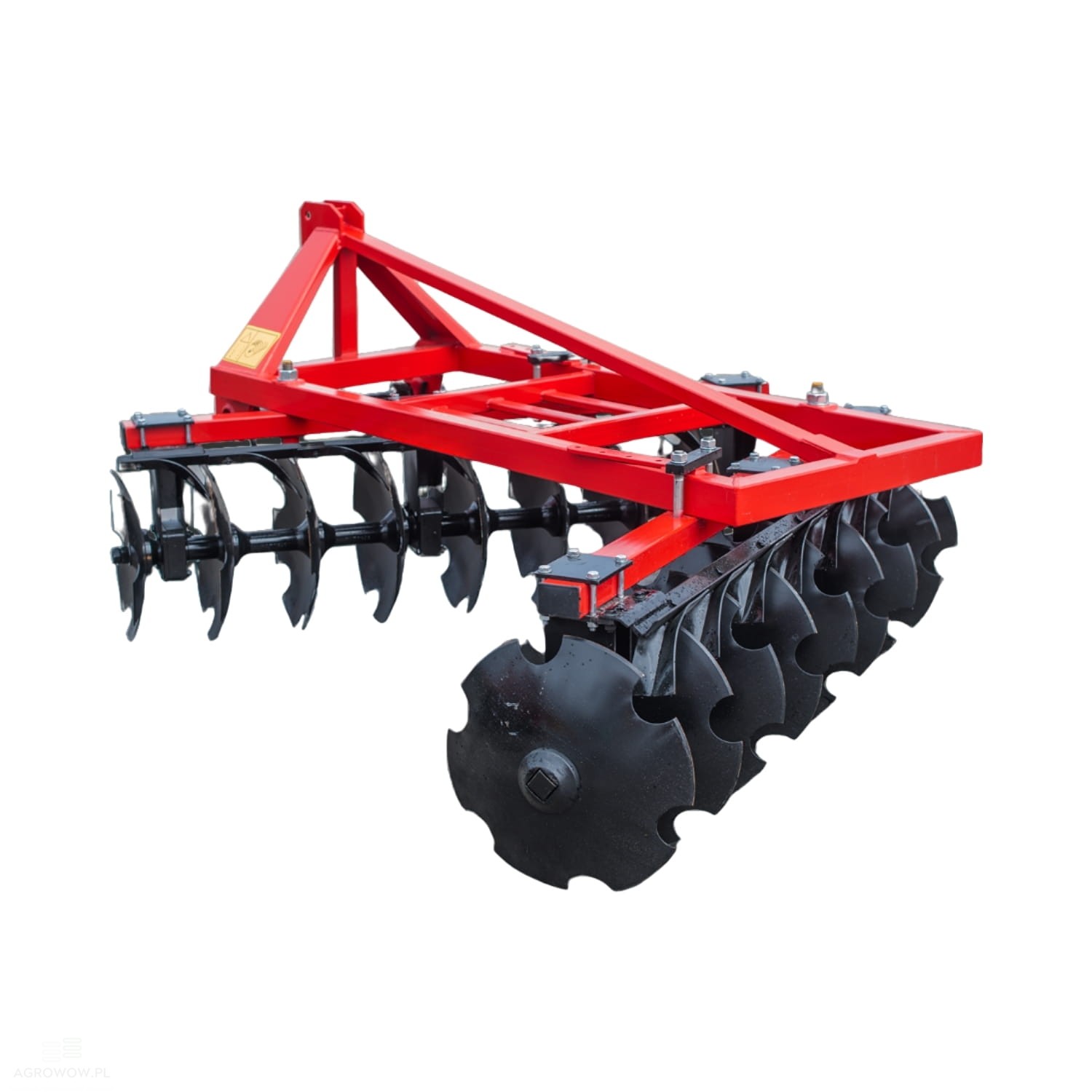

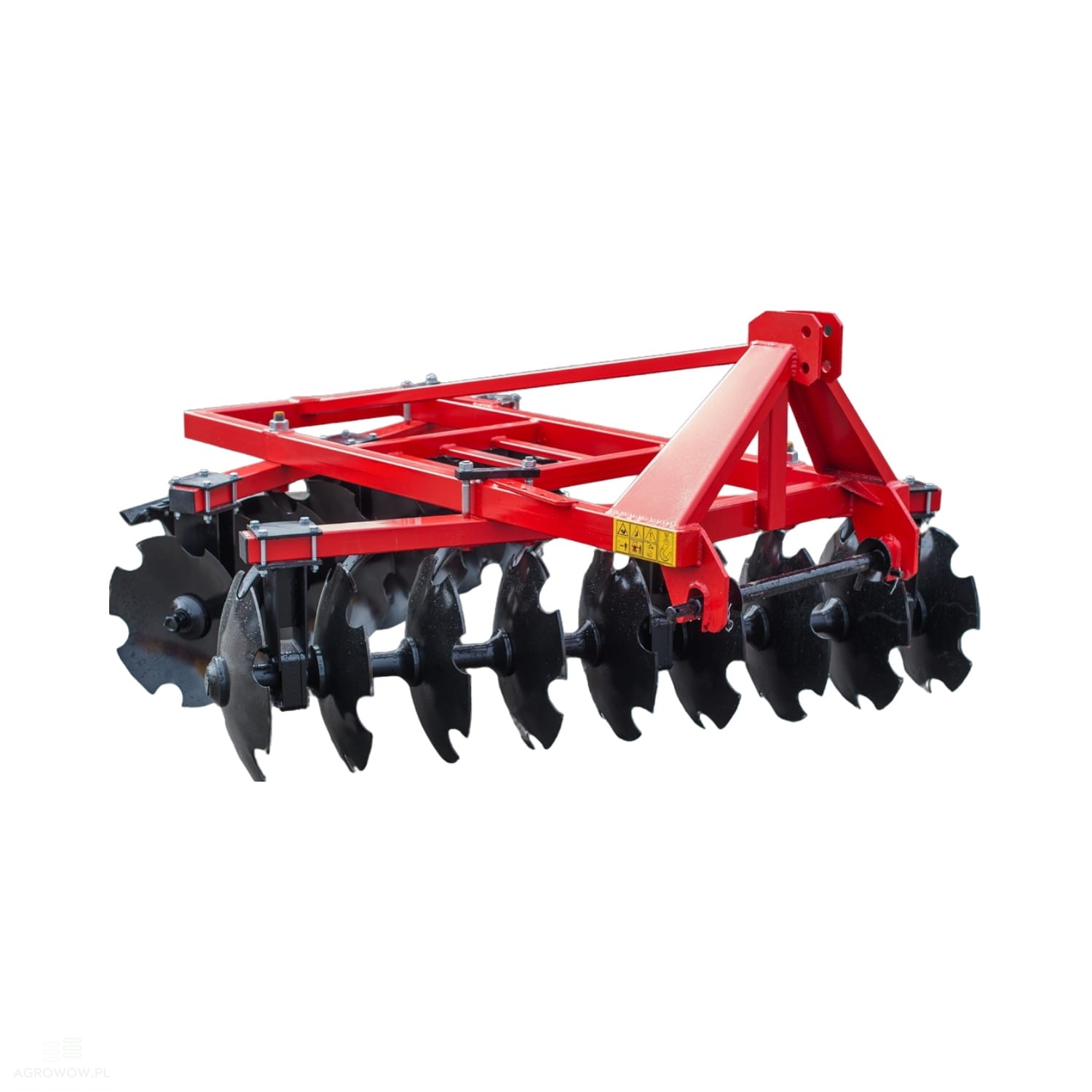

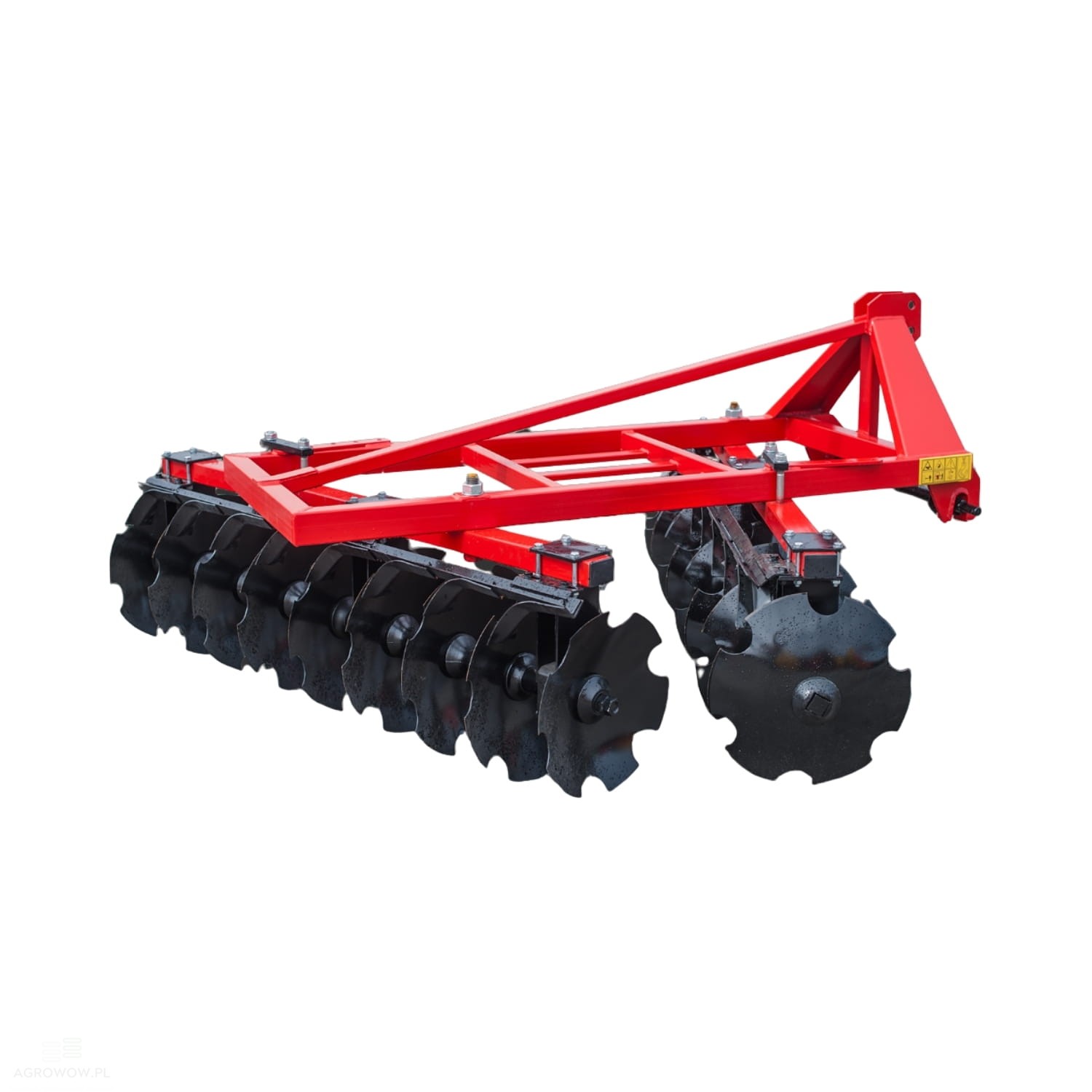

Agrowow disc harrow ALFA V2 2.2 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: STAV2/22

- Manufacturer's name: Disc harrow ALFA V2

- Width: 2200 mm

- Number of discs: 20

- Disc diameter: 460 / 510 / 560 mm

- Number of bearings: 4

- Weight: 475 kg

- Power requirement: 44-60 HP

- Efficiency: 1.4-4.2 ha/h

- Polish 510 mm boron steel disc

- Reinforced construction

- Automatic hitch beam

- Powder-coated components

- Disc row spacing 120 cm

- 6-hole hubs

- Rubber roller damping system

- Universal hitch system for Cat. II and Cat. III suspension

- Rear tubular or string roller

Optional extras (at additional cost):

- String roller Ø300

A small string roller designed for precise soil surface leveling. Its design enables efficient crushing of small soil clods, which significantly improves the ground structure before sowing. Thanks to its lightweight construction, it generates minimal rolling resistance, streamlining its operation. Ideal for crops requiring gentle processing, ensuring an even and smooth surface.

- Disc Ø560

A durable 560 mm diameter disc made of high-grade steel, used in disc harrows for intensive cutting of plant residues, soil mixing, and loosening. Thanks to its high resistance to abrasive wear, it features a long service life. The precisely profiled shape facilitates soil penetration, even under demanding working conditions.

- String roller Ø500

A larger version of the string roller, which intensively levels and crushes the soil surface. It improves soil aeration and increases its moisture storage capacity, preventing excessive compaction. It works perfectly in crops requiring a homogeneous ground and carefully prepared soil before sowing.

- Tubular roller Ø500

A solid tubular roller whose purpose is the effective stabilization of the soil after operation with a disc harrow. Its design allows for efficient compaction of the ground, which helps maintain the appropriate moisture level. Thanks to its tubular construction, it minimizes the risk of excessive soil packing, leaving its optimal structure for subsequent cultivation stages.

- Packer roller Ø500

A specialized roller designed for intensive soil compaction and the breaking up of larger clods of earth. Thanks to its unique construction, it improves the soil's moisture retention capacity and stabilizes the ground, supporting better plant rooting. It is an ideal solution for crops where achieving an even and properly prepared soil is key.

- Roof roller Ø500

A roller ideally suited for operation on light and medium soils, effectively loosening and leveling the field surface. Its construction prevents excessive soil drying and improves its moisture retention capacity. Additionally, it counteracts erosion and levels the terrain, which favors more efficient organization of subsequent cultivation treatments.

- Croskill roller Ø500

A technologically advanced croskill roller whose double construction allows for effective breaking up of compacted soil layers and improvement of its structure. As a result, the soil absorbs moisture better, which translates into optimal plant growth conditions. It performs perfectly in crops that require a perfectly prepared ground before sowing.

Detailed Description:

• The Agrowow ALFA V2 2.2 m disc harrow is a solid and versatile agricultural machine designed for effective pre-sowing cultivation and other key field works.

• Its modern construction and innovative technologies allow for efficient loosening, compacting, and crushing of the soil, as well as its leveling and covering seeds after sowing, which optimizes conditions for plant growth.

• The harrow, with a working width of 2200 mm, is equipped with 20 discs arranged in two rows, guaranteeing even mixing and aeration of the soil, which positively affects its structure.

• The discs, with a diameter of 460, 510, or 560 mm, made of high-grade boron steel, provide exceptional resistance to abrasive wear and a long service life even under intensive use.

• The optimal disc row spacing of 120 cm enables effective soil crushing and its appropriate preparation for subsequent cultivation stages.

• The reinforced construction and the use of 6-hole hubs ensure stability and durability, which translates into a long service life of the machine in demanding operating conditions.

• The damping system with rubber rollers effectively dampens vibrations, protecting the structure against overloads and increasing user comfort.

• An automatic hitch beam and a universal suspension system of category II and III allow for quick and trouble-free connection of the machine to various tractor models.

• The disc harrow works well both in traditional cultivation systems and in reduced tillage technology, enabling weed elimination, mixing of organic and mineral fertilizers, and preparation of the field for subsequent sowing.

• The option to cooperate with a seed drill allows for simultaneous cultivation and sowing in a single pass, which significantly increases work efficiency and reduces fuel costs.

• The machine requires a tractor with a power range of 44-60 HP, making it compatible with a wide range of agricultural vehicles.

• The efficiency at a level of 1.4-4.2 ha/h allows for quick and effective soil preparation for sowing, significantly accelerating field works.

• The rear tubular or string roller additionally levels the soil surface, improving its moisture retention capacity and facilitating further cultivation works.

• The construction components have been finished with a powder coating, which provides effective protection against corrosion and mechanical damage, extending the durability of the machine.

• The ALFA disc harrow is an excellent choice for farmers who expect a reliable, durable, and easy-to-operate machine that significantly improves work productivity and crop quality.
