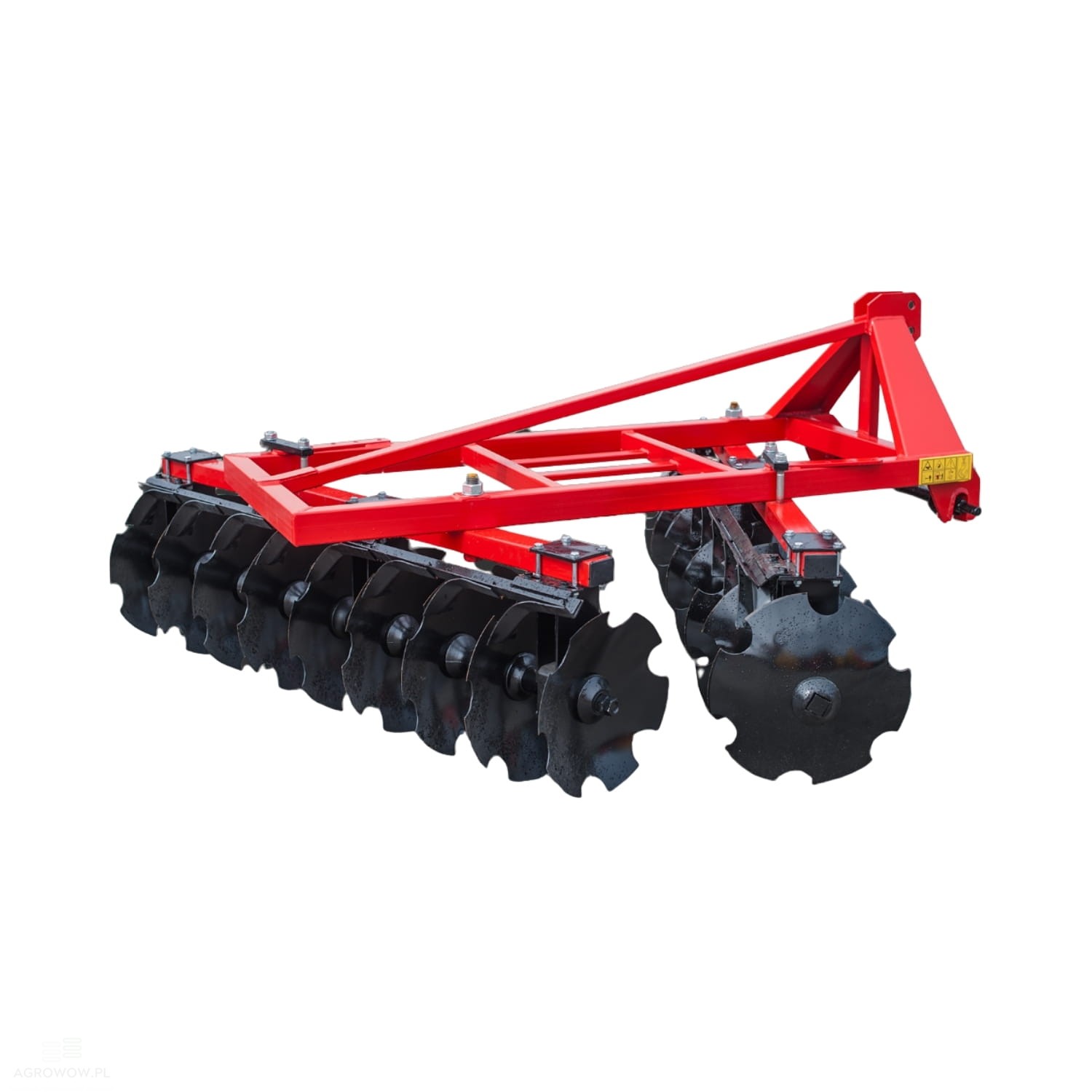

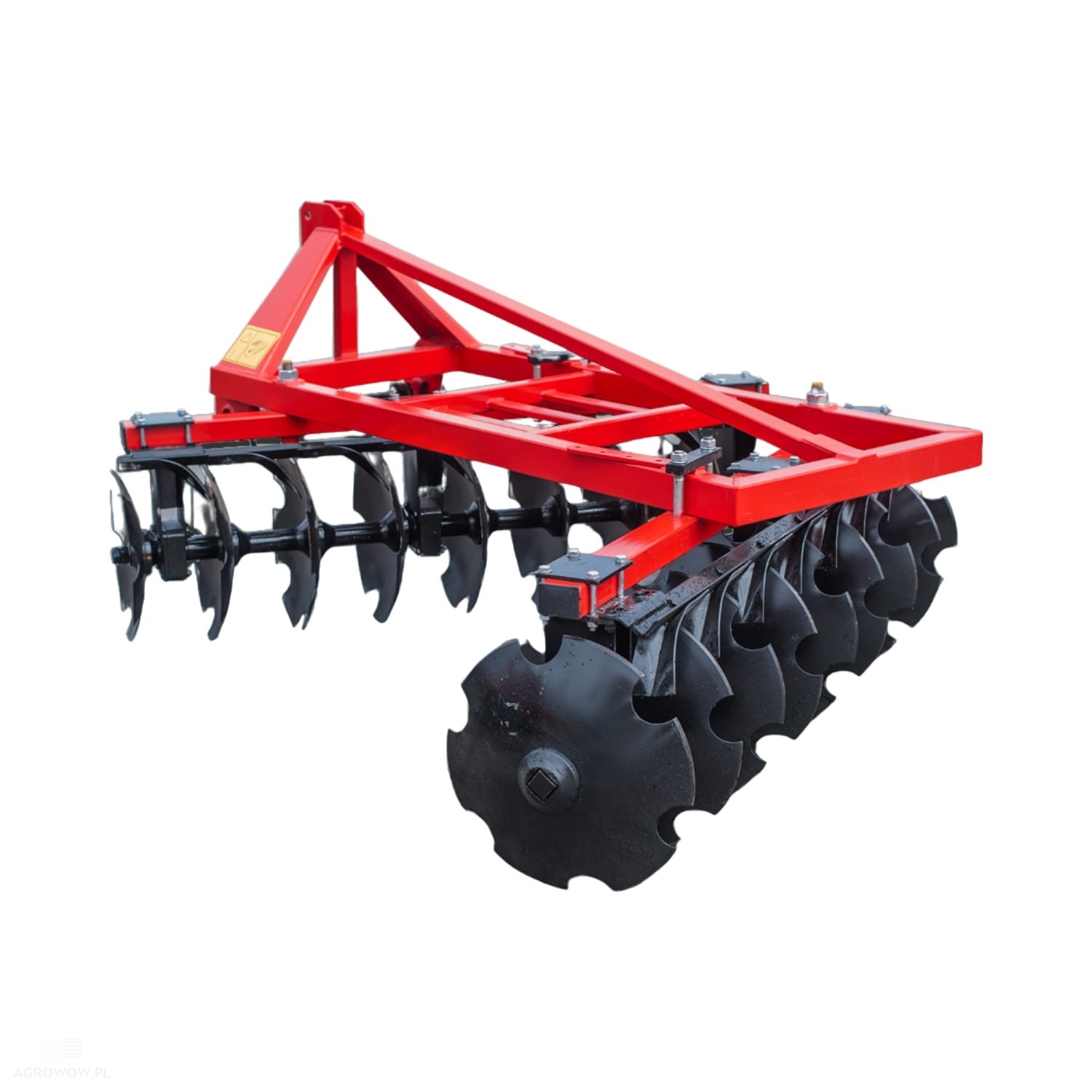

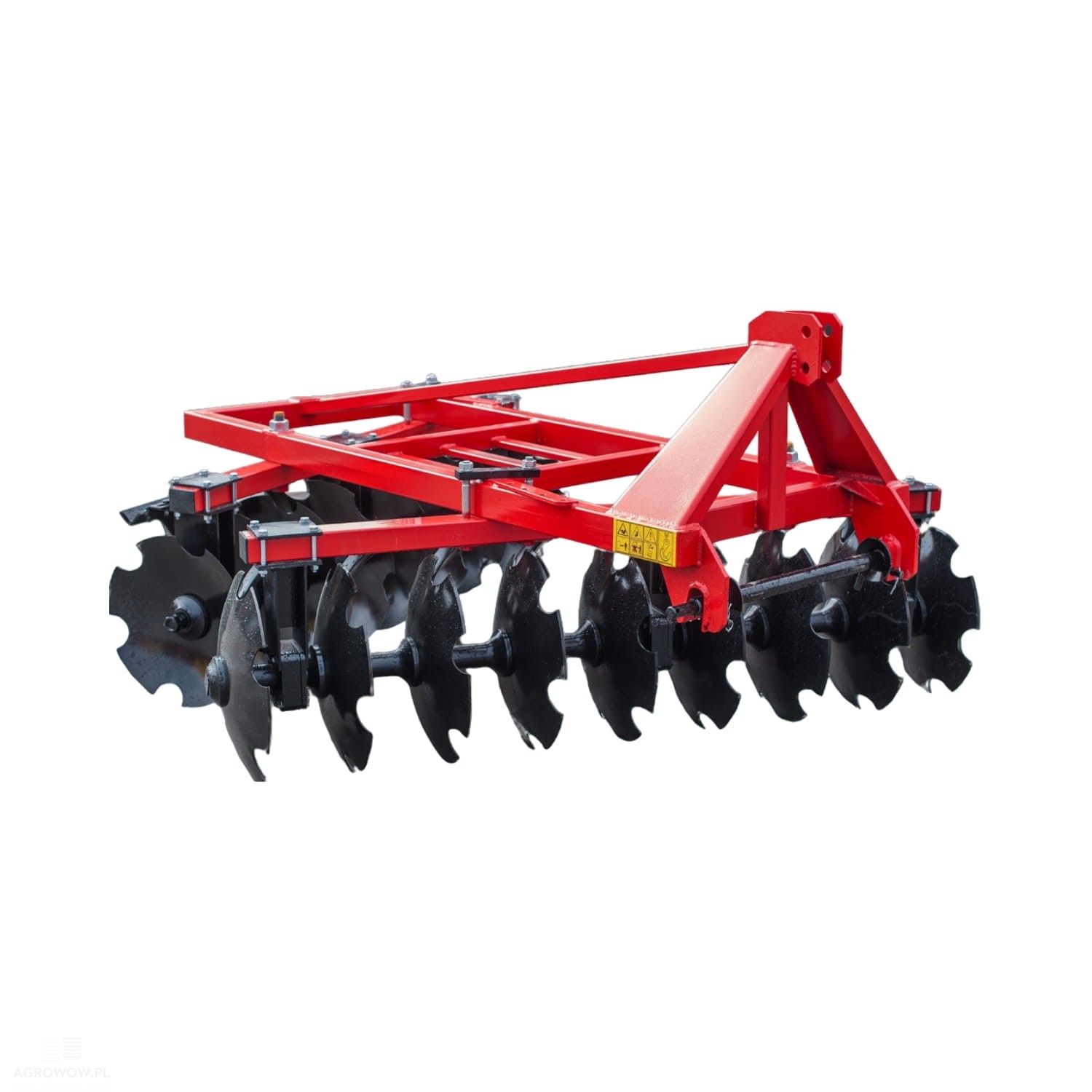

Agrowow disc harrow ALFA V2 2.4 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: STAV2/24

- Manufacturer's name: Disc harrow ALFA V2

- Width: 2400 mm

- Number of discs: 22

- Disc diameter: 460 / 510 / 560 mm

- Number of bearings: 4

- Weight: 565 kg

- Power requirement: 55-65 HP

- Efficiency: 1.5-4.6 ha/h

- Polish 510 mm boron steel disc

- Reinforced construction

- Automatic hitch beam

- Powder-coated components

- Disc row spacing 120 cm

- 6-hole hubs

- Rubber roller damping system

- Universal hitch system for Cat. II and Cat. III suspension

- Rear tubular or string roller

Optional extras (at additional cost):

- String roller Ø300

A compact string roller designed for precise soil leveling. It effectively crushes small soil clods, improving the ground structure before sowing. Its lightweight design reduces rolling resistance, making operation easier. It performs perfectly in crops requiring gentle treatment, ensuring an even and smooth soil surface.

- Disc Ø560

A solid 560 mm diameter disc made of high-quality steel, used in disc harrows for efficient cutting of plant residues, soil mixing, and loosening. It features high resistance to abrasive wear, which guarantees a long service life. The carefully designed profile facilitates penetration into the soil, even in demanding conditions.

- String roller Ø500

A larger model of the string roller, designed for intensive soil leveling and crushing. It improves soil aeration and increases its moisture retention capacity, preventing excessive compaction. It works great in crops requiring a homogeneous ground and precise preparation for sowing.

- Tubular roller Ø500

A robust tubular roller providing soil stabilization after operation with a disc harrow. Its design allows for efficient compaction of the ground, helping to maintain the appropriate moisture level. Thanks to its tubular construction, it prevents excessive soil packing, leaving its optimal structure for further cultivation.

- Packer roller Ø500

A specialized roller designed for intensive soil compaction and the effective breaking up of larger clods of earth. Its unique construction supports moisture retention and stabilizes the ground, promoting better plant rooting. An excellent choice for crops where achieving an even and well-prepared soil is important.

- Roof roller Ø500

A roller ideal for operation on light and medium soils, providing effective loosening and leveling of the field surface. Its construction limits excessive soil drying and improves its moisture retention capacity. Additionally, it counteracts erosion and levels the terrain, facilitating further agrotechnical works.

- Croskill roller Ø500

A modern croskill roller whose double construction allows for effective breaking up of compacted soil layers and improvement of its structure. As a result, the soil absorbs water better, which translates into optimal plant growth conditions. It is ideal for crops requiring perfectly prepared ground before sowing.

Detailed Description:

• The Agrowow ALFA V2 2.4 m disc harrow is a durable and versatile agricultural machine created for effective pre-sowing cultivation and other key works related to soil preparation.

• Its modern construction and innovative technologies allow for efficient loosening, compacting, and crushing of the soil, as well as its leveling and covering seeds after sowing, which ensures optimal conditions for plant growth.

• The harrow, with a working width of 2400 mm, is equipped with 22 discs arranged in two rows, guaranteeing even mixing and aeration of the soil, which beneficially affects its structure and moisture storage capacity.

• The discs, with a diameter of 460, 510, or 560 mm, made of high-quality boron steel, ensure high resistance to abrasive wear and a long service life even under intensive use.

• The optimal disc row spacing of 120 cm enables effective soil crushing and its appropriate preparation for subsequent stages of cultivation.

• The reinforced construction and the use of 6-hole hubs guarantee the stability and durability of the machine, even in difficult operating conditions.

• The damping system with rubber rollers effectively reduces vibrations, protecting the structure against overloads and improving user comfort.

• An automatic hitch beam and a universal suspension system of category II and III allow for quick and convenient connection of the machine to various tractor models.

• The disc harrow performs perfectly both in traditional cultivation methods and in reduced tillage technology, enabling weed elimination, mixing of organic and mineral fertilizers, and preparation of the field for subsequent sowing.

• The option to cooperate with a seed drill allows for simultaneous cultivation and sowing in a single pass, which increases work efficiency and reduces fuel consumption.

• The machine requires a tractor with a power range of 55-65 HP, making it compatible with a wide range of agricultural vehicles.

• The efficiency at a level of 1.5-4.6 ha/h allows for quick and effective soil preparation for sowing, significantly accelerating field works.

• The rear tubular or string roller additionally levels the soil surface, improving its moisture retention capacity and facilitating further cultivation works.

• The construction components have been finished with a powder coating, which provides effective protection against corrosion and mechanical damage, extending the durability of the machine.

• The ALFA disc harrow is an excellent solution for farmers looking for a solid, efficient, and easy-to-operate machine that significantly increases work productivity and improves crop quality.
