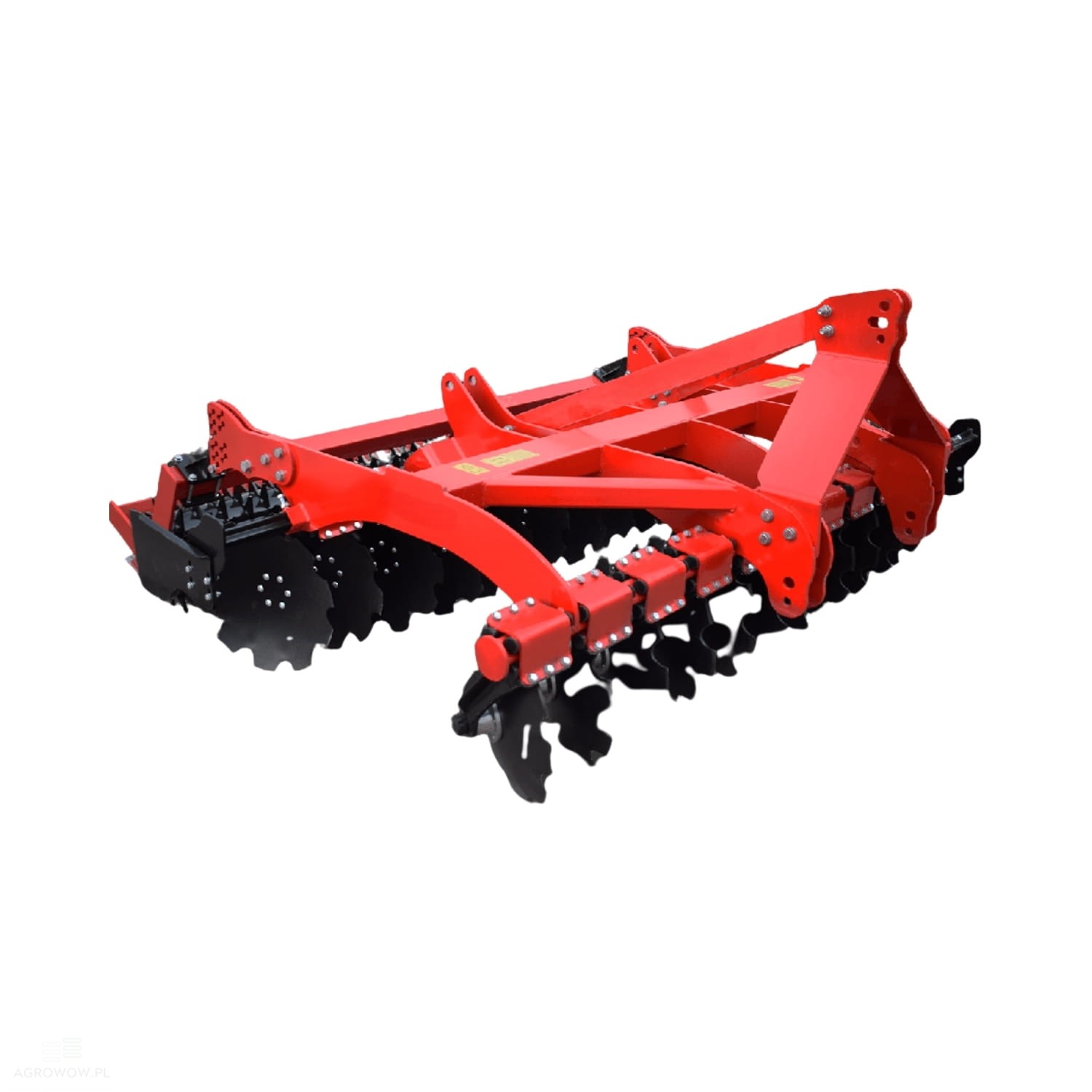

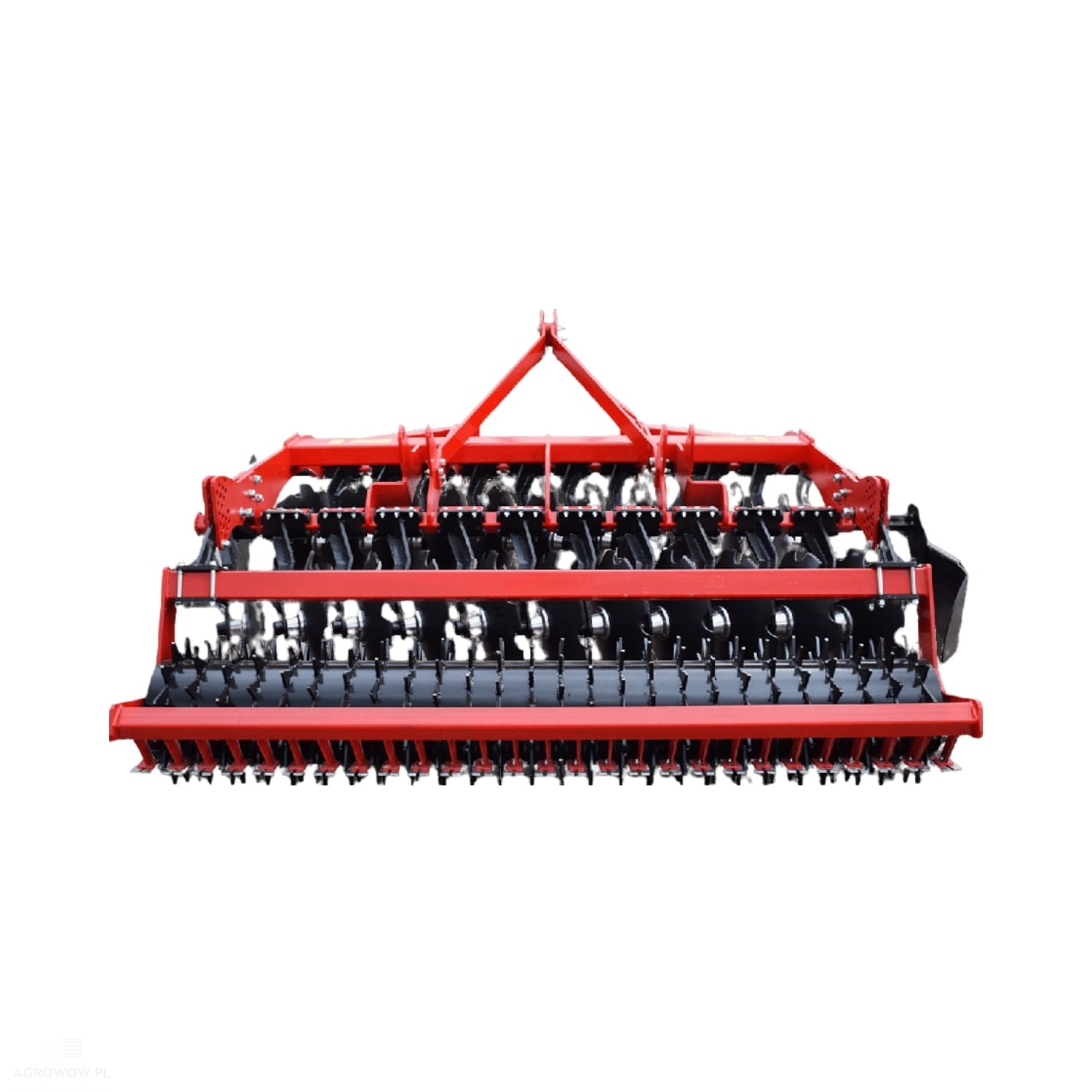

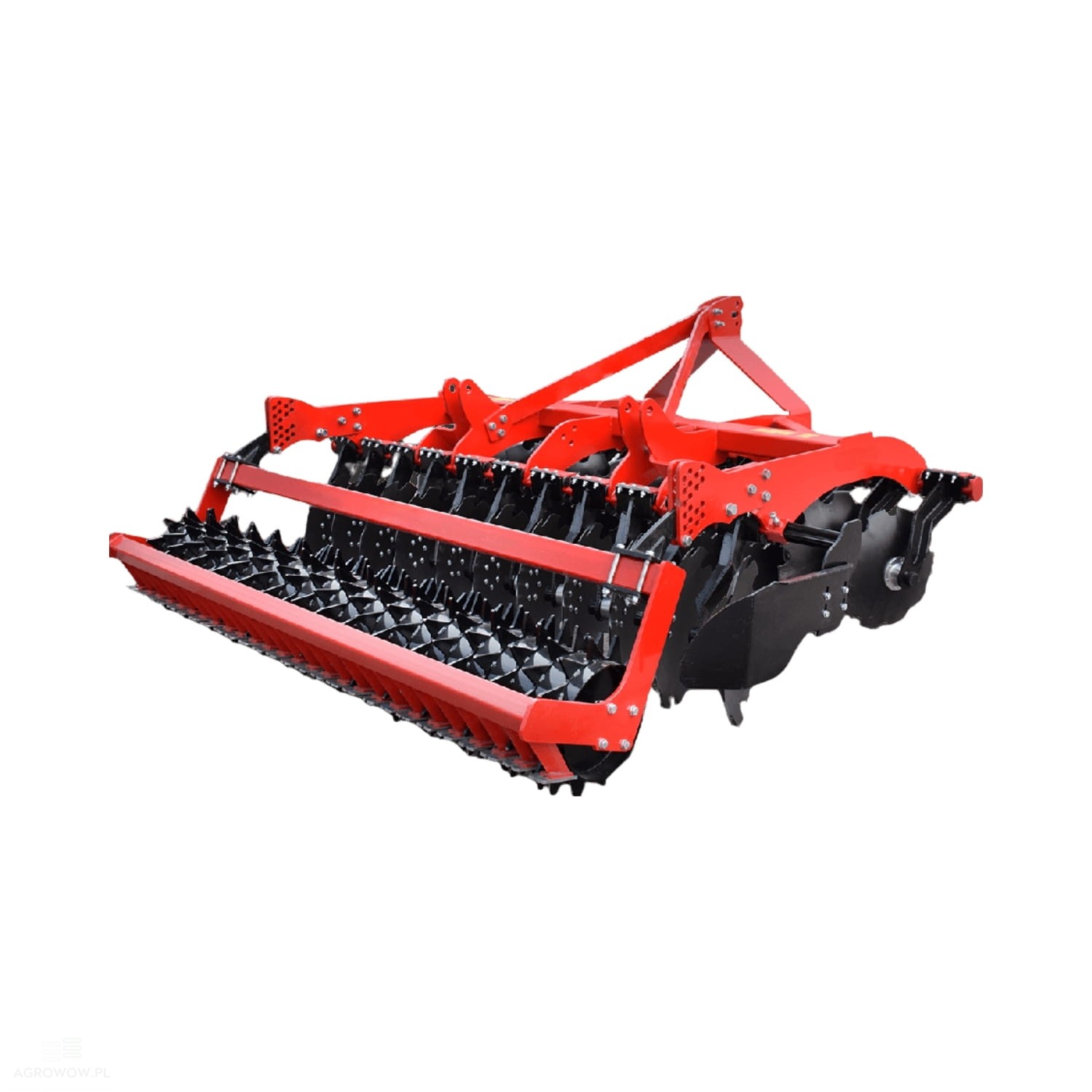

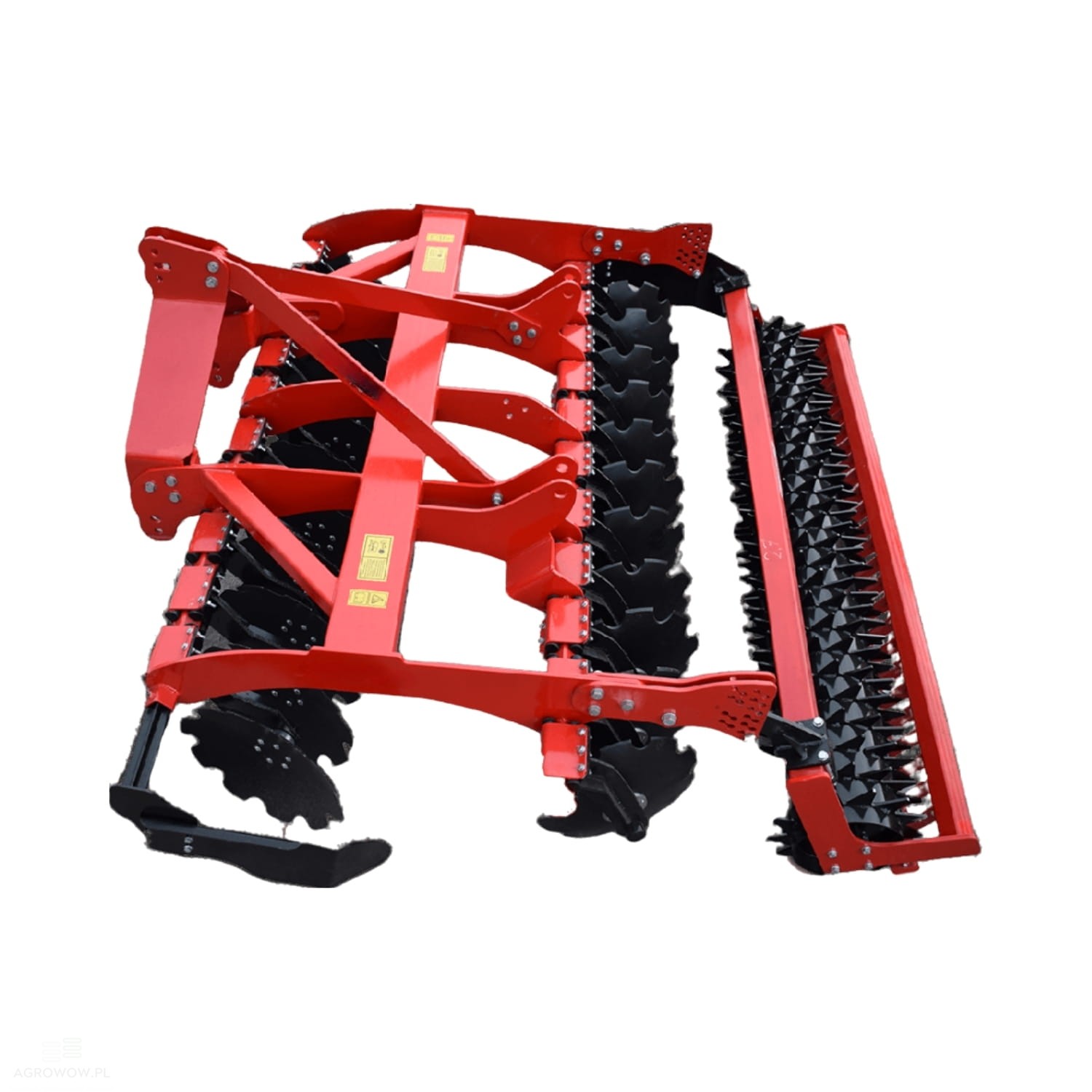

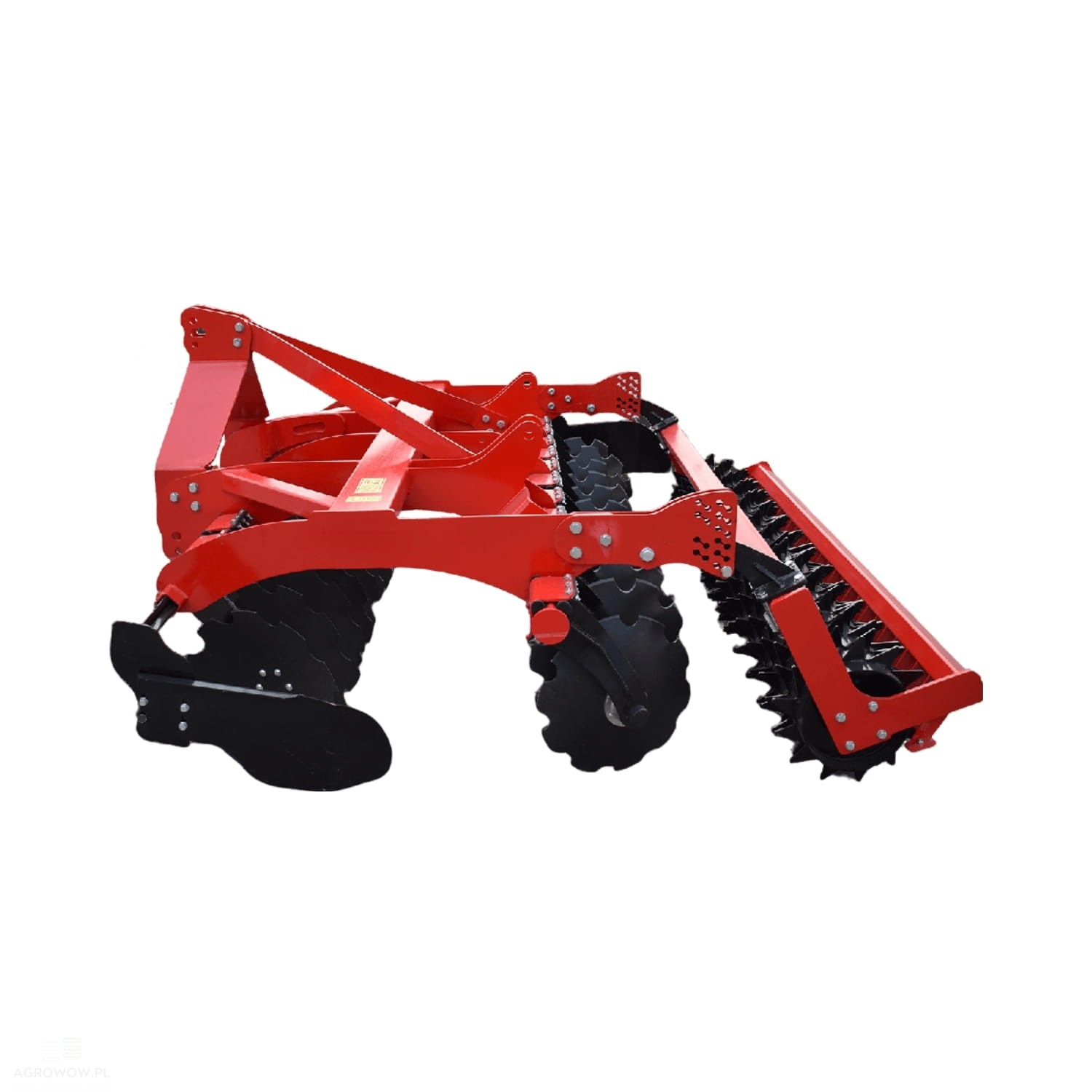

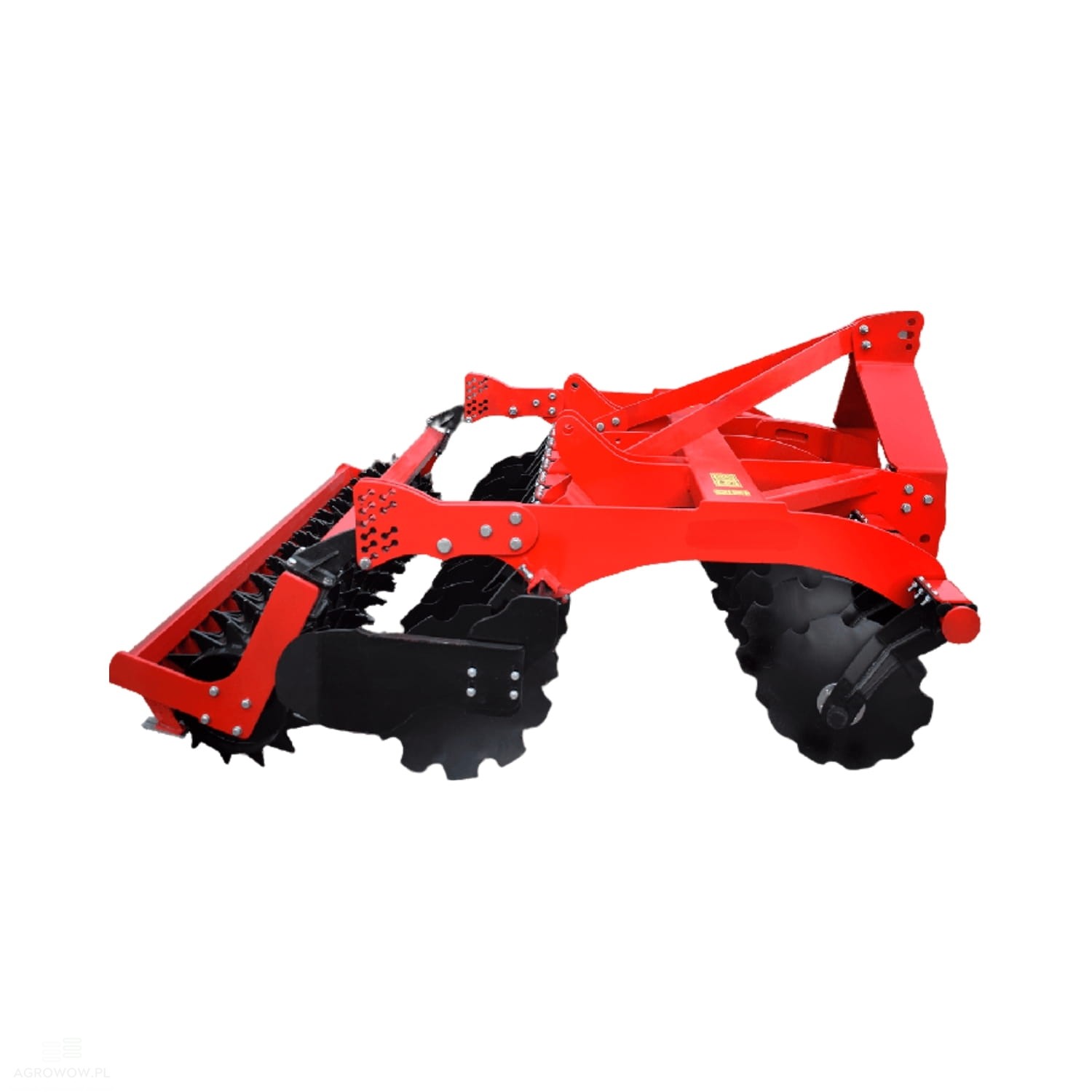

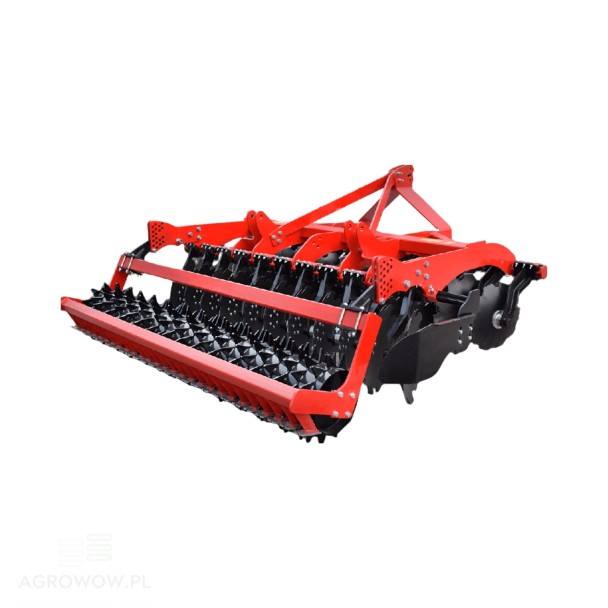

Agrowow disc harrow MEGA 3.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: MEGA30

- Manufacturer's name: Disc harrow MEGA

- Width: 3000 mm

- Number of discs: 24

- Disc diameter: Ø560 / Ø610 / Ø660 mm

- Disc row spacing: 1200 mm

- Weight: 1340 kg

- Power requirement: 90-120 HP

- Efficiency: 2.1-3.3 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- Powder-coated components

- 6-hole hubs

- Rubber roller damping system

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Side screens

Optional extras (at additional cost):

- Packer roller

An advanced roller designed for intensive soil compaction and effective crushing of larger soil clods. Its specialized design improves moisture retention, ensuring a stable ground and promoting better plant rooting. It works perfectly in cultivations requiring carefully prepared and leveled soil.

- Roof roller

An excellent solution for work on light and medium soils, where it effectively loosens and levels the field surface. Its unique structure limits excessive soil drying, improves its water retention capacity, and prevents erosion. It facilitates subsequent cultivation work and improves overall soil quality.

- Croskill roller

The modern design of the croskill roller allows for effective breaking up of compacted soil layers, improving its structure. Thanks to this, the soil absorbs moisture better, which promotes plant growth. It works great in intensive cultivations where precise soil preparation before sowing is key.

- Double roof roller

An improved version of the roof roller, offering even more effective leveling and loosening of the soil surface. Its double construction increases moisture retention and minimizes the risk of soil drying out. It improves plant growth conditions and ensures better soil structure, facilitating subsequent agrotechnical treatments.

- Maintenance-free SKF hub

An innovative maintenance-free hub, eliminating the need for frequent maintenance and lubrication. Made of high-strength materials, it is characterized by high resistance to intensive operation. It reduces the risk of failure, increasing the machine's reliability and reducing maintenance costs.

- Polish 610 mm boron steel disc

A durable disc with a diameter of 610 mm, made of high-grade boron steel, resistant to wear and mechanical damage. Its precise shape ensures effective cutting of crop residues, intensive soil mixing, and optimal preparation for subsequent crops, which increases work efficiency.

- Transport trolley (+950 kg)

A solid and functional element that facilitates the transport of the machine both in the field and on access roads. A stable construction guarantees transport safety, and a convenient hitch system allows for quick connecting and disconnecting of the machine. It increases mobility and comfort of use during daily agricultural work.

Detailed Description:

• The MEGA 3.0 m disc harrow is a modern and robust agricultural machine, designed for effective soil cultivation and its preparation for sowing.

• Its durable construction and advanced technological solutions ensure it performs excellently in both traditional and simplified cultivation systems, providing high-quality work and durability.

• A working width of 3000 mm and 24 discs with a diameter of Ø560, Ø610, or Ø660 mm guarantee effective loosening, mixing, and shredding of the soil, which influences its better structure and optimal preparation for further stages of cultivation.

• A disc row spacing of 1200 mm allows for even distribution of crop residues and precise preparation of the ground for subsequent sowing.

• The machine's efficiency at the level of 2.1-3.3 ha/h significantly streamlines field work and increases the farm's efficiency.

• The disc harrow is made of high-quality materials and equipped with 6-hole hubs and Polish 560 mm discs made of boron steel, which are characterized by high resistance to wear and long service life.

• Reinforced construction and powder coating ensure increased resistance to corrosion and mechanical damage, extending the machine's lifespan even in difficult field conditions.

• The harrow is equipped with a damping system in the form of rubber rollers, which effectively dampen vibrations and protect the structure against overloads, increasing operator comfort.

• The machine works with tractors with 90-120 HP, and thanks to the universal hitch system of category II and III, it is compatible with popular tractor models such as John Deere, New Holland, Case IH, Deutz-Fahr, Massey Ferguson, Kubota, Ursus, or Zetor.

• It is ideally suited for pre-sowing cultivation, as well as for preparing the soil after harvest, ensuring optimal conditions for plant growth.

• The rear tubular or string roller additionally levels the soil surface, increases moisture retention, and improves the quality of the soil structure.

• Side screens guarantee the precise operation of the machine, limiting soil loss and improving the accuracy of cultivation.

• The MEGA disc harrow is an excellent choice for farmers looking for an efficient, durable, and easy-to-operate machine that significantly increases work efficiency and influences better yields.

• Regardless of the type of soil and weather conditions, this harrow provides excellent results, facilitating the conduct of modern, efficient cultivation.
