Agrowow disc harrow TIGER 2.7 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: TH27

- Manufacturer's name: Disc harrow TIGER

- Width: 2700 mm

- Number of discs: 22

- Spacing between disc rows: 650 mm

- Disc diameter: 510 / 560 / 610 mm

- Working depth: 100-200 mm

- Weight: 1165 kg

- Power requirement: 100-130 HP

- Number of actuators: 2

- Polish 560 mm boron steel discs

- Reinforced construction

- Efficiency: 1.9-2.8 ha/h

- 6-hole hubs

- Rubber roller cushioning system

- Side screens

- Universal hitch system (Cat. II and III)

Optional extras (at additional cost):

- Packer roller

The packer roller is a key element of the tillage aggregate, which effectively compacts and levels the soil. Its use is particularly effective on heavy and compacted soils, where it helps stabilize the substrate and limits excessive loosening. Thanks to this, the soil achieves the proper structure, which promotes better seed placement and uniform germination.

- V-profile roller

The V-profile roller is designed for work on light and medium soils, where its specially designed shape enables effective crushing and leveling of the surface. It improves water retention in the soil and prevents excessive drying, which is crucial for plant growth. This is an ideal solution for farmers looking for an effective method to optimize soil conditions in more difficult crops.

- Croskill roller

The Croskill roller is characterized by a double-disc system that enables intensive soil crushing and the elimination of large soil clods. It works particularly well in pre-sowing cultivation, as it prepares the substrate for sowing through proper loosening and leveling. It is ideally suited for medium and heavy soils, where it additionally increases stability and moisture retention capacity.

- Maintenance-free steel SKF hub

The maintenance-free steel SKF hub is an innovative solution that eliminates the need for frequent maintenance and lubrication, which significantly facilitates machine operation. Made of durable steel, it is resistant to high loads and difficult working conditions. The use of this technology extends the service life of rollers and discs, minimizing the risk of failure and reducing equipment maintenance costs. It is an excellent solution for farmers expecting reliability and long durability of tillage machines.

- 610 mm disc

The 610 mm disc is one of the key elements of tillage aggregates and disc harrows, playing an important role in the soil preparation process. Its large diameter—610 mm—ensures effective cutting of crop residues and thorough mixing of the substrate, which favors better preparation of the soil for sowing. Made of high-quality steel, it is characterized by high resistance to abrasion and mechanical damage, which ensures long durability even with intensive use.

Detailed Description:

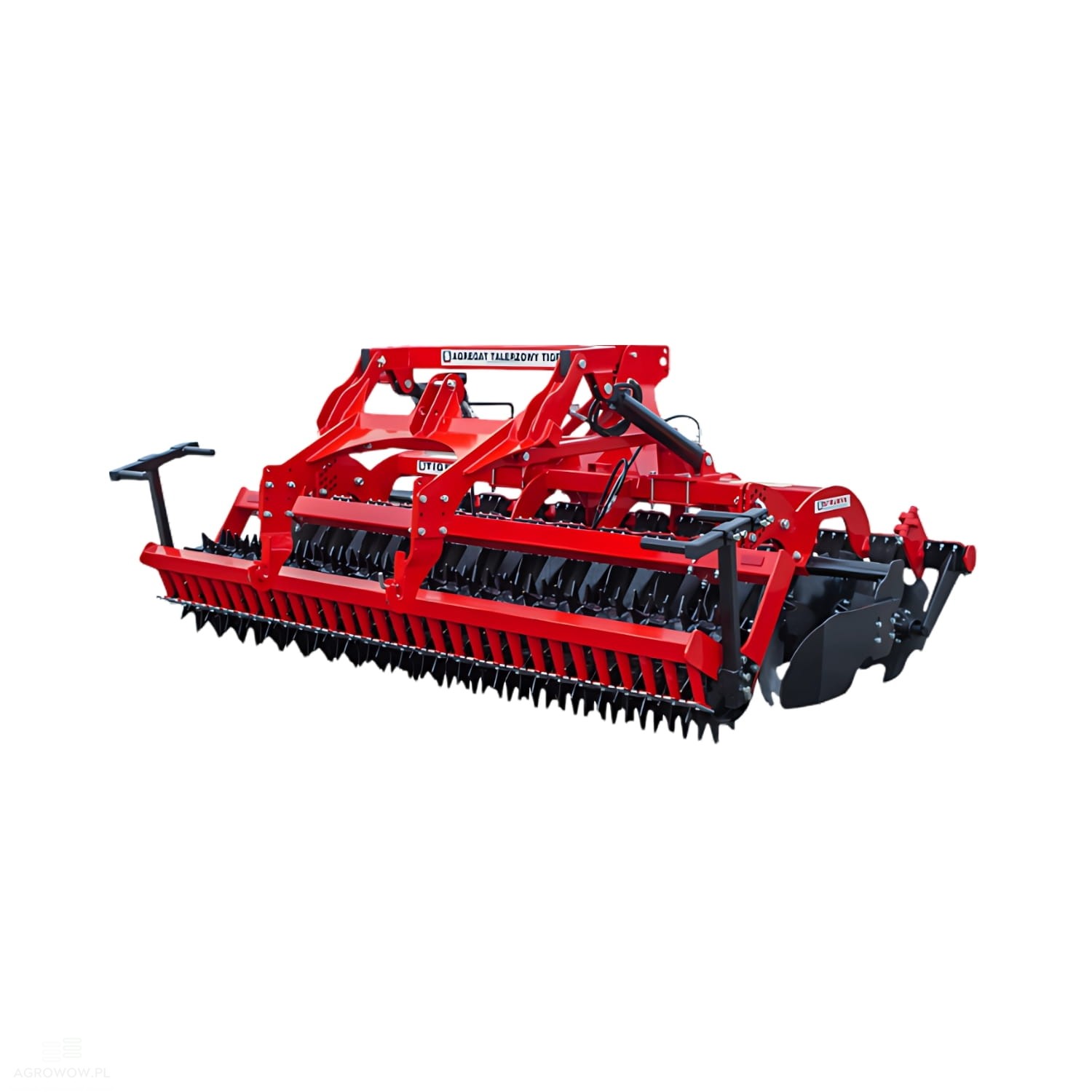

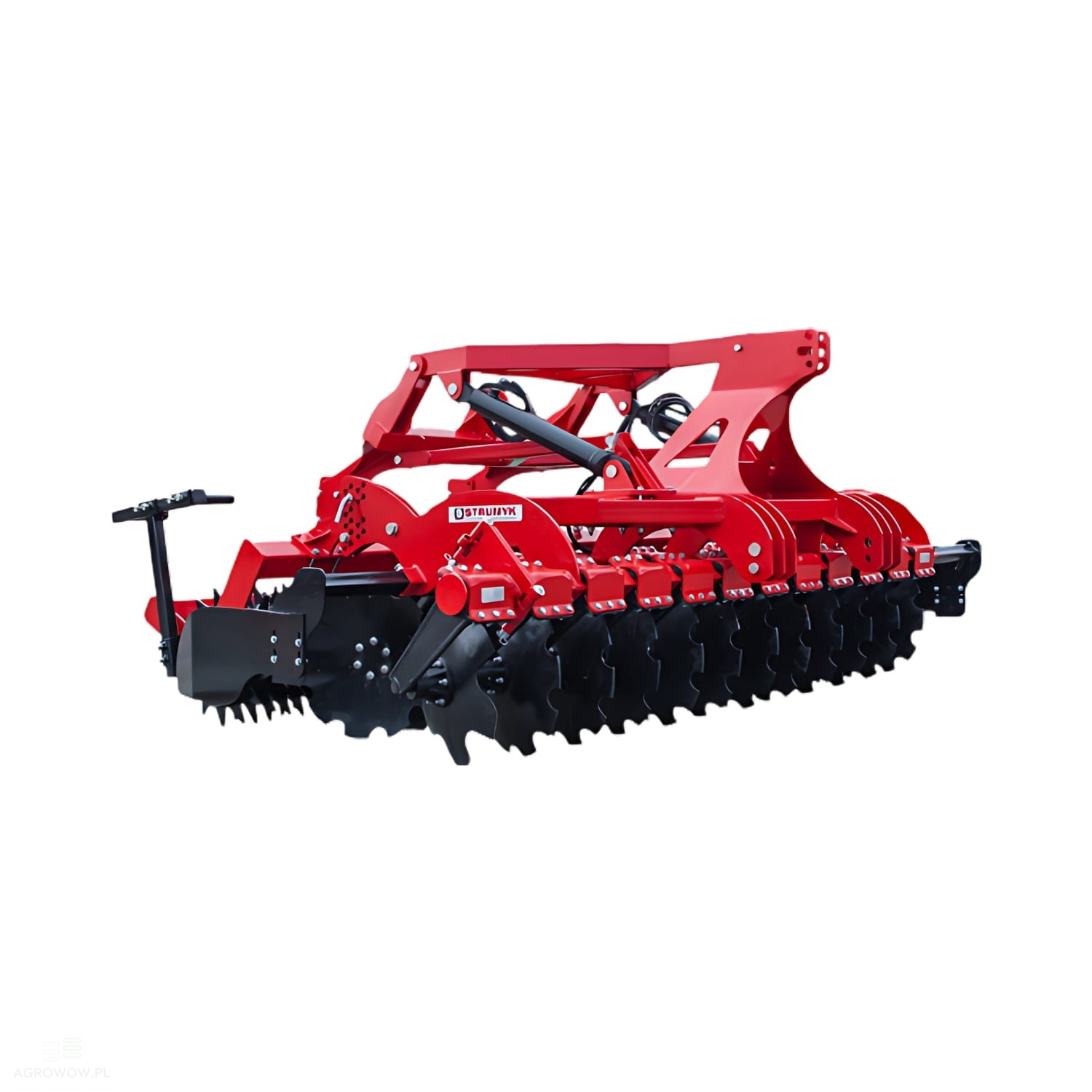

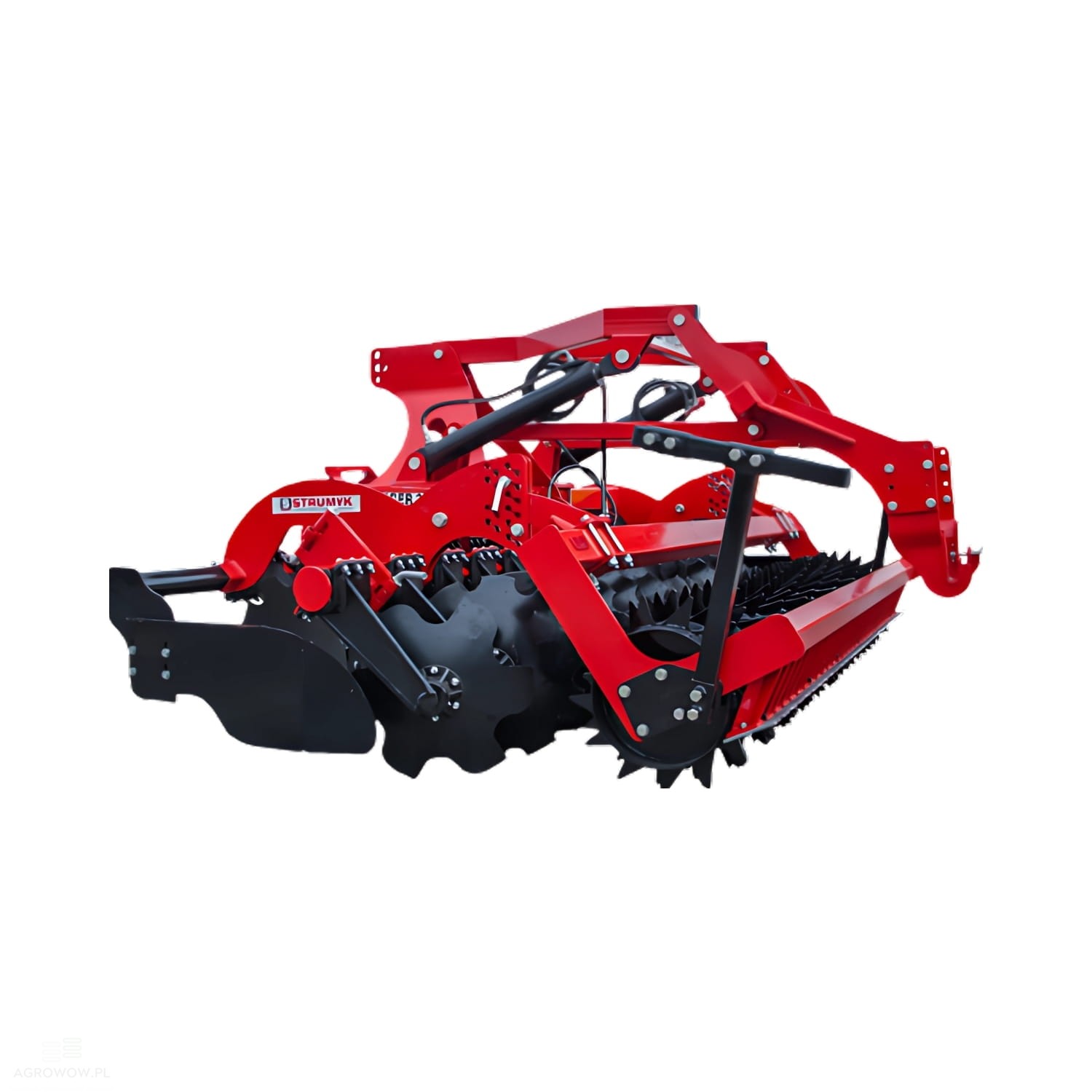

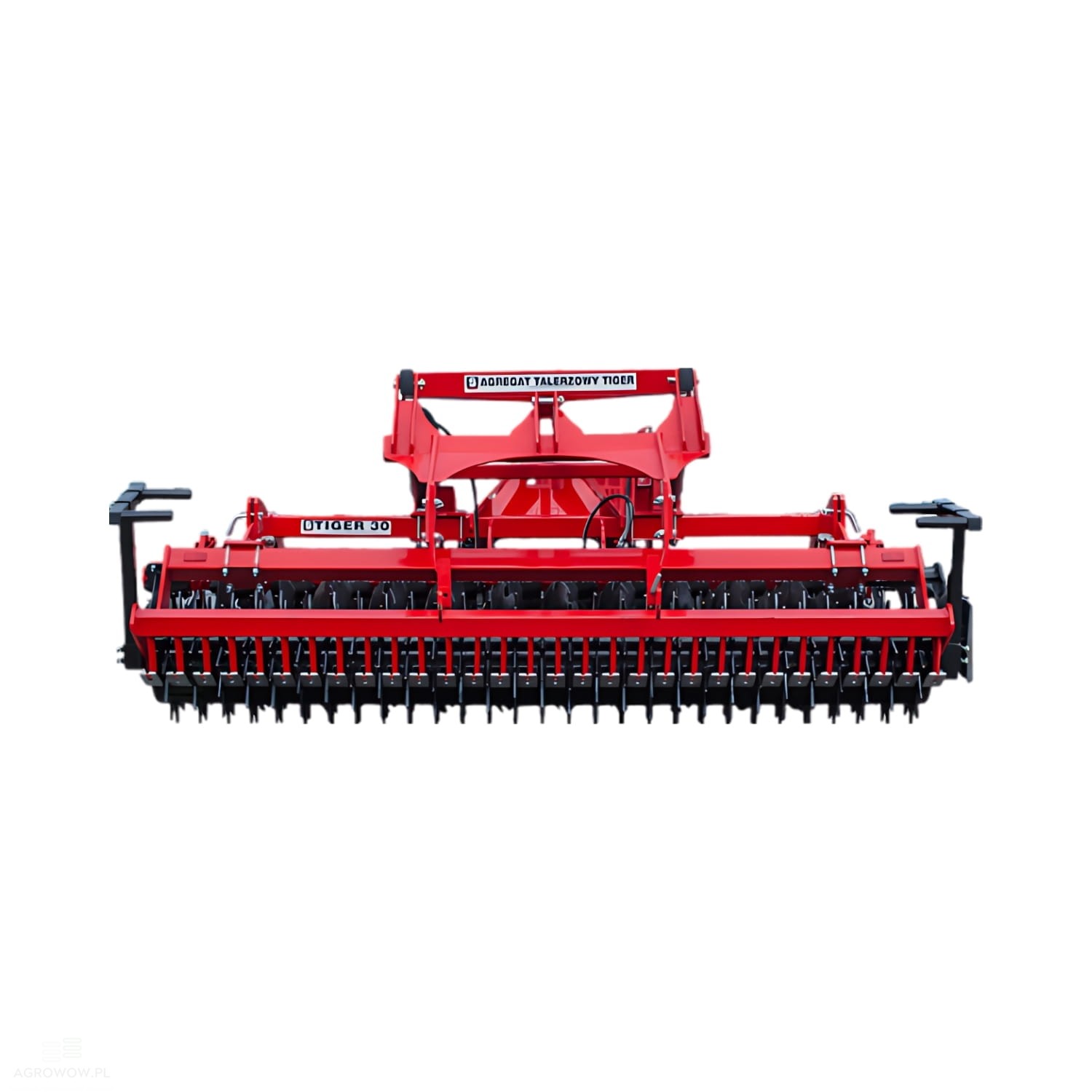

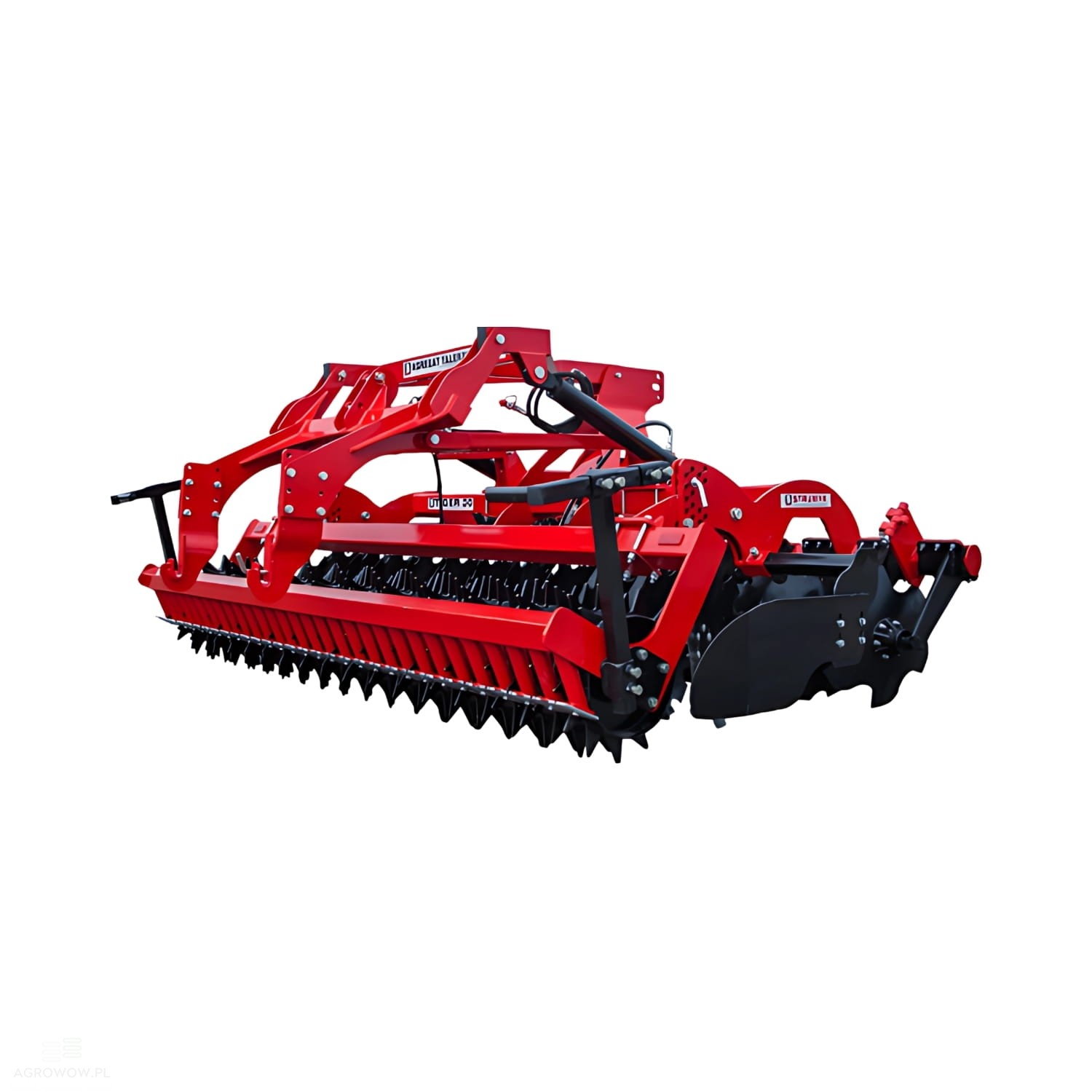

• The TIGER disc harrow is a versatile agricultural machine designed for effective soil preparation for sowing.

• Thanks to its solid construction and high-quality components, the aggregate ensures excellent soil mixing, crushing of crop residues, and improvement of the substrate structure.



• The machine has a working width of 2700 mm, making it an ideal solution for medium and larger farms, offering an operating efficiency of 1.9-2.8 ha/h.

• Equipped with 22 working discs, arranged in two rows with a spacing of 650 mm, it enables uniform and precise soil loosening.

• Farmers have the option to choose discs with a diameter of 510, 560, or 610 mm, which allows the machine to be adapted to different soil conditions and types of crops.



• As standard, the aggregate is equipped with Polish 560 mm boron steel discs, which are distinguished by high abrasion resistance, guaranteeing a long service life and reliability in difficult conditions.

• The adjustable working depth from 100 to 200 mm allows for precise adaptation of the machine's operation to the specificity of the field and the user's requirements.



• The reinforced construction ensures high durability and resistance to intensive operation.

• The cushioning system based on rubber rollers effectively dampens vibrations and protects machine elements from excessive wear.

• 6-hole hubs ensure stability and failure-free operation in difficult working conditions, increasing the machine's service life.

• Side screens prevent soil from scattering outside the working area, which improves operational precision and cultivation effectiveness.



• The aggregate has been equipped with a universal Cat. II and III hitch system, which enables easy and quick connection to a wide range of tractors.

• A power requirement in the range of 100-130 HP allows for cooperation with various tractor models, ensuring efficiency and smooth work.

• This is an excellent solution for farmers who expect high efficiency, durability, and ease of use.

• The disc harrow effectively prepares the soil for sowing, accelerating agricultural work and increasing crop efficiency.
