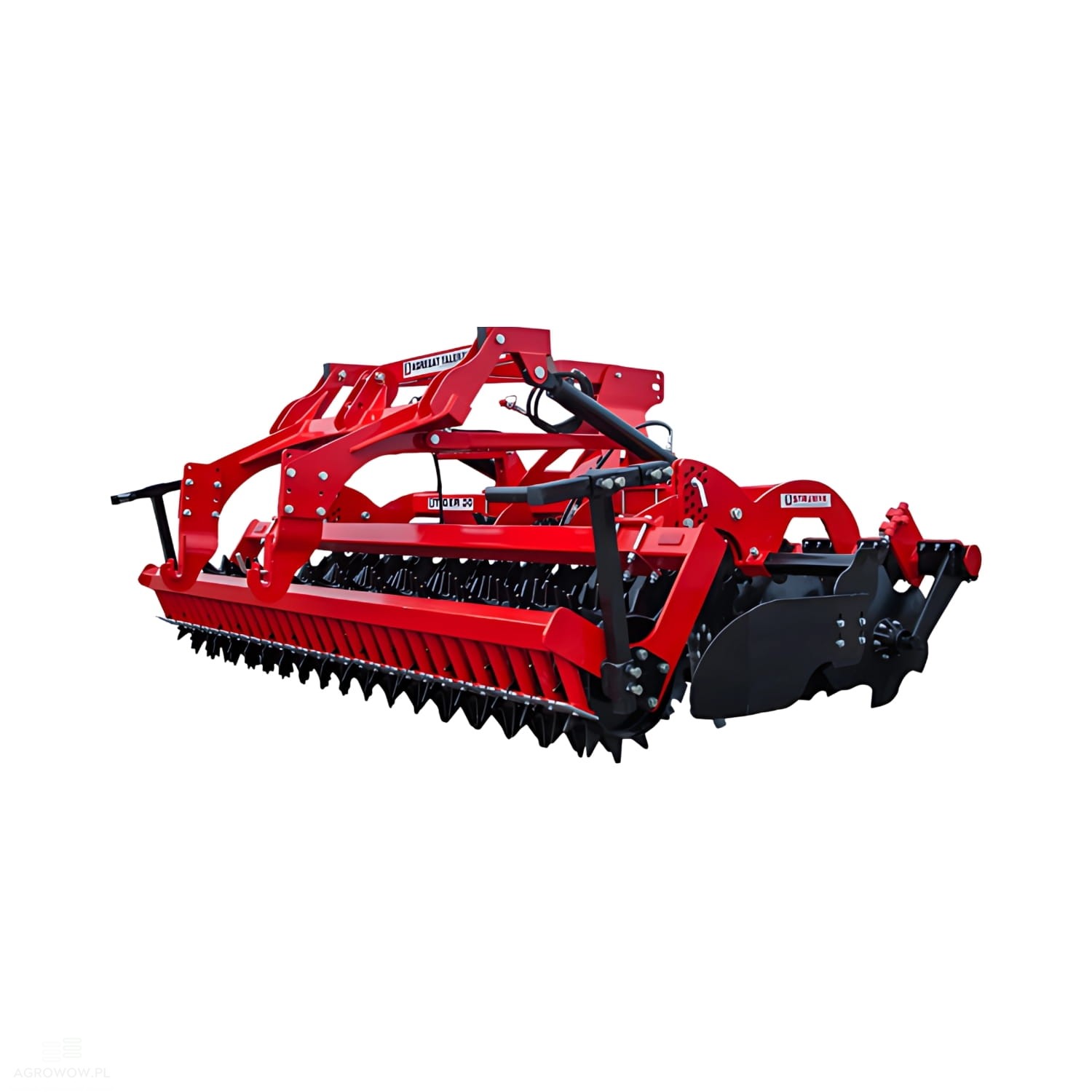

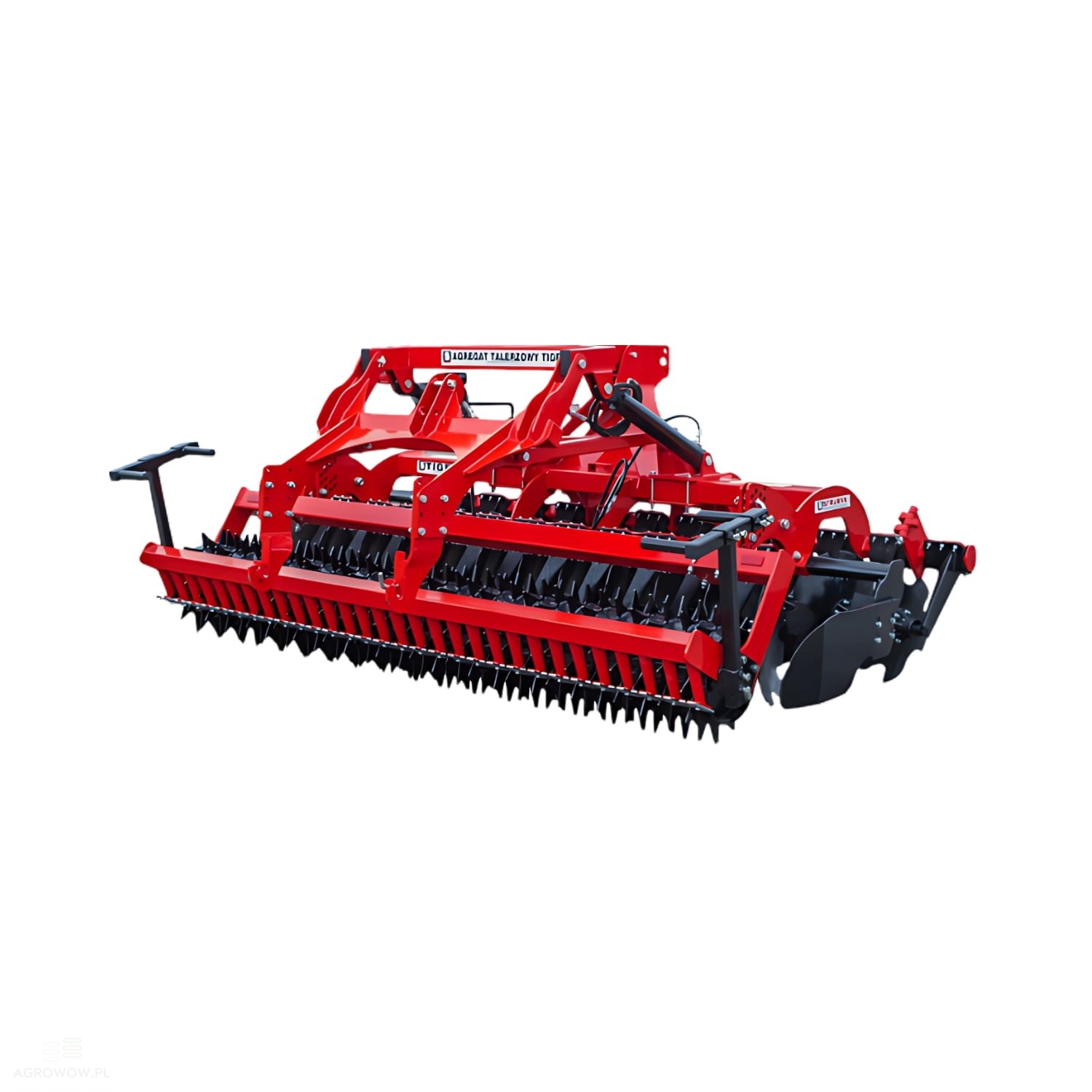

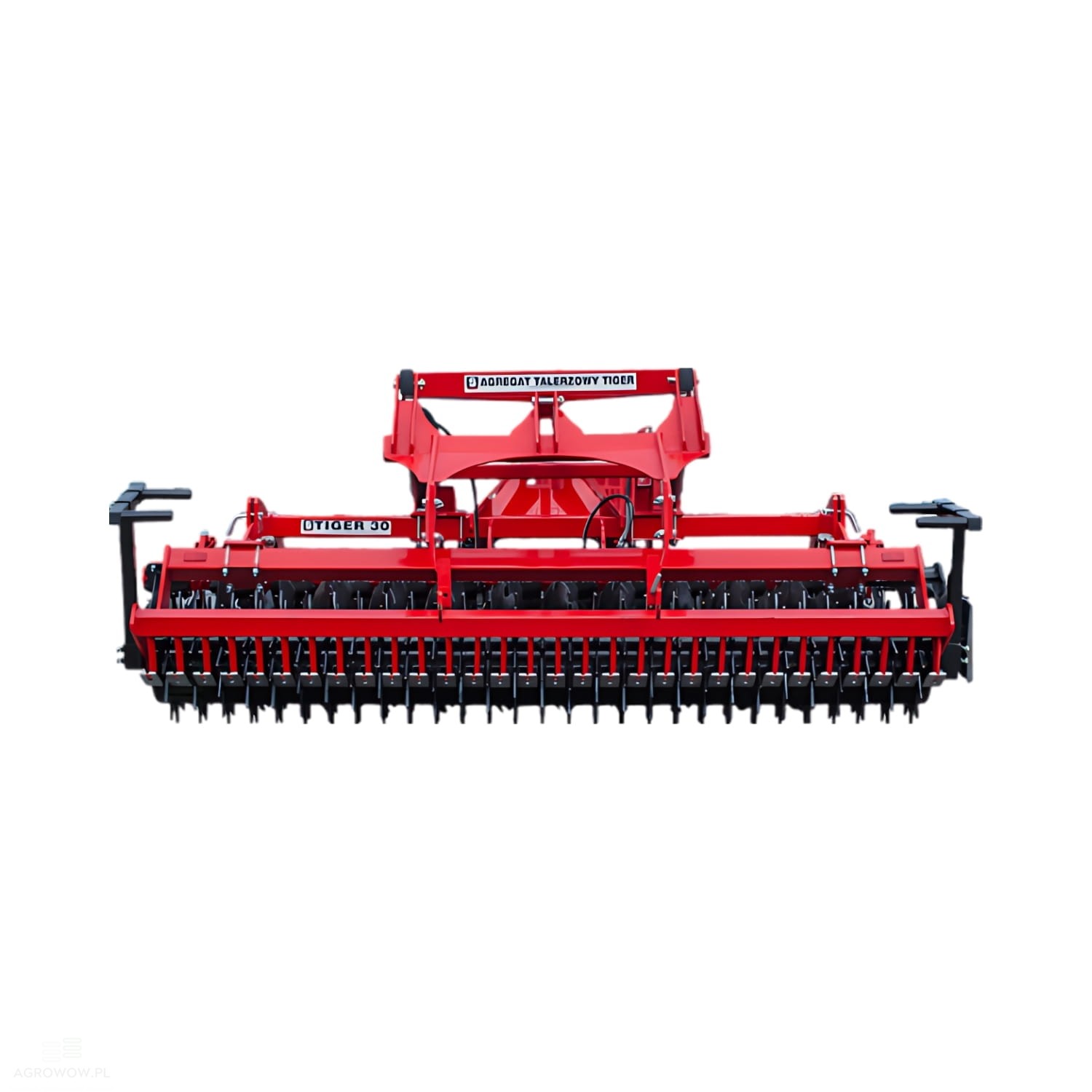

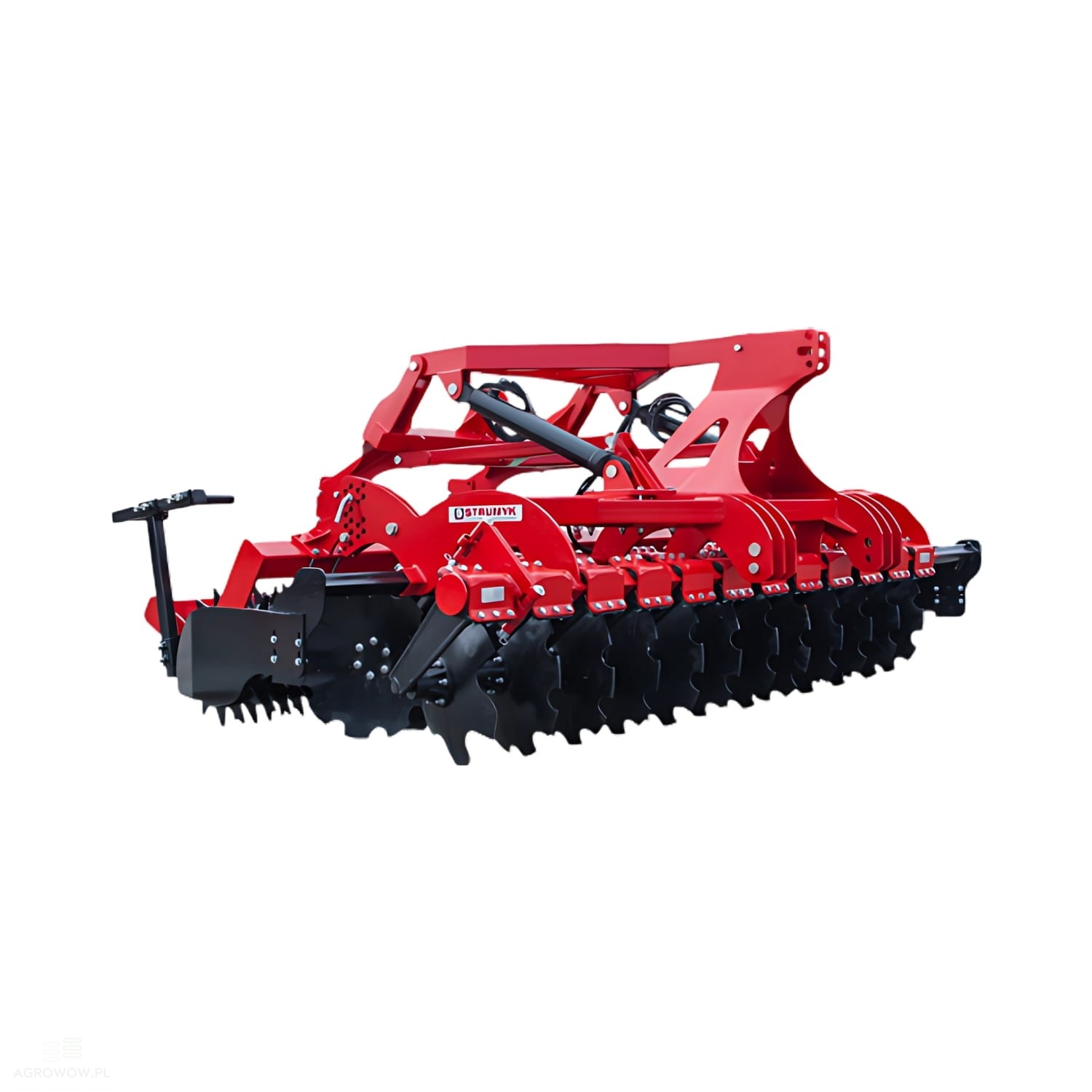

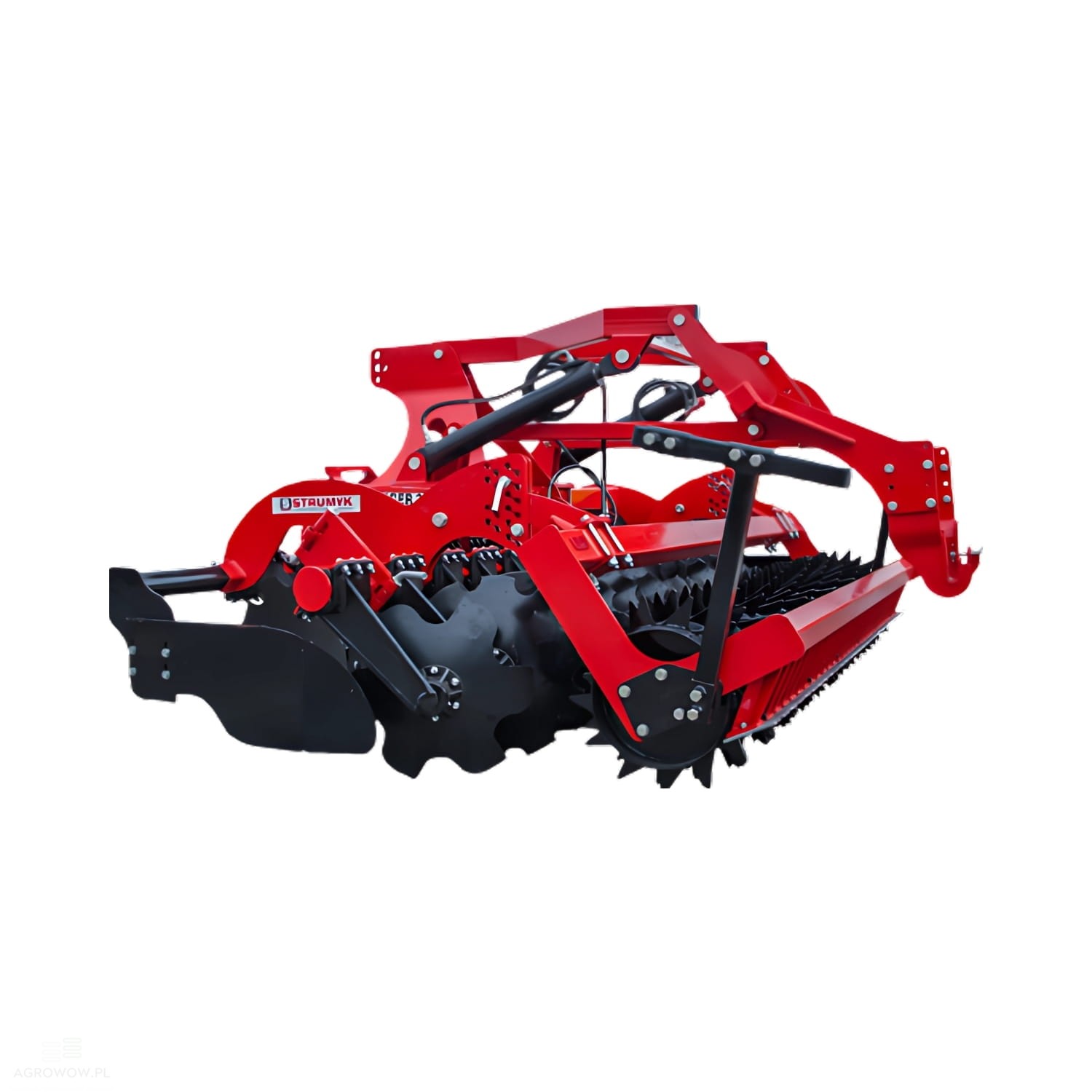

Agrowow disc harrow TIGER 3.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: TH30

- Manufacturer's name: Disc harrow TIGER

- Width: 3000 mm

- Number of discs: 24

- Spacing between disc rows: 650 mm

- Disc diameter: 510 / 560 / 610 mm

- Working depth: 100-200 mm

- Weight: 1240 kg

- Power requirement: 110-150 HP

- Number of actuators: 2

- Polish 560 mm boron steel discs

- Reinforced construction

- Efficiency: 2.1-3.3 ha/h

- 6-hole hubs

- Rubber roller cushioning system

- Side screens

- Universal hitch system (Cat. II and III)

Optional extras (at additional cost):

- Packer roller

The packer roller is an essential element of tillage aggregates, responsible for effective soil compaction and leveling. Its use is particularly useful on heavy and compacted soils, where it stabilizes the substrate and prevents excessive loosening. Thanks to this, the soil gains the proper structure, which promotes better plant rooting and uniform seed germination.

- V-profile roller

The V-profile roller is designed for work on light and medium soils, where its unique shape enables effective crushing and leveling of the surface. It improves the soil's ability to store water and prevents excessive drying, which is crucial for proper plant growth. It is an excellent solution for farmers who want to optimize soil conditions for their crops.

- Croskill roller

The Croskill roller is distinguished by a double-disc system that allows for intensive soil crushing and effective elimination of larger soil clods. It is particularly useful in pre-sowing cultivation, as it prepares the substrate for sowing, ensuring its proper loosening and leveling. It works perfectly on medium and heavy soils, improving their stability and moisture retention capacity.

- Maintenance-free steel SKF hub

The maintenance-free steel SKF hub is a modern solution that eliminates the need for frequent maintenance and lubrication, which significantly facilitates the operation of agricultural machinery. Thanks to its construction from durable steel, it is resistant to high loads and demanding working conditions. Its use increases the durability of rollers and discs, minimizing the risk of failure and reducing equipment operating costs. This is an ideal solution for farmers who value the reliability and longevity of their machines.

- 610 mm disc

The 610 mm diameter disc is a key component of tillage aggregates and disc harrows, which significantly influences the quality of soil preparation. Thanks to its large diameter, it effectively cuts crop residues and thoroughly mixes the soil, which favors its better preparation for sowing. Made of high-quality steel, it is characterized by high resistance to abrasion and mechanical damage, which ensures its long durability even with intensive use.

Detailed Description:

• The TIGER disc harrow is an efficient and versatile agricultural machine, designed for effective soil preparation before sowing.

• Thanks to its solid construction and high-quality components, the aggregate ensures effective soil mixing, crushing of crop residues, and improvement of the substrate structure.

• The machine has a working width of 3000 mm, which makes it an ideal choice for medium and larger farms, offering high operating efficiency of 2.1-3.3 ha/h.

• Equipped with 24 working discs, arranged in two rows with a spacing of 650 mm, it enables uniform and thorough soil loosening.

• Farmers can choose discs with a diameter of 510, 560, or 610 mm, which allows the machine to be adapted to different soil conditions and types of crops.

• As standard, the aggregate features Polish 560 mm boron steel discs, which are characterized by high abrasion resistance, which translates into a long service life and reliability in difficult working conditions.

• The working depth adjustment range from 100 to 200 mm allows the machine to be adapted to the specificity of the field and the user's requirements.

• The reinforced construction ensures long durability and resistance to intensive operation.

• The cushioning system in the form of rubber rollers effectively reduces vibrations and protects the structure from excessive load.

• 6-hole hubs guarantee high stability and reliability in difficult field conditions, increasing the machine's service life.

• Side screens prevent soil from scattering outside the working area, which improves precision and cultivation effectiveness.

• The aggregate is equipped with a universal Cat. II and III hitch system, which enables quick and easy connection to a wide range of tractors.

• A power requirement in the range of 100-130 HP allows for cooperation with many tractor models, ensuring smooth and efficient work.

• This is an excellent solution for farmers who expect a reliable, durable, and easy-to-use machine.

• The disc harrow effectively prepares the soil for sowing, shortening work time and increasing crop efficiency.
