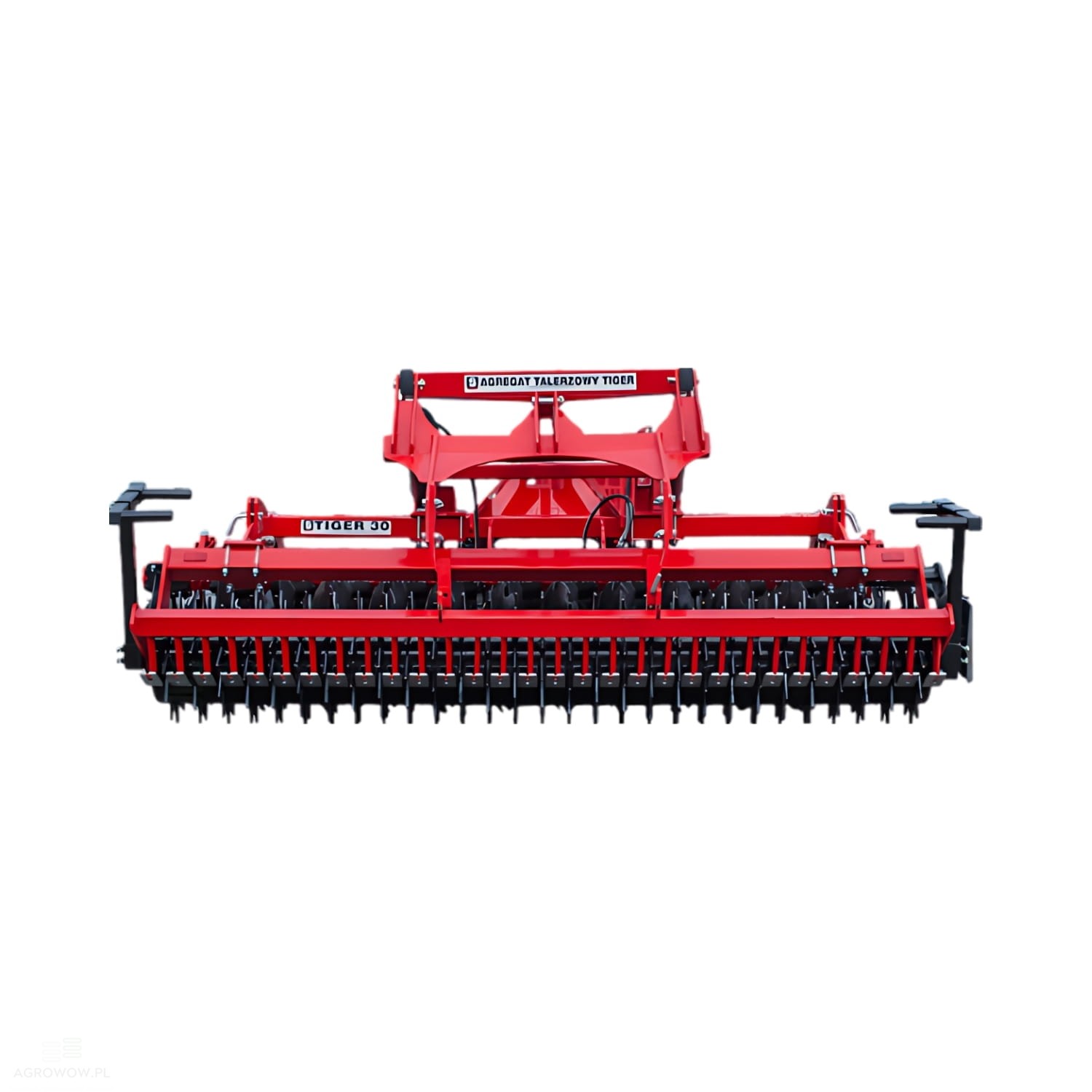

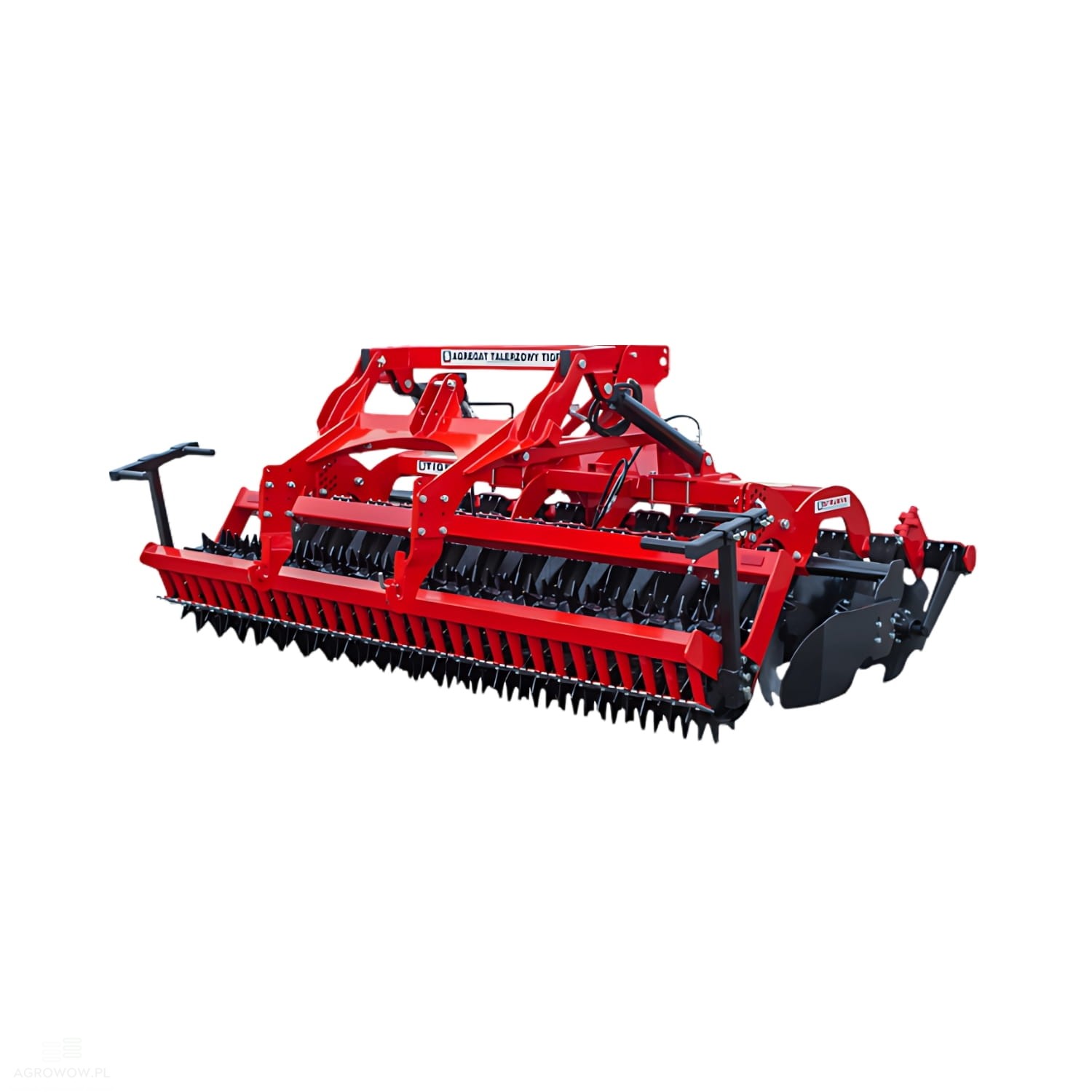

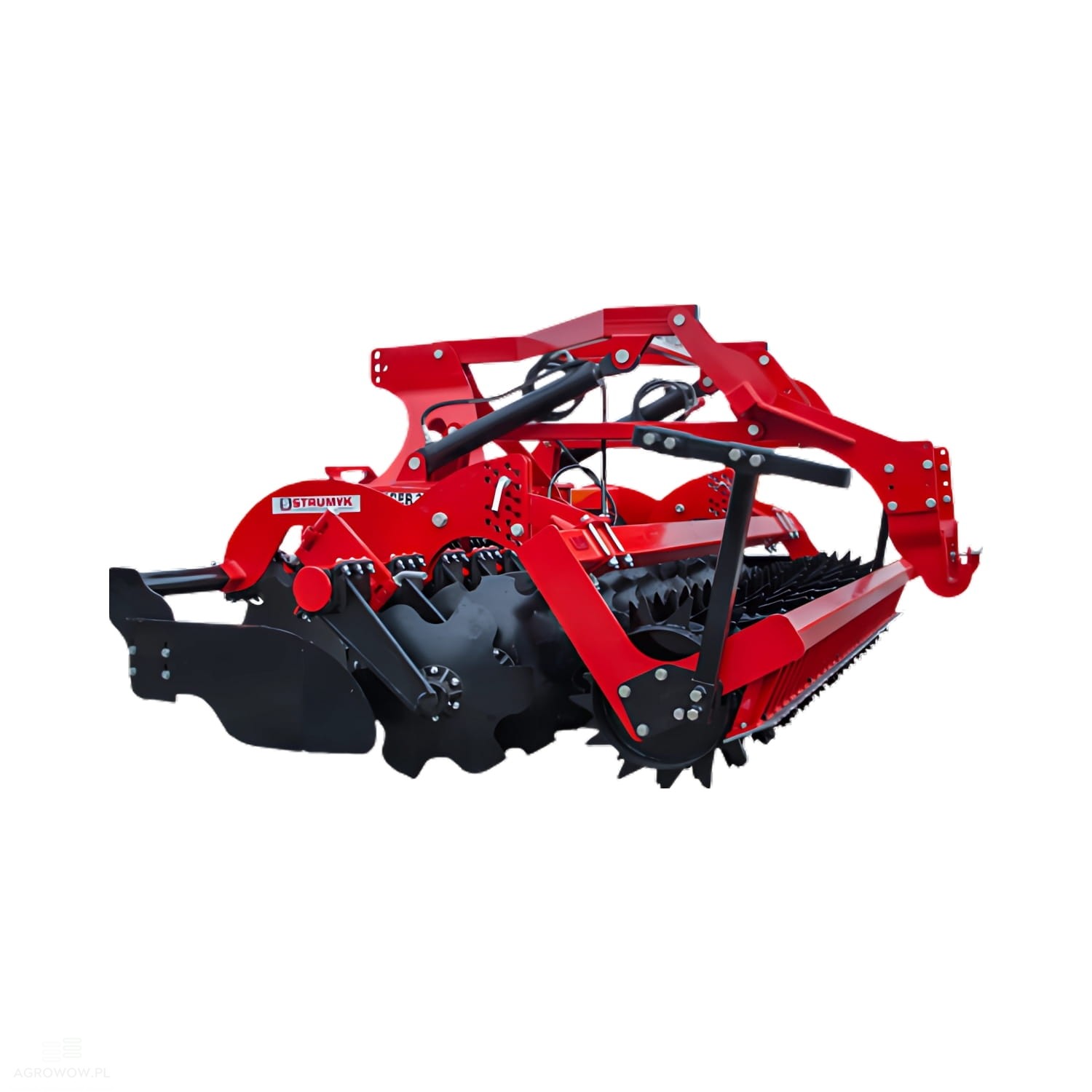

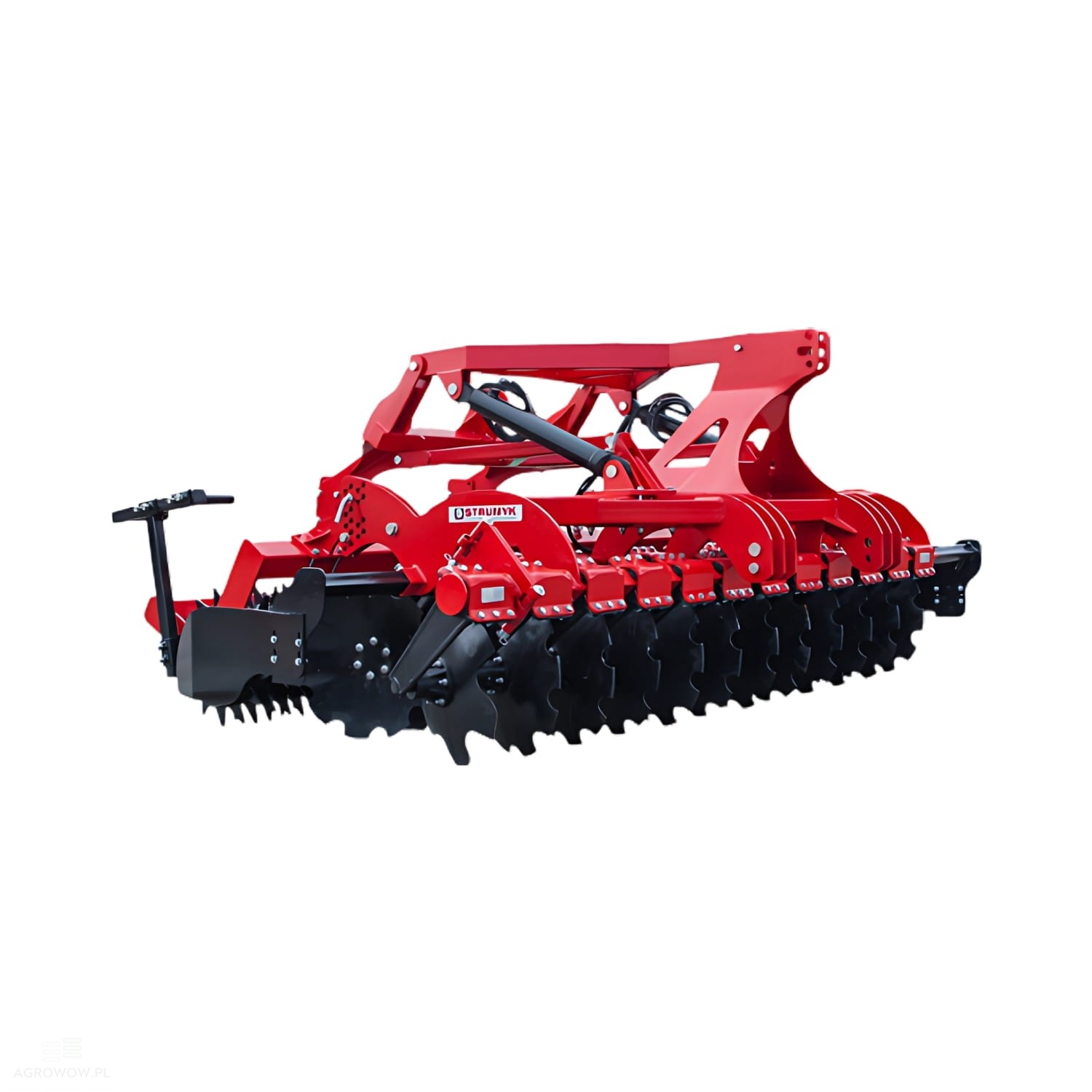

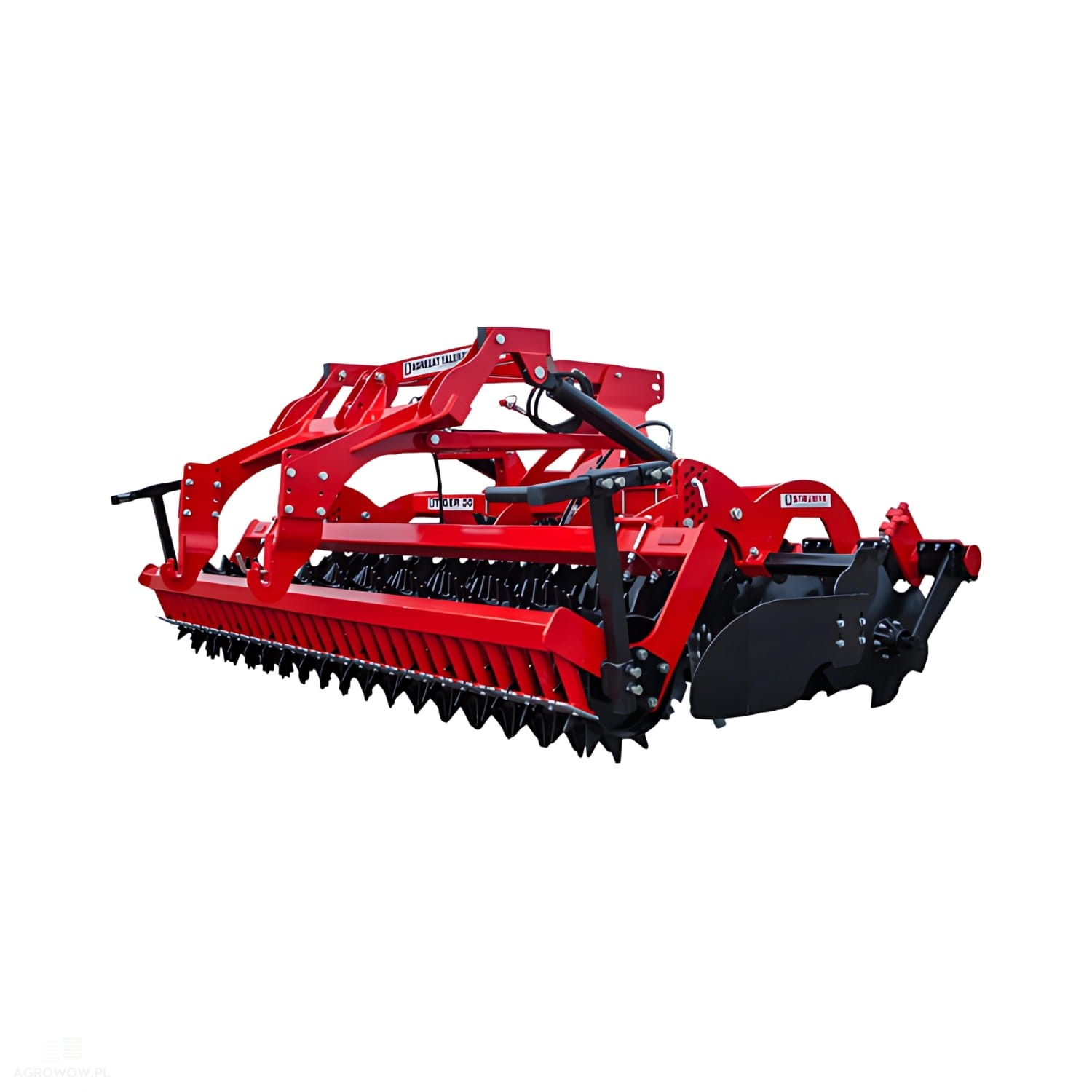

Agrowow disc harrow TIGER 3.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: TH35

- Manufacturer's name: Disc harrow TIGER

- Width: 3500 mm

- Number of discs: 28

- Spacing between disc rows: 650 mm

- Disc diameter: 510 / 560 / 610 mm

- Working depth: 100-200 mm

- Weight: 1550 kg

- Power requirement: 130-150 HP

- Number of actuators: 2

- Polish 560 mm boron steel discs

- Reinforced construction

- Efficiency: 2.3-3.8 ha/h

- 6-hole hubs

- Rubber roller cushioning system

- Side screens

- Universal hitch system (Cat. II and III)

Optional extras (at additional cost):

- Packer roller

The packer roller is a key element of tillage aggregates, responsible for effective soil compaction and leveling. It works particularly well on heavy and cohesive soils, improving their structure and preventing excessive loosening of the substrate. Thanks to its use, the soil is better prepared for sowing, which supports plant rooting and ensures uniform seed germination.

- V-profile roller

The V-profile roller is an excellent solution for working on light and medium soils, where it effectively crushes and levels the surface. Its special construction improves water retention in the soil, preventing excessive drying. As a result, crops have better access to moisture, which promotes their growth and development.

- Croskill roller

The Croskill roller is a double-disc system that intensively crushes the soil and eliminates larger clods. It works perfectly in preparing the soil before sowing, ensuring proper aeration and uniform compaction. It is particularly useful on medium and heavy soils, where it additionally improves substrate stability and increases its moisture retention capacity.

- Maintenance-free steel SKF hub

The maintenance-free steel SKF hub is a modern solution that significantly facilitates the use of agricultural machinery, eliminating the need for regular maintenance and lubrication. Thanks to its exceptional durability, it is resistant to high loads and demanding working conditions. The use of this technology extends the service life of rollers and discs, minimizing the risk of failure and reducing operating costs.

- 610 mm disc

The 610 mm diameter disc is one of the key components of tillage aggregates and disc harrows, playing an important role in the soil preparation process. Its large working surface allows for effective cutting of crop residues and intensive soil mixing, which positively influences its structure and preparation for sowing. Made of high-quality steel, it is characterized by high resistance to wear and damage, guaranteeing a long service life even in difficult working conditions.

Detailed Description:

• The TIGER disc harrow is a modern and efficient agricultural machine, designed with effective soil preparation before sowing in mind.

• Thanks to its solid construction and high-quality components, the aggregate effectively mixes the soil, crushes crop residues, and improves the structure of the substrate.

• The machine with a working width of 3500 mm is an excellent choice for medium and large farms, offering an operating efficiency of 2.3-3.8 ha/h.

• Equipped with 28 working discs, arranged in two rows with a spacing of 650 mm, it ensures thorough and uniform soil loosening.

• Users can choose discs with a diameter of 510, 560, or 610 mm, adapting the machine to different soil conditions and types of crops.

• As standard, the aggregate features Polish 560 mm boron steel discs, which are characterized by high abrasion resistance, ensuring long service life and reliability in difficult working conditions.

• The adjustable working depth from 100 to 200 mm allows for adjusting the machine's work to the specificity of the soil and the individual needs of the user.

• The reinforced construction guarantees long-term operation and high resistance to loads.

• The cushioning system in the form of rubber rollers effectively reduces vibrations and protects the structure from excessive wear.

• 6-hole hubs ensure stability and a long service life for the machine, even during intensive work in difficult field conditions.

• Side screens limit soil from scattering outside the working area, which improves precision and cultivation efficiency.

• The aggregate is equipped with a universal Cat. II and III hitch system, which allows for quick and easy connection to a wide range of tractors.

• A power requirement in the range of 130-150 HP enables cooperation with various tractor models, ensuring smooth and efficient work.

• This is an excellent choice for farmers looking for a reliable, durable, and easy-to-use machine.

• The TIGER disc harrow effectively prepares the soil for sowing, shortening work time and increasing crop efficiency.
