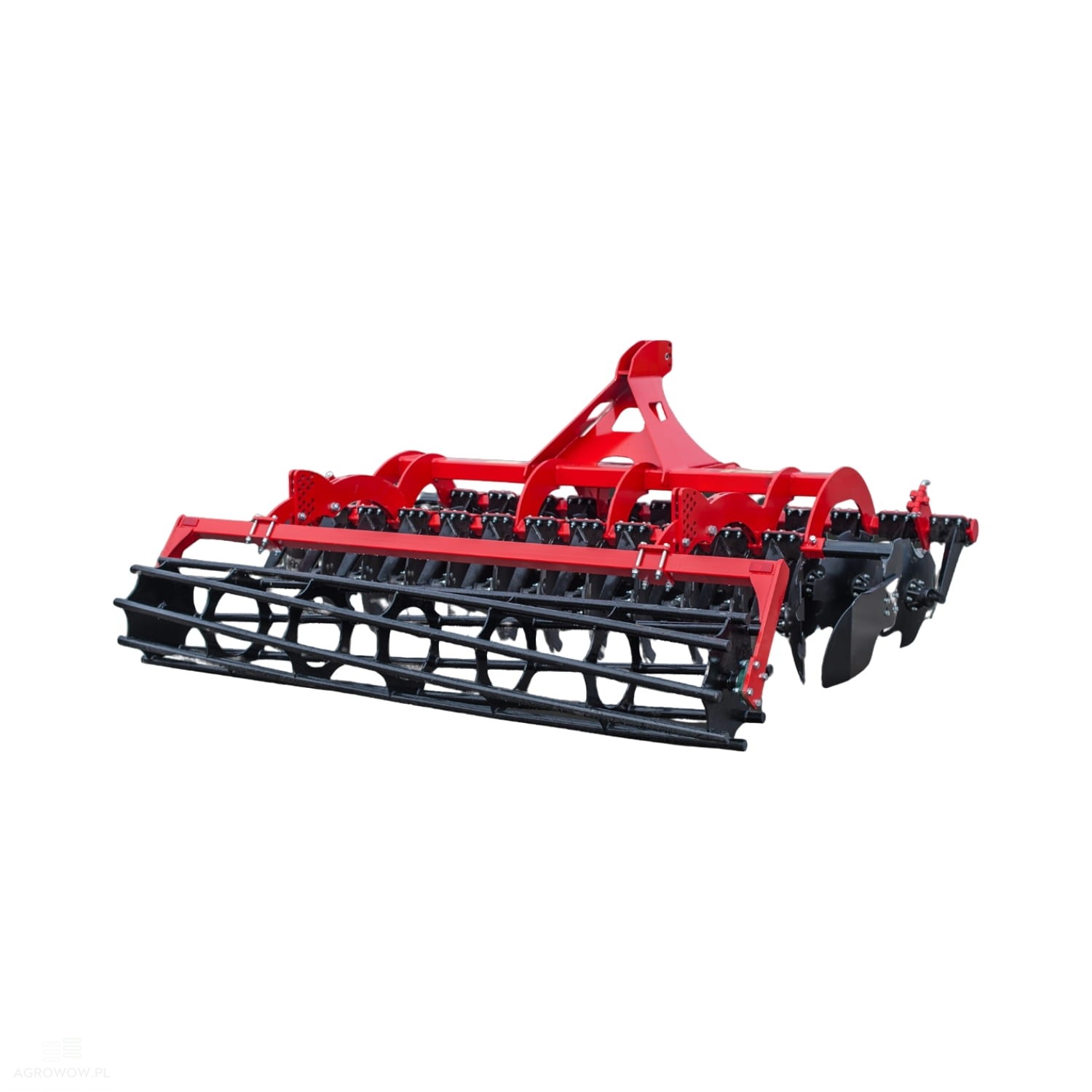

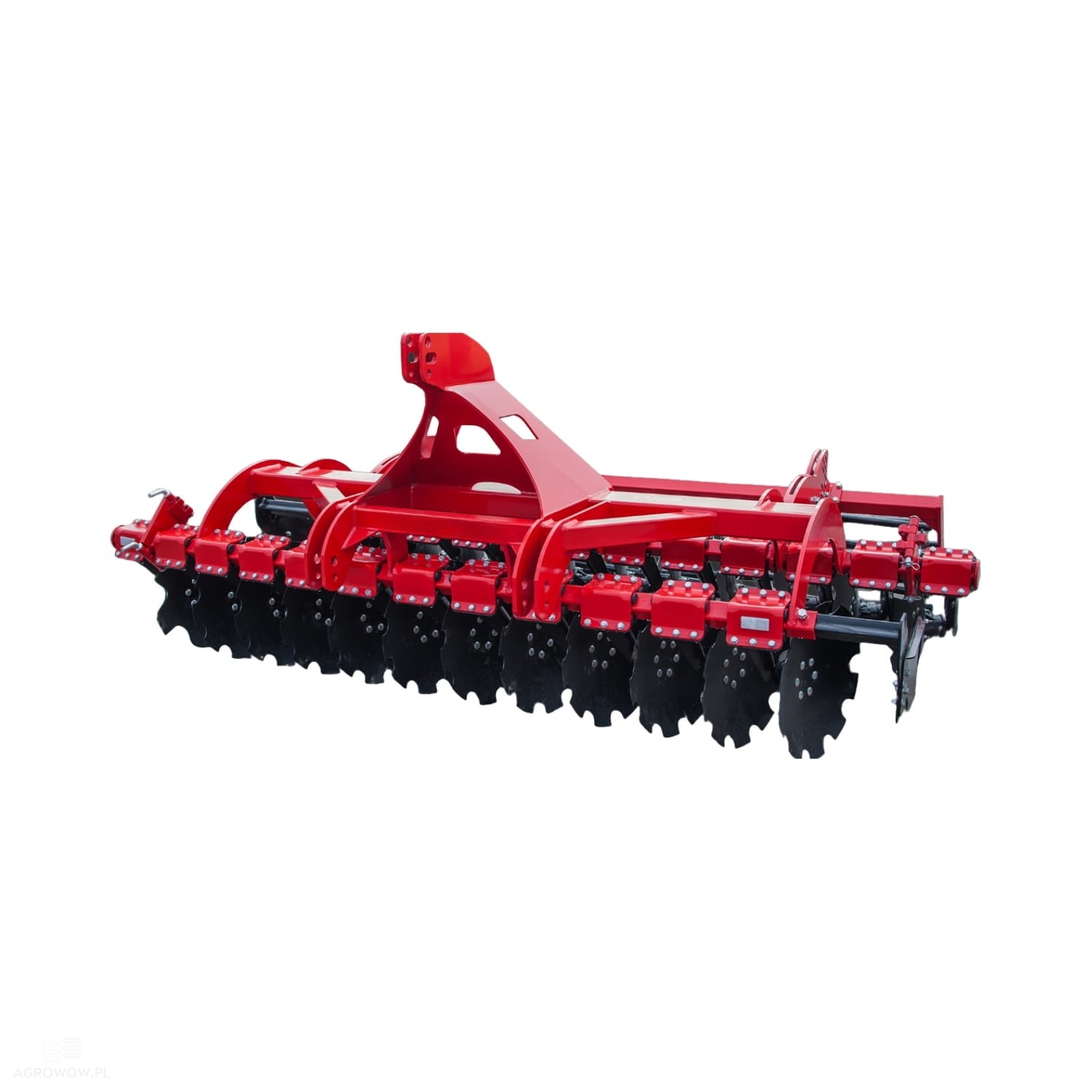

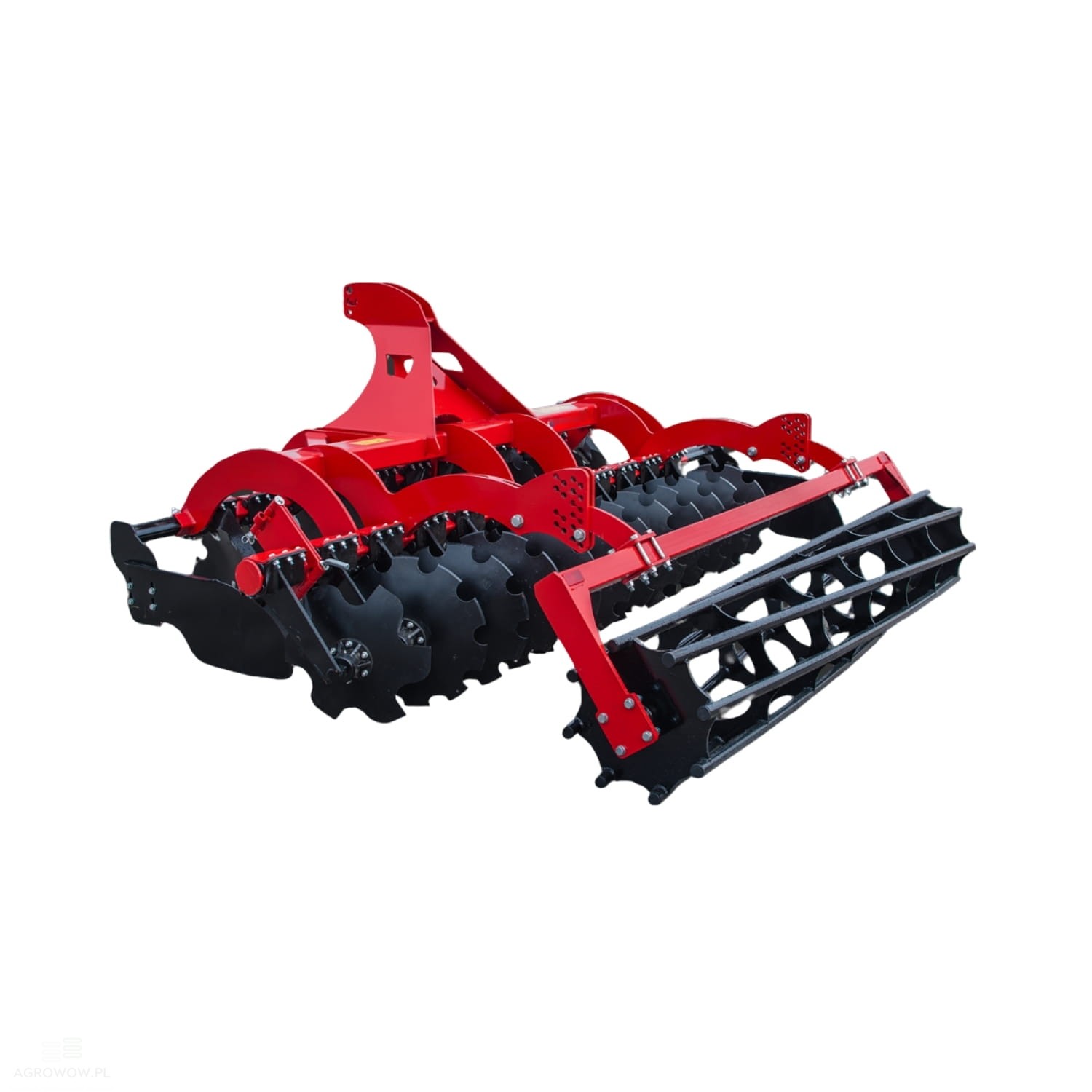

Agrowow disc harrow TIGER II 2.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: SBTHII25

- Manufacturer's name: Disc harrow TIGER II

- Width: 2500 mm

- Number of discs: 20

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 900 mm

- Weight: 990 kg

- Power requirement: 70-90 HP

- Efficiency: 1.7-2.2 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is an essential component of tillage machinery, responsible for effective soil compaction and leveling. Its specialized construction enables effective crushing of larger soil clods, which significantly improves ground structure and increases its moisture retention capacity. As a result, the soil is more stable, which promotes better plant rooting and ensures optimal conditions for their growth.

- Roof roller

The roof roller is an excellent solution for light and medium soils, allowing for precise crushing and leveling of the field surface. Its unique design minimizes the risk of excessive soil drying and increases its water storage capacity, which directly influences better plant development. Additionally, the roof roller supports soil protection against erosion, improving its stability and structure.

- Croskill roller

The croskill roller is an innovative solution that, thanks to its double construction, effectively breaks up compacted soil layers and evenly levels the field surface. Particularly useful in the soil preparation phase for sowing, it improves soil structure and increases moisture retention capacity. It works perfectly on medium and heavy soils, eliminating excessive compaction, stabilizing the ground, and supporting plant growth.

- Double roof roller

The double roof roller is an advanced solution that loosens and levels the soil even more effectively. Thanks to its construction, it efficiently crushes soil clods, improves ground structure, and reduces the risk of excessive drying. Furthermore, it supports moisture storage in the soil, which favors better plant growth and optimizes conditions for further cultivation.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution eliminating the need for frequent maintenance and lubrication, which significantly simplifies the operation of agricultural machinery. Made of durable materials, they ensure high resistance to loads and intensive operation. Their use minimizes the risk of failure and reduces downtime, which translates into lower operating costs and increased work efficiency.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made of high-grade boron steel, are characterized by exceptional resistance to wear and abrasion. Their precisely developed shape enables effective cutting of crop residues, intensive soil mixing, and its optimal preparation for further stages of cultivation. A robust construction ensures a long service life and reliability even in difficult field conditions.

- Transport trolley + drawbar (+1150 kg)

A transport trolley with a drawbar is a functional solution that facilitates moving the machine both in the field and on access roads. A solid construction guarantees stability during transport, and an ergonomically designed drawbar allows for quick and convenient connecting and disconnecting of the machine, increasing the comfort of its use.

Detailed Description:

• The TIGER II 2.5 m disc harrow is a modern and robust agricultural machine, designed for intensive soil cultivation before sowing and other key field work.

• Due to its versatility, it performs perfectly both in traditional cultivation methods and in simplified systems.

• Its main tasks include soil loosening and compacting, crushing compacted clods, covering seeds after sowing, as well as weed elimination and mixing soil with organic and mineral fertilizers.

• Additionally, the harrow works great in post-harvest cultivation, preparing the field for subsequent sowing, and when combined with a seed drill, it enables simultaneous cultivation and sowing in a single pass, which significantly increases work efficiency and reduces fuel consumption.

• Discs with a diameter of 560, 610, or 660 mm, made of Polish boron steel, are characterized by high abrasion resistance and durability.

• A disc row spacing of 900 mm guarantees effective soil mixing and loosening, improving its structure and moisture retention capacity.

• Reinforced construction and the use of 6-hole hubs make the machine stable and resistant to heavy loads during work.

• Additionally, a damping system based on rubber rollers effectively reduces vibrations and protects the structure against overloads, which increases operator comfort.

• Side screens prevent soil scattering outside the working area, improving work precision, while the rear tubular or string roller additionally levels the soil surface and supports its moisture storage capacity.

• Thanks to a universal category II and III hitch system, the harrow can be easily connected to various tractor models, making it an extremely practical and functional tool.

• The machine, with a working width of 2500 mm, has been equipped with 20 discs, which allows for work in demanding field conditions.

• Its weight of 990 kg ensures proper stability, and a power requirement in the range of 70-90 HP makes it fit a wide range of agricultural tractors.

• Thanks to an efficiency of 1.7-2.2 ha/h, the harrow allows for fast and effective soil preparation for sowing, which increases work efficiency on the farm.

• Additionally, all elements of the machine have been covered with powder coating, which provides protection against corrosion and mechanical damage, extending its lifespan.

• Thanks to a solid construction, modern technological solutions, and high-quality components, the disc harrow is a reliable tool for farmers who expect maximum efficiency, durability, and comfort of use.
