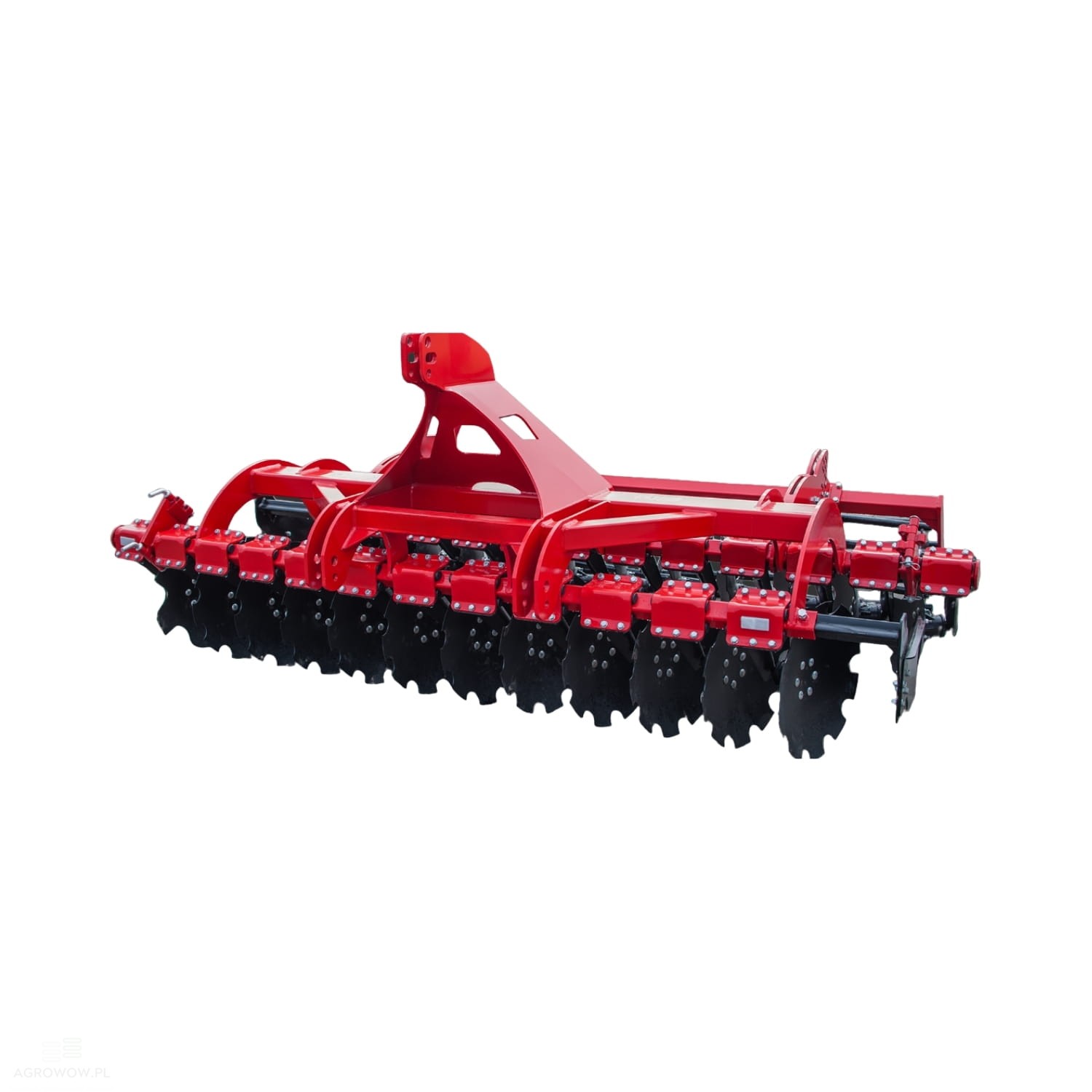

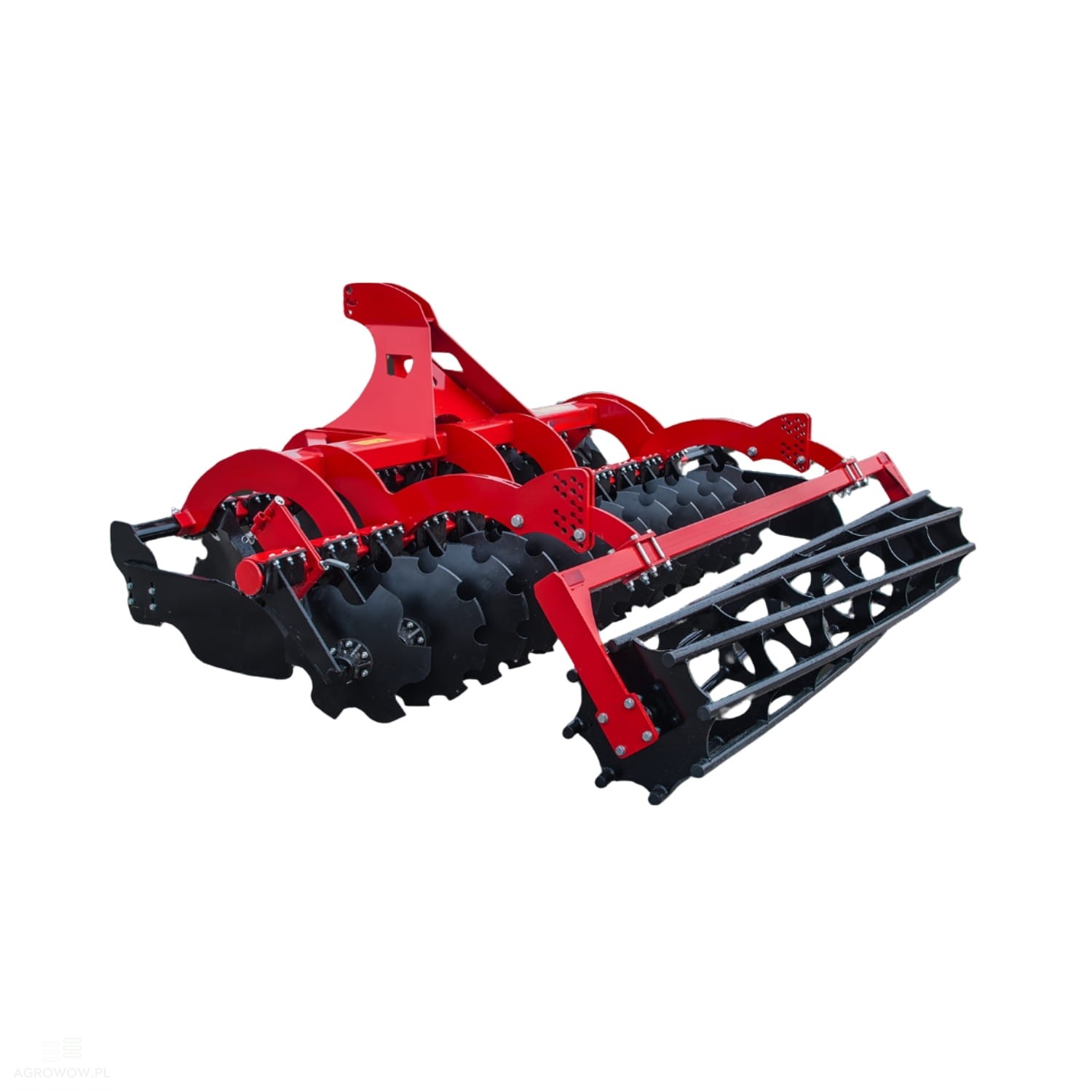

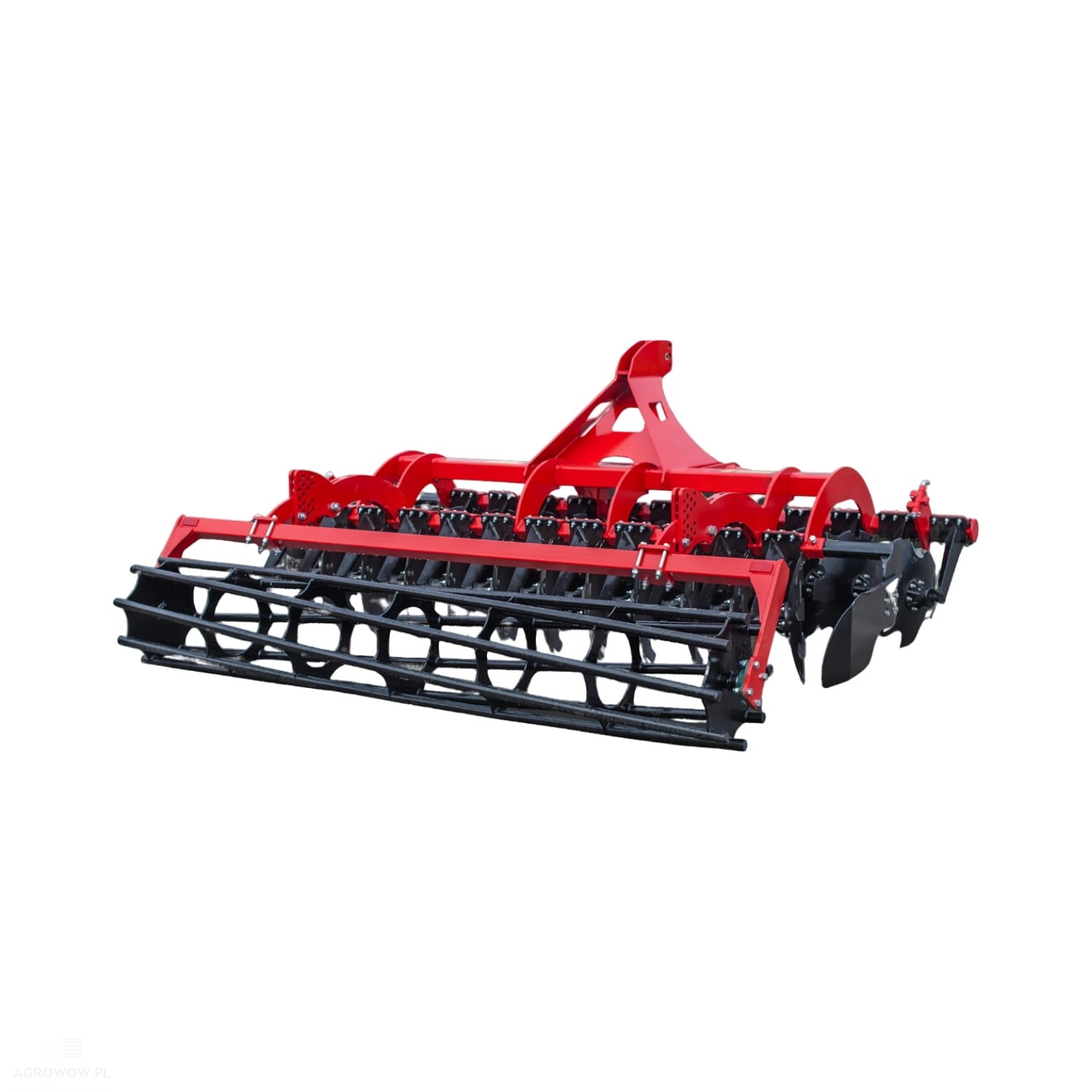

Agrowow disc harrow TIGER II 2.7 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: SBTHII27

- Manufacturer's name: Disc harrow TIGER II

- Width: 2700 mm

- Number of discs: 22

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 900 mm

- Weight: 1015 kg

- Power requirement: 75-100 HP

- Efficiency: 1.9-2.8 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is a key element of agricultural machinery, responsible for effective soil compaction and leveling. Thanks to its specially designed structure, it effectively crushes larger soil clods, which improves soil structure and increases its moisture retention capacity. By stabilizing the ground, it supports proper plant rooting and ensures optimal conditions for growth.

- Roof roller

The roof roller is an ideal solution for working on light and medium soils, where its main function is precise crushing and leveling of the surface. Its special design limits excessive soil drying and improves its moisture storage capacity, which positively affects plant development. Furthermore, the roof roller prevents soil erosion, which improves its stability and structure.

- Croskill roller

The croskill roller is a modern solution that, thanks to its double construction, effectively crushes compacted soil layers and levels the field surface. It is particularly useful in preparing soil for sowing, as it improves its structure and increases moisture retention capacity. It works perfectly on medium and heavy soils, eliminating excessive compaction, stabilizing the ground, and supporting plant development.

- Double roof roller

The double roof roller is an advanced solution that loosens and levels the soil even more effectively. Thanks to its construction, it effectively crushes soil clods, improves ground structure, and reduces the risk of excessive drying. Additionally, it increases the soil's moisture retention capacity, which beneficially influences plant growth and prepares the field for further stages of cultivation.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution eliminating the need for frequent maintenance and lubrication, which significantly simplifies the operation of agricultural machinery. Made of durable materials, they guarantee high resistance to heavy loads and intensive work. Their use minimizes the risk of failure and reduces downtime, which translates into lower operating costs and greater work efficiency on the farm.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made of high-grade boron steel, are distinguished by exceptional durability and wear resistance. Their carefully designed shape enables effective cutting of post-harvest residues, intensive soil mixing, and its optimal preparation for further work. A robust construction ensures a long service life and reliability even in demanding field conditions.

- Transport trolley + drawbar (+800 kg)

A transport trolley with a drawbar is a practical solution that facilitates moving the machine both in the field and on access roads. A solid construction ensures stability during transport, and an ergonomically designed drawbar allows for quick and convenient connecting and disconnecting of the machine, increasing the comfort of its use.

Detailed Description:

• The TIGER II disc harrow is a modern and robust agricultural machine, designed with intensive pre-sowing soil cultivation and other key field work in mind.

• Its versatility makes it perform excellently both in traditional cultivation methods and in simplified systems.

• The basic tasks of the harrow include soil loosening and compacting, crushing compacted clods, covering seeds after sowing, weed elimination, and mixing soil with organic and mineral fertilizers.

• It also works perfectly in post-harvest cultivation, preparing the field for subsequent sowing.

• The option to combine the harrow with a seed drill allows for simultaneous cultivation and sowing, which significantly increases work efficiency and reduces fuel consumption.

• The machine, with a working width of 2700 mm, has been equipped with 22 discs that guarantee effective soil aeration and even loosening.

• Discs with a diameter of 560, 610, or 660 mm, made of Polish boron steel, are characterized by high abrasion resistance and a long service life.

• A disc row spacing of 900 mm ensures effective soil mixing, which improves its structure and moisture retention capacity.

• Reinforced construction and 6-hole hubs ensure high stability and resistance to heavy loads during intensive operation.

• A damping system based on rubber rollers reduces vibrations and protects the machine structure against overloads, thereby increasing operator comfort.

• Side screens minimize soil scattering outside the working area, which increases the precision and efficiency of cultivation.

• The rear tubular or string roller additionally levels the soil surface and supports its moisture storage capacity, which favors better plant growth.

• Thanks to a universal category II and III hitch system, the harrow can be easily connected to various tractor models.

• A weight of 1015 kg ensures proper stability during work, and a power requirement in the range of 75-100 HP allows for cooperation with a wide range of agricultural tractors.

• Efficiency at the level of 1.9-2.8 ha/h means the harrow allows for fast and effective soil preparation for sowing, increasing work efficiency on the farm.

• All elements of the machine have been covered with powder coating, which provides effective protection against corrosion and mechanical damage, extending the device's lifespan.

• Modern construction, solid workmanship, and high-quality materials make the disc harrow an excellent solution for farmers who expect maximum efficiency, durability, and comfort of use.
