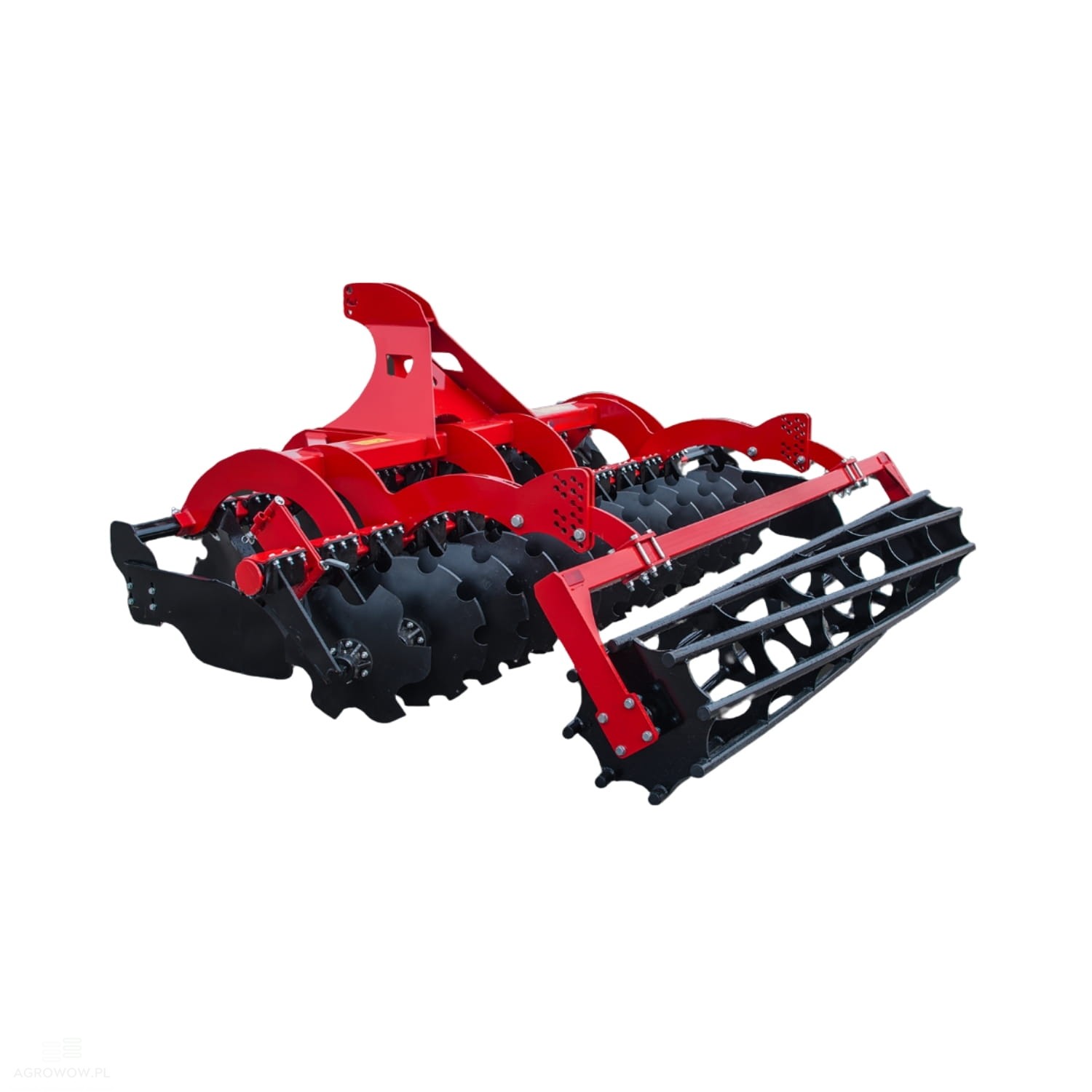

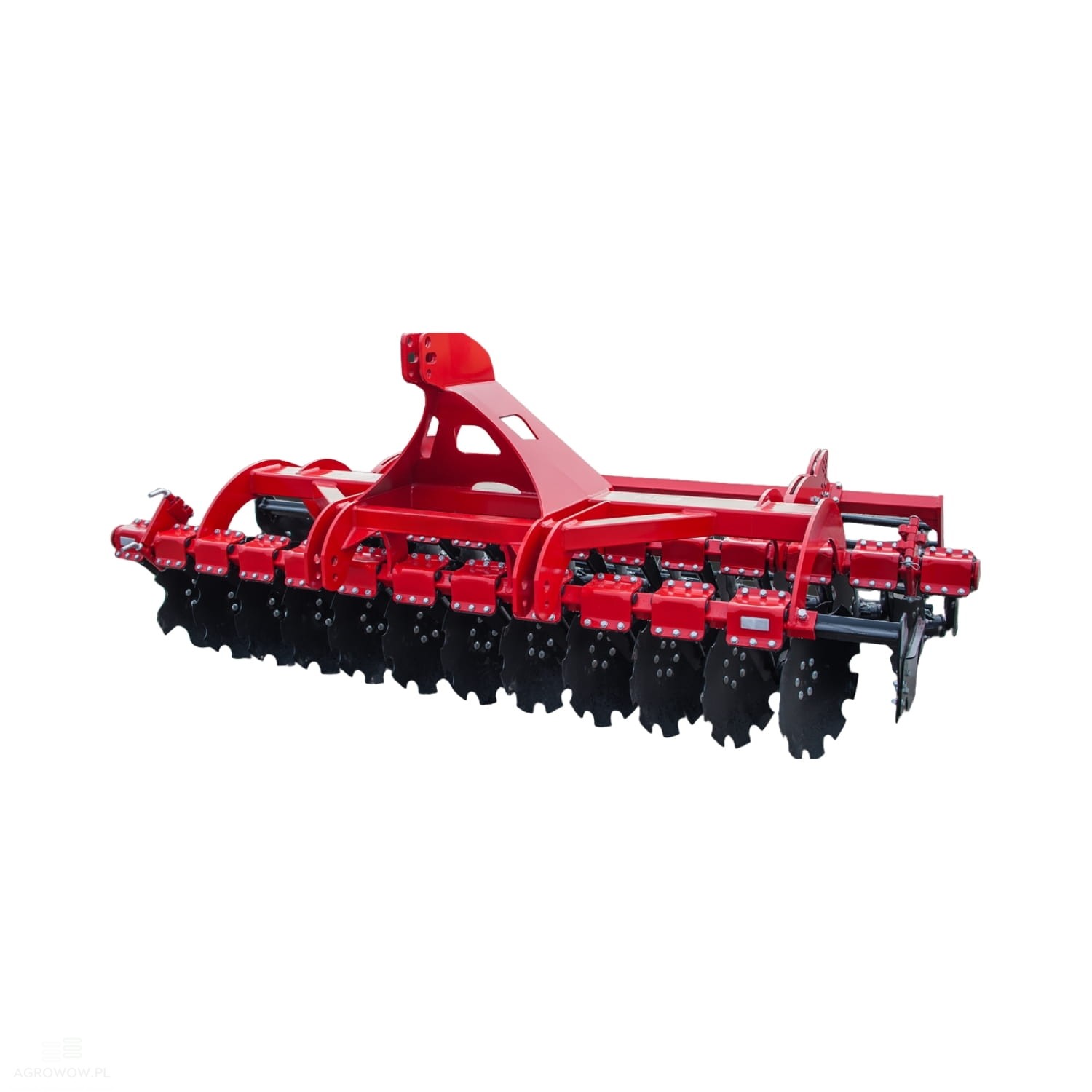

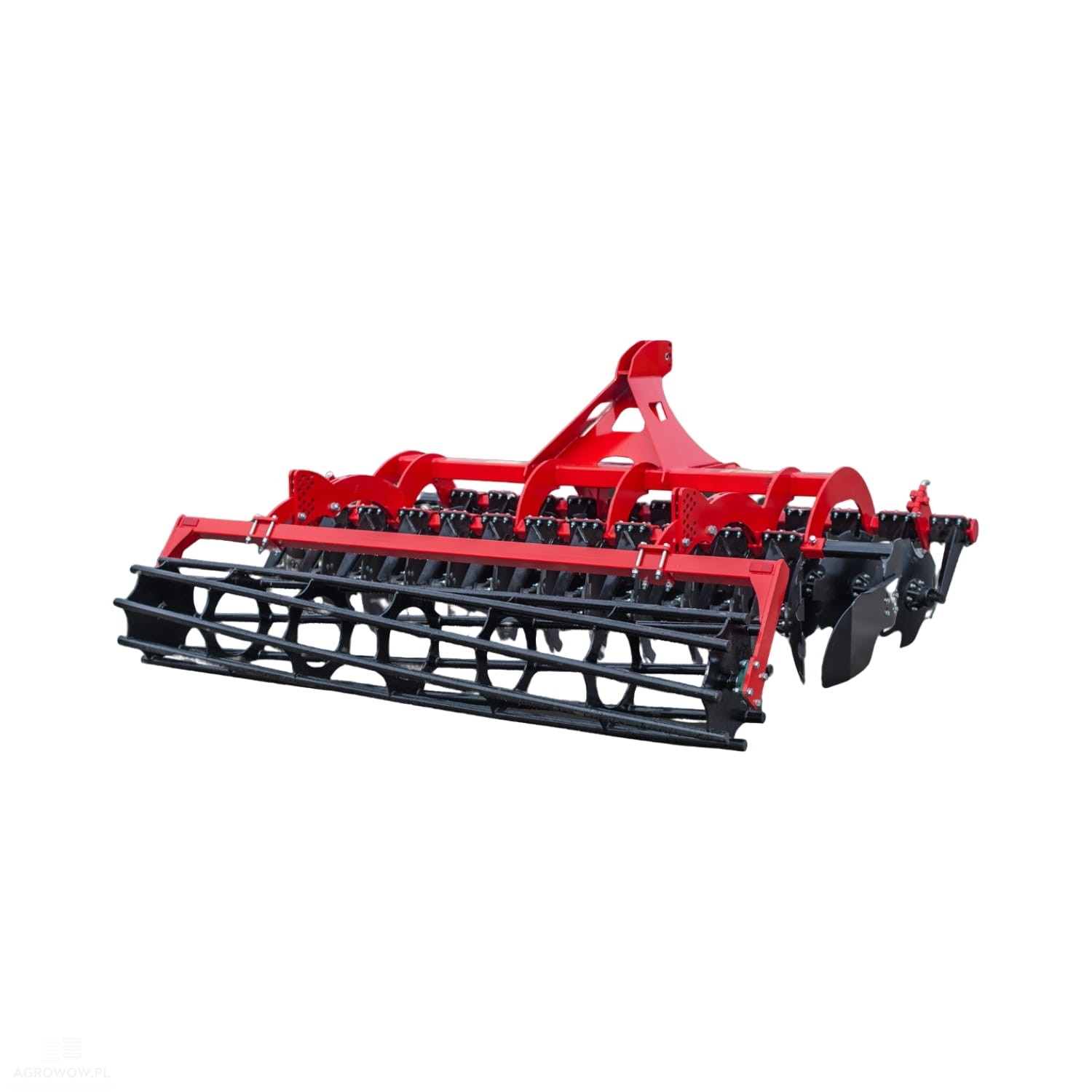

Agrowow disc harrow TIGER II 3.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: SBTHII35

- Manufacturer's name: Disc harrow TIGER II

- Width: 3500 mm

- Number of discs: 28

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 900 mm

- Weight: 1400 kg

- Power requirement: 110-150 HP

- Efficiency: 2.3-3.8 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is an essential component of agricultural machinery, responsible for effective soil compaction and leveling. Thanks to its precise structure, it effectively crushes larger soil clods, improving ground structure and increasing its moisture retention capacity. By stabilizing the soil, it promotes better plant rooting and creates optimal conditions for their growth.

- Roof roller

The roof roller is an excellent solution for light and medium soils, where its main function is accurate crushing and leveling of the surface. A special design prevents excessive soil drying and improves its water storage capacity, which positively affects crop development. Additionally, the roof roller reduces the risk of soil erosion, increasing its stability and improving structure.

- Croskill roller

The croskill roller is a modern solution that, thanks to its double construction, effectively breaks up compacted soil layers and levels the field surface. It is particularly useful at the stage of preparing soil for sowing, as it improves its structure and increases moisture retention capacity. It works perfectly on medium and heavy soils, reducing excessive compaction, stabilizing the ground, and supporting plant development.

- Double roof roller

The double roof roller is an advanced technology that loosens and levels the soil even more effectively. Thanks to its construction, it precisely crushes soil clods, improves ground structure, and limits its excessive drying out. Furthermore, it increases the soil's moisture retention capacity, which beneficially influences plant growth and optimizes conditions for further cultivation.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution that eliminates the need for regular lubrication and maintenance, significantly simplifying the use of agricultural machinery. Made of durable and resistant materials, they ensure resistance to high loads and intensive operation. Their use minimizes the risk of failure, reduces downtime, and lowers operating costs, increasing work efficiency on the farm.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made of high-grade boron steel, are distinguished by exceptional resistance to wear and abrasion. Their precise shaping allows for effective cutting of crop residues, intensive soil mixing, and its optimal preparation for subsequent cultivation stages. A solid construction ensures a long service life and reliability even in demanding field conditions.

- Transport trolley + drawbar (+800 kg)

A transport trolley with a drawbar is a functional solution that facilitates moving the machine both in the field and on access roads. A solid construction ensures stability during transport, and an ergonomically designed drawbar allows for quick and convenient connecting and disconnecting of the machine, which increases the comfort of use and improves the logistics process.

Detailed Description:

• The TIGER II disc harrow is an efficient and robust agricultural machine, created for intensive soil cultivation before sowing and other essential field work.

• Its versatility makes it perform excellently in both traditional cultivation systems and modern simplified methods.

• The basic functions of the harrow include soil loosening and compacting, crushing compacted clods, covering seeds after sowing, weed elimination, and mixing soil with organic and mineral fertilizers.

• It is also perfectly suited for post-harvest cultivation, effectively preparing the field for subsequent sowing.

• The option to connect the harrow with a seed drill allows for simultaneous cultivation and sowing, which increases work efficiency and lowers fuel costs.

• The machine, with a working width of 3500 mm, has been equipped with 28 discs that ensure effective soil aeration and even loosening.

• Discs with a diameter of 560, 610, or 660 mm, made of durable boron steel, guarantee high wear resistance and a long service life.

• A disc row spacing of 900 mm ensures effective soil mixing, improving its structure and increasing moisture retention capacity.

• Reinforced construction and 6-hole hubs ensure the machine's stability and durability even during intensive use.

• A damping system based on rubber rollers effectively reduces vibrations and protects the structure against overloads, which influences smoothness and comfort of work.

• Side screens prevent soil scattering outside the working area, increasing precision and cultivation efficiency.

• The rear tubular or string roller additionally levels the field surface and supports moisture retention in the soil, which contributes to better plant growth.

• A universal category II and III hitch system enables easy connection of the harrow to various tractor models.

• A weight of 1400 kg ensures stability during work, and a power requirement in the range of 110-150 HP makes the machine work perfectly with a wide range of agricultural tractors.

• Thanks to an efficiency of 2.3-3.8 ha/h, the harrow allows for fast and effective soil preparation for sowing, increasing work efficiency on the farm.

• All elements of the machine have been covered with powder coating, which protects against corrosion and mechanical damage, extending its lifespan.

• Solid construction, modern technological solutions, and high-quality materials make the TIGER II disc harrow an excellent choice for farmers who expect high performance, durability, and comfort of use.
