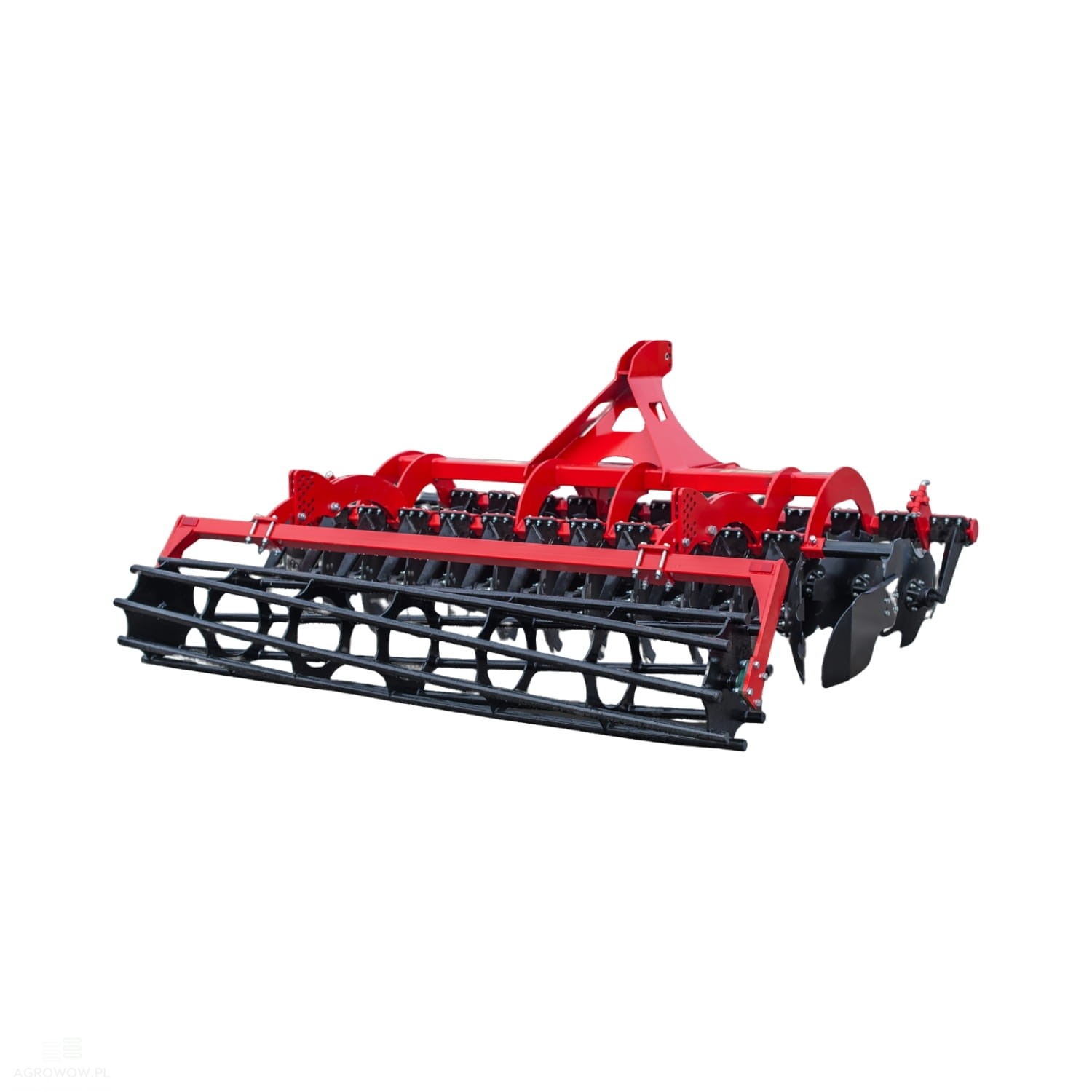

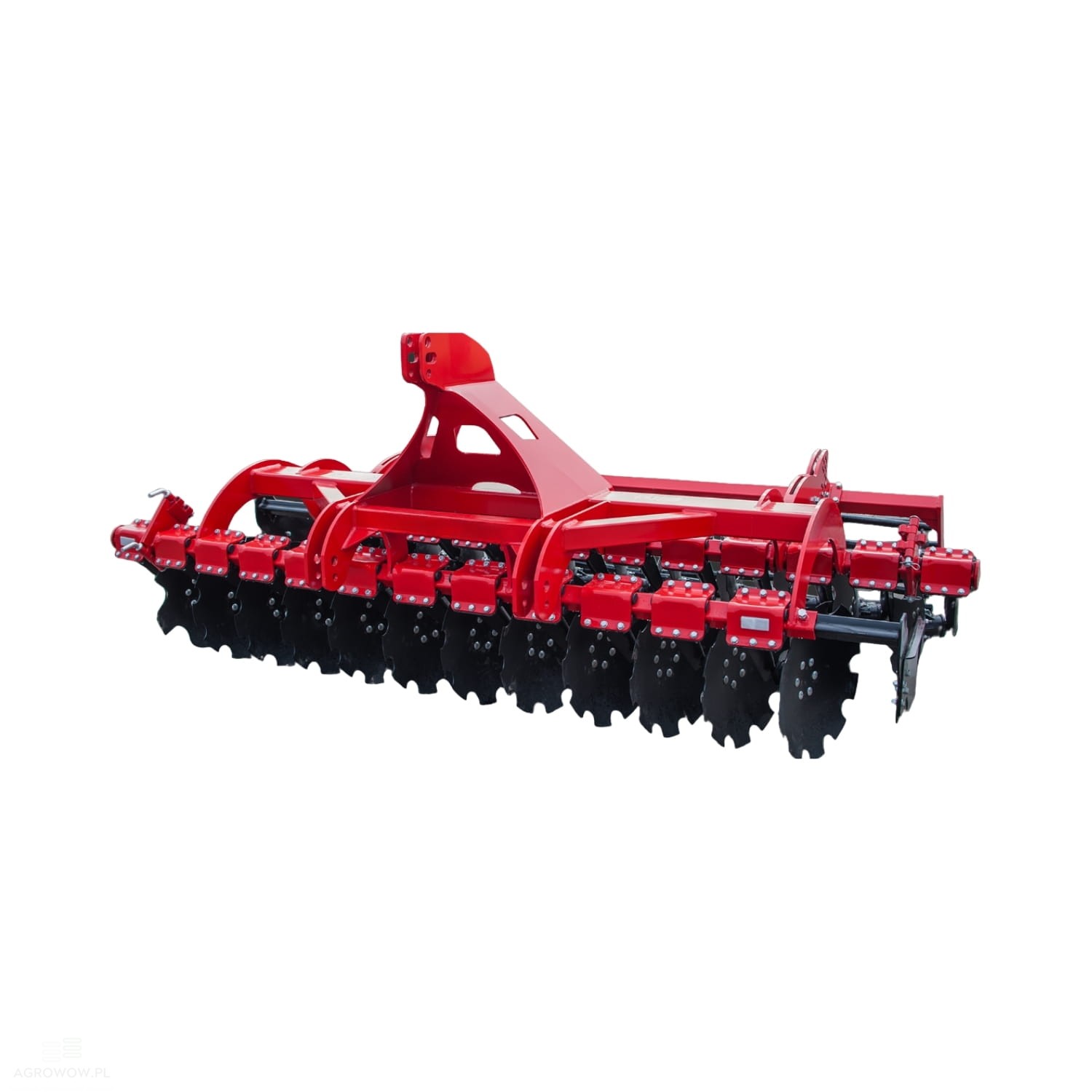

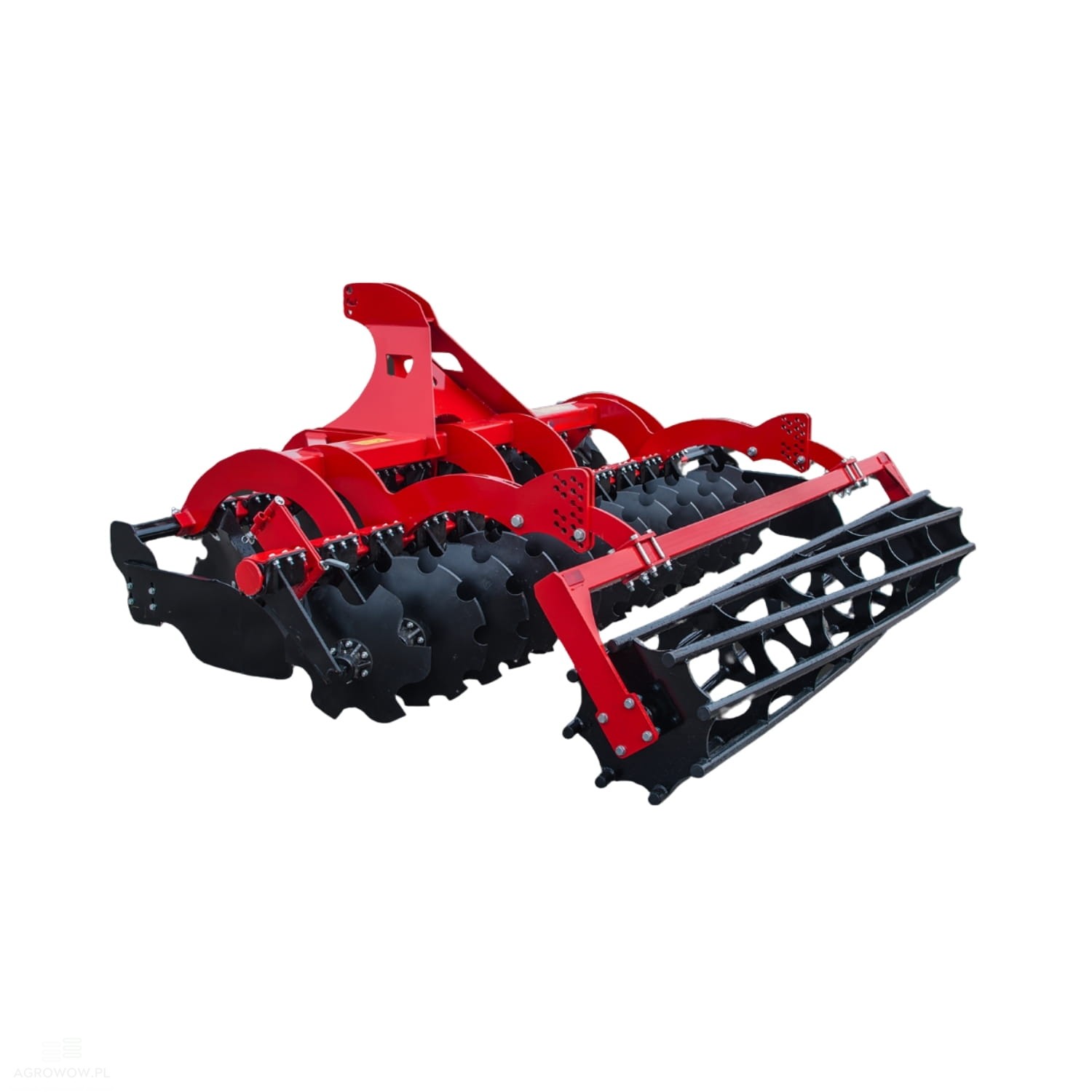

Agrowow disc harrow TIGER II 4.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: SBTHII40

- Manufacturer's name: Disc harrow TIGER II

- Width: 4000 mm

- Number of discs: 32

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 900 mm

- Weight: 1600 kg

- Power requirement: 120-160 HP

- Efficiency: 2.5-4.2 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is an essential element of agricultural machinery, ensuring effective soil compaction and leveling. Thanks to its carefully designed structure, it effectively crushes larger soil clods, improving soil structure and increasing its moisture retention capacity. By stabilizing the ground, it supports proper plant rooting and creates ideal conditions for their growth.

- Roof roller

The roof roller is an ideal solution for light and medium soils, where its main task is precise crushing and leveling of the field surface. A special design allows for limiting excessive soil drying and improves its moisture storage capacity, which positively affects crop growth. Additionally, the roof roller reduces the risk of erosion, improving the stability and structure of the ground.

- Croskill roller

The croskill roller is a modern solution whose double construction effectively breaks up compacted soil layers and levels the field surface. It is particularly useful at the stage of preparing soil for sowing, as it improves its structure and increases moisture retention capacity. It works best on medium and heavy soils, reducing excessive compaction, stabilizing the ground, and supporting plant development.

- Double roof roller

The double roof roller is an advanced solution that ensures even more effective soil loosening and leveling. Its design enables precise crushing of soil clods, improves ground structure, and limits excessive drying out. Additionally, it increases the soil's moisture storage capacity, which favors better plant growth and optimizes conditions for further cultivation.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution, eliminating the need for frequent maintenance and lubrication, which significantly facilitates the operation of agricultural machinery. Made of exceptionally durable materials, they show high resistance to intensive loads and long-term operation. Their use minimizes the risk of failure, reduces downtime, and lowers operating costs, increasing work efficiency.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made of high-grade boron steel, are distinguished by above-average durability and wear resistance. Their precisely designed shape enables effective cutting of crop residues, intensive soil mixing, and its optimal preparation for further cultivation. Thanks to their solid construction, they are extremely durable and reliable even in difficult field conditions.

- Transport trolley + drawbar (+800 kg)

A transport trolley with a drawbar is a practical and functional solution that significantly facilitates moving the machine both in the field and on access roads. A solid construction ensures stability during transport, and an ergonomically designed drawbar allows for quick and convenient connecting and disconnecting of the machine, which increases the comfort of use and improves work logistics.

Detailed Description:

• The TIGER II disc harrow is a modern and robust agricultural machine, designed for intensive soil cultivation before sowing and other key field work.
• Its versatility makes it perform perfectly both in traditional cultivation methods and in simplified systems.
• The basic tasks of the harrow include soil loosening, compacting, crushing compacted clods, covering seeds after sowing, weed elimination, and mixing soil with organic and mineral fertilizers.
• It is also great for post-harvest cultivation, effectively preparing the field for subsequent sowing.
• The ability to combine the harrow with a seed drill allows for simultaneous cultivation and sowing, which increases work efficiency and lowers fuel consumption.
• The machine, with a working width of 4000 mm, is equipped with 32 discs that ensure effective aeration and even soil loosening.
• Discs with a diameter of 560, 610, or 660 mm, made of high-quality boron steel, guarantee high wear resistance and a long service life.
• A disc row spacing of 900 mm ensures effective soil mixing, which improves its structure and increases moisture retention capacity.
• Reinforced construction and the use of 6-hole hubs ensure the machine's stability and durability even during intensive use.
• A damping system based on rubber rollers effectively reduces vibrations and protects the structure against overloads, which increases operator comfort.
• Side screens minimize soil scattering outside the working area, which influences greater precision and cultivation efficiency.
• The rear tubular or string roller additionally levels the field surface and supports moisture retention in the soil, which promotes better plant growth.
• A universal hitch system of category II and III allows for easy connection of the harrow to various tractor models.
• A weight of 1600 kg ensures stability during work, and a power requirement in the range of 120-160 HP allows for cooperation with a wide range of agricultural tractors.
• Efficiency at the level of 2.5-4.2 ha/h means the harrow allows for fast and effective soil preparation for sowing, which increases work efficiency on the farm.
• All parts of the machine have been powder-coated, which protects against corrosion and mechanical damage, extending the device's lifespan.
• Solid construction, innovative technological solutions, and high-quality materials make the TIGER II disc harrow an excellent choice for farmers expecting maximum efficiency, durability, and comfort of use.
