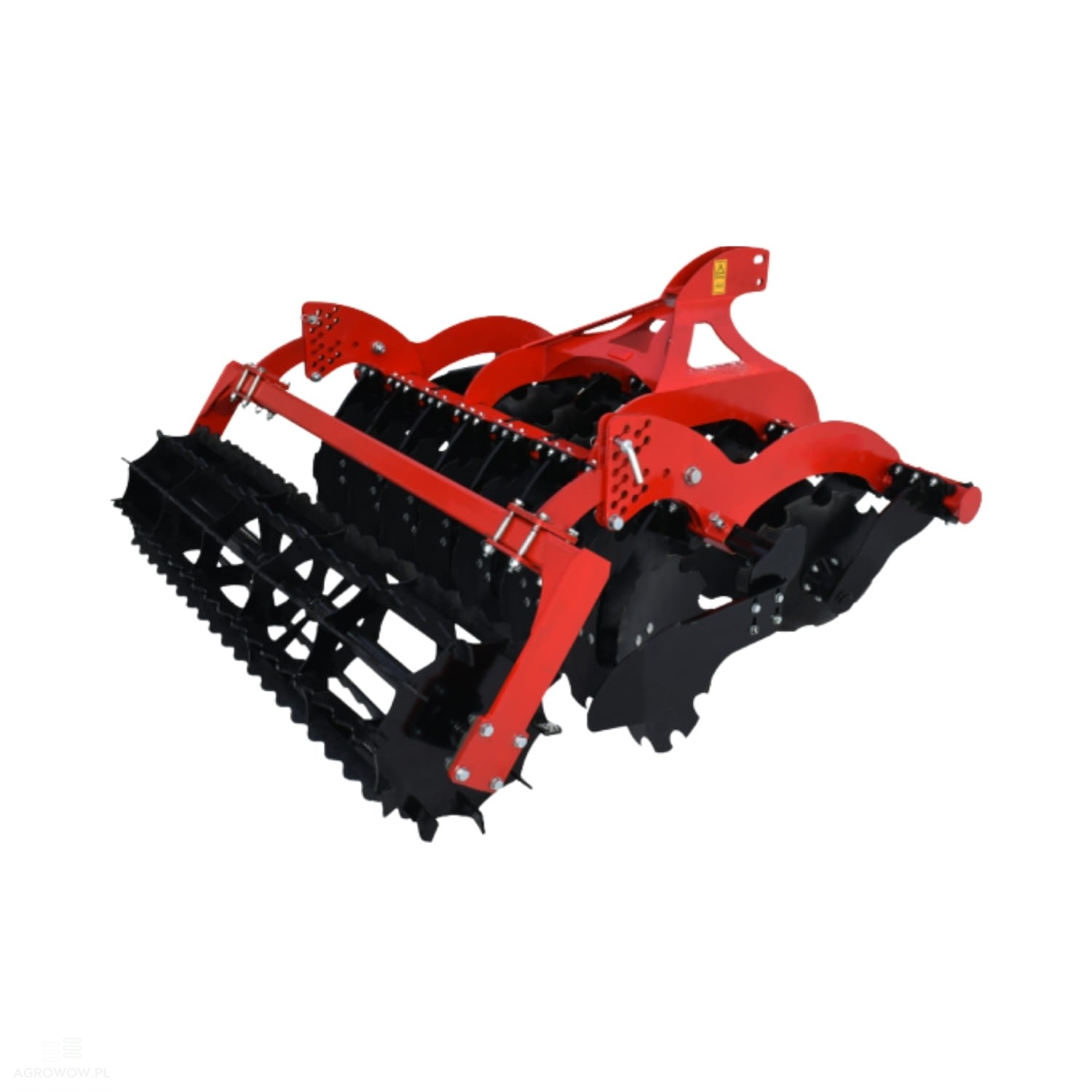

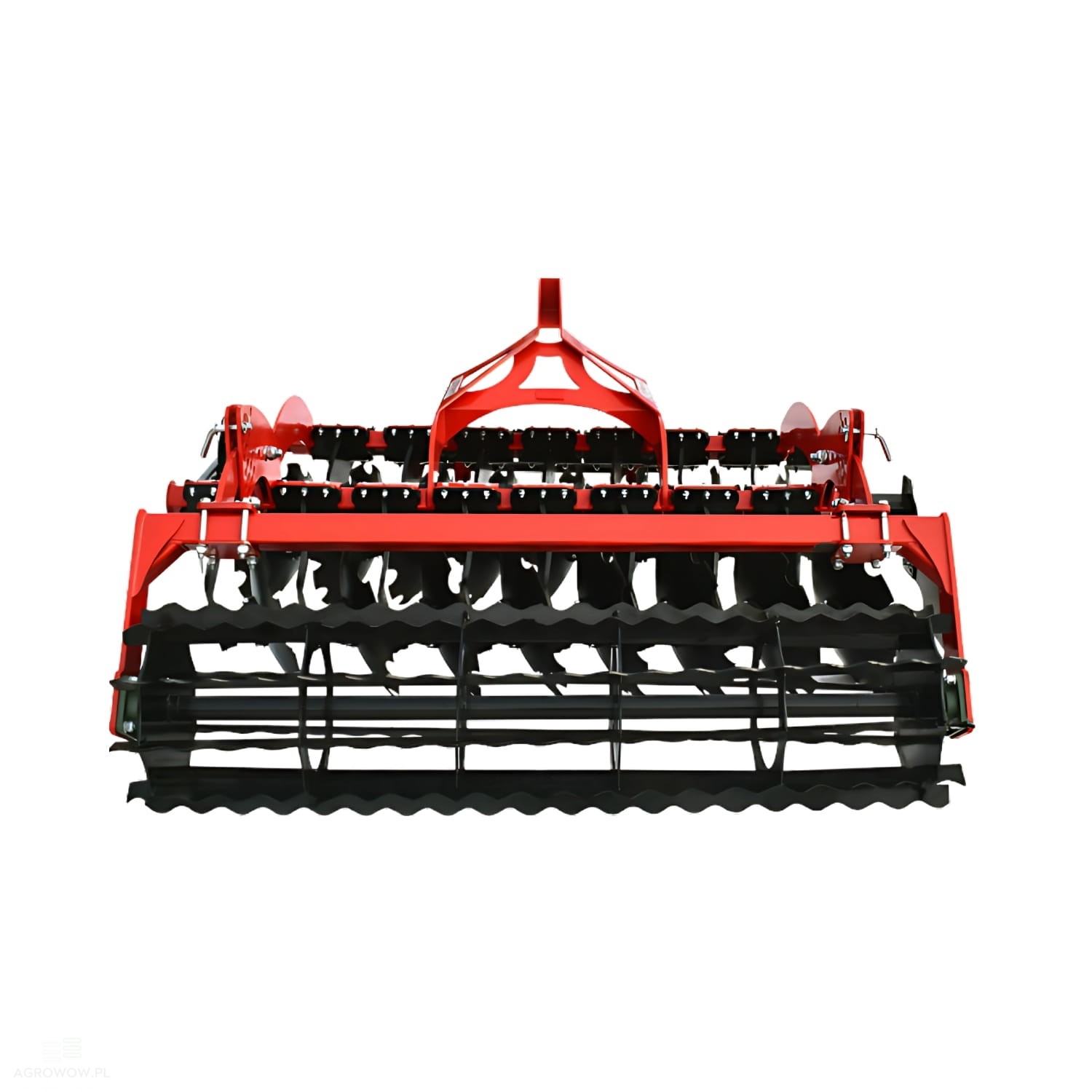

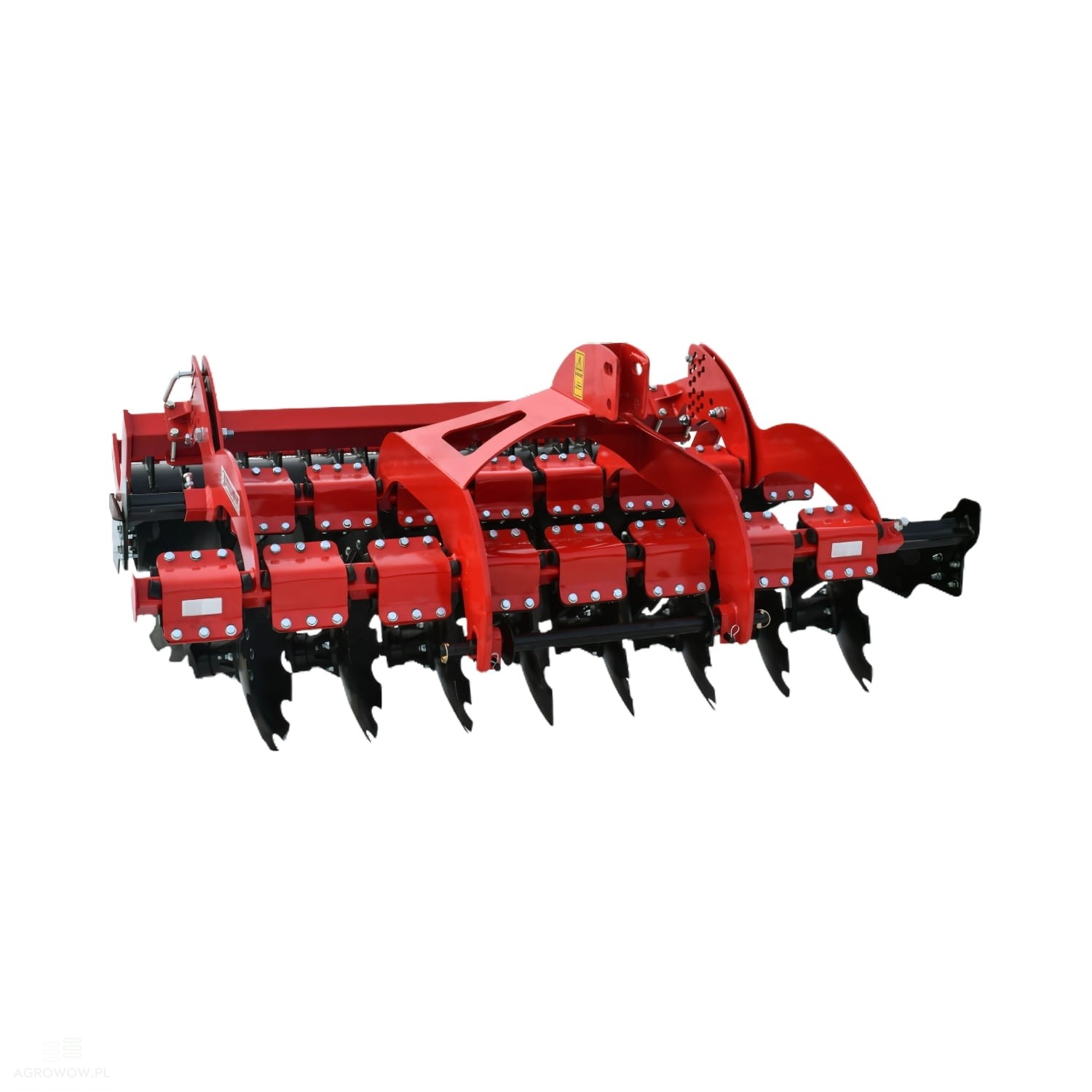

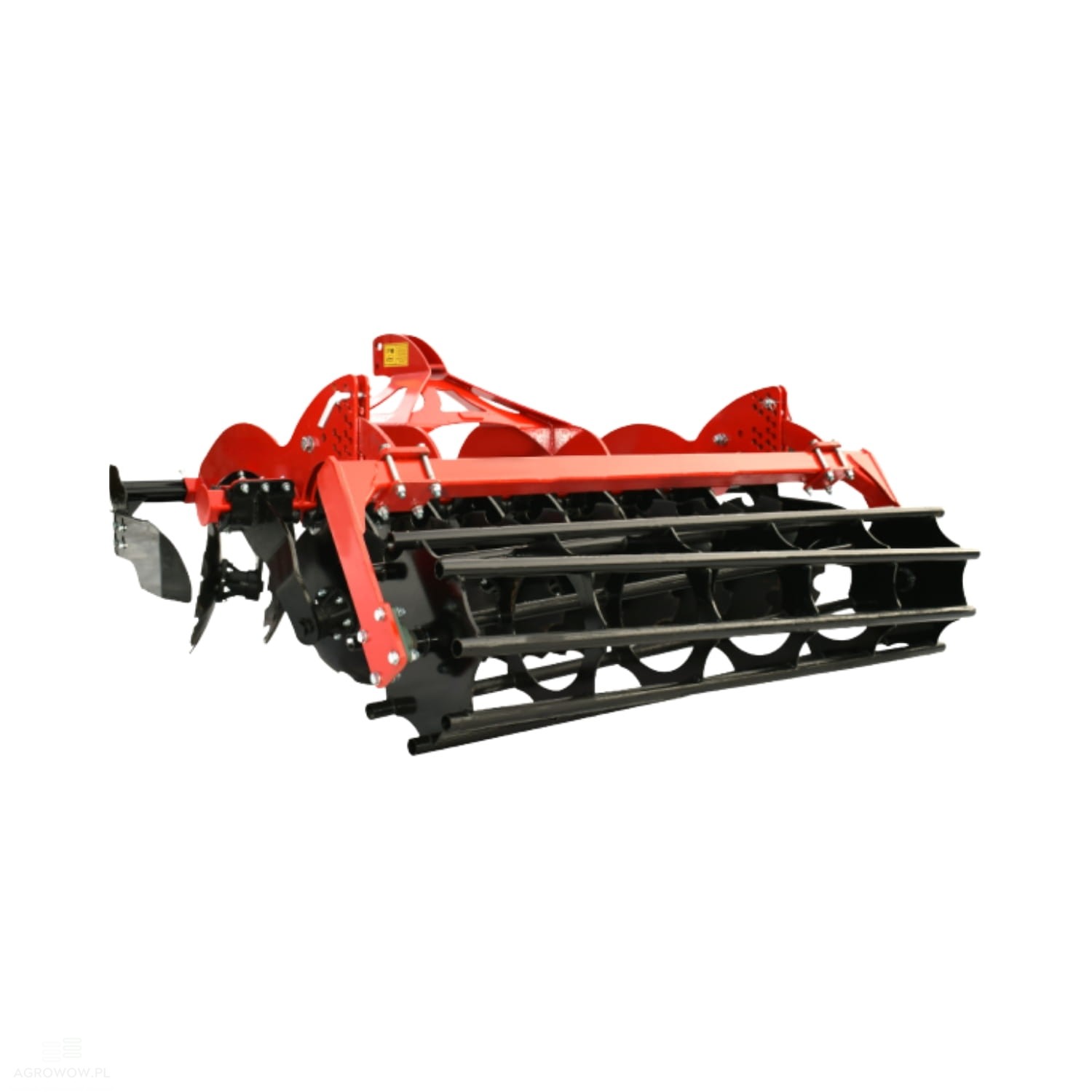

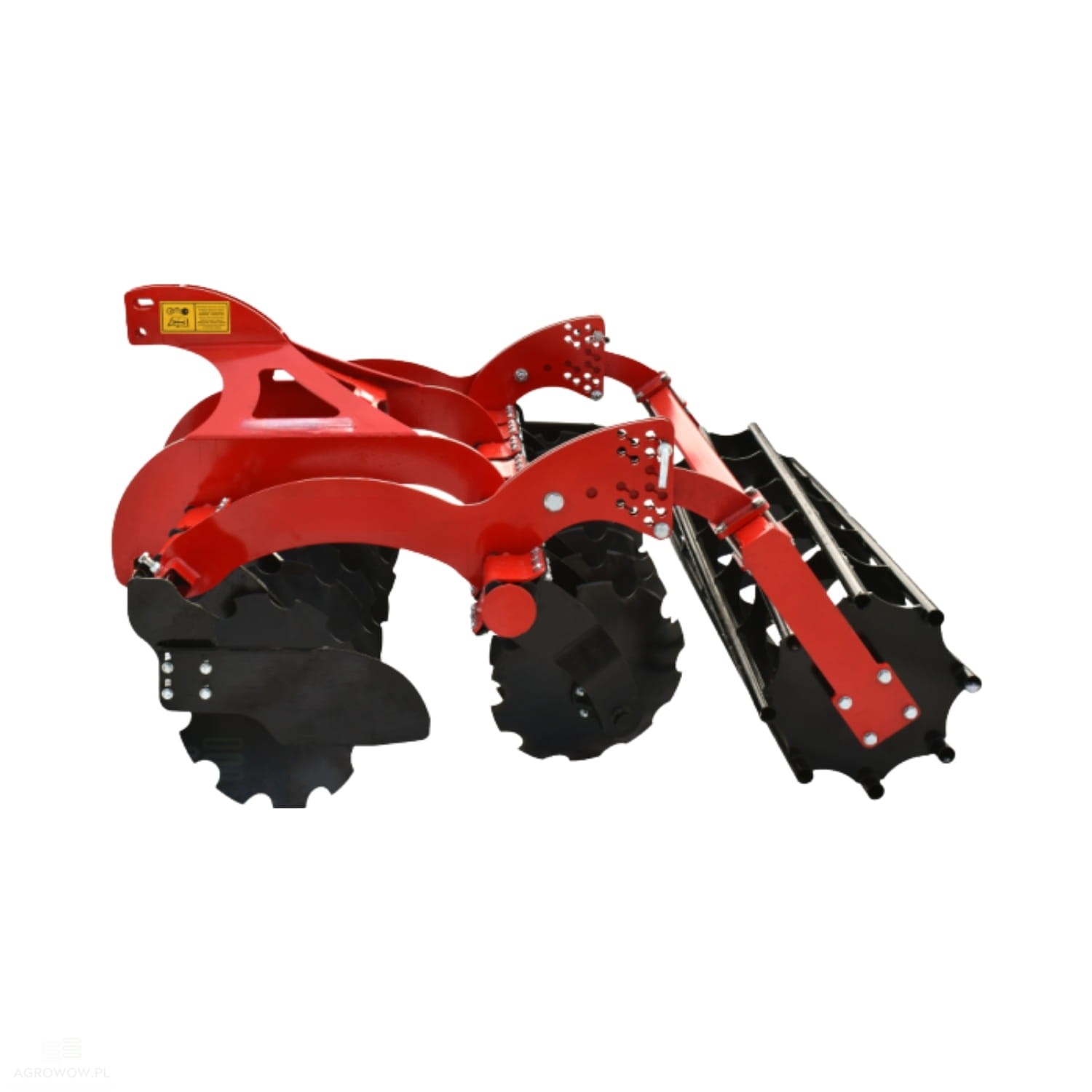

Agrowow disc harrow TIGER JUNIOR 1.4 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: TJII14

- Manufacturer's name: Disc harrow TIGER JUNIOR

- Width: 1400 mm

- Number of discs: 10

- Spacing between disc rows: 750 mm

- Disc diameter: 460 / 510 / 560 mm

- Working depth: 100-200 mm

- Weight: 430 kg

- Power requirement: 12-25 HP

- Efficiency: 0.7-1.4 ha/h

- Polish 560 mm boron steel discs

- Reinforced construction

- 6-hole hubs

- Rubber roller cushioning system

- Side screens

- Universal hitch system (Cat. II and III)

- Rear tubular or string roller

- Powder-coated parts

Optional extras (at additional cost):

- Packer roller

The packer roller is a key element in tillage machinery, providing intensive soil compaction and uniform leveling. Its design allows for effective breaking of larger soil clods, which improves soil structure and supports better moisture infiltration. Thanks to the use of the packer roller, the soil becomes more stable, which positively impacts plant rooting and ensures optimal conditions for growth.

- V-profile roller

The V-profile roller is a component intended for work on light and medium soils, where it effectively crushes the soil surface and levels it after the machine passes. Its unique construction allows for limiting excessive soil drying and improves its water retention capacity. The V-profile roller works perfectly in crops requiring optimal soil conditions, while minimizing the risk of erosion.

- Croskill roller

The Croskill roller is an innovative solution that, thanks to its double-disc construction, effectively crushes large soil clods and levels the field surface. It is particularly useful in preparing the soil before sowing, as it improves its structure and increases the capacity to retain moisture. It works ideally on medium and heavy soils, ensuring appropriate conditions for plants by stabilizing the substrate and eliminating compacted layers.

- Polish 560 mm boron steel discs

Discs with a diameter of 560 mm made of high-quality boron steel are characterized by exceptional abrasion resistance and long service life. Their special design ensures effective cutting of crop residues, intensive soil mixing, and preparation for subsequent cultivation stages. Boron steel guarantees high durability, which allows for trouble-free operation even in demanding field conditions.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution that eliminates the need for frequent maintenance and lubrication, which significantly facilitates the use of the machine. Made of durable materials, they are characterized by high resistance to loads and long service life. Thanks to the use of SKF hubs, the risk of failure and downtime is minimized, which translates into lower operating costs and greater cultivation efficiency.

Detailed Description:

• The TIGER JUNIOR disc harrow is a modern and compact agricultural tool, created for pre-sowing soil cultivation and basic field tasks.

• Thanks to its functionality, it works perfectly in loosening, pressing, and crushing compacted soil clods, which ensures optimal conditions for plant growth.

• The 1400 mm working width machine is equipped with 10 working discs, arranged in two rows, which guarantees effective soil aeration and uniform loosening.

• The ability to adjust the working depth in the range of 100-200 mm allows for adapting the harrow to specific soil conditions and the type of crops.

• TIGER JUNIOR is an extremely versatile machine that can be used both for pre-sowing soil cultivation and for mixing crop residues and organic fertilizers, improving their absorption and influencing better conditions for plant growth.

• It also works perfectly for refining the soil after simplified no-till cultivation.

• The ability to work with a seed drill means that the machine allows for simultaneous cultivation and sowing, which significantly increases work efficiency.

• The construction of the harrow has been designed with durability and reliability in mind.

• Discs with diameters of 460, 510, or 560 mm are made of high-quality boron steel, which ensures their exceptional abrasion resistance and long service life.

• Additionally, the reinforced construction of the machine and 6-hole hubs guarantee stability and reliability even during intensive operation.

• The cushioning system in the form of rubber rollers effectively reduces vibrations and protects the structure from overloads, while side screens prevent soil from scattering outside the working area, which increases precision.

• The disc harrow is equipped with a rear tubular or string roller, which additionally levels the soil and improves its ability to retain moisture, which is of key importance for further plant growth.

• Thanks to the power requirement in the range of 12-25 HP, the machine can work with a wide range of tractors, offering economical and efficient operation.

• An efficiency of 0.7-1.4 ha/h makes the disc harrow an excellent choice for farmers looking for a reliable tool for effective soil cultivation.

• An additional advantage of the machine is the universal Cat. II and III hitch system, which enables fast and convenient connection to different tractor models.

• All elements of the machine are covered with powder coating, which effectively protects them from corrosion and mechanical damage, increasing the durability and aesthetics of the device.

• Thanks to modern technology and solid construction, TIGER JUNIOR is a reliable solution for farmers who value high quality, efficiency, and comfort of use.
