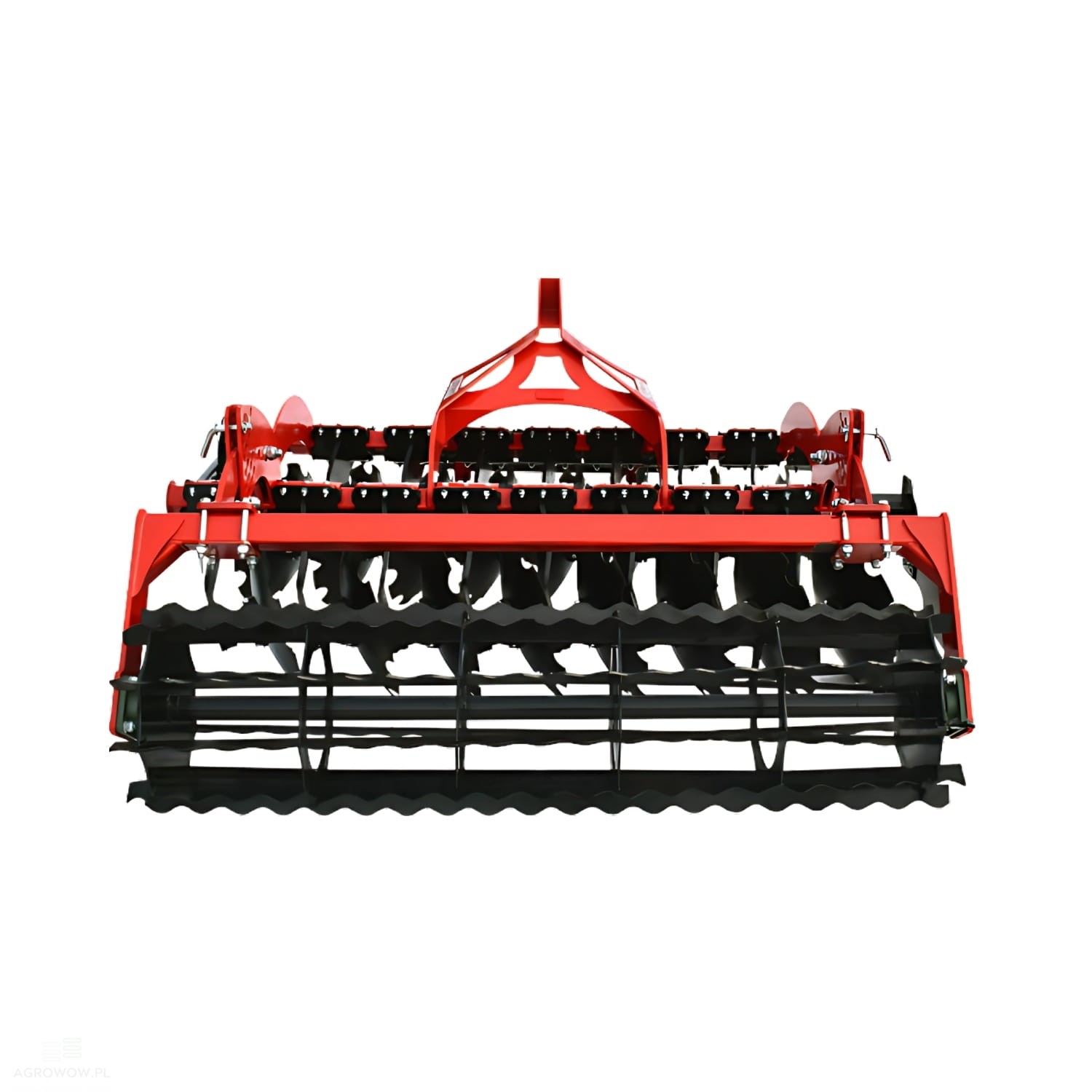

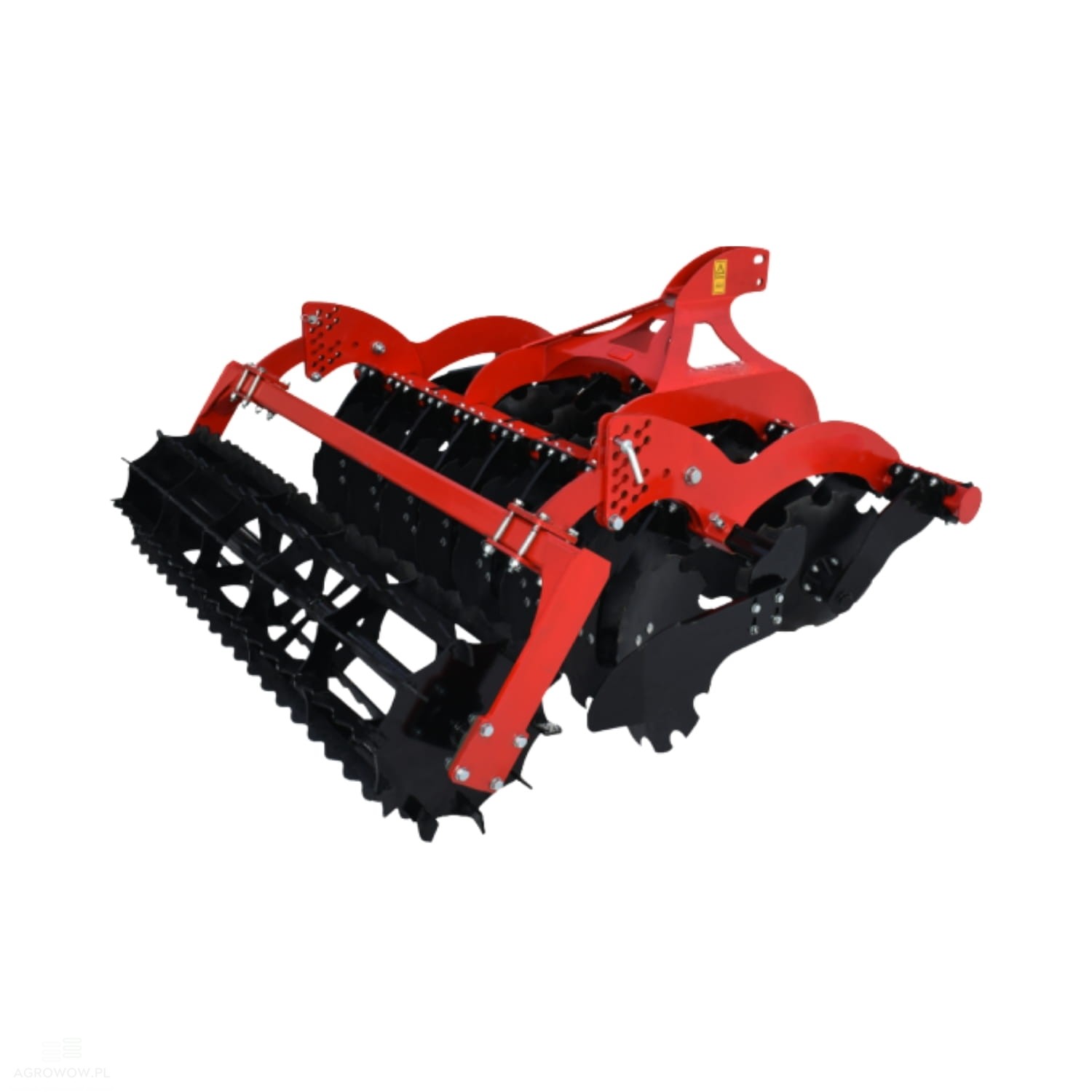

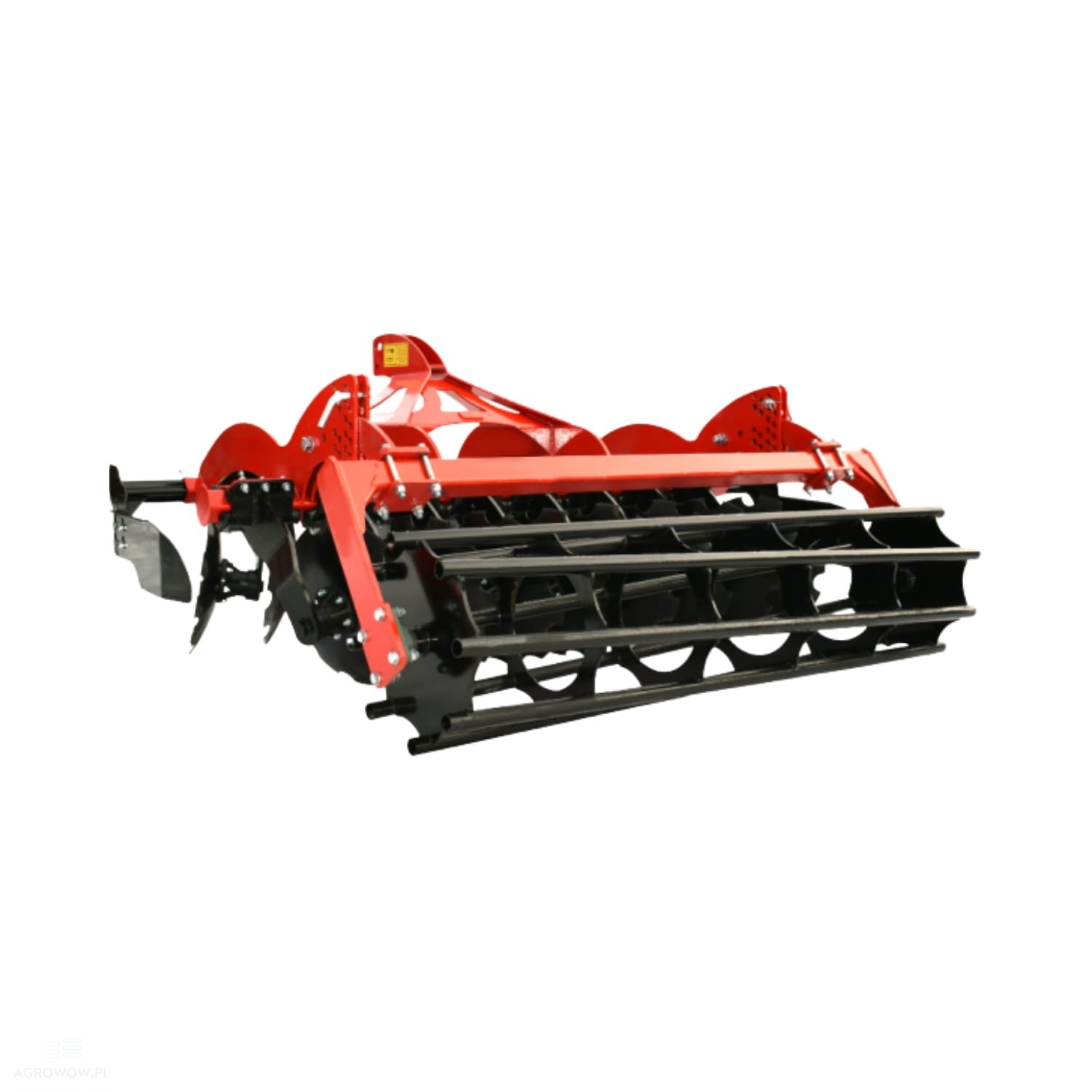

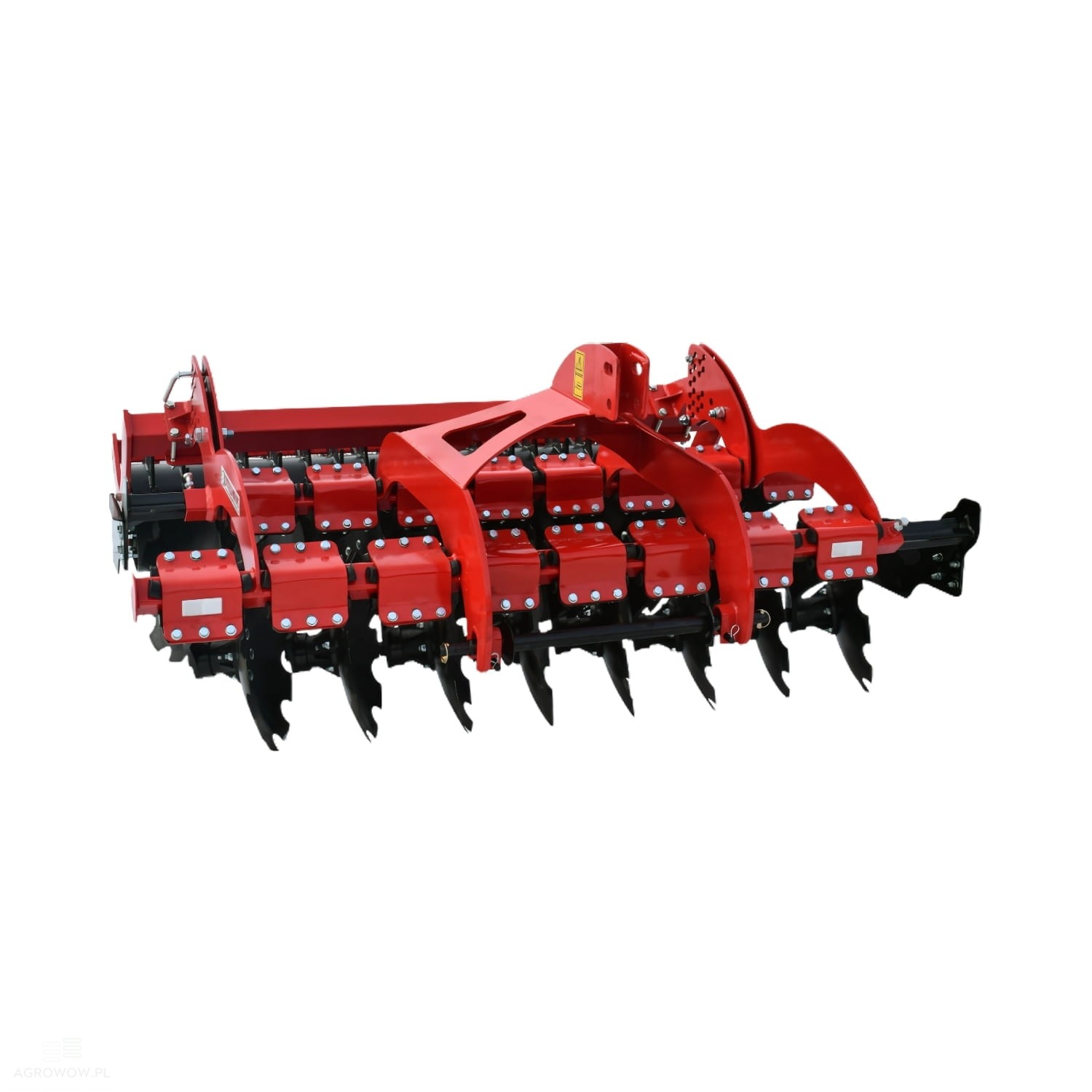

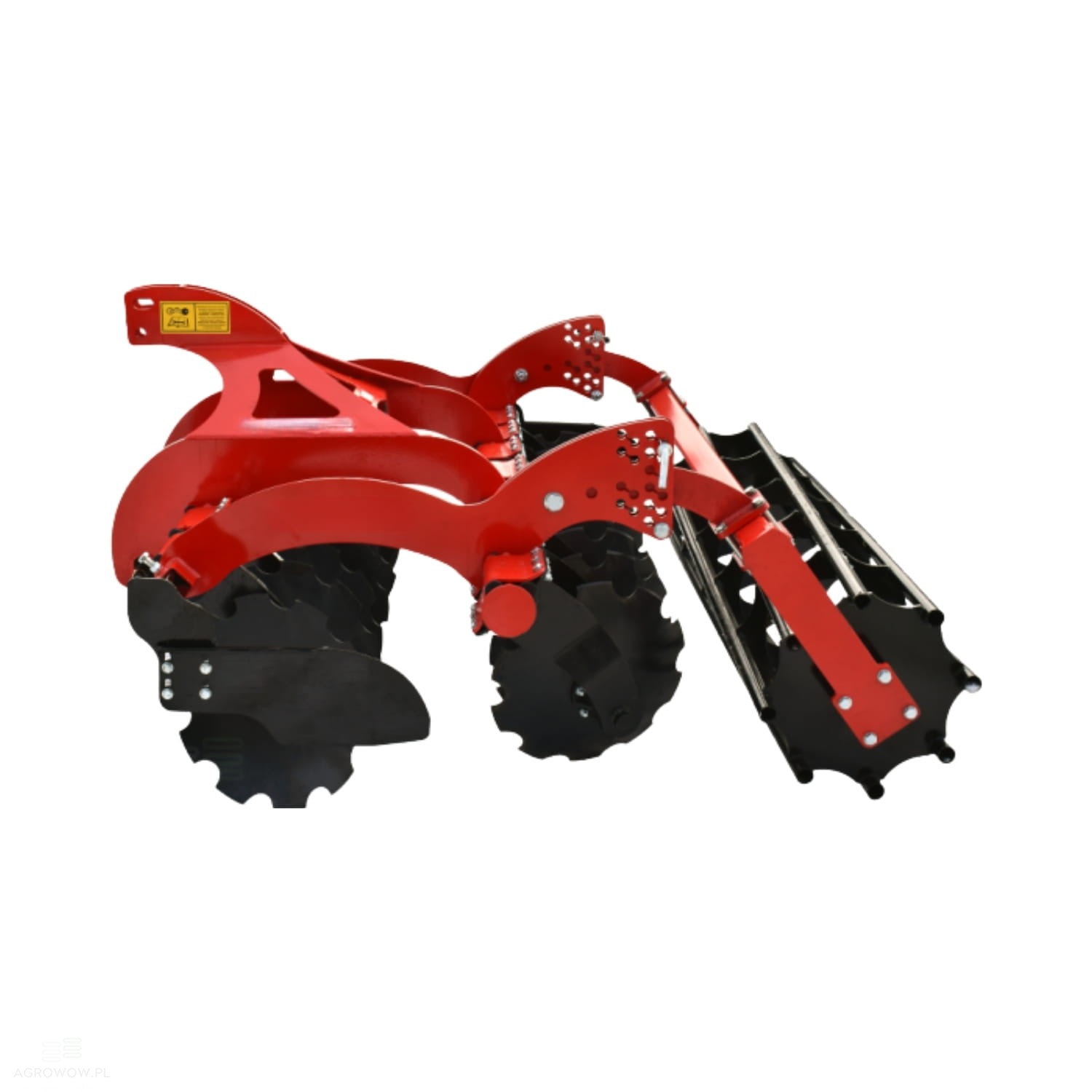

Agrowow disc harrow TIGER JUNIOR 1.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: TJII18

- Manufacturer's name: Disc harrow TIGER JUNIOR

- Width: 1800 mm

- Number of discs: 14

- Spacing between disc rows: 750 mm

- Disc diameter: 460 / 510 / 560 mm

- Working depth: 100-200 mm

- Weight: 530 kg

- Power requirement: 20-40 HP

- Efficiency: 1.1-1.7 ha/h

- Polish 560 mm boron steel discs

- Reinforced construction

- 6-hole hubs

- Rubber roller cushioning system

- Side screens

- Universal hitch system (Cat. II and III)

- Rear tubular or string roller

- Powder-coated parts

Optional extras (at additional cost):

- Packer roller

The packer roller is a key element of agricultural machinery, responsible for effective soil compaction and leveling. Its special design allows for the crushing of larger soil clods, which significantly improves soil structure and supports the moisture absorption process. Thanks to its use, the soil becomes more stable, which promotes better plant rooting and creates optimal conditions for their growth.

- V-profile roller

The V-profile roller is a solution dedicated to working on light and medium soils, where it effectively crushes and levels the soil surface. Its specific construction helps to limit excessive drying of the substrate and improves its water storage capacity, which is important for proper plant growth. This roller works perfectly in the precise preparation of soil for cultivation, while simultaneously reducing the risk of erosion.

- Croskill roller

The Croskill roller is an innovative construction whose double-disc layout enables effective crushing of compacted soil clods and leveling of the field surface. It is particularly useful at the stage of preparing the soil before sowing, improving its structure and increasing moisture retention capacity. It works best in medium and heavy soils, where it stabilizes the subsoil and removes overly compacted layers, which promotes better plant development.

- Polish 560 mm boron steel discs

Discs with a diameter of 560 mm made of boron steel are distinguished by excellent abrasion resistance and long durability. Their well-thought-out design allows for effective cutting of crop residues, intensive soil mixing, and proper preparation for further cultivation. Thanks to high-quality materials, the discs maintain their properties even in demanding field conditions, which allows for their long and reliable operation.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are an innovative solution that eliminates the need for regular maintenance and lubrication, significantly facilitating the use of agricultural machinery. Made of durable materials, they are characterized by resistance to high loads and long service life. Their use minimizes the risk of failure and downtime, which translates into lower operating costs and higher efficiency of the entire cultivation process.

Detailed Description:

• The TIGER JUNIOR disc harrow is a compact and versatile agricultural machine, designed for effective pre-sowing cultivation and basic field tasks.

• Thanks to its functionality, it copes perfectly with loosening, pressing, and crushing the soil, ensuring optimal conditions for plant growth.

• The 1800 mm working width machine is equipped with 14 working discs, arranged in two rows, which guarantees uniform soil loosening and aeration.

• The adjustable working depth in the range of 100-200 mm allows for adapting the harrow to specific soil conditions and various types of crops.

• TIGER JUNIOR performs well both in pre-sowing cultivation and when mixing crop residues and organic fertilizers, which improves soil fertility.

• The machine can also be used for soil refinement in simplified no-till systems, increasing its versatility.

• The ability to work with a seed drill allows for simultaneous cultivation and sowing, which significantly increases work efficiency.

• The solid construction of the machine has been designed with reliability and longevity in mind.

• Discs with diameters of 460, 510, or 560 mm are made of high-quality boron steel, which ensures high abrasion resistance and long service life.

• Thanks to the reinforced build and the use of 6-hole hubs, the aggregate is characterized by great stability and durability, even during intensive use.

• The cushioning system in the form of rubber rollers effectively reduces vibrations, protecting the structure from overloads, and side screens limit the scattering of soil outside the working area, which increases precision.

• The disc harrow is equipped with a rear tubular or string roller, which additionally levels the soil and improves its ability to retain moisture, which promotes proper plant growth.

• The power requirement in the range of 20-40 HP allows for cooperation with a wide range of tractors, offering economical and effective work.

• An efficiency of 1.1-1.7 ha/h makes it an excellent choice for farmers looking for reliable equipment for effective soil cultivation.

• The universal Cat. II and III hitch system enables fast and convenient connection to various tractor models.

• All elements of the machine are covered with powder coating, which effectively protects them from corrosion and mechanical damage, increasing the durability and aesthetics of the device.

• Modern construction and solid workmanship make TIGER JUNIOR an excellent solution for farmers who value high quality, efficiency, and comfort of use.
