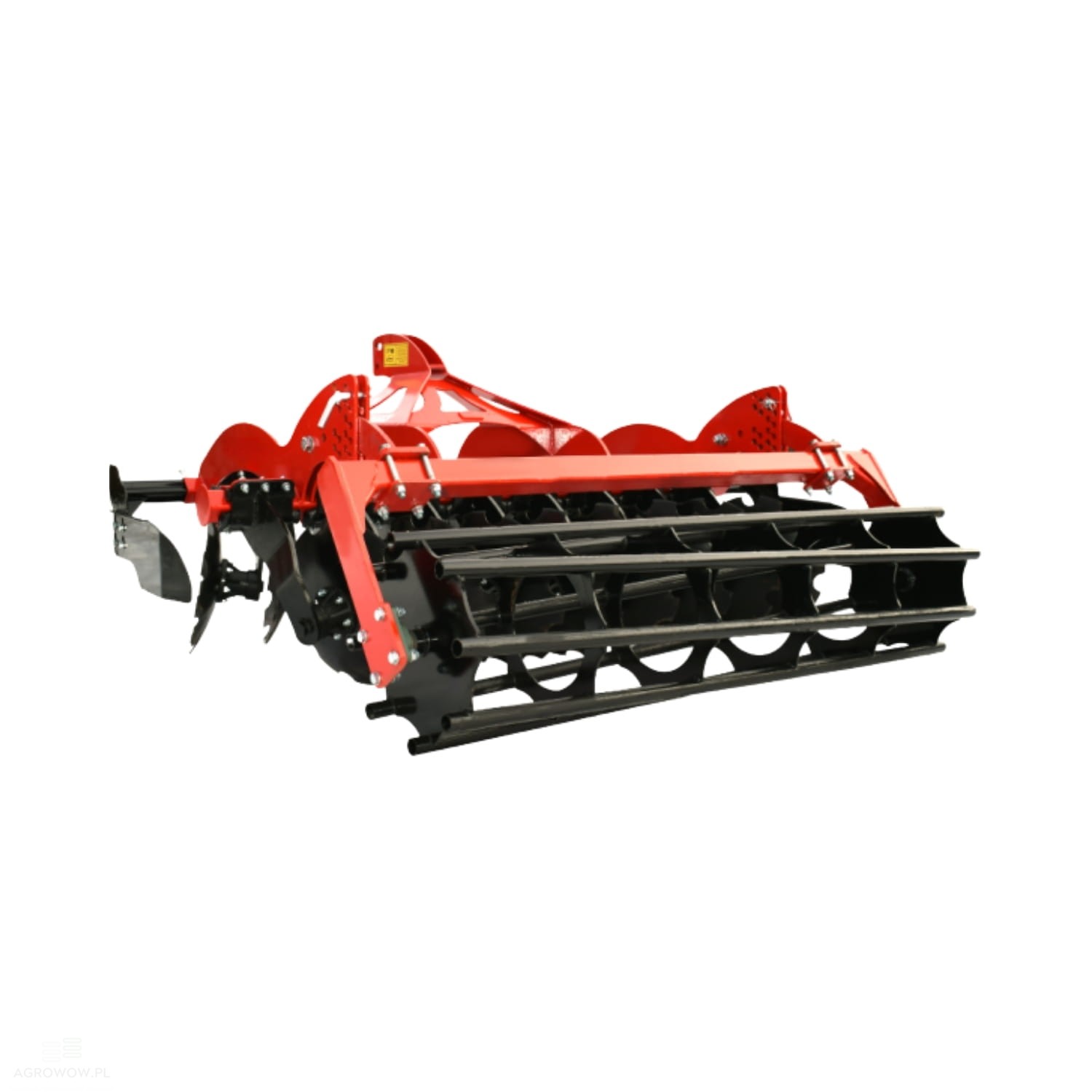

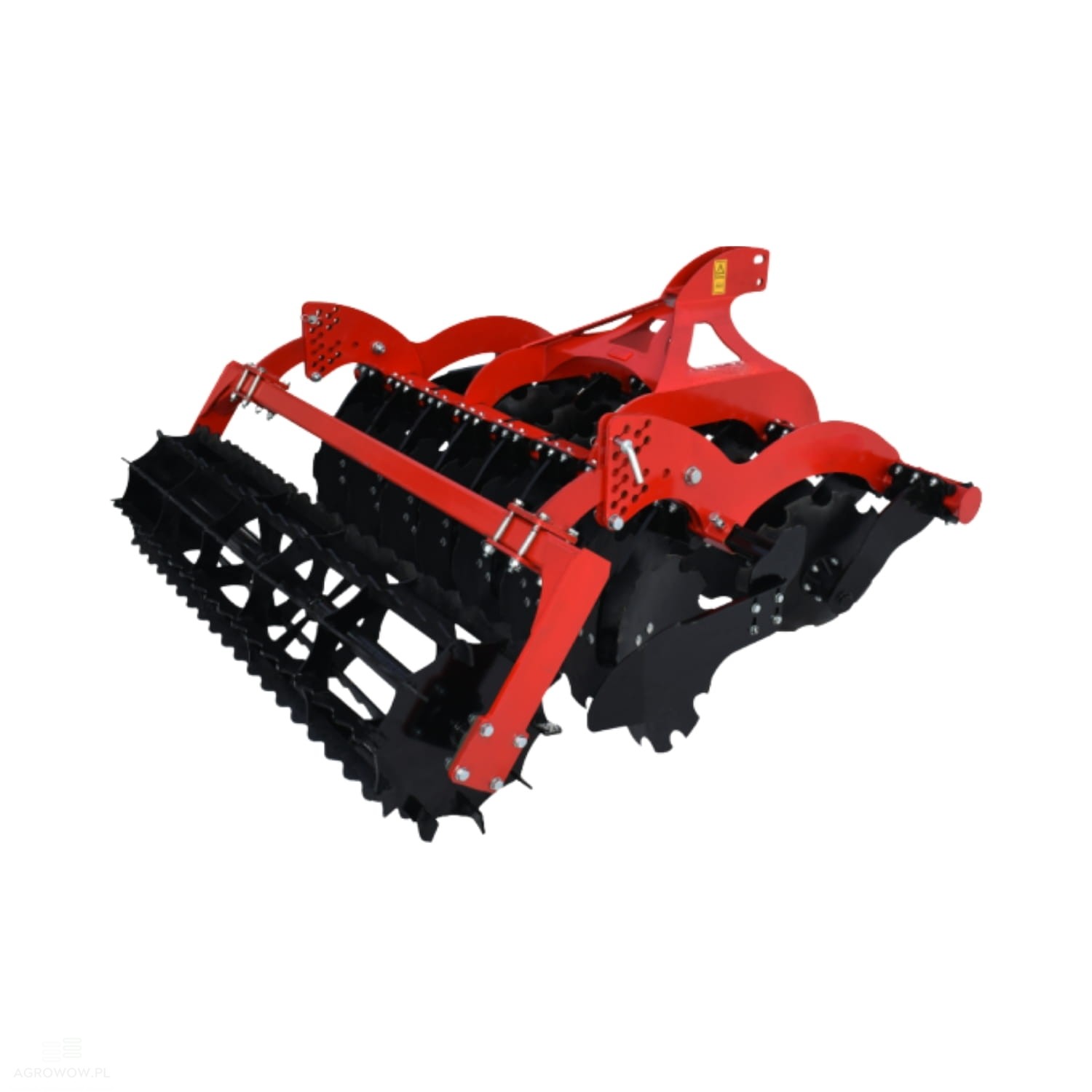

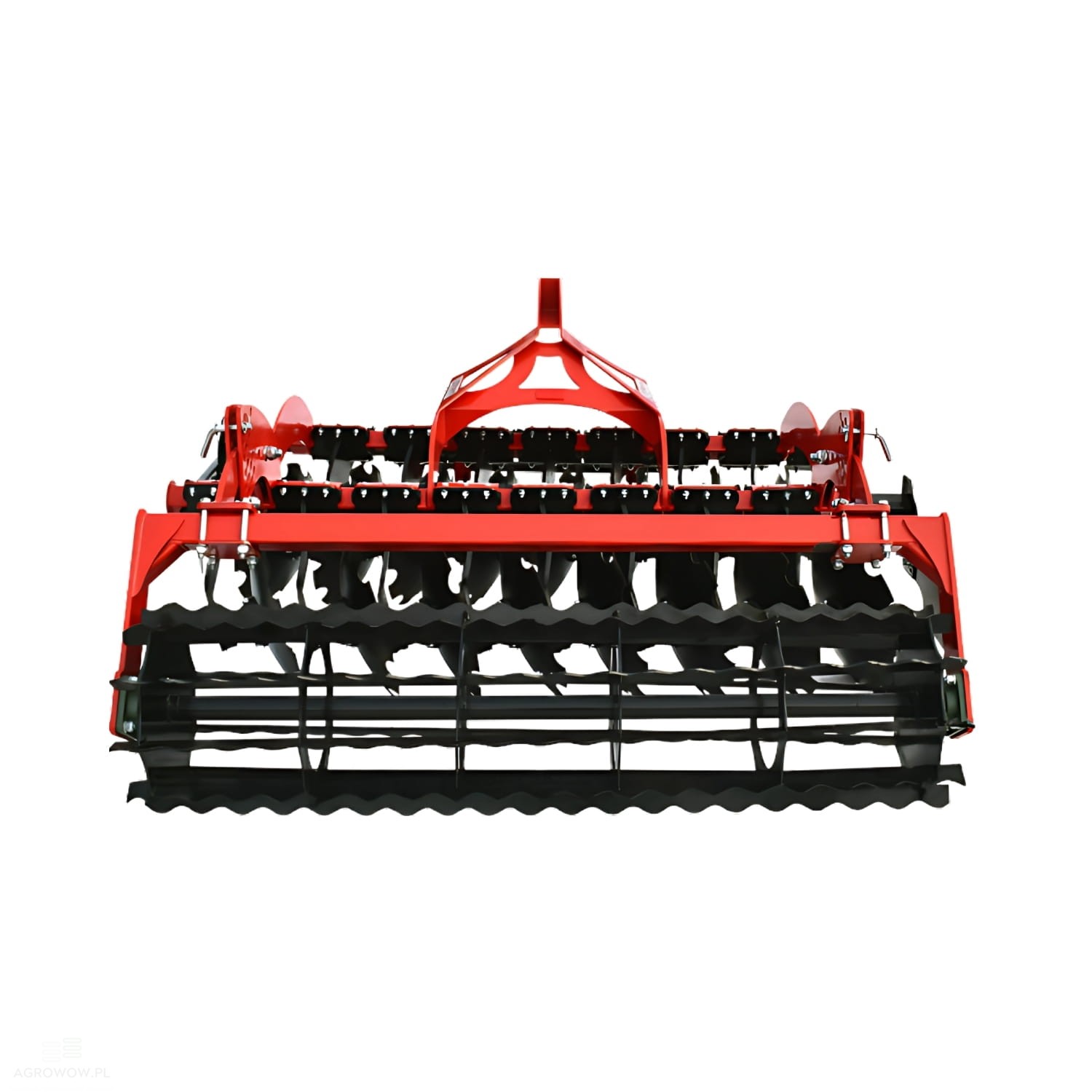

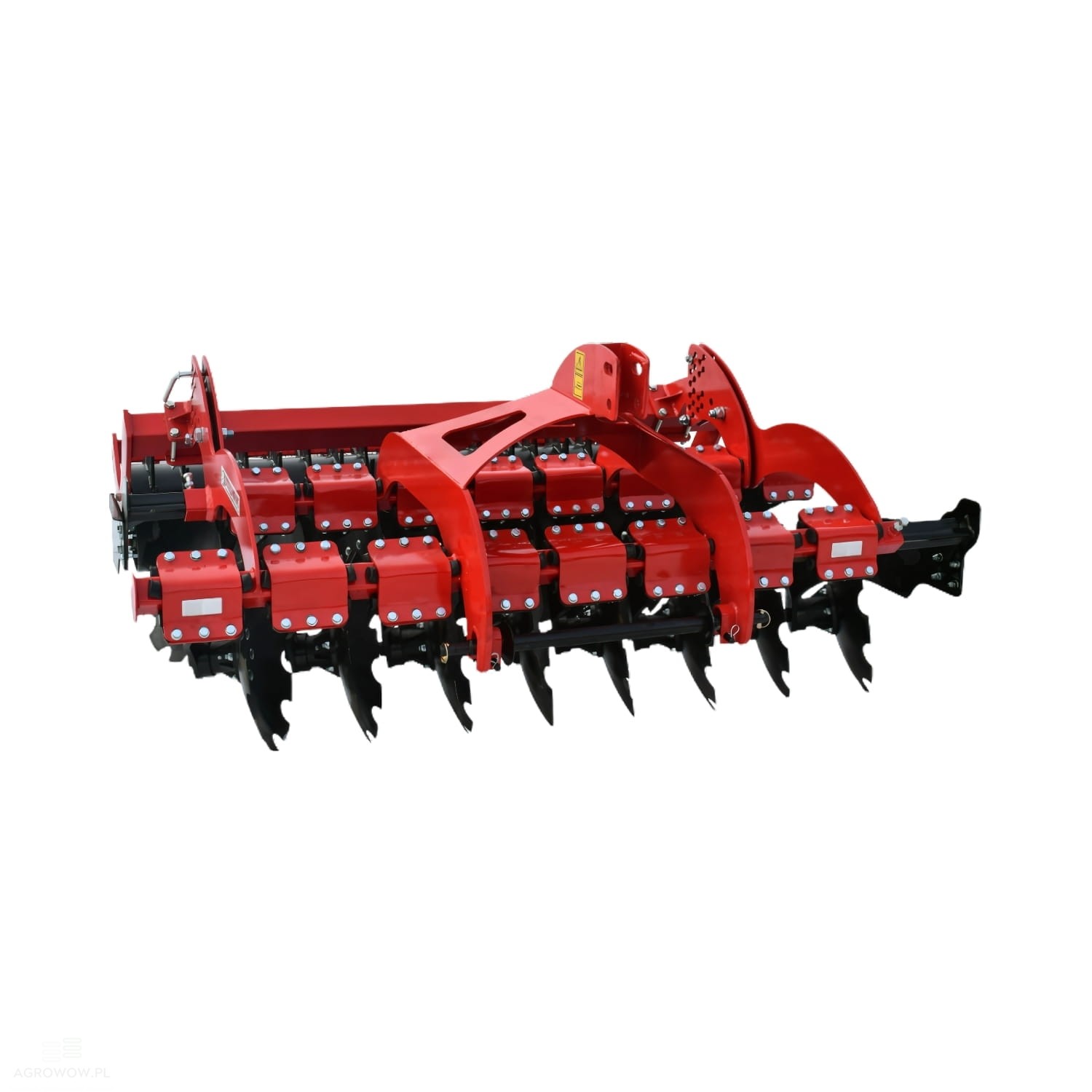

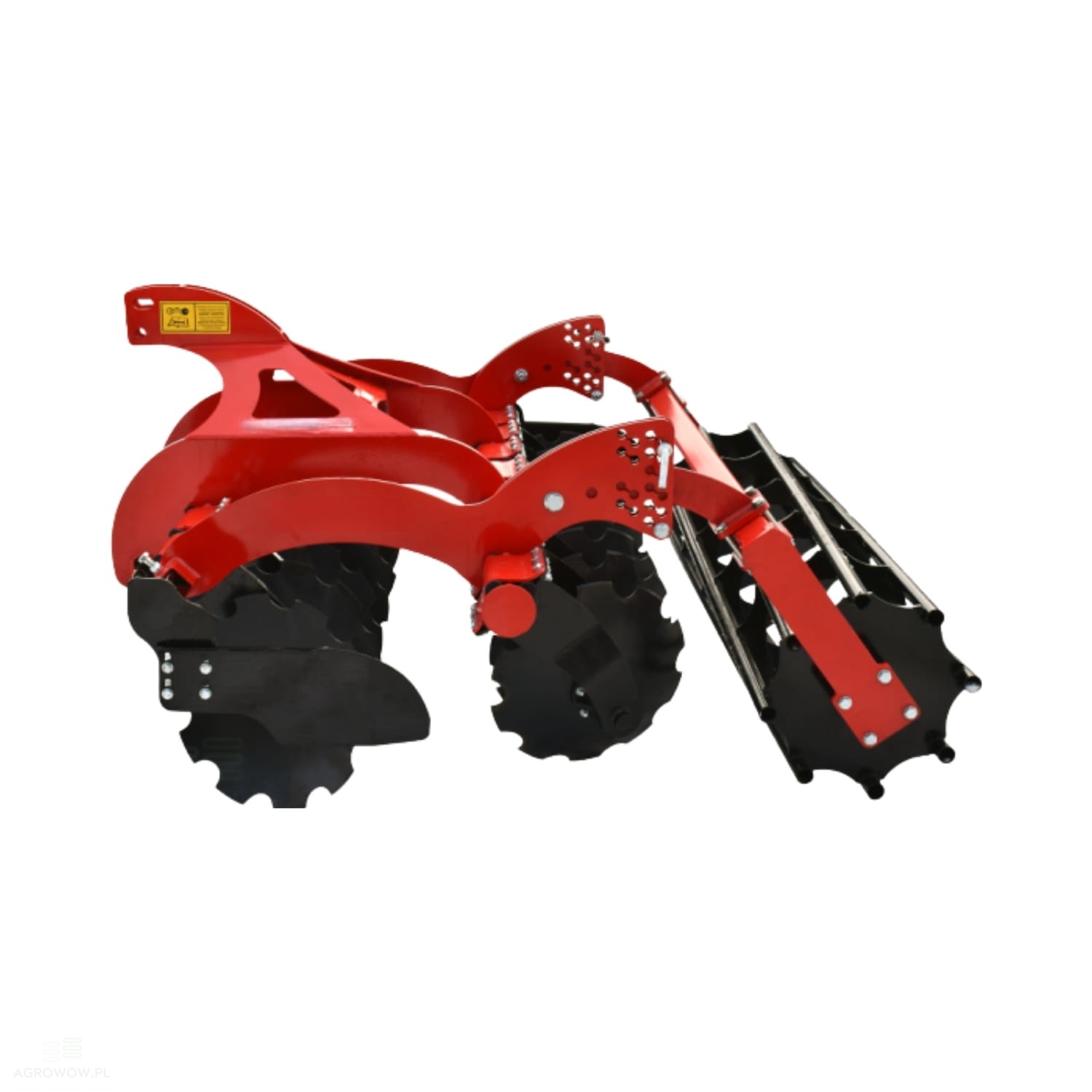

Agrowow disc harrow TIGER JUNIOR 2.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: TJII20

- Manufacturer's name: Disc harrow TIGER JUNIOR

- Width: 2000 mm

- Number of discs: 16

- Spacing between disc rows: 750 mm

- Disc diameter: 460 / 510 / 560 mm

- Working depth: 100-200 mm

- Weight: 580 kg

- Power requirement: 40-60 HP

- Efficiency: 1.3-1.8 ha/h

- Polish 560 mm boron steel discs

- Reinforced construction

- 6-hole hubs

- Rubber roller cushioning system

- Side screens

- Universal hitch system (Cat. II and III)

- Rear tubular or string roller

- Powder-coated parts

Optional extras (at additional cost):

- Packer roller

The packer roller is an essential element of tillage machinery, responsible for effective soil compaction and leveling. Its specially designed construction allows for the breaking of larger soil clods, which improves soil structure and supports the moisture absorption process. Thanks to this, the soil becomes more stable, which promotes proper plant rooting and creates favorable conditions for their growth.

- V-profile roller

The V-profile roller is an excellent solution for light and medium soils, where its task is effective crushing and leveling of the field surface. Its unique construction allows for limiting excessive soil drying and increases its water storage capacity, which positively affects crop growth. Additionally, the V-profile roller prevents soil erosion, which translates into better soil quality for plants.

- Croskill roller

The Croskill roller is an innovative solution that, thanks to its double-disc construction, effectively crushes compacted soil clods and levels the field. It is particularly useful at the stage of preparing the soil before sowing, as it improves its structure and increases moisture retention capacity. It works perfectly in medium and heavy soils, where it eliminates overly compacted layers, stabilizing the subsoil and supporting plant development.

- Polish 560 mm boron steel discs

Discs with a diameter of 560 mm, made of high-quality boron steel, are characterized by exceptional wear resistance and a long service life. Their well-thought-out design ensures effective cutting of crop residues, intensive soil mixing, and optimal preparation for further stages of cultivation. Thanks to solid materials, the discs are exceptionally durable and can work in difficult field conditions, ensuring reliability for a long time.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution that eliminates the need for frequent maintenance and lubrication, which significantly streamlines the operation of agricultural machinery. Made of extremely durable materials, they show high resistance to heavy loads and intensive work. Their use reduces the risk of failure and downtime, lowering operating costs and increasing the efficiency of the entire cultivation process.

Detailed Description:

• The TIGER JUNIOR disc harrow is a versatile and compact agricultural machine, created for effective pre-sowing cultivation and basic field tasks.

• Its construction allows it to handle loosening, pressing, and crushing the soil, which allows for the creation of optimal conditions for plant growth.

• The 2000 mm working width machine is equipped with 16 working discs, arranged in two rows, which ensures thorough soil aeration and uniform loosening.

• The adjustable working depth in the range of 100-200 mm allows for adapting the harrow to different soil conditions and specific crop requirements.

• TIGER JUNIOR performs well both in pre-sowing cultivation and while mixing crop residues and organic fertilizers, which positively affects soil fertility.

• The machine can also be used for soil refinement in simplified no-till systems, increasing its versatility and application in modern agriculture.

• The ability to work with a seed drill allows for simultaneous cultivation and sowing, which contributes to time savings and increased work efficiency.

• The solid construction of the machine guarantees its reliability and long service life, even under intensive use.

• Discs with diameters of 460, 510, or 560 mm are made of high-quality boron steel, which ensures their exceptional abrasion resistance and long durability.

• The reinforced construction and the use of 6-hole hubs make the machine stable and resistant to heavy loads during work.

• The cushioning system based on rubber rollers effectively reduces vibrations, protecting the structure from overloads, and side screens prevent soil from scattering outside the working area, improving precision.

• The disc harrow is equipped with a rear tubular or string roller, which additionally levels the field surface and supports moisture retention in the soil, which is of key importance for plant growth.

• The machine requires a tractor with a power of 40 to 60 HP, ensuring broad compatibility and economical operation with various agricultural vehicles.

• An efficiency of 1.3-1.8 ha/h makes it an ideal solution for farmers looking for effective and productive equipment for soil cultivation.

• The universal Cat. II and III hitch system enables fast and convenient connection to various tractor models.

• Elements of the machine are covered with powder coating, which increases their resistance to corrosion and protects against mechanical damage, ensuring long device life.

• Modern construction and solid workmanship make TIGER JUNIOR an excellent choice for farmers who expect a reliable, efficient, and easy-to-use machine.
