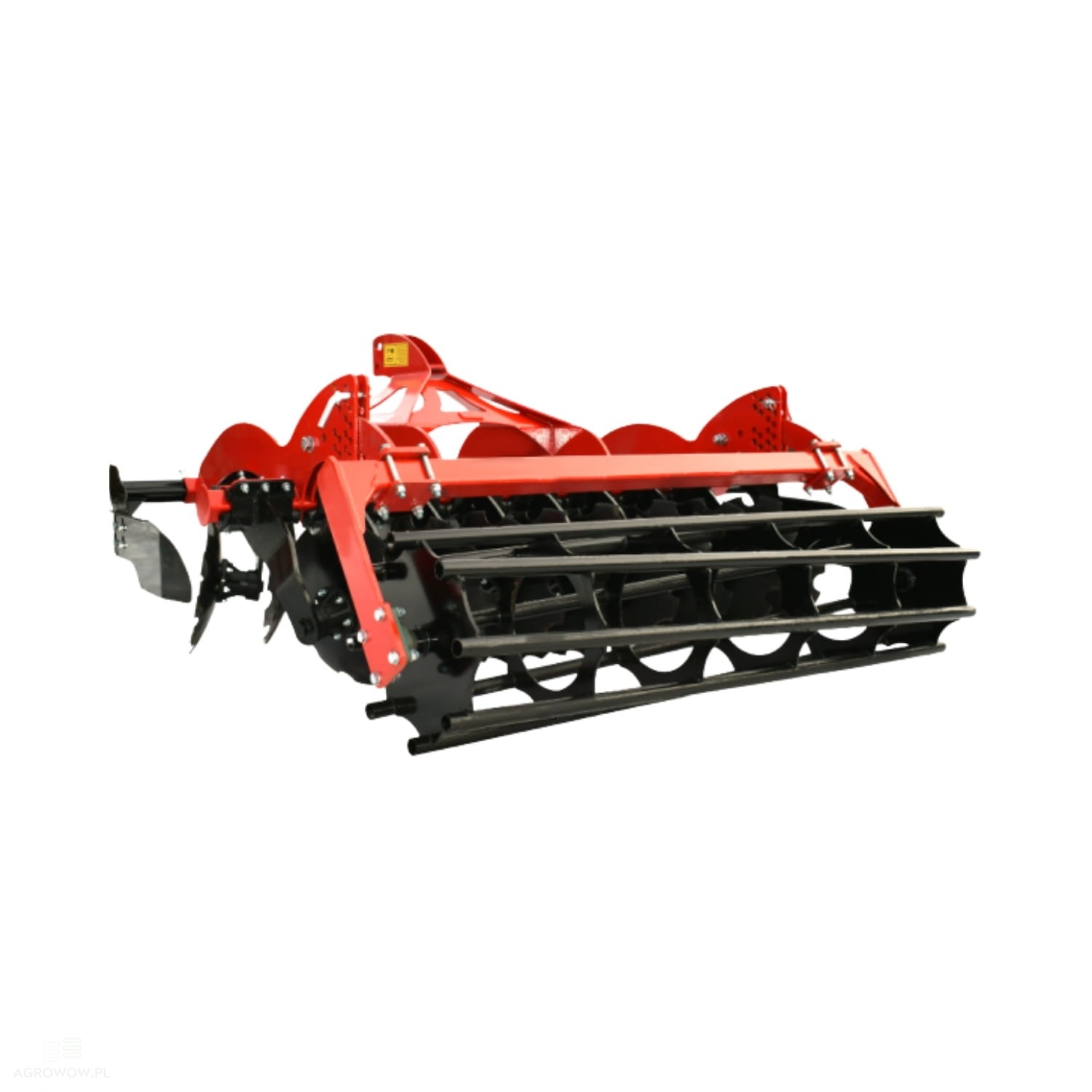

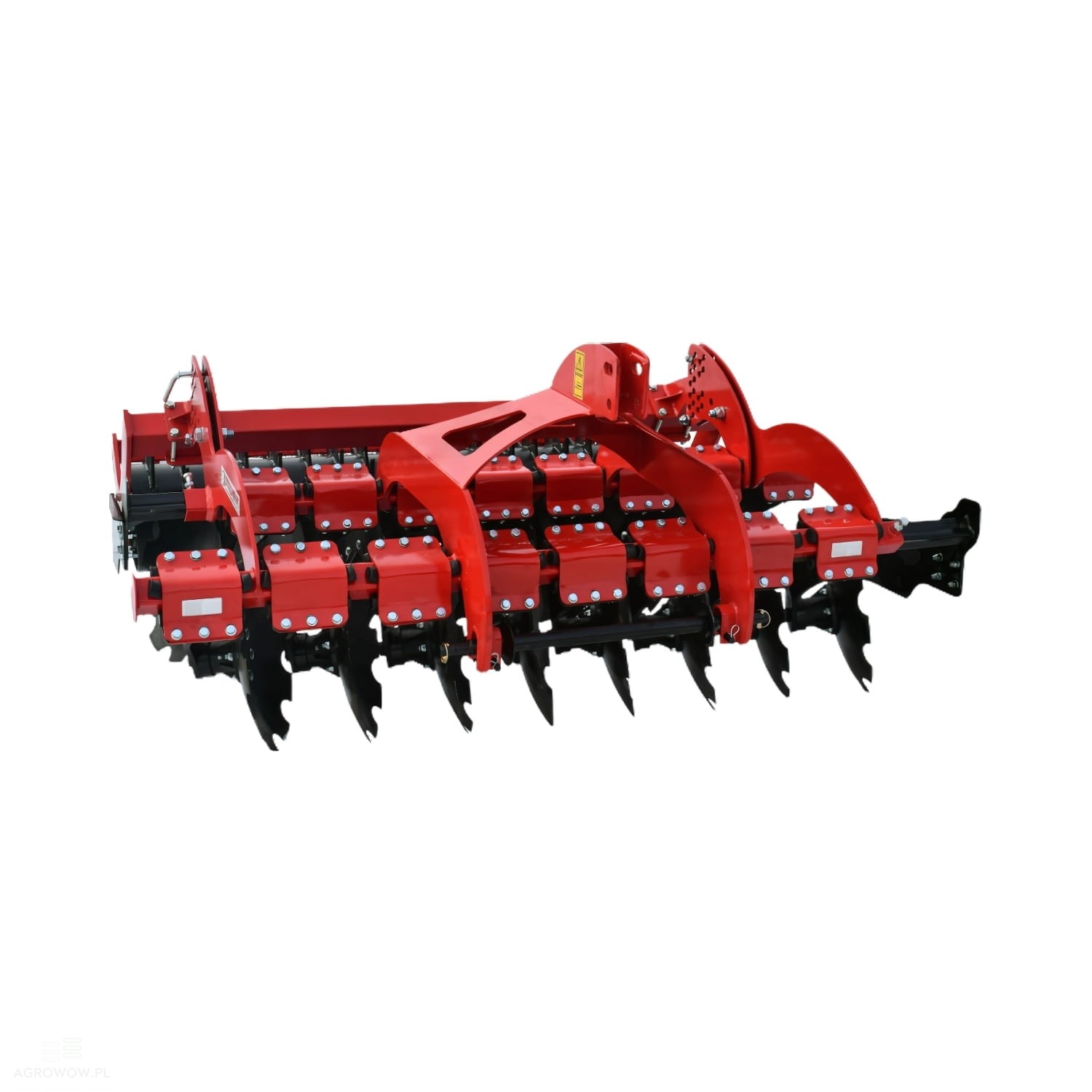

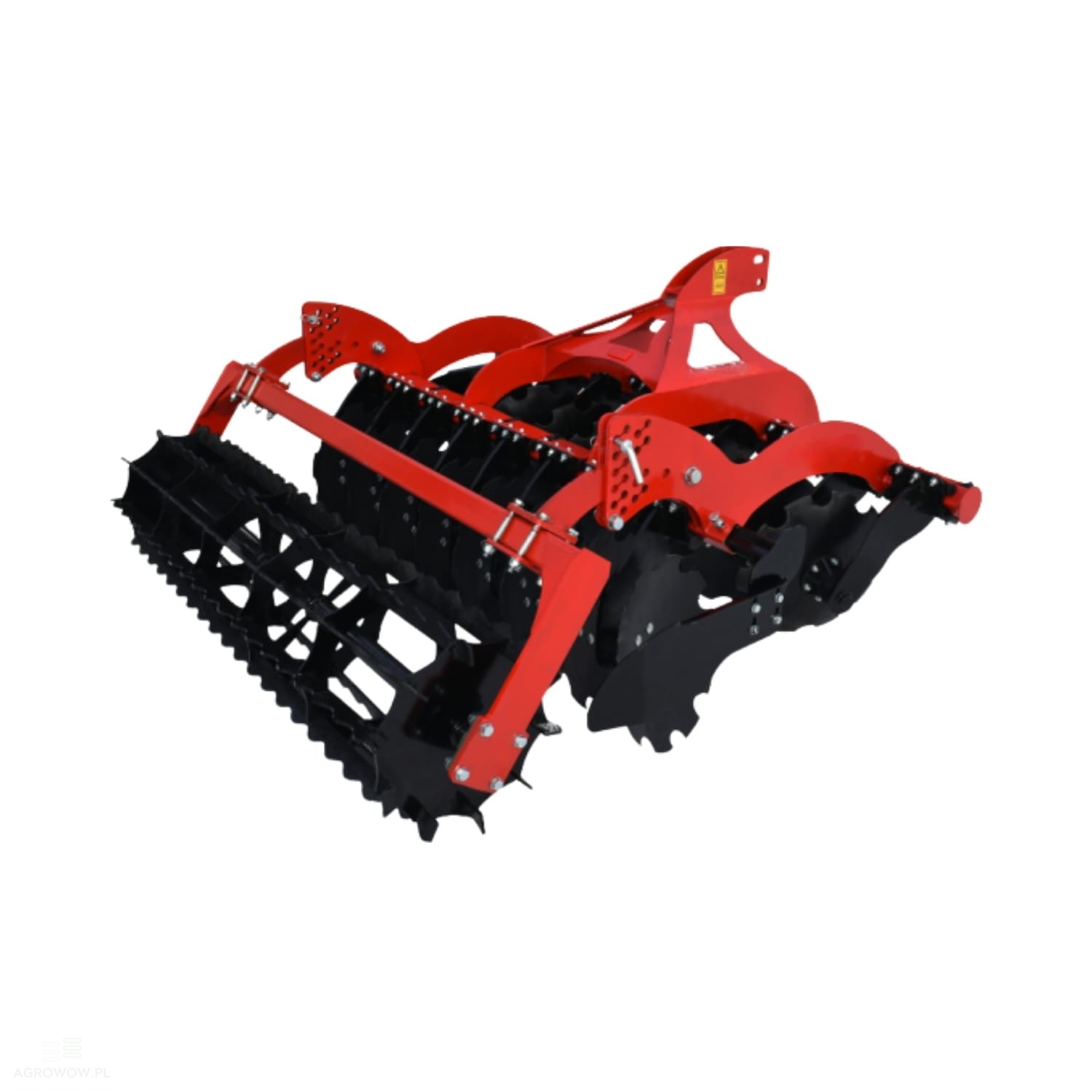

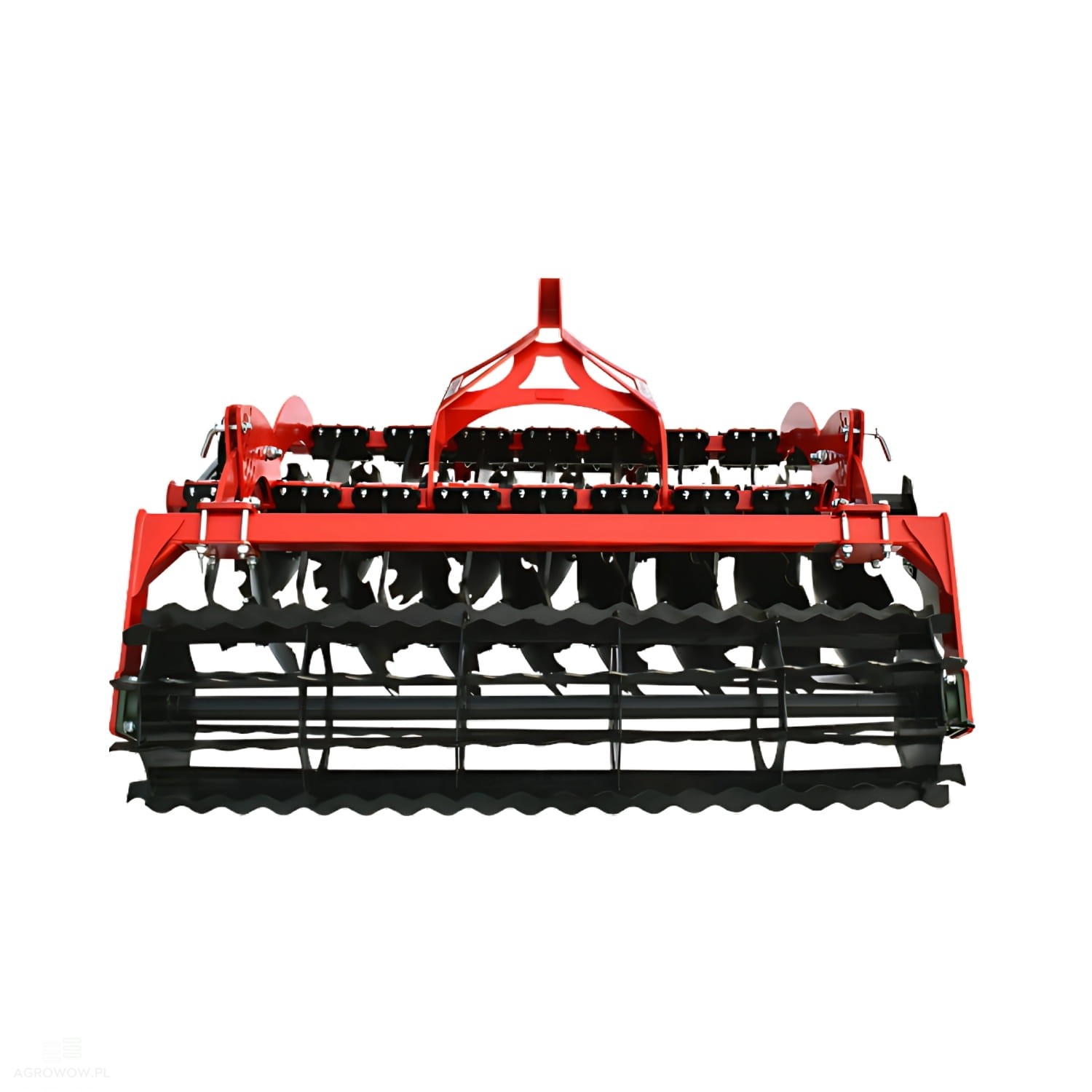

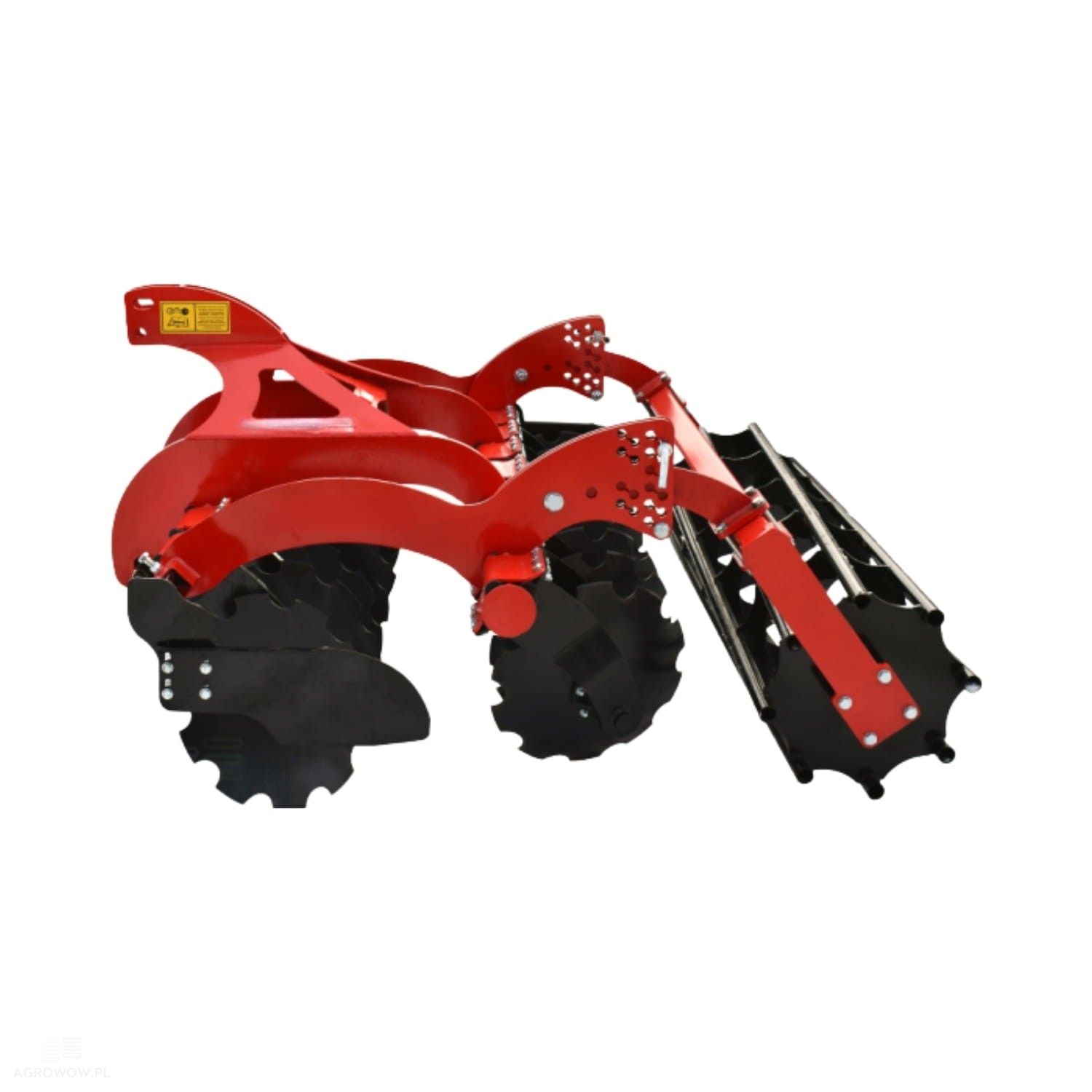

Agrowow disc harrow TIGER JUNIOR 2.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: TJII25

- Manufacturer's name: Disc harrow TIGER JUNIOR

- Width: 2500 mm

- Number of discs: 20

- Spacing between disc rows: 750 mm

- Disc diameter: 460 / 510 / 560 mm

- Working depth: 100-200 mm

- Weight: 720 kg

- Power requirement: 60-80 HP

- Efficiency: 1.7-2.2 ha/h

- Polish 560 mm boron steel discs

- Reinforced construction

- 6-hole hubs

- Rubber roller cushioning system

- Side screens

- Universal hitch system (Cat. II and III)

- Rear tubular or string roller

- Powder-coated parts

Optional extras (at additional cost):

- Packer roller

The packer roller is an essential element of tillage machinery, responsible for effective soil compaction and leveling. Its special design enables efficient crushing of larger soil clods, which improves soil structure and supports moisture absorption. Thanks to this, the soil becomes more stable, which promotes better root development and creates optimal conditions for plant growth.

- V-profile roller

The V-profile roller is an ideal solution for light and medium soils, where it is responsible for precise crushing and leveling of the surface. Its unique construction prevents excessive soil drying and improves its water retention capacity, which beneficially affects plant development. Furthermore, the V-profile roller minimizes the risk of erosion, which translates into better soil quality and structure.

- Croskill roller

The Croskill roller is a modern construction that, thanks to its double-disc layout, effectively breaks up compacted soil clods and levels the field surface. It is particularly useful in the seedbed preparation phase, as it improves soil structure and increases moisture retention capacity. It works perfectly in medium and heavy soils, eliminating overly compacted layers, stabilizing the subsoil, and supporting plant development.

- Polish 560 mm boron steel discs

Discs with a diameter of 560 mm, made of high-quality boron steel, are characterized by exceptional durability and abrasion resistance. Their carefully designed construction allows for effective cutting of crop residues, thorough soil mixing, and optimal preparation for further stages of cultivation. Thanks to durable materials, the discs perform well even in difficult field conditions, ensuring reliability and long service life.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution that eliminates the need for frequent maintenance and lubrication, facilitating the operation of agricultural machinery. Made of exceptionally durable materials, they provide high resistance to heavy loads and long-term work. Their use reduces the risk of failure and downtime, which translates into lower operating costs and higher cultivation efficiency.

Detailed Description:

• The TIGER JUNIOR disc harrow is a versatile and compact agricultural machine, created for effective pre-sowing cultivation and other field tasks.
• Its construction enables effective loosening, pressing, and crushing of the soil, allowing for the creation of ideal conditions for plant growth.
• The 2500 mm working width machine is equipped with 20 working discs arranged in two rows, which ensures uniform soil aeration and thorough loosening.
• The ability to adjust the working depth in the range of 100-200 mm allows for adapting the harrow to different soil conditions and specific crop requirements.
• TIGER JUNIOR performs excellently in pre-sowing cultivation as well as in mixing crop residues and organic fertilizers, which contributes to improving soil fertility.
• It can also be used for soil refinement in a simplified no-till system, which increases its versatility.
• Additionally, the ability to work with a seed drill allows for simultaneous cultivation and sowing, which translates into time savings and higher work efficiency.
• The solid construction of the aggregate ensures its reliability and long service life, even under intensive use.
• Discs with diameters of 460, 510, or 560 mm, made of high-quality boron steel, are characterized by high abrasion resistance and long durability.
• The reinforced build and the use of 6-hole hubs make the machine exceptionally stable and resistant to heavy loads during work.
• The cushioning system in the form of rubber rollers effectively reduces vibrations, protecting the structure from overloads.
• Side screens prevent soil from spilling outside the working area, which increases work precision.
• The machine is additionally equipped with a rear tubular or string roller, which levels the field surface and improves the soil's ability to store moisture, which is of key importance for plant growth.
• TIGER JUNIOR works with tractors with 60-80 HP, ensuring broad compatibility and economical operation.
• Its efficiency of 1.7-2.2 ha/h makes it an excellent solution for farmers looking for reliable and effective equipment for soil cultivation.
• The universal Cat. II and III hitch system enables fast and convenient connection to various tractor models.
• All elements of the aggregate are covered with powder coating, which provides effective protection against corrosion and increases resistance to mechanical damage, extending the device's lifespan.
• Thanks to its modern design and solid workmanship, TIGER JUNIOR is an ideal choice for farmers who expect reliability, high efficiency, and ease of use.
