Agrowow disc harrow TIGER JUNIOR 2.7 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: TJII27

- Manufacturer's name: Disc harrow TIGER JUNIOR

- Width: 2700 mm

- Number of discs: 22

- Spacing between disc rows: 750 mm

- Disc diameter: 460 / 510 / 560 mm

- Working depth: 100-200 mm

- Weight: 810 kg

- Power requirement: 65-85 HP

- Efficiency: 1.9-2.8 ha/h

- Polish 560 mm boron steel discs

- Reinforced construction

- 6-hole hubs

- Rubber roller cushioning system

- Side screens

- Universal hitch system (Cat. II and III)

- Rear tubular or string roller

- Powder-coated parts

Optional extras (at additional cost):

- Packer roller

The packer roller is a key component of agricultural machinery, responsible for effective soil compaction and leveling. Thanks to its specially designed construction, it efficiently crushes larger soil clods, which significantly improves soil structure and facilitates moisture absorption. Its use allows for soil stabilization, which promotes proper plant root development and creates favorable conditions for their growth.

- V-profile roller

The V-profile roller is an excellent solution for work in light and medium soils, where its primary function is precise crushing and leveling of the surface. Its unique design prevents excessive soil drying while improving its ability to store water. As a result, plants have better access to moisture, which translates into their proper development. Additionally, the V-profile roller helps reduce the risk of soil erosion, ensuring optimal structure.

- Croskill roller

The Croskill roller is a modern solution that, thanks to its double-disc design, effectively crushes compacted soil fragments and levels the field. It is particularly useful at the stage of preparing the seedbed, as it improves structure and increases moisture retention capacity. It works perfectly in medium and heavy soils, eliminating excessive compaction, stabilizing the subsoil, and supporting plant growth.

- Polish 560 mm boron steel discs

Discs with a diameter of 560 mm, made of durable boron steel, are distinguished by high abrasion resistance and a long service life. Their carefully designed shape enables effective cutting of crop residues, intensive soil mixing, and proper preparation for further cultivation. Thanks to durable materials, the discs prove themselves in demanding field conditions, ensuring reliability and long-term operational efficiency.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are an innovative solution that eliminates the need for frequent maintenance and lubrication, significantly facilitating the operation of agricultural machinery. Made of exceptionally durable materials, they are characterized by high resistance to intensive loads and long-term operation. Their use minimizes the risk of failure and downtime, which translates into lower operating costs and increased cultivation efficiency.

Detailed Description:

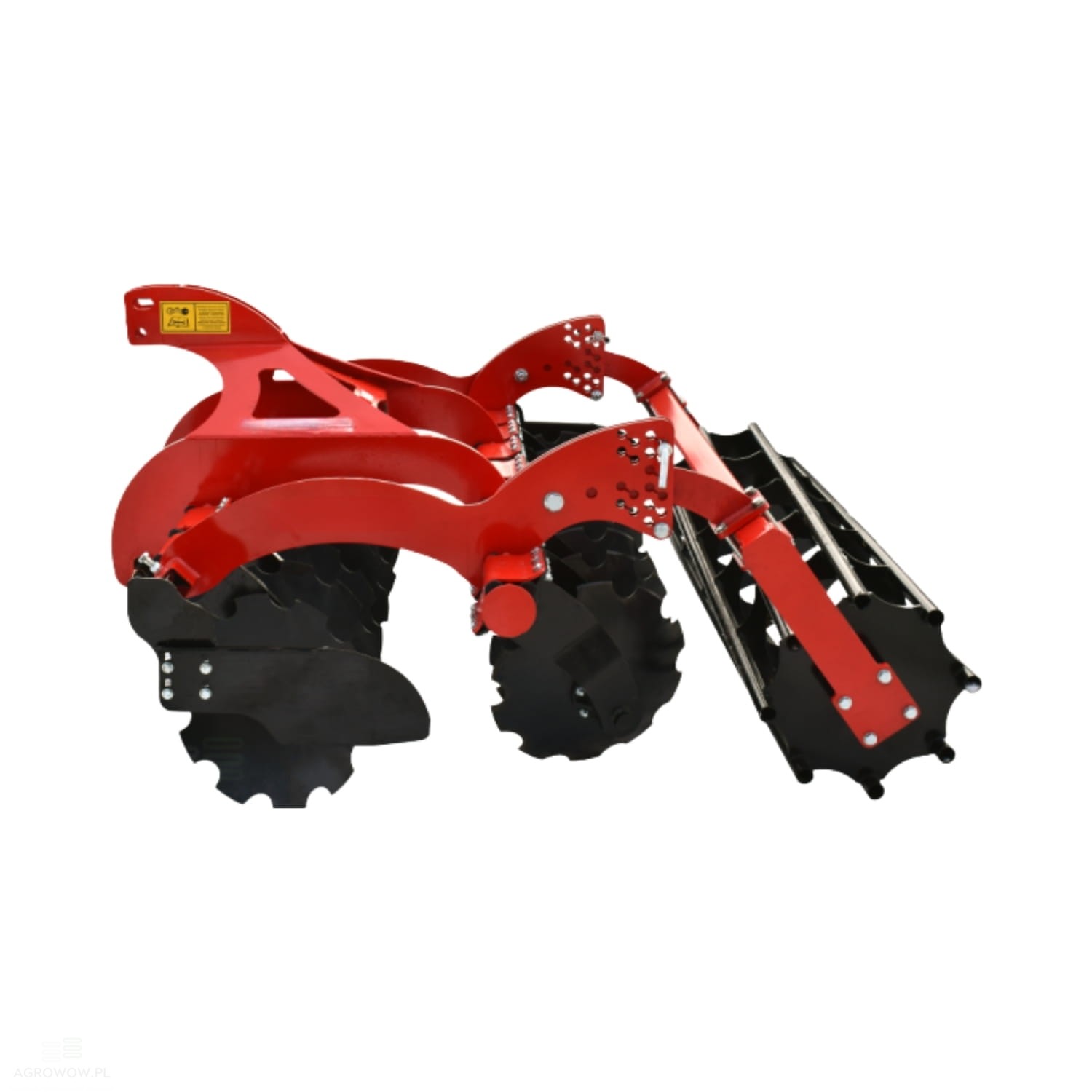

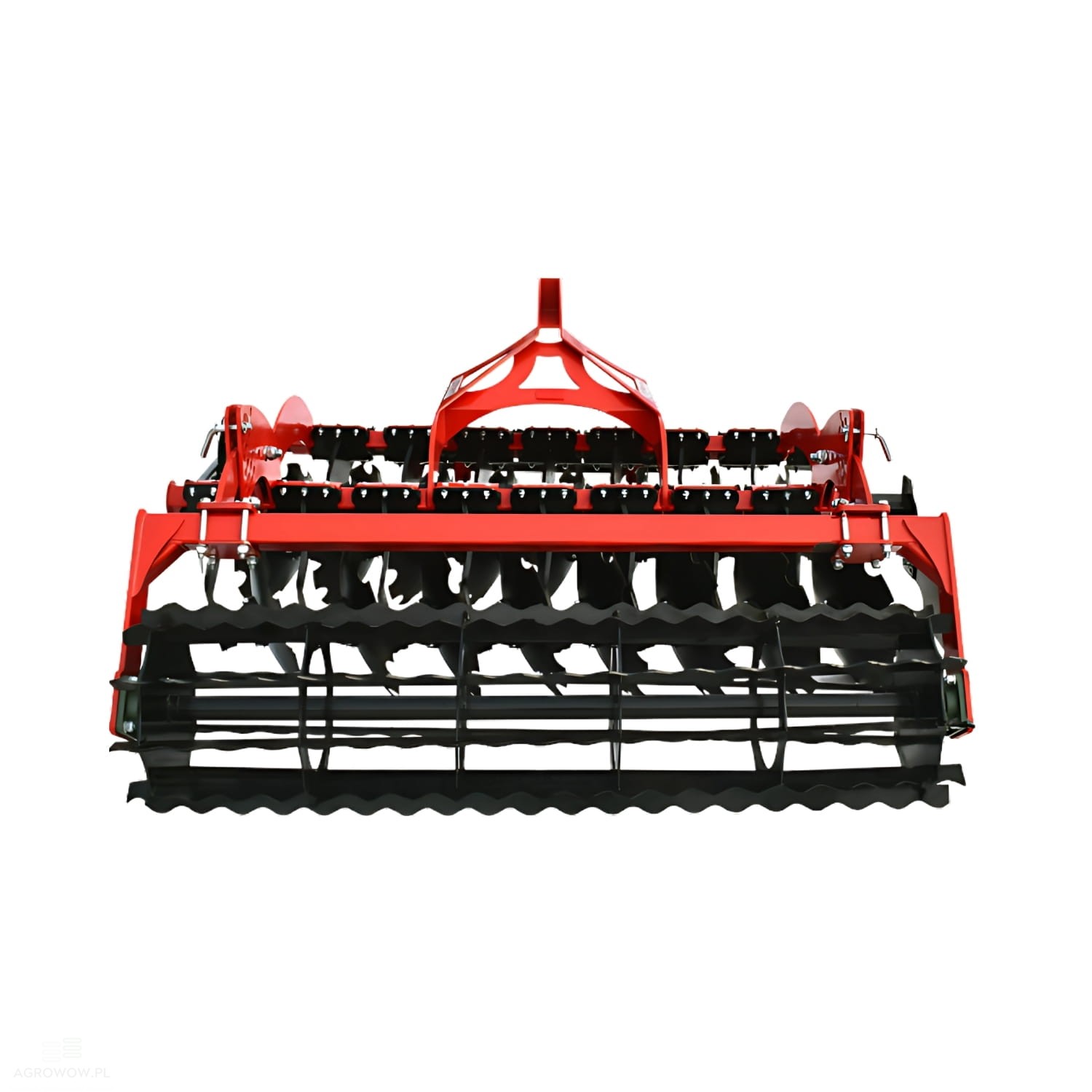

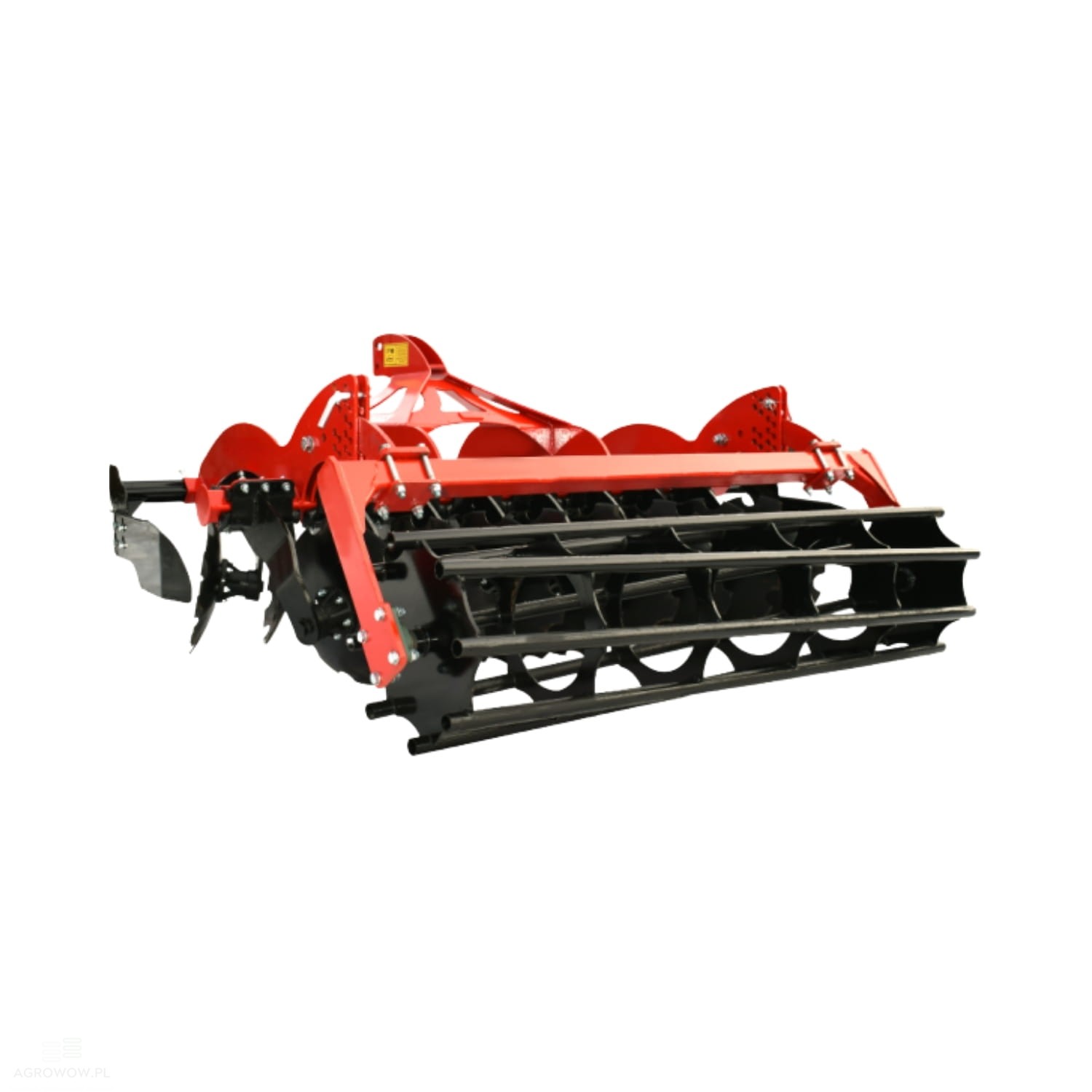

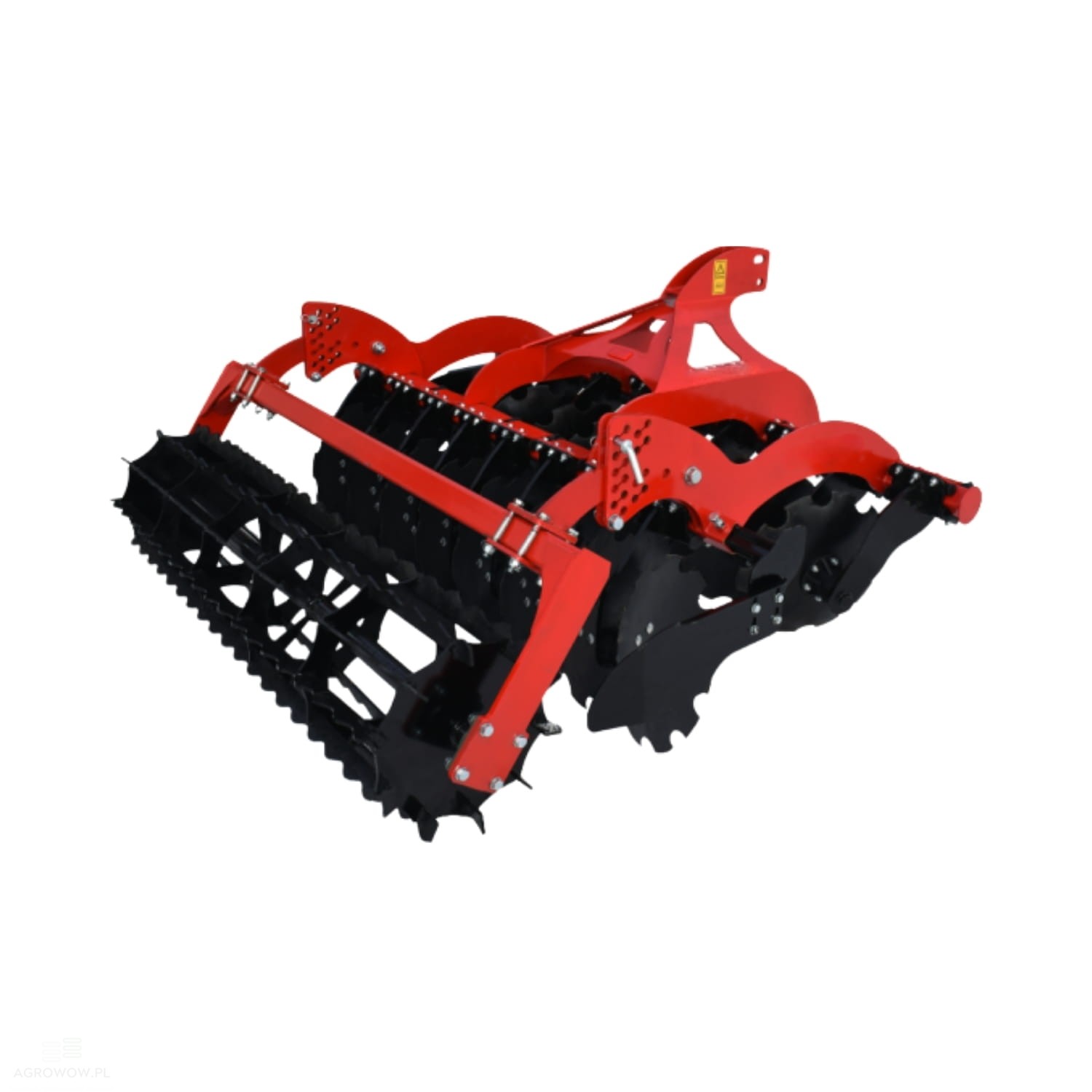

• The TIGER JUNIOR disc harrow is a versatile and compact agricultural machine designed for effective pre-sowing cultivation and other key field tasks.

• Its construction effectively loosens, presses, and crushes the soil, ensuring ideal conditions for plant growth.

• The 2700 mm working width machine is equipped with 22 working discs arranged in two rows, which guarantees thorough soil loosening and uniform aeration.

• The working depth adjustment in the range of 100 to 200 mm allows the machine to be adapted to different soil conditions and crop specifics.

• TIGER JUNIOR performs excellently in pre-sowing soil cultivation, as well as in mixing crop residues and organic fertilizers, which improves structure and fertility.

• It can also be used for soil refinement in simplified no-till systems, increasing its functionality.

• The ability to work with a seed drill allows for simultaneous cultivation and sowing, which significantly shortens work time and increases farm efficiency.

• The solid construction of the machine ensures its durability and reliability, even under intensive use.

• Discs with diameters of 460, 510, or 560 mm, made of high-quality boron steel, are characterized by high abrasion resistance and long service life.

• The reinforced build and the use of 6-hole hubs make the machine stable and resistant to high loads during operation.

• The cushioning system based on rubber rollers effectively reduces vibrations, protecting the structure from overloads.

• Side screens prevent soil from scattering outside the working area, increasing precision and efficiency.

• The machine is equipped with a rear tubular or string roller, which additionally levels the soil surface and supports its ability to store moisture.

• The harrow requires compatibility with 65-85 HP tractors, ensuring broad compatibility and economical use. An efficiency of 1.9-2.8 ha/h makes it an ideal choice for farmers looking for an effective and reliable tool for soil cultivation.

• The universal Cat. II and III hitch system enables fast and convenient connection to various tractor models.

• All elements of the harrow are covered with a powder coating, which provides protection against corrosion and increases resistance to mechanical damage, extending its service life.

• Modern construction and solid workmanship make the TIGER JUNIOR an excellent choice for farmers who value reliability, efficiency, and ease of use.
