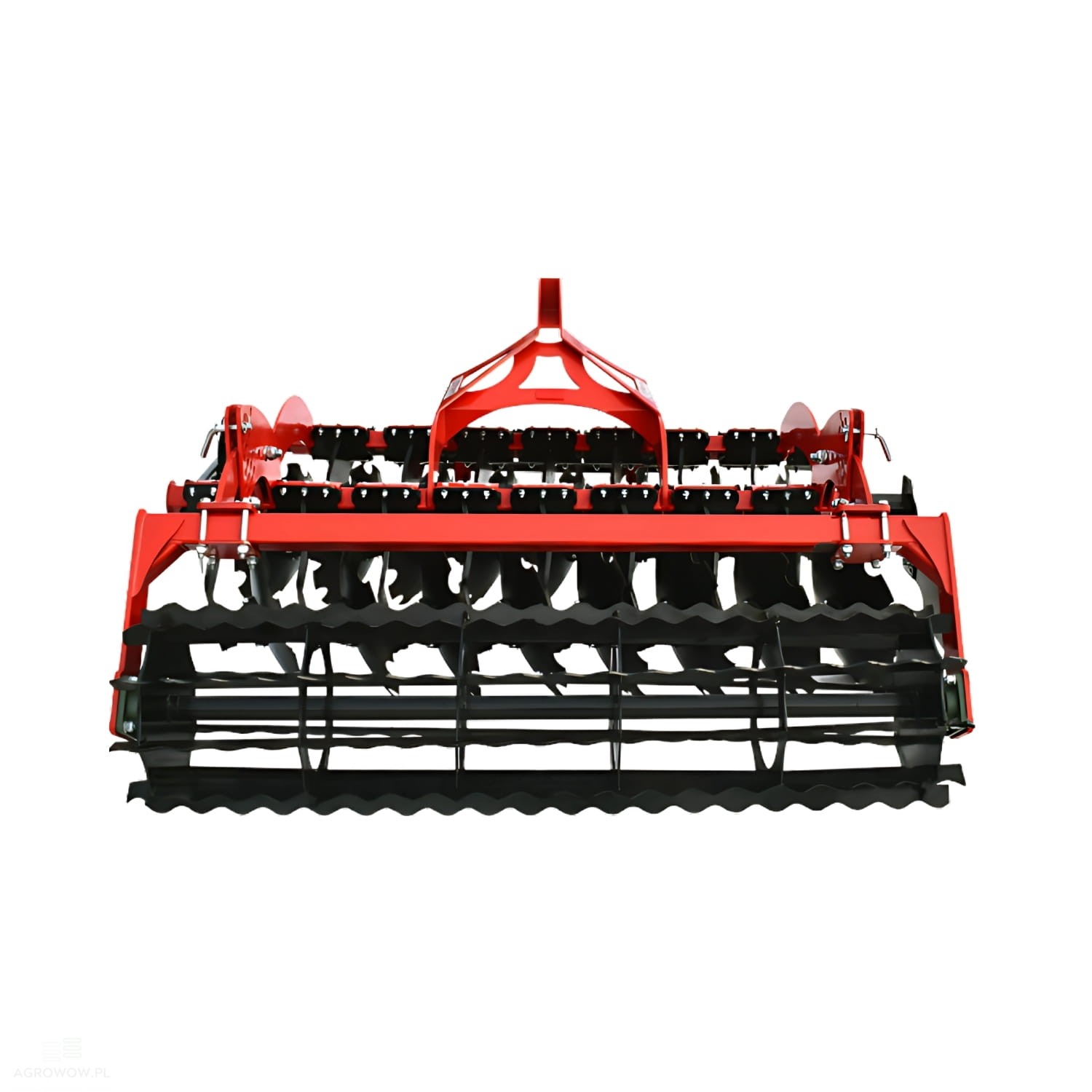

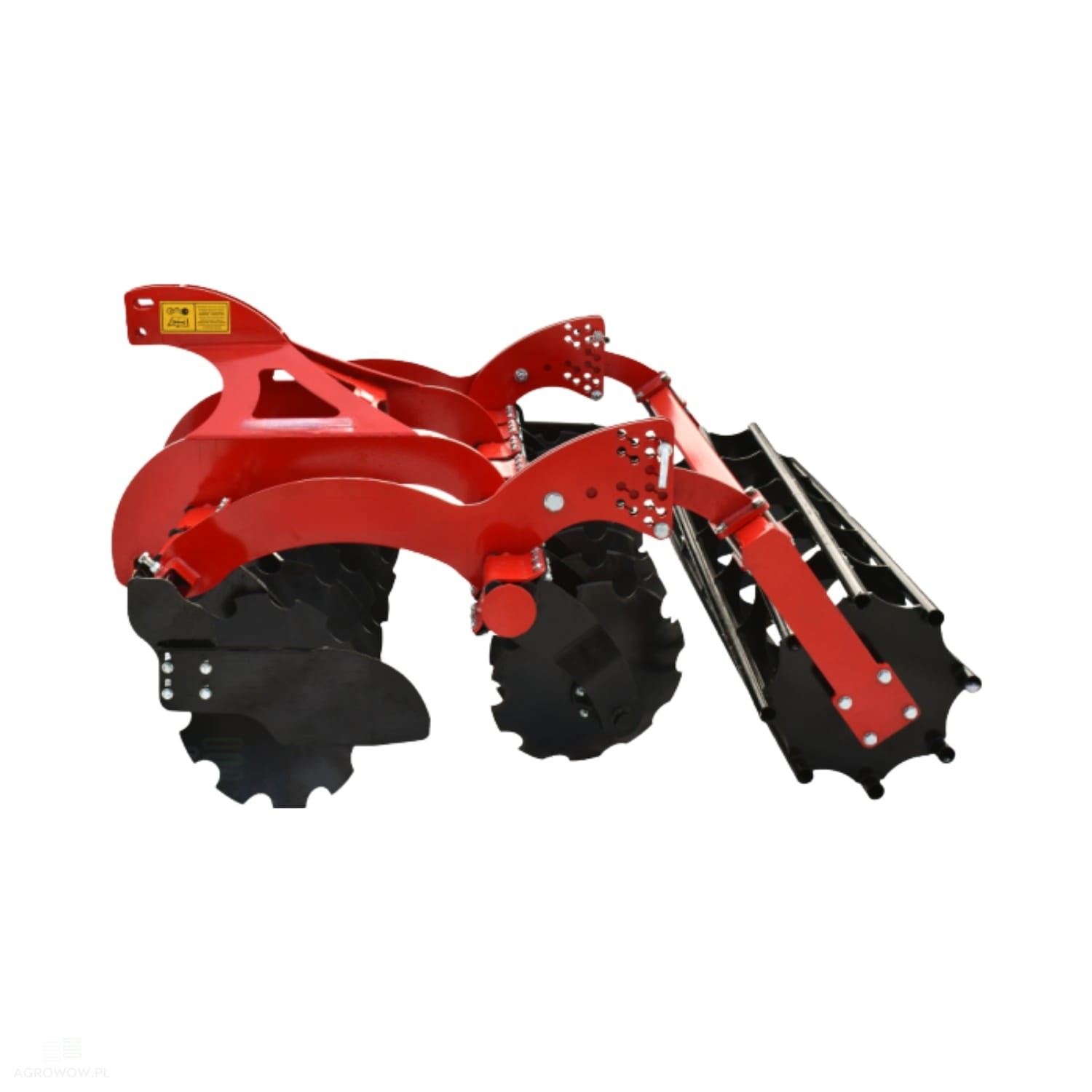

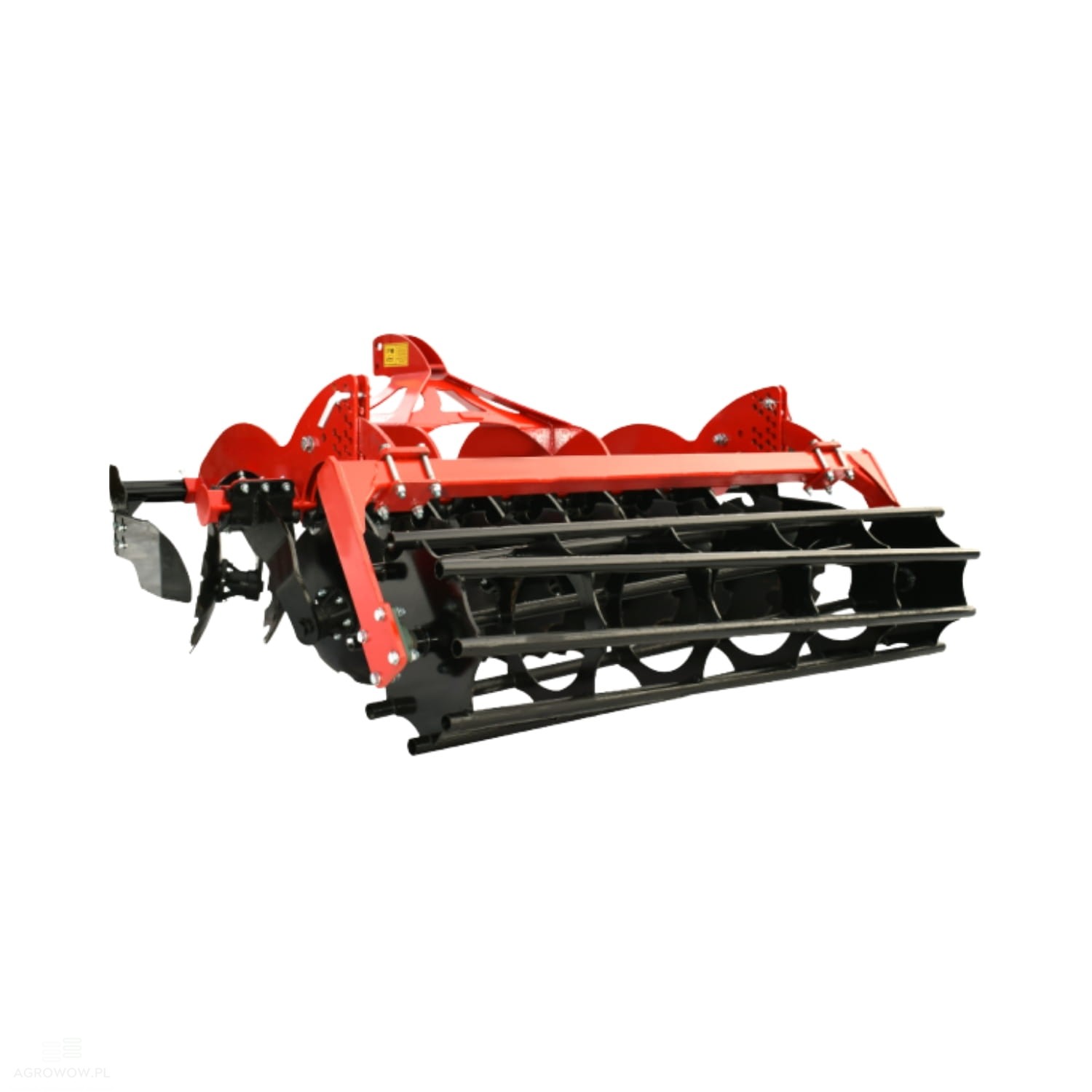

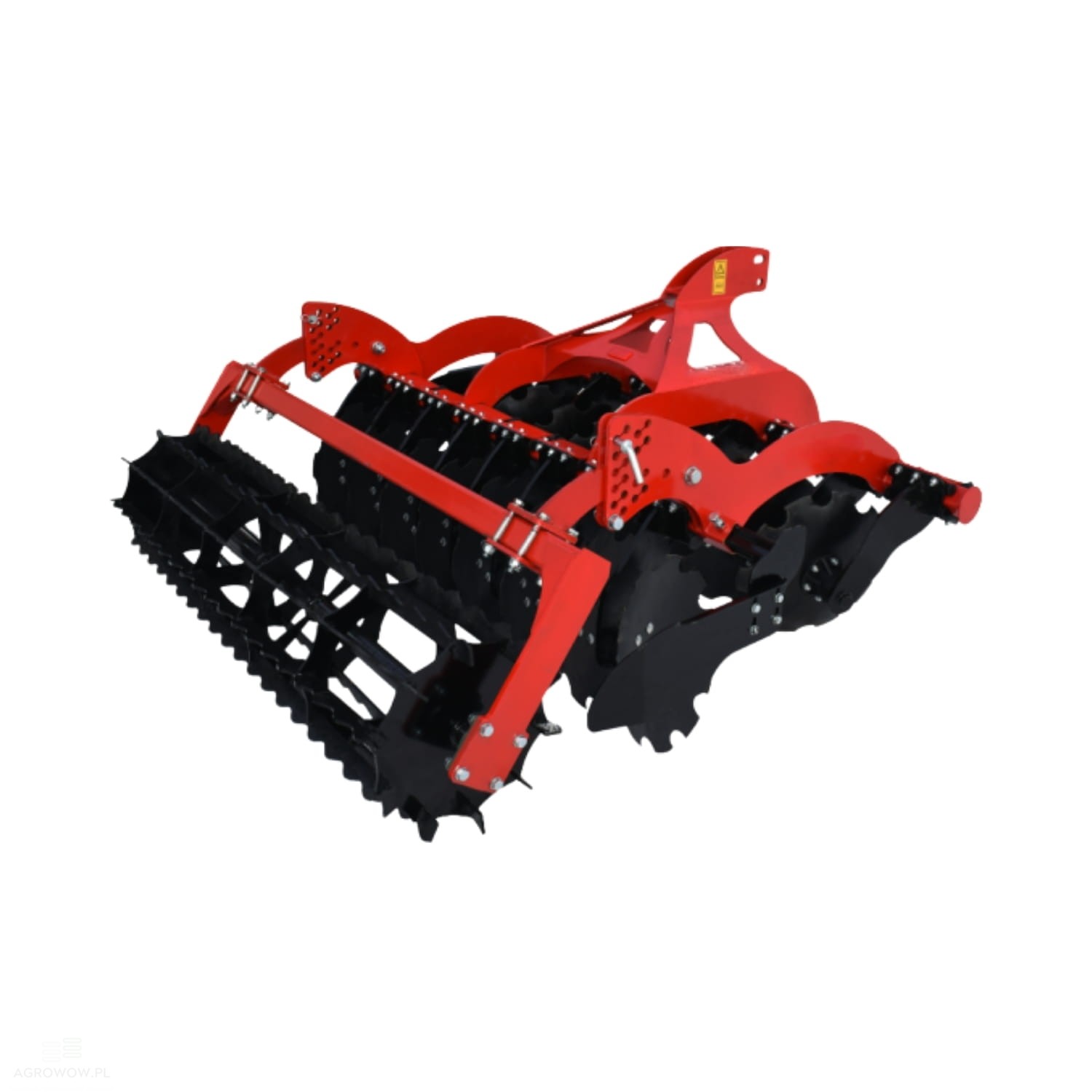

Agrowow disc harrow TIGER JUNIOR 3.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: TJII3,0

- Manufacturer's name: Disc harrow TIGER JUNIOR

- Width: 3000 mm

- Number of discs: 24

- Spacing between disc rows: 750 mm

- Disc diameter: 460 / 510 / 560 mm

- Working depth: 100-200 mm

- Weight: 900 kg

- Power requirement: 75-95 HP

- Efficiency: 2.1-3.3 ha/h

- Polish 560 mm boron steel discs

- Reinforced construction

- 6-hole hubs

- Rubber roller cushioning system

- Side screens

- Universal hitch system (Cat. II and III)

- Rear tubular or string roller

- Powder-coated parts

Optional extras (at additional cost):

- Packer roller

The packer roller is an essential component of tillage machinery, responsible for effective soil compaction and leveling. Its specially developed design allows for efficient crushing of larger soil clods, which significantly improves the soil structure and supports moisture absorption. Thanks to the roller, the soil becomes more stable, which promotes proper root development and ensures optimal growth conditions for plants.

- V-profile roller

The V-profile roller is an ideal solution for work in light and medium soils, where it effectively crushes and levels the field surface. Its special design prevents excessive soil drying and increases its ability to retain moisture, which is crucial for proper plant development. Furthermore, the V-profile roller helps protect the soil against erosion, improving its structure and stability.

- Croskill roller

The Croskill roller is an innovative solution that, thanks to its double-disc construction, effectively crushes compacted soil layers and levels the field surface. It is particularly useful during the soil preparation stage for sowing, as it improves soil structure and increases moisture storage capacity. It performs excellently in medium and heavy soils, eliminating overly compacted layers, stabilizing the subsoil, and supporting plant growth.

- Polish 560 mm boron steel discs

Discs with a diameter of 560 mm made of boron steel are characterized by exceptional durability and abrasion resistance. Their carefully designed shape allows for effective cutting of crop residues, intensive soil mixing, and optimal preparation for further tillage operations. The use of durable materials ensures that the discs cope well even in difficult field conditions, providing a long service life and reliability.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution that eliminates the need for frequent maintenance and lubrication, which significantly facilitates the operation of agricultural machinery. Made of durable materials, they are characterized by high resistance to intensive loads and long-term operation. Their use reduces the risk of failure and downtime, which translates into lower operating costs and greater efficiency in the field.

Detailed Description:

• The TIGER JUNIOR disc harrow is a modern and versatile agricultural machine designed for effective pre-sowing cultivation and other key field tasks.

• Its construction ensures effective loosening, pressing, and crushing of the soil, creating optimal conditions for plant growth.

• The 3000 mm working width machine is equipped with 24 working discs arranged in two rows, which guarantees uniform soil aeration and thorough loosening.

• The working depth adjustment in the range of 100 to 200 mm allows for adapting the machine to different soil conditions and cultivation requirements.

• TIGER JUNIOR excels in pre-sowing soil cultivation, as well as in mixing crop residues and organic fertilizers, which improves soil structure and helps retain nutrients.

• It can also be used for soil refinement in simplified no-till technology, significantly increasing its versatility.

• The ability to work with a seed drill allows for simultaneous cultivation and sowing, which translates into time savings and increased work efficiency.

• The machine’s solid construction guarantees its durability and reliability, even under intensive use.

• Discs with diameters of 460, 510, or 560 mm, made of high-quality boron steel, provide excellent abrasion resistance and long service life.

• The reinforced structure and the use of 6-hole hubs increase machine stability and resistance to heavy loads during operation.

• The cushioning system with rubber rollers effectively absorbs vibrations and protects the structure from excessive overload.

• Side screens minimize soil spillage outside the working area, increasing the harrow’s precision.

• The machine is equipped with a rear tubular or string roller, which levels the field surface and supports moisture retention in the soil, which influences better plant growth.

• The harrow requires compatibility with 75-95 HP tractors, ensuring broad compatibility and economical operation.

• An efficiency of 2.1-3.3 ha/h makes it an ideal solution for farmers looking for effective and reliable equipment for soil cultivation.

• The universal Cat. II and III hitch system enables easy and fast connection to various tractor models.

• All parts of the harrow are covered with a powder coating, which protects against corrosion and increases resistance to mechanical damage, extending the machine's service life.

• Modern construction and solid workmanship make the TIGER JUNIOR an excellent choice for farmers who value reliability, efficiency, and ease of use.
