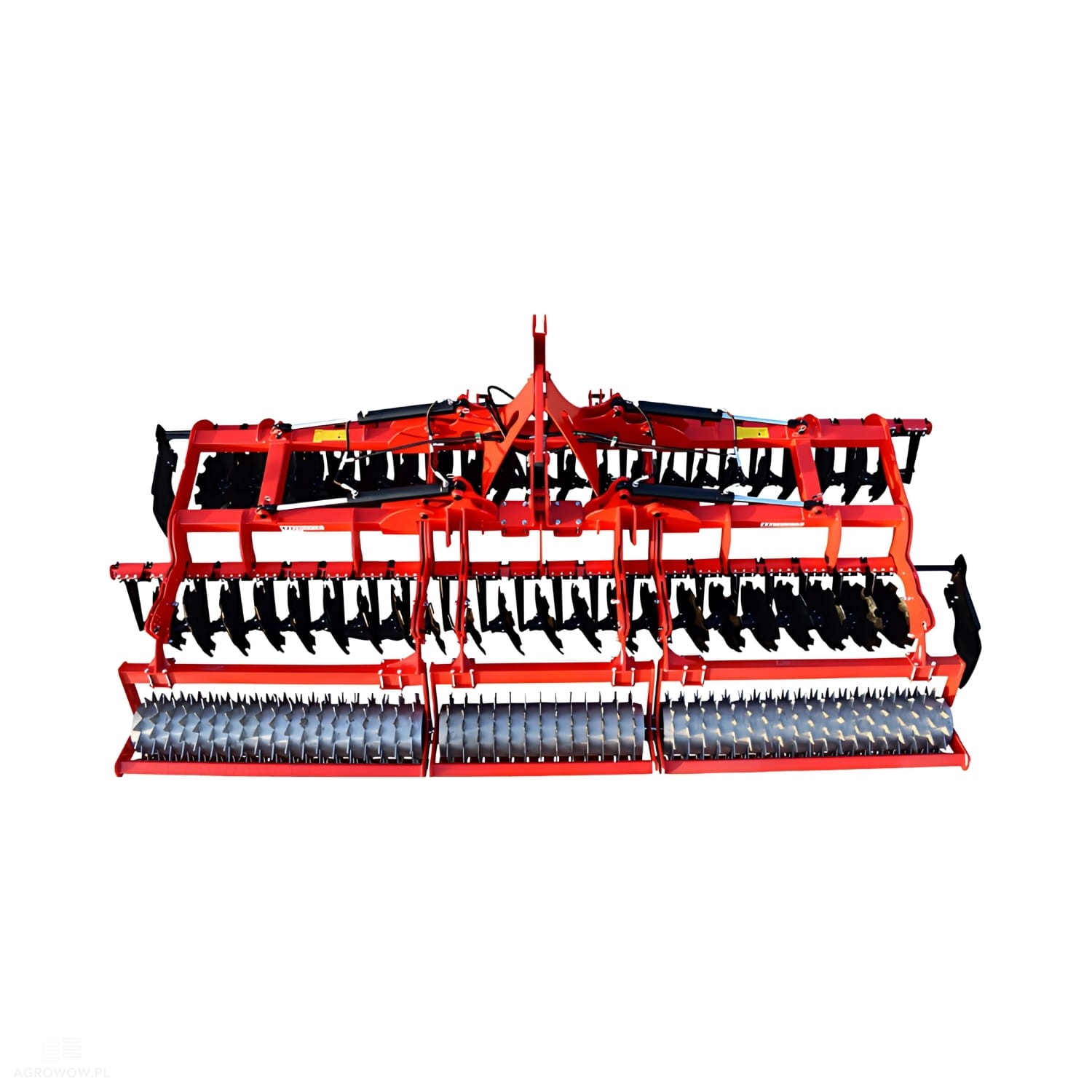

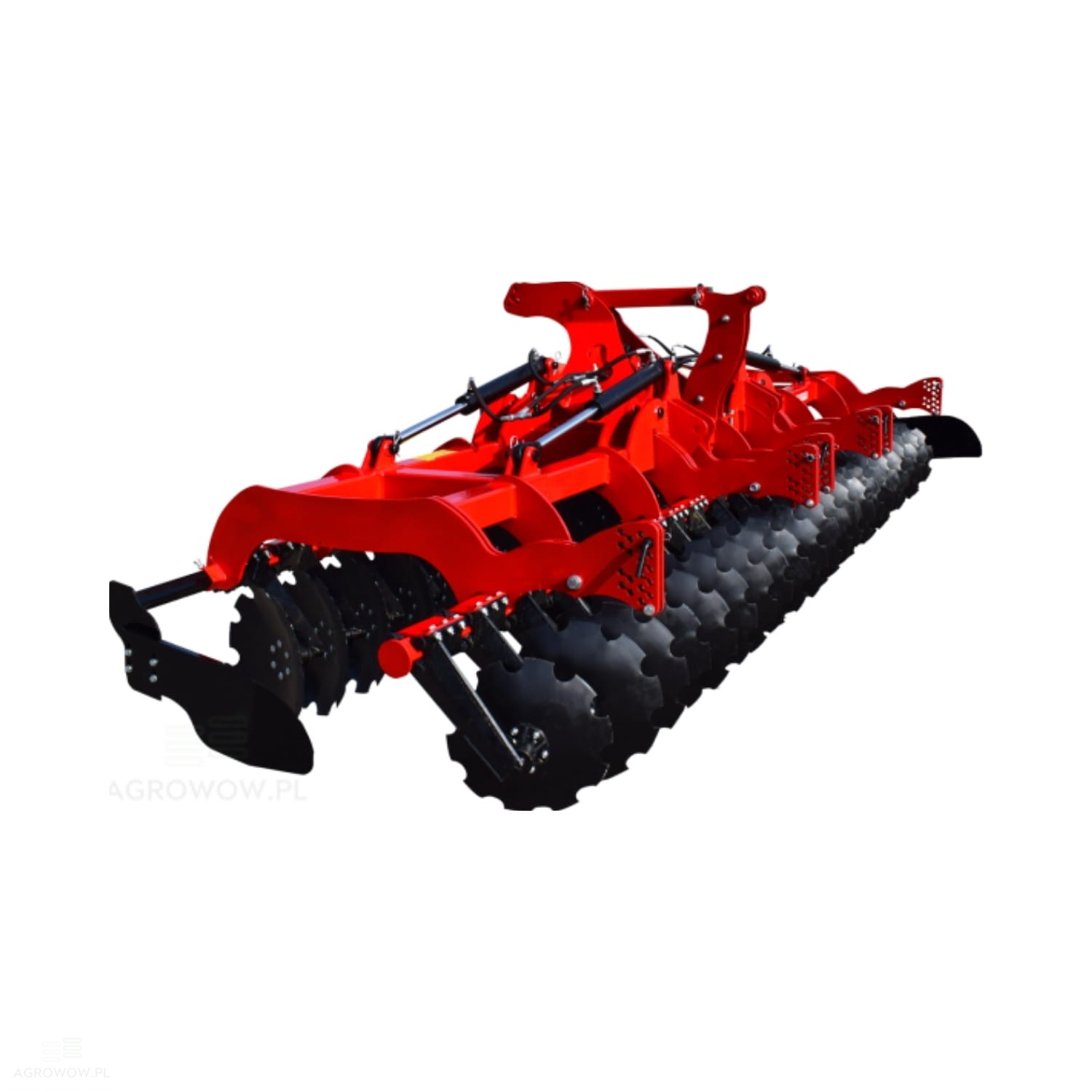

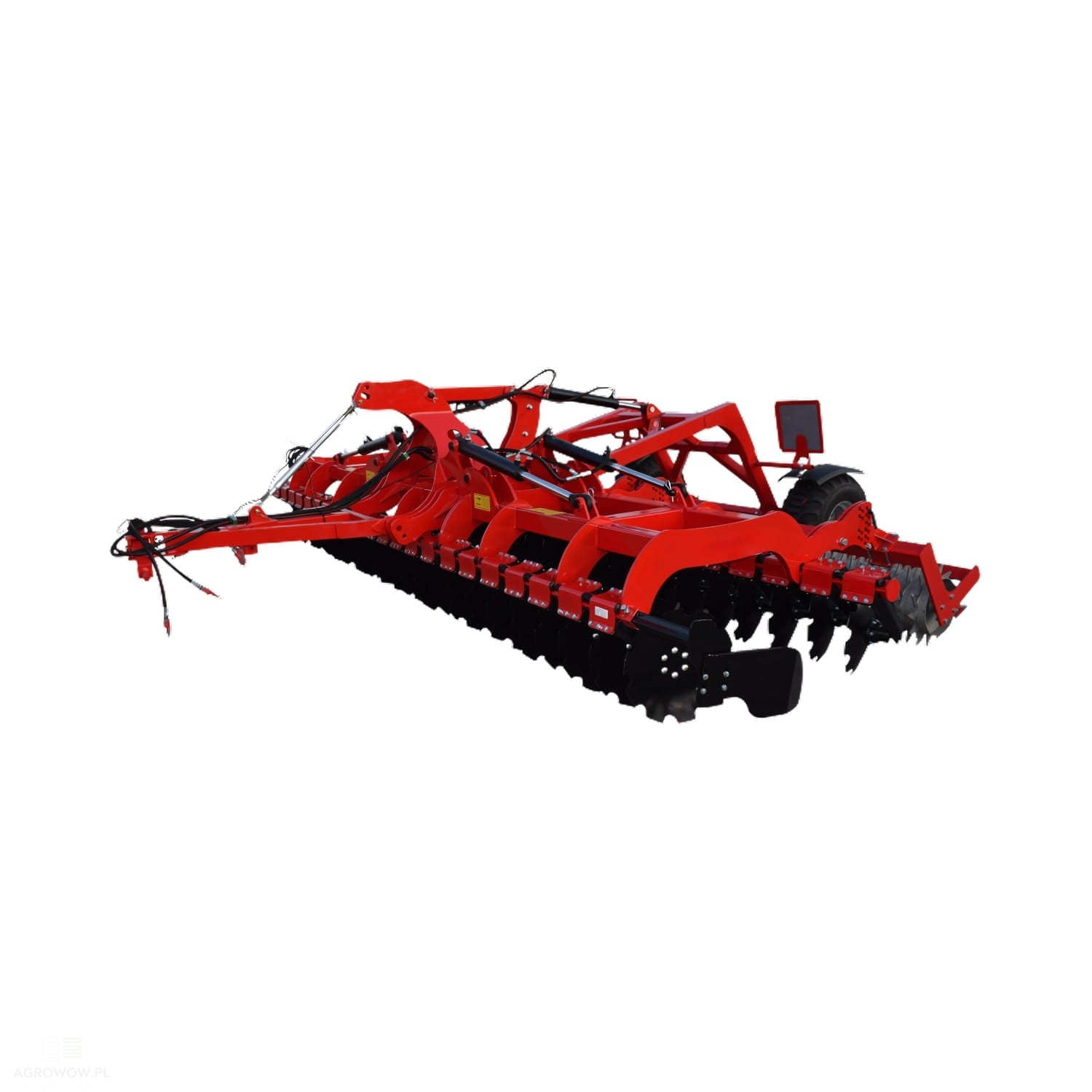

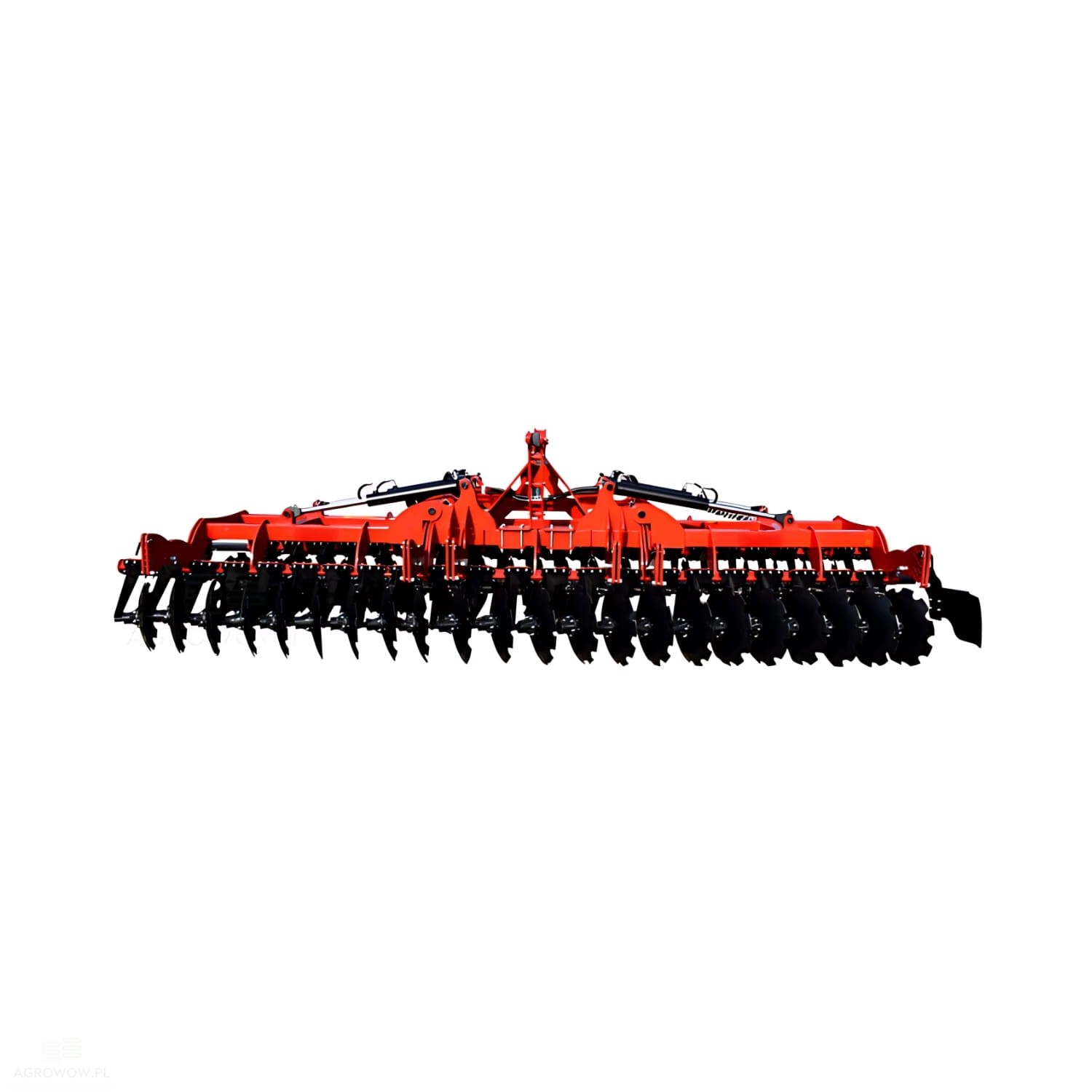

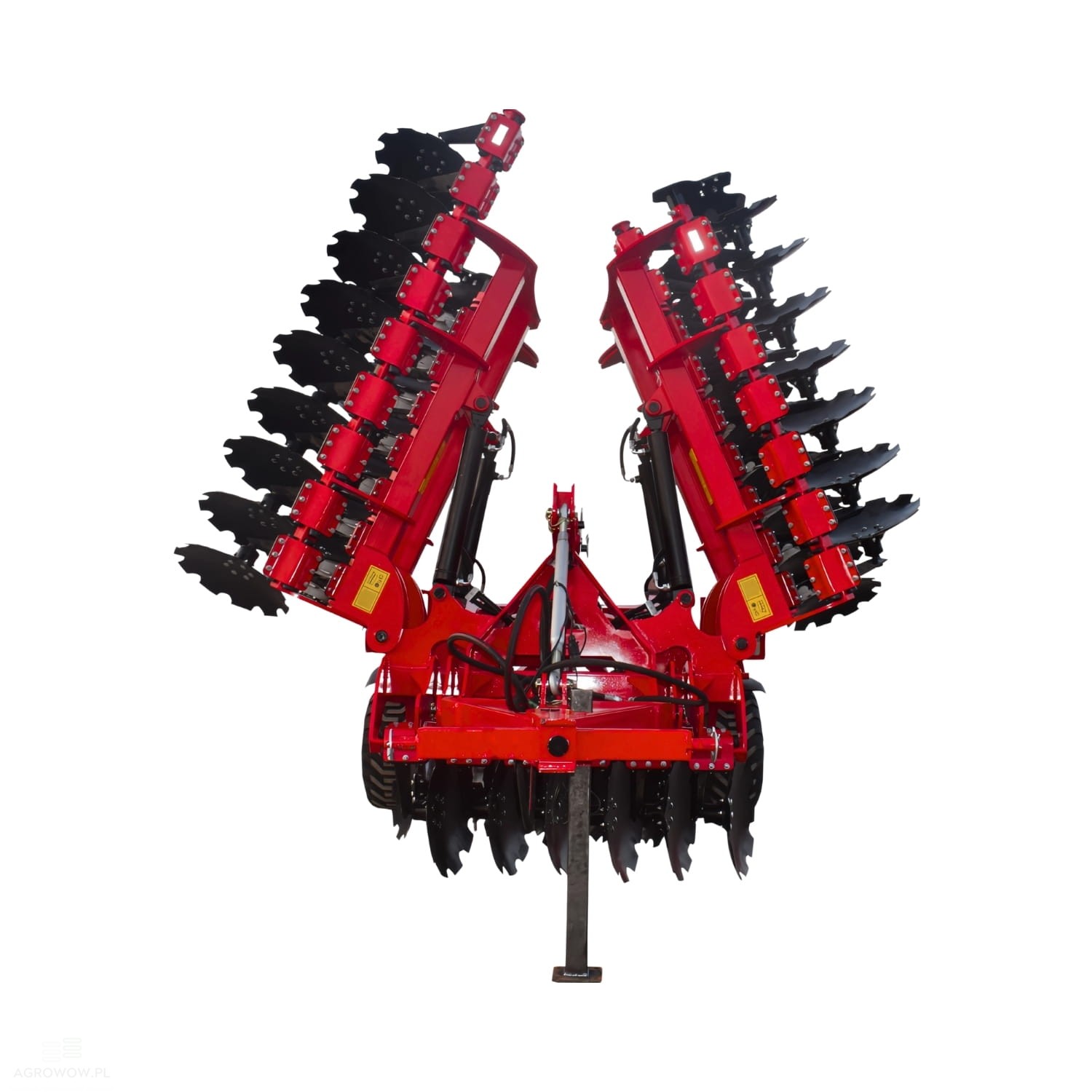

Agrowow hydraulic disc harrow ROTOS 4.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Producent: Agrowow

- Nr katalogowy: STBTH40

- Nazwa producenta: Brona hydrauliczna ROTOS

- Szerokość: 4000 mm

- Liczba siłowników: 4

- Liczba talerzy: 32

- Średnica talerzy: 560 / 610 / 660

- Rozstaw rzędów talerzy: 1200 mm

- Waga: 2500 kg

- Zapotrzebowanie mocy: 120-150 KM

- Wydajność: 2,8-4,2 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is an important component of cultivation machinery, responsible for effective soil compaction and leveling. Its specially developed design enables efficient crushing of larger soil clods, which significantly improves the ground structure and supports moisture absorption. Thanks to the use of the roller, the soil becomes more stable, promoting proper plant rooting and providing them with appropriate conditions for growth.

- Roof roller

The roof roller is an ideal solution for operation on light and medium soils, where it effectively crushes and levels the field surface. Its special construction prevents excessive soil drying and increases its moisture retention capacity, which is of key importance for proper plant development. Furthermore, the roof roller helps protect the soil against erosion, improving its structure and stability.

- Croskill roller

The croskill roller is an innovative solution that, thanks to its double construction, effectively crushes compacted soil layers and levels the field surface. It is particularly useful during the pre-sowing soil preparation stage, as it improves its structure and increases its moisture storage capacity. It works great on medium and heavy soils, eliminating overly compacted layers, stabilizing the ground, and supporting plant growth.

- Double roof roller

The double roof roller is an advanced solution that provides even more effective loosening and leveling of the soil. Thanks to its construction, it efficiently crushes soil clods, improves the ground structure, and prevents excessive soil drying. Additionally, it increases the soil's moisture storage capacity, which promotes better plant growth and optimizes conditions for further cultivation works.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution that eliminates the need for frequent maintenance activities and lubrication, which significantly simplifies the operation of agricultural machinery. Made of durable materials, they are characterized by high resistance to intensive loads and long-term work. Their application reduces the risk of failures and downtime, translating into lower operating costs and greater work efficiency in the field.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm made of high-grade boron steel are characterized by exceptional resistance to wear and abrasion. Their precise contouring enables effective cutting of crop residues, intensive soil mixing, and its preparation for subsequent stages of cultivation. The durable construction ensures a long service life and trouble-free operation even in difficult field conditions.

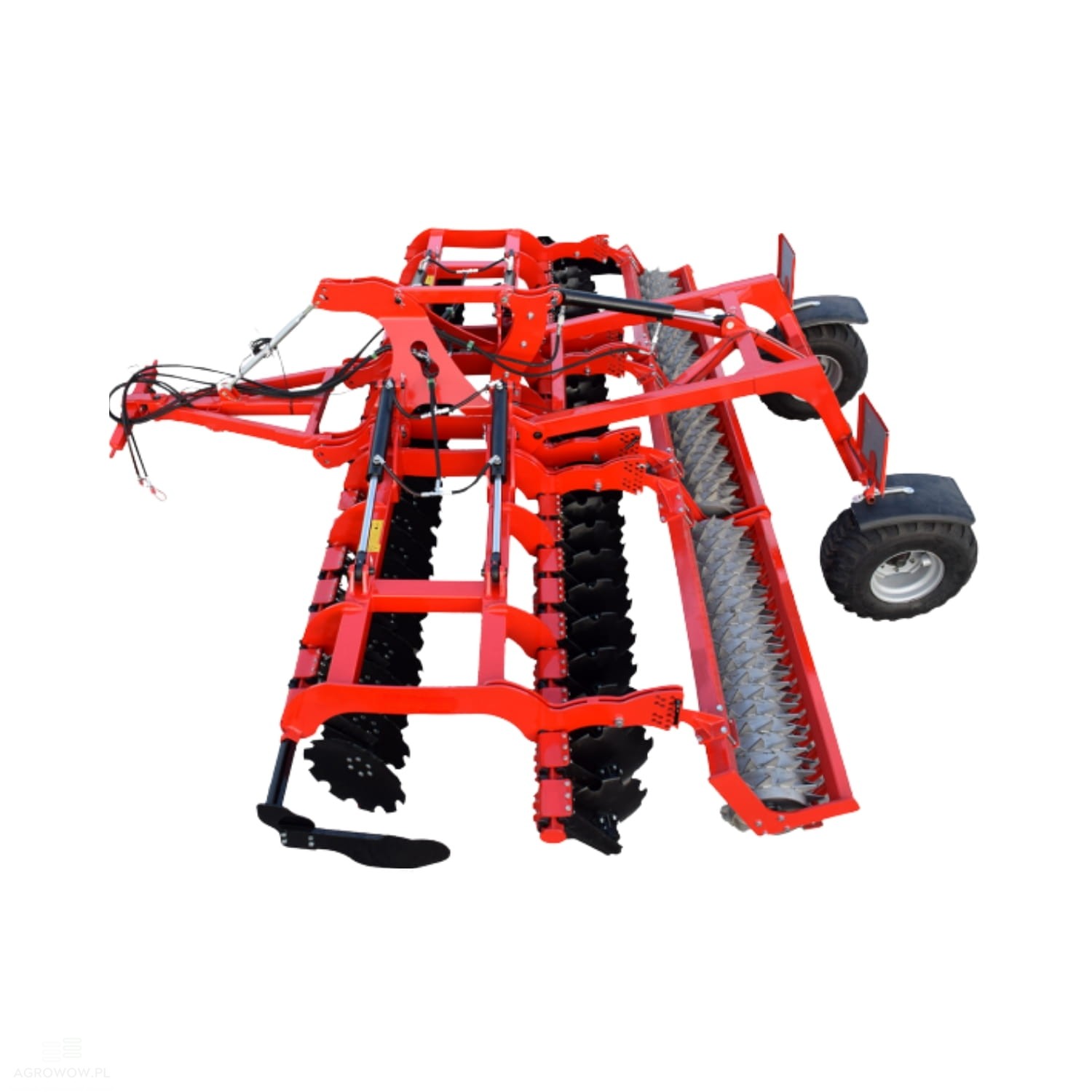

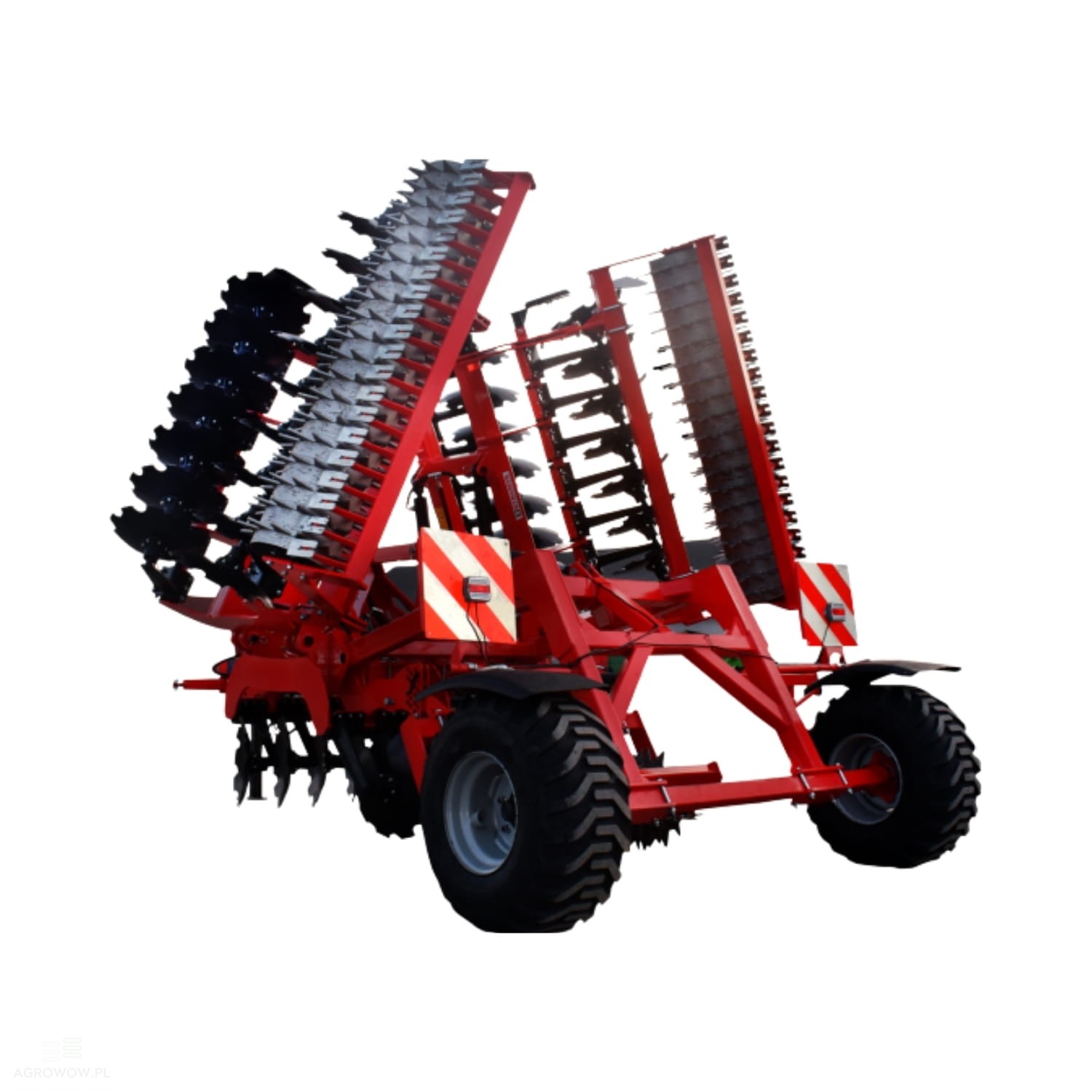

- Transport trolley + drawbar (+1150 kg)

A transport trolley complete with a drawbar is a practical solution that facilitates moving the machine over longer distances, both in the field and on access roads. The solid construction ensures stability during transport, and the appropriately designed drawbar allows for easy connecting and disconnecting of the machine, significantly increasing the comfort of use.

Detailed Description:

• The ROTOS disc harrow is an advanced agricultural tool designed for intensive and precise soil cultivation.

• Thanks to modern technological solutions and a solid construction, the machine performs excellently both in traditional cultivation and in reduced tillage systems.

• One of the most important advantages of the ROTOS harrow is its working width of 4000 mm, which allows for quick and efficient soil preparation for sowing.

• The machine is equipped with 32 discs with a diameter of 560, 610, or 660 mm, made of durable boron steel, which ensures high resistance to abrasive wear and a long service life.

• A disc row spacing of 1200 mm guarantees thorough mixing and loosening of the soil, improving its structure and facilitating moisture retention.

• Thanks to the use of a hydraulic system and four cylinders, the machine enables smooth adjustment of operation, adapting the pressure to various soil conditions.

• The damping system using rubber rollers reduces vibrations, protecting the structure against overloads and ensuring comfort of use.

• The ROTOS disc harrow is equipped with a reinforced frame and 6-hole hubs, ensuring its durability even under difficult operating conditions.

• The rear tubular or string roller additionally levels the field surface, supporting the process of moisture retention in the soil.

• Thanks to the universal hitch system of category II and III, the harrow can be easily connected to various tractor models with power ranging from 120 to 150 HP, making it a versatile tool for medium and large farms.

• Its efficiency amounting to 2.8-4.2 ha/h guarantees effective work even on large acreages.

• Additional components, such as side screens, help maintain working precision, and high-quality powder coating protects the structure against corrosion and mechanical damage.

• The ROTOS disc harrow is an excellent solution for farmers looking for a durable, efficient, and easy-to-operate machine that significantly improves cultivation quality and optimizes the soil preparation process.
