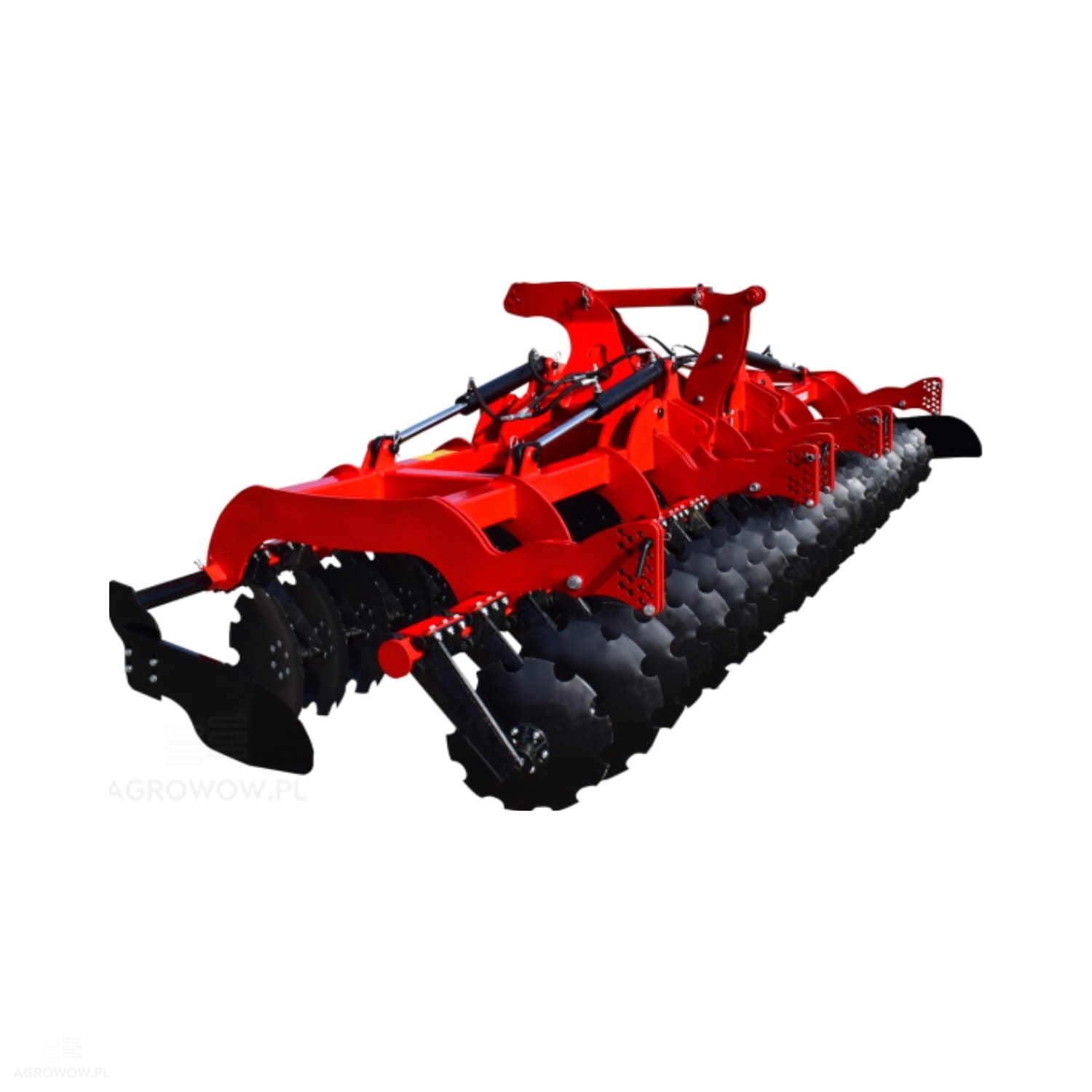

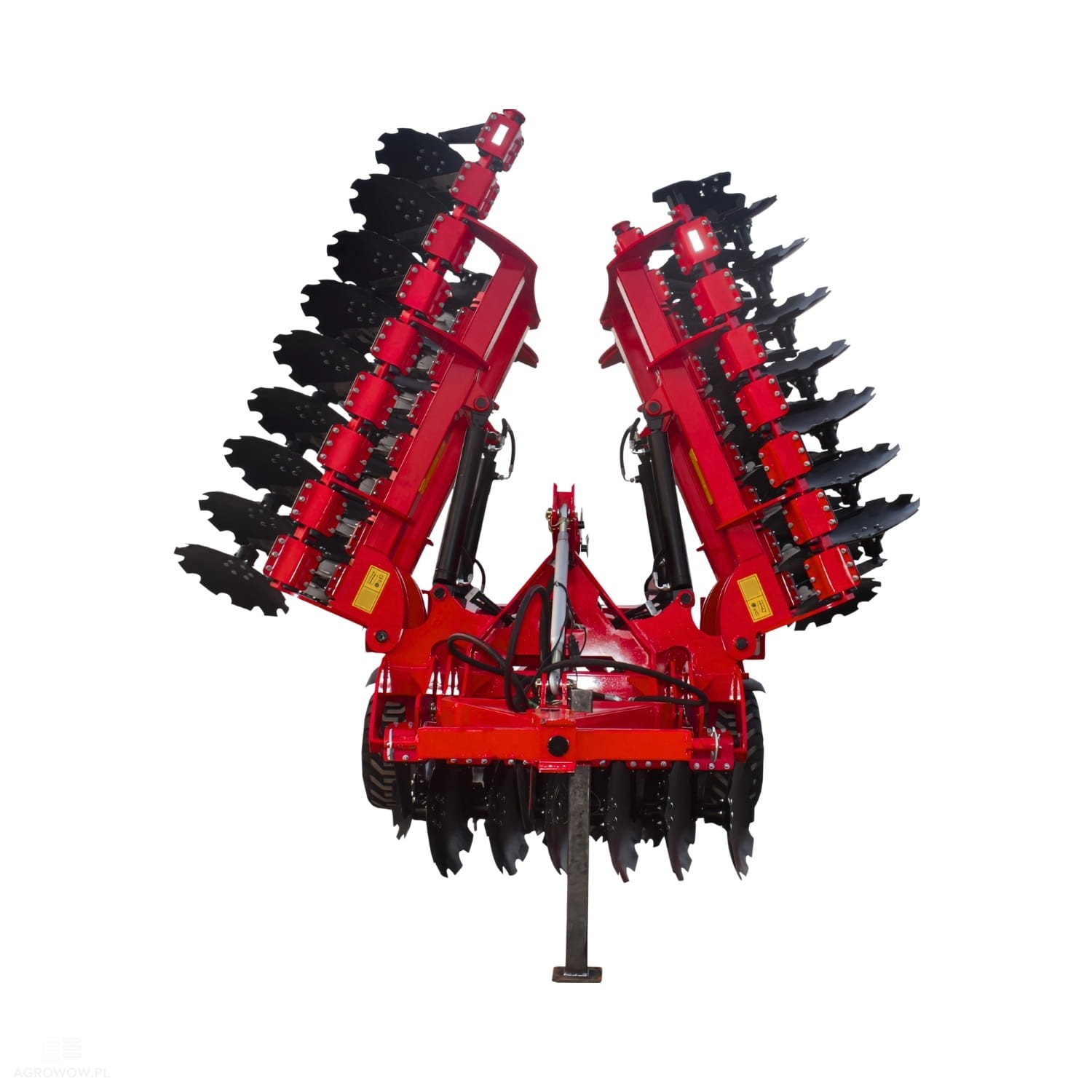

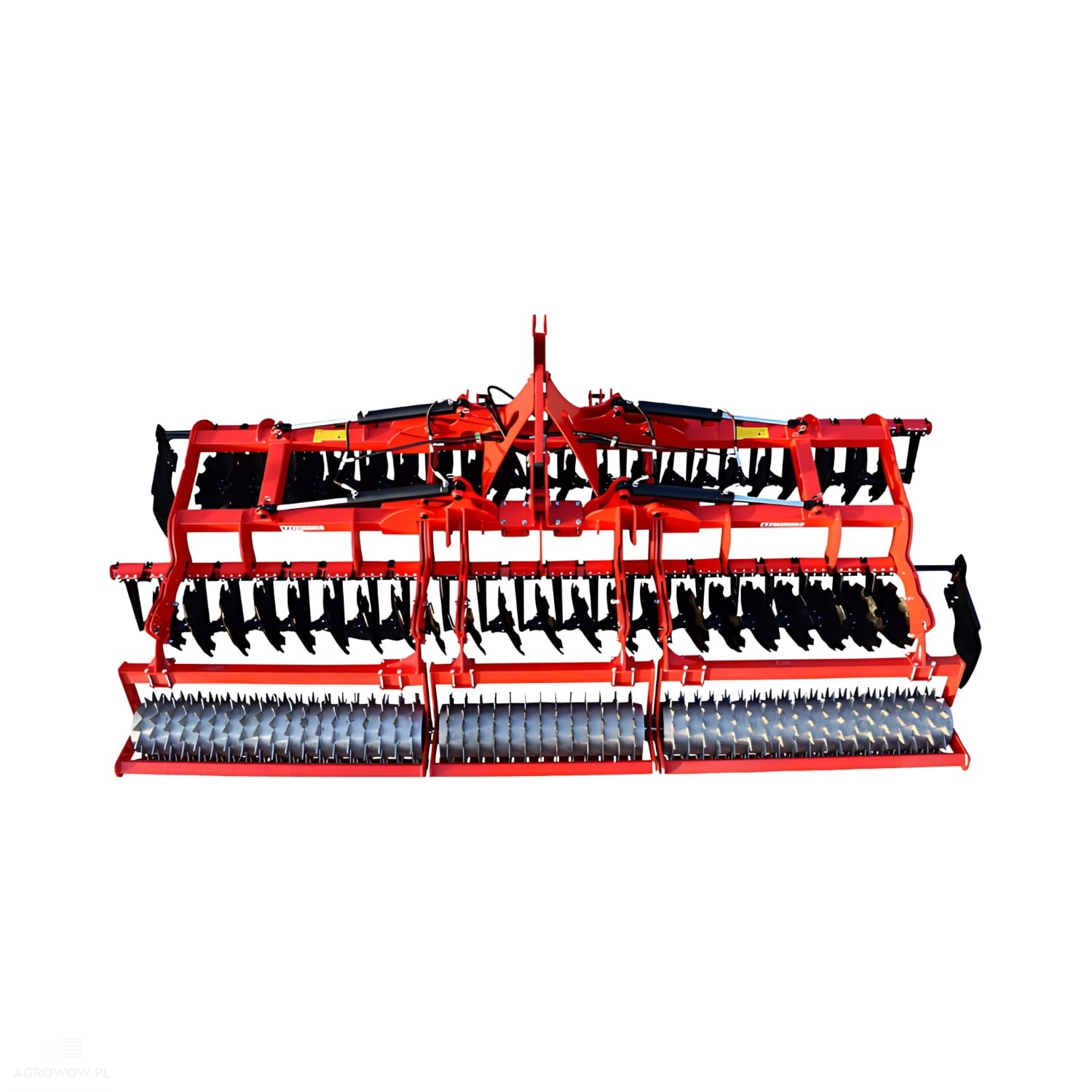

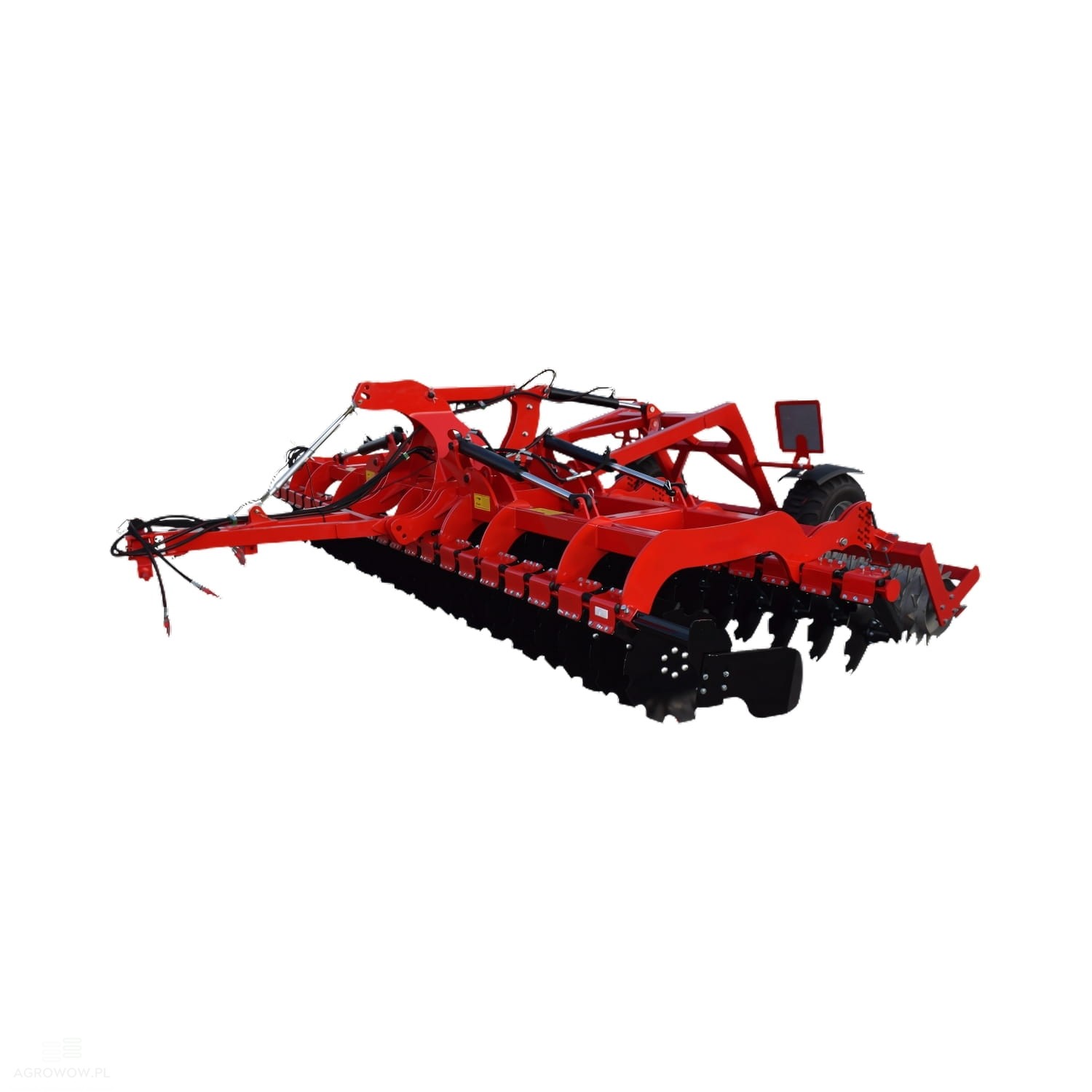

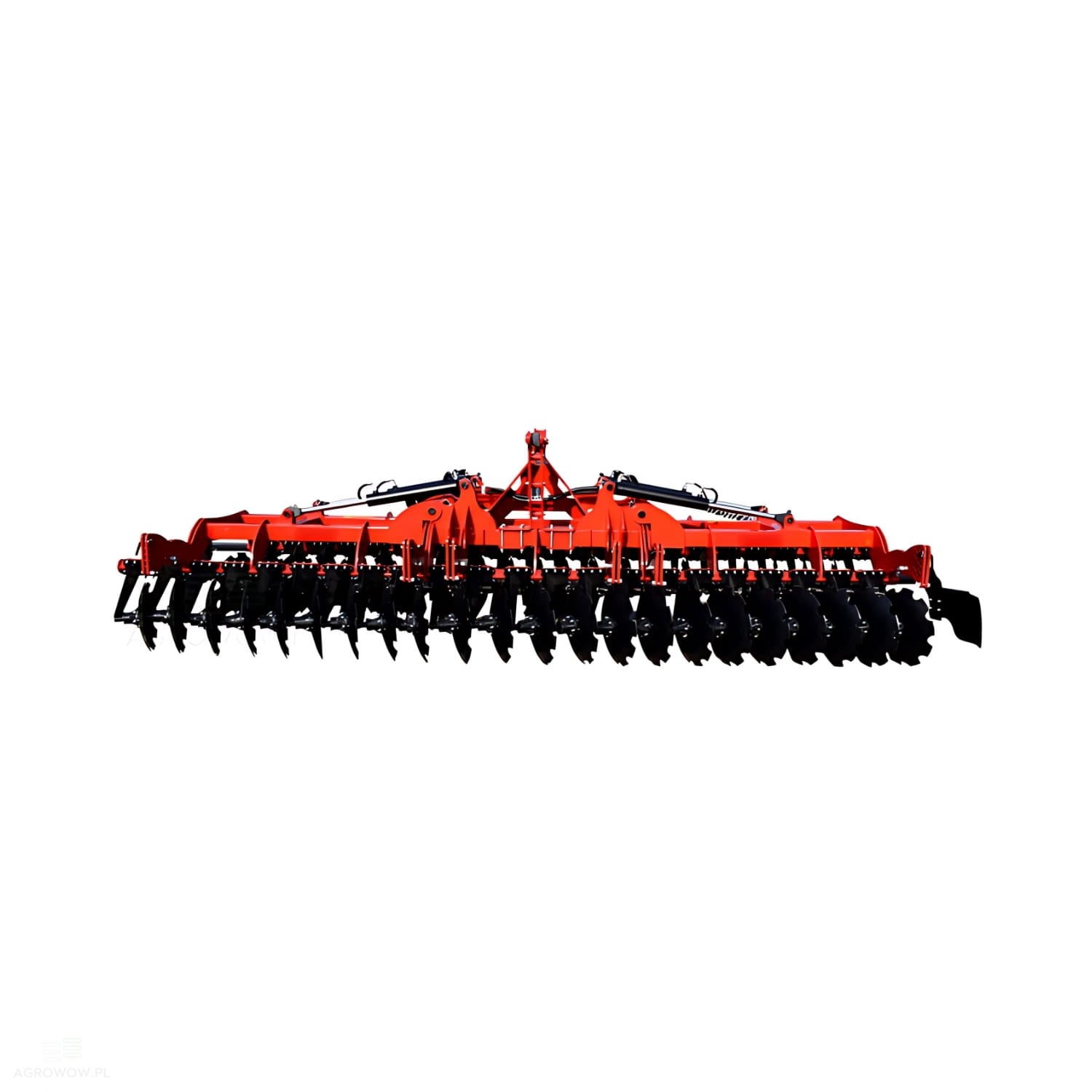

Agrowow hydraulic disc harrow ROTOS 5.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: STBTH50

- Manufacturer's name: Hydraulic disc harrow ROTOS

- Width: 5000 mm

- Number of cylinders: 4

- Number of discs: 40

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 1200 mm

- Weight: 3160 kg

- Power requirement: 160-190 HP

- Efficiency: 4.0-6.0 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is a key element of cultivation machinery, responsible for effective soil compaction and leveling. Its specially developed design enables efficient crushing of larger soil clods, which significantly improves the ground structure and increases its moisture absorption capacity. Thanks to this, the soil becomes more stable, promoting better plant rooting and creating ideal conditions for their growth.

- Roof roller

The roof roller is an excellent solution designed for light and medium soils, where it effectively crushes and levels the field surface. Its unique design prevents excessive soil drying and increases its moisture storage capacity, which beneficially affects crop development. Additionally, the roof roller helps prevent soil erosion, improving its stability and overall structure.

- Croskill roller

The croskill roller is a modern solution that, thanks to its double construction, effectively breaks up compacted soil layers and levels the field surface. It is particularly useful when preparing the soil for sowing, as it improves its structure and increases its moisture retention capacity. It performs perfectly on medium and heavy soils, eliminating excessive compaction, stabilizing the ground, and supporting plant growth.

- Double roof roller

The double roof roller is an advanced solution that loosens and levels the soil even more effectively. Thanks to its construction, it efficiently crushes soil clods, improves the ground structure, and limits its excessive drying. Furthermore, it increases the soil's moisture storage capacity, which promotes better plant development and optimizes conditions for further cultivation works.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are an innovative solution that eliminates the need for frequent maintenance and lubrication, significantly simplifying the use of agricultural machinery. Made of durable materials, they are resistant to heavy loads and intensive operation. Their application reduces the risk of failure and limits downtime, translating into lower operating costs and greater work efficiency.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made of high-grade boron steel, stand out with exceptional resistance to abrasive wear and a long service life. Their precisely designed shape enables effective cutting of plant residues, intensive soil mixing, and its optimal preparation for subsequent stages of cultivation. The robust construction ensures reliability even in the most demanding field conditions.

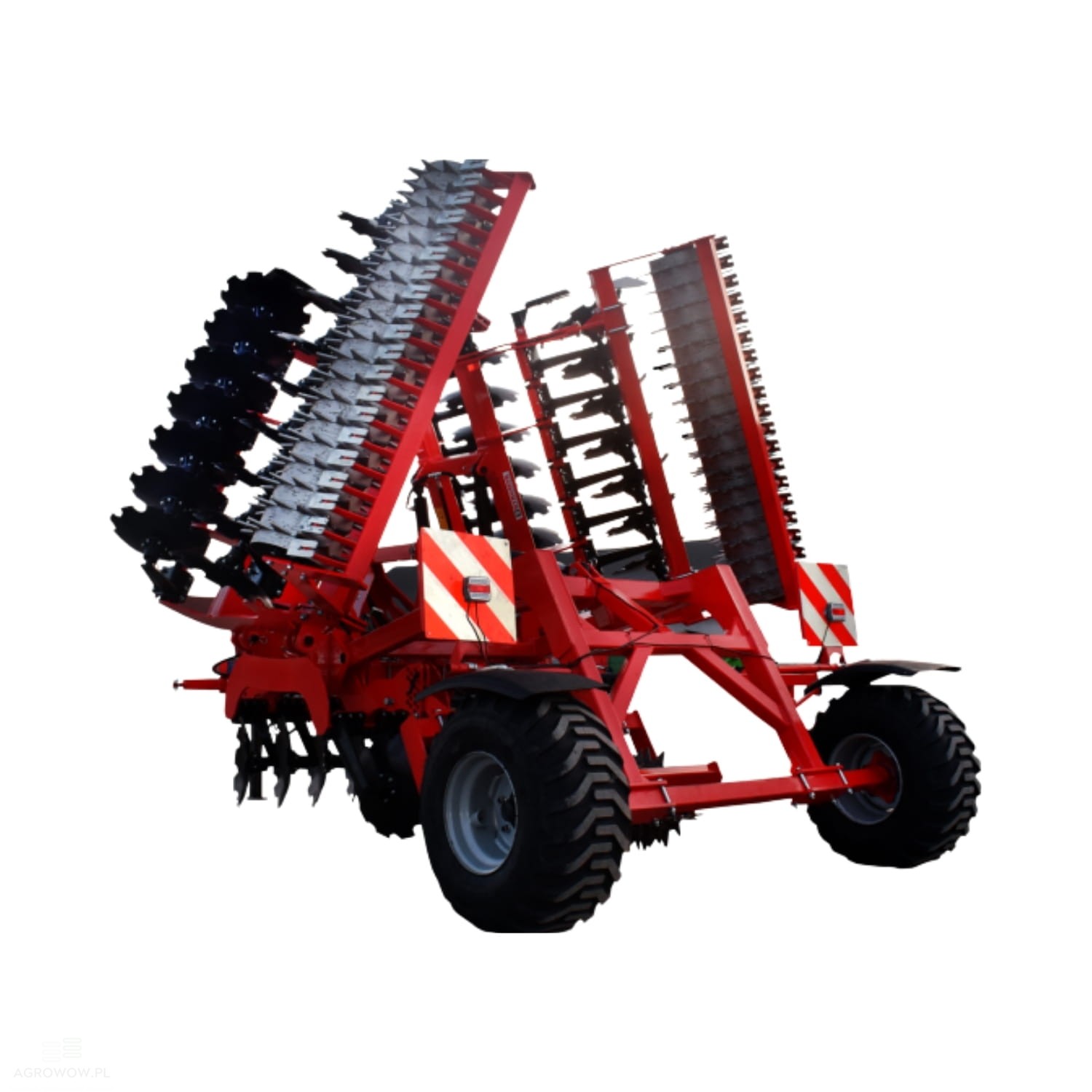

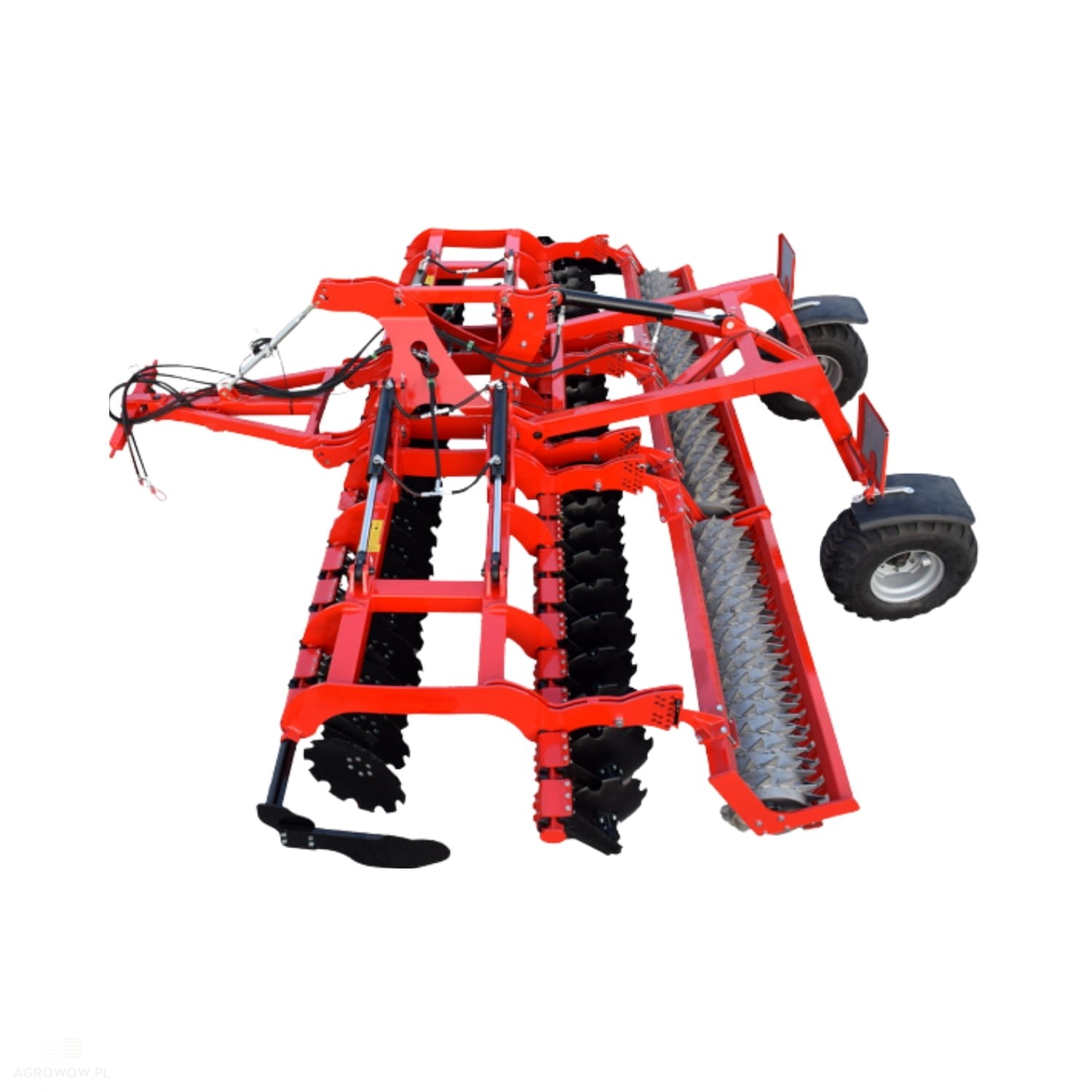

- Transport trolley + drawbar (+1150 kg)

A transport trolley with a drawbar is a practical solution that significantly facilitates moving the machine both in the field and on access roads. The solid construction ensures stability during transport, and the ergonomically designed drawbar allows for quick and convenient connecting and disconnecting of the machine, increasing the comfort of its use.

Detailed Description:

• The ROTOS disc harrow is a solid and modern agricultural machine designed for intensive and precise soil cultivation, increasing the efficiency of field works.

• Its advanced construction and innovative technologies make the machine perfectly suited both for traditional cultivation methods and in reduced tillage systems.

• A working width of 5000 mm allows for quick and effective soil preparation for sowing, which significantly accelerates the works on the farm.

• The machine is equipped with 40 discs with a diameter of 560, 610, or 660 mm, made of high-grade boron steel, which ensures their resistance to abrasive wear and a long service life.

• An optimal disc row spacing of 1200 mm enables thorough mixing and loosening of the soil, improving its structure and moisture storage capacity.

• A hydraulic system with four cylinders provides smooth adjustment of the machine, enabling the adaptation of its operation to various soil conditions.

• The damping system based on rubber rollers effectively eliminates vibrations, protecting the structure against overloads and ensuring comfort of use.

• The reinforced frame and the use of 6-hole hubs guarantee durability and reliability of the machine, even under demanding operating conditions.

• The rear tubular or string roller additionally levels the soil surface, supporting moisture retention and preparing it for subsequent stages of cultivation.

• Thanks to the universal hitch system of category II and III, the harrow can be easily connected to various tractor models with power ranging from 160 to 190 HP, making it a versatile tool for large farms.

• An efficiency at a level of 4.0-6.0 ha/h makes the machine an ideal choice for farmers looking for maximum productivity when working on large areas.

• Side screens increase working precision, and powder coating provides durable protection of the structure against corrosion and mechanical damage.

• The ROTOS disc harrow is an ideal solution for farmers who expect durability, high performance, and convenience of use in daily work.
