Agrowow hydraulic disc harrow ROTOS 5.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: STBTH55

- Manufacturer's name: Hydraulic disc harrow ROTOS

- Width: 5500 mm

- Number of cylinders: 4

- Number of discs: 44

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 1200 mm

- Weight: 3400 kg

- Power requirement: 180-220 HP

- Efficiency: 4.5-6.5 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is a key element of cultivation machinery, responsible for effective soil compaction and leveling. Its specially developed design enables efficient crushing of larger soil clods, which significantly improves the ground structure and increases its moisture absorption capacity. Thanks to this, the soil becomes more stable, promoting better plant rooting and creating ideal conditions for their growth.

- Wał daszkowy

The roof roller is an excellent solution designed for light and medium soils, where it effectively crushes and levels the field surface. Its unique design prevents excessive soil drying and increases its moisture storage capacity, which beneficially affects crop development. Additionally, the roof roller helps prevent soil erosion, improving its stability and overall structure.

- Croskill roller

The croskill roller is a modern solution that, thanks to its double construction, effectively breaks up compacted soil layers and levels the field surface. It is particularly useful when preparing the soil for sowing, as it improves its structure and increases its moisture retention capacity. It performs perfectly on medium and heavy soils, eliminating excessive compaction, stabilizing the ground, and supporting plant growth.

- Double roof roller

The double roof roller is an advanced solution that loosens and levels the soil even more effectively. Thanks to its construction, it efficiently crushes soil clods, improves the ground structure, and limits its excessive drying. Furthermore, it increases the soil's moisture storage capacity, which promotes better plant development and optimizes conditions for further cultivation works.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are an innovative solution that eliminates the need for frequent maintenance and lubrication, significantly simplifying the use of agricultural machinery. Made of durable materials, they are resistant to heavy loads and intensive operation. Their application reduces the risk of failure and limits downtime, translating into lower operating costs and greater work efficiency.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made of high-grade boron steel, stand out with exceptional resistance to abrasive wear and a long service life. Their precisely designed shape enables effective cutting of plant residues, intensive soil mixing, and its optimal preparation for subsequent stages of cultivation. The robust construction ensures reliability even in the most demanding field conditions.

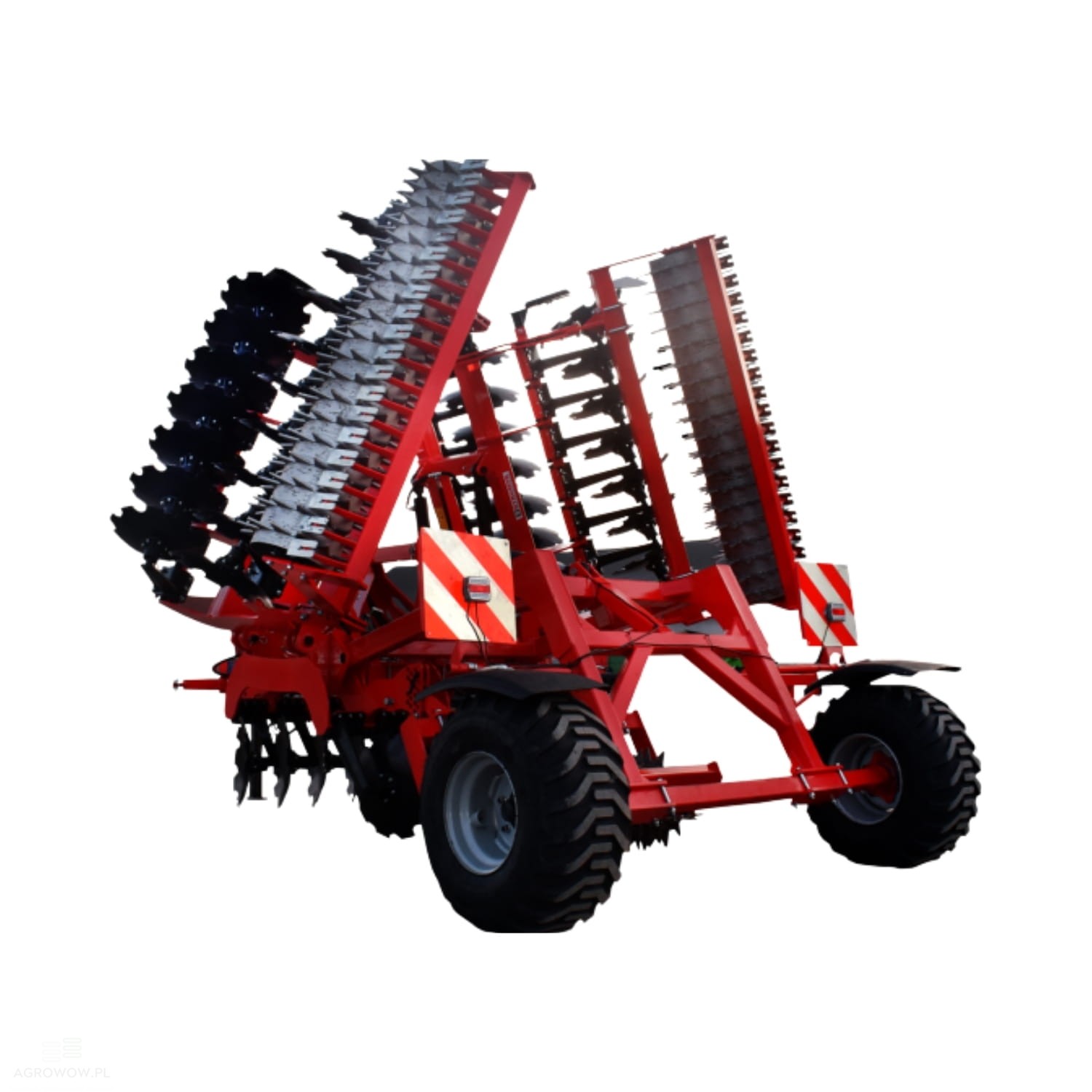

- Transport trolley + drawbar (+1150 kg)

A transport trolley with a drawbar is a practical solution that significantly facilitates moving the machine both in the field and on access roads. The solid construction ensures stability during transport, and the ergonomically designed drawbar allows for quick and convenient connecting and disconnecting of the machine, increasing the comfort of its use.

Detailed Description:

• The ROTOS disc harrow is a modern and durable agricultural machine designed for intensive soil cultivation, increasing the efficiency of field works over large areas.

• Advanced technology and a solid construction make the device perfectly suited both for traditional cultivation methods and in reduced tillage systems.

• A working width of 5500 mm enables quick and precise soil preparation for sowing, which allows for more efficient use of working time.

• The machine is equipped with 44 discs with a diameter of 560, 610, or 660 mm, made of high-quality boron steel, providing excellent resistance to abrasive wear and a long service life.

• An optimal disc row spacing of 1200 mm guarantees effective mixing and loosening of the soil, improving its structure and moisture retention capacity.

• A hydraulic system with four cylinders allows for smooth adjustment of the machine's operation, adapting it to various soil conditions and user needs.

• The damping system using rubber rollers effectively reduces vibrations, protecting the structure against overloads and extending its service life.

• The reinforced frame and the use of 6-hole hubs ensure exceptional stability and durability even during intensive operation.

• The rear tubular or string roller additionally levels the soil surface, supporting its moisture storage capacity and preparing it for further stages of cultivation.

• A universal hitch system of category II and III enables easy connection of the harrow to various tractor models with power ranging from 180 to 220 HP, making it a versatile tool for large farms.

• A machine efficiency at a level of 4.5-6.5 ha/h makes it an ideal solution for farmers expecting maximum work productivity.

• Side screens ensure precise guidance of the machine, and powder coating effectively protects its structure against corrosion and mechanical damage.

• The ROTOS disc harrow is an excellent choice for farmers who expect reliability, high efficiency, and comfort of use in daily work.
