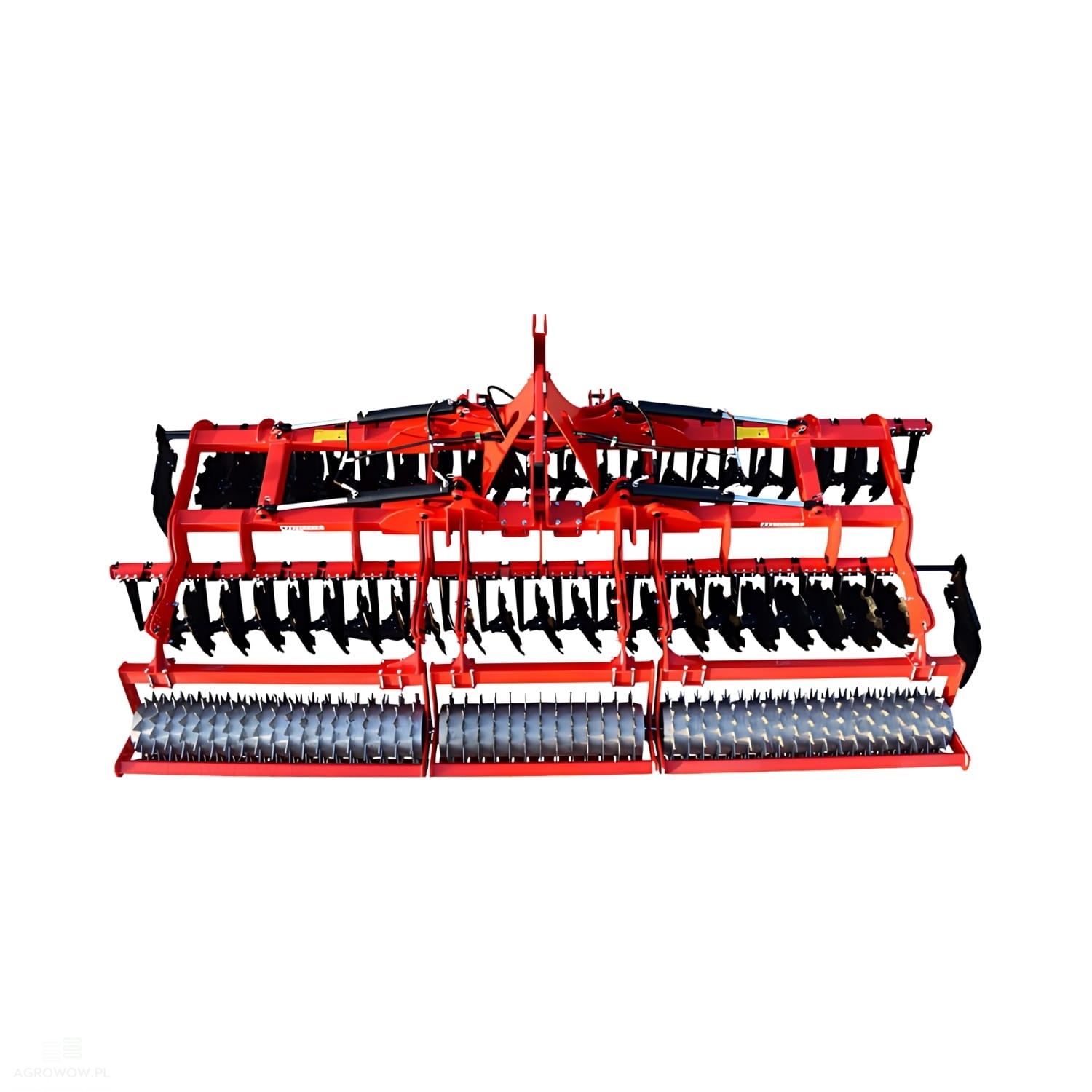

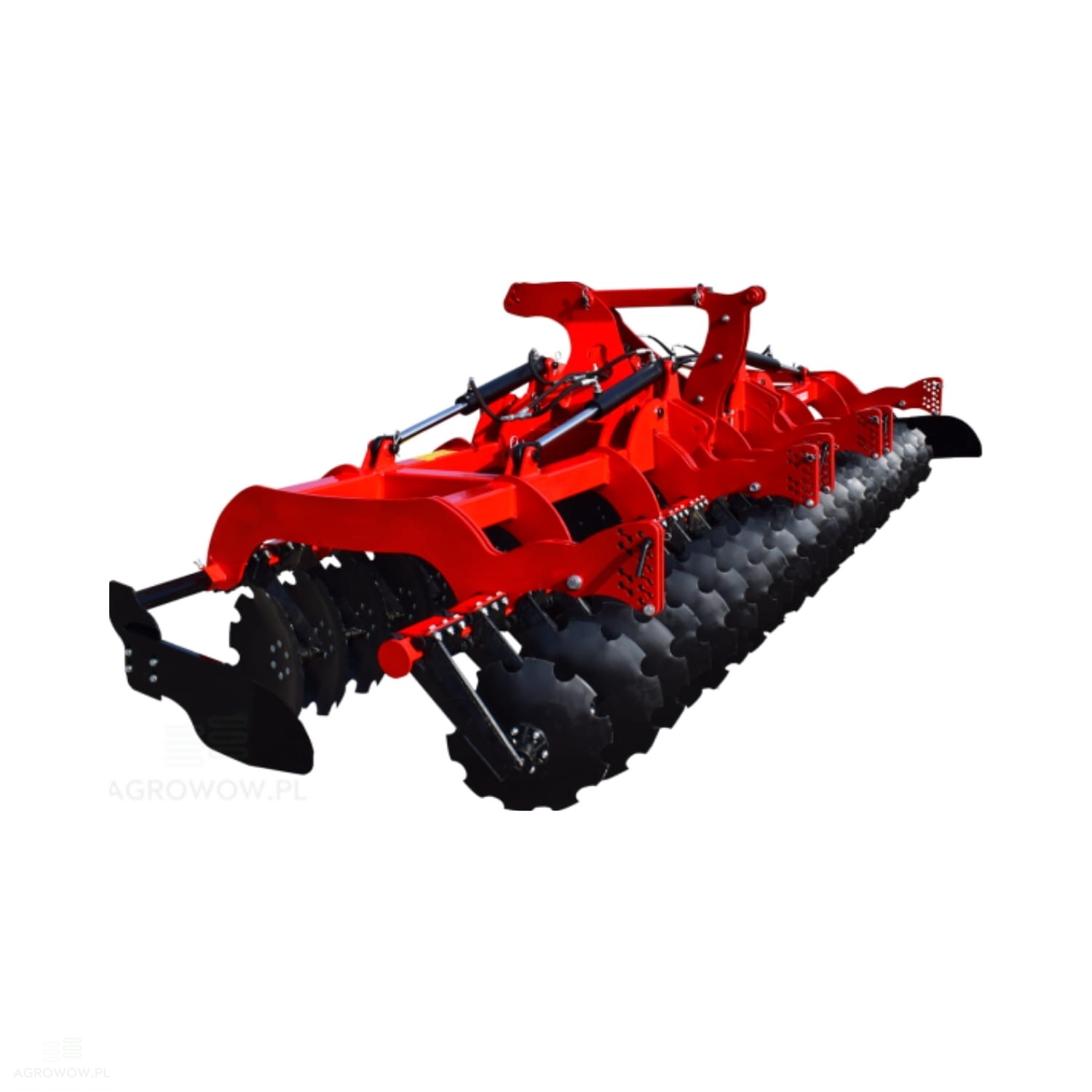

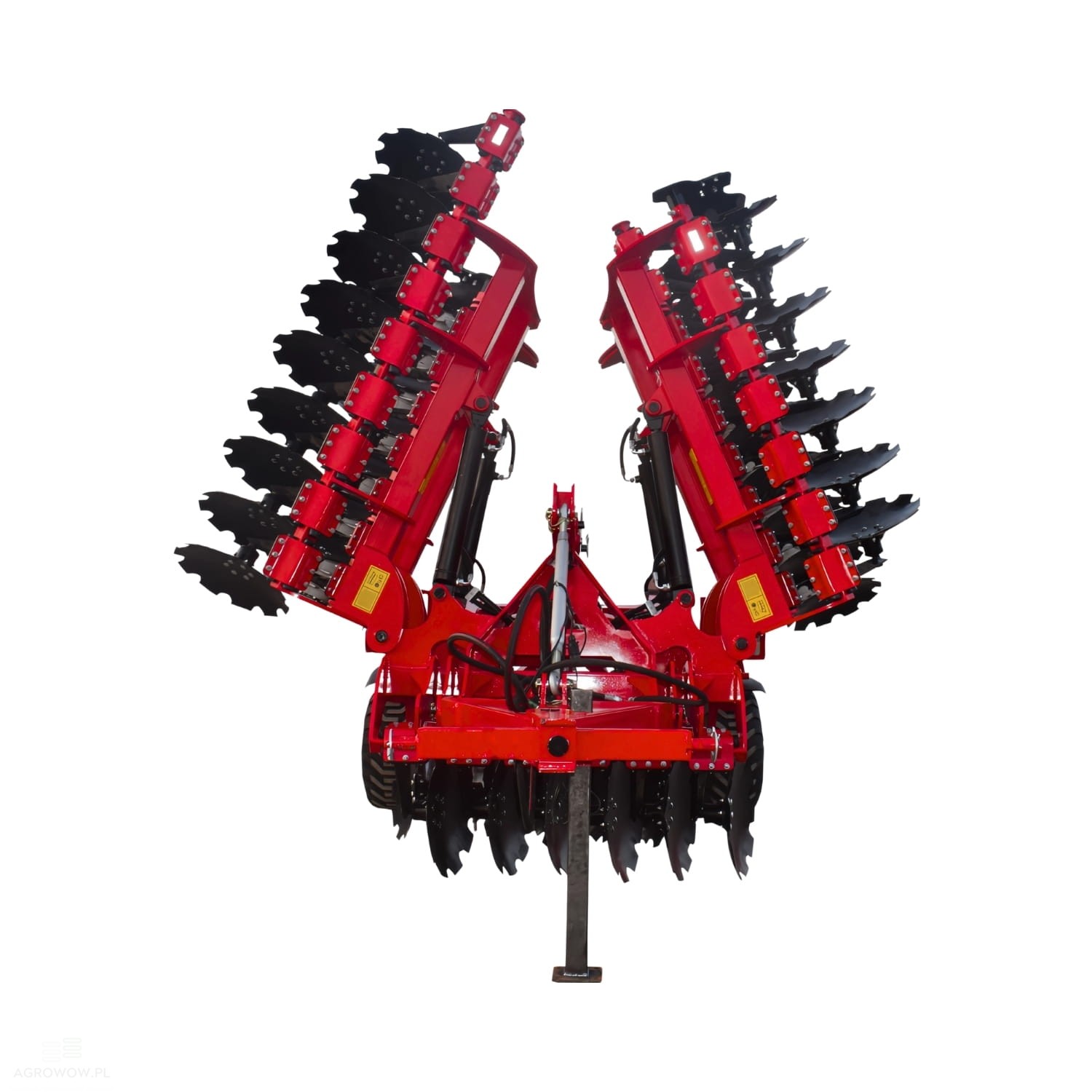

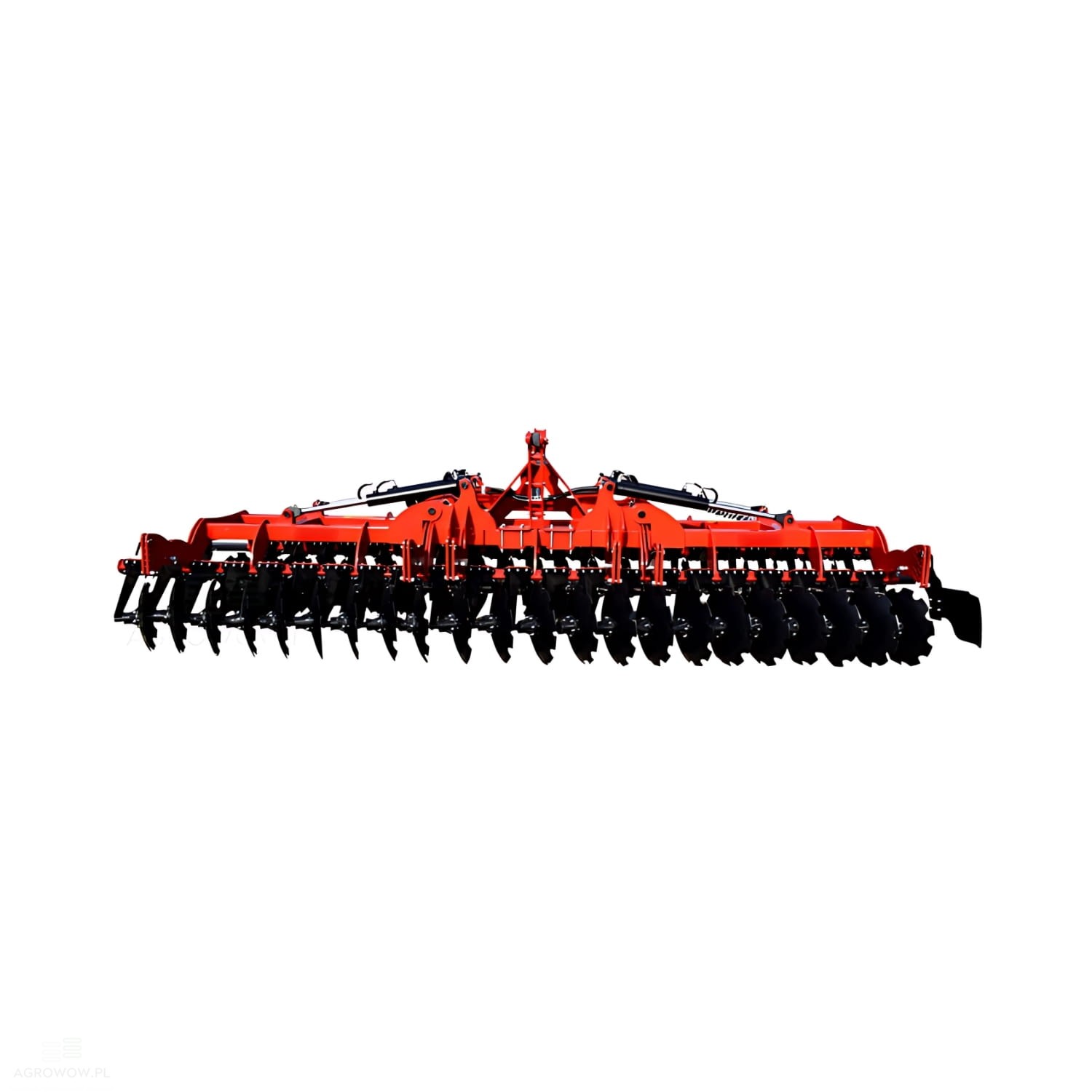

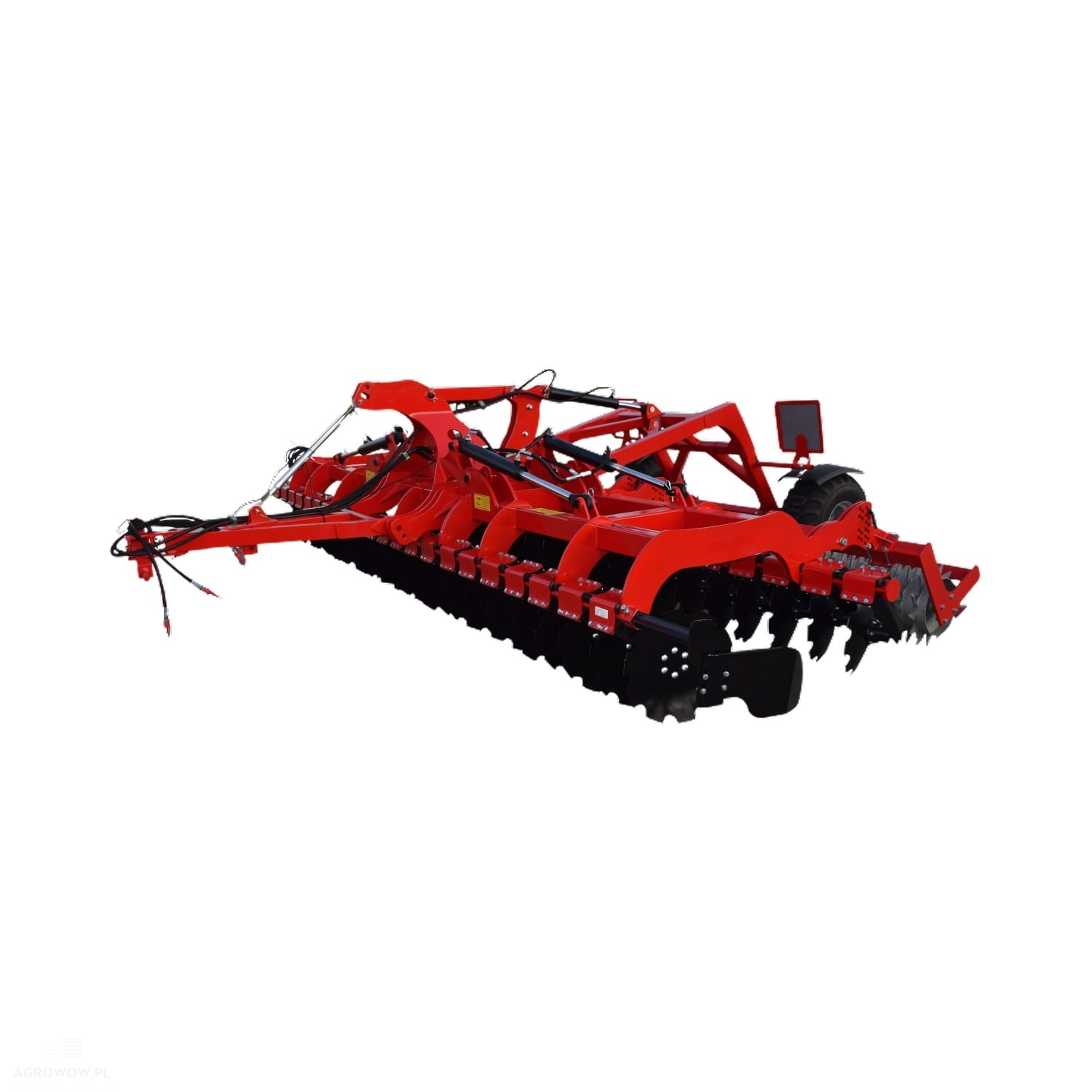

Agrowow hydraulic disc harrow ROTOS 6.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: STBTH60

- Manufacturer's name: Hydraulic disc harrow ROTOS

- Width: 6000 mm

- Number of cylinders: 4

- Number of discs: 48

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 1200 mm

- Weight: 3600 kg

- Power requirement: 180-250 HP

- Efficiency: 5.0-7.0 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is an essential component of cultivation machinery, responsible for effective soil compaction and leveling. Its specialized design enables the efficient breaking up of larger soil clods, which significantly improves the ground structure and increases its moisture retention capacity. Thanks to this, the soil is more stable, promoting better plant rooting and providing optimal conditions for their growth.

- Roof roller

The roof roller is an excellent solution for light and medium soils, allowing for precise crushing and leveling of the field surface. Its unique design minimizes the risk of excessive soil drying and increases its water storage capacity, directly impacting better plant development. Additionally, the roof roller supports soil protection against erosion, improving its stability and structure.

- Croskill roller

The croskill roller is an innovative solution that, thanks to its double construction, effectively breaks up compacted soil layers and evenly levels the field surface. Particularly useful during the pre-sowing soil preparation phase, it improves its structure and increases its moisture retention capacity. It performs perfectly on medium and heavy soils, eliminating excessive compaction, stabilizing the ground, and supporting plant growth.

- Double roof roller

The double roof roller is an advanced solution that loosens and levels the soil even more effectively. Thanks to its construction, it efficiently crushes soil clods, improves the ground structure, and reduces the risk of its excessive drying. Furthermore, it supports moisture storage in the soil, which promotes better plant growth and optimizes conditions for subsequent cultivation.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution that eliminates the need for frequent maintenance and lubrication, significantly simplifying the operation of agricultural machinery. Made of durable materials, they ensure high resistance to loads and intensive use. Their application minimizes the risk of failure and reduces downtime, translating into lower operating costs and increased work efficiency.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made of high-grade boron steel, are characterized by exceptional resistance to wear and abrasion. Their precisely engineered shape enables effective cutting of plant residues, intensive soil mixing, and its optimal preparation for further stages of cultivation. The robust construction ensures long service life and reliability even in difficult field conditions.

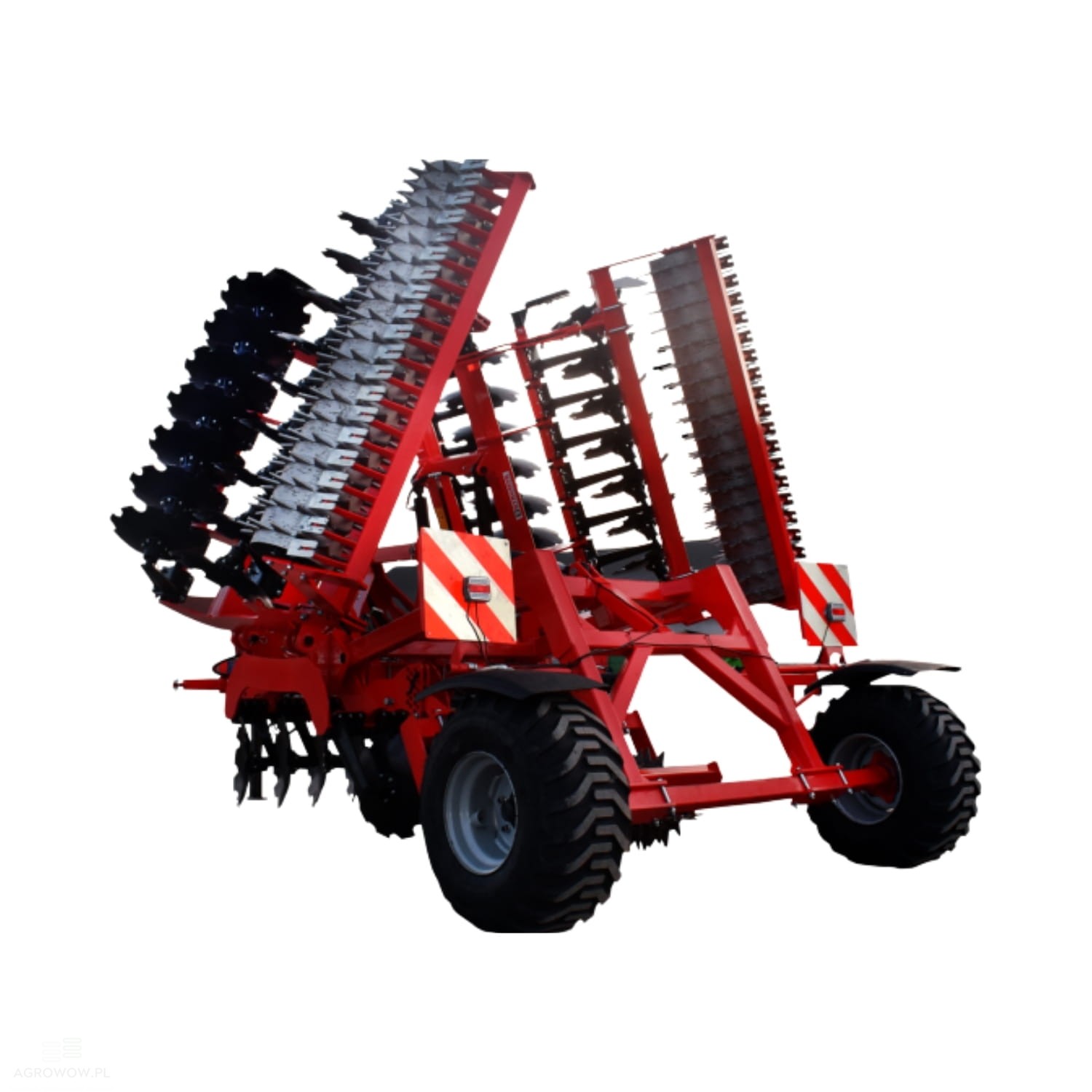

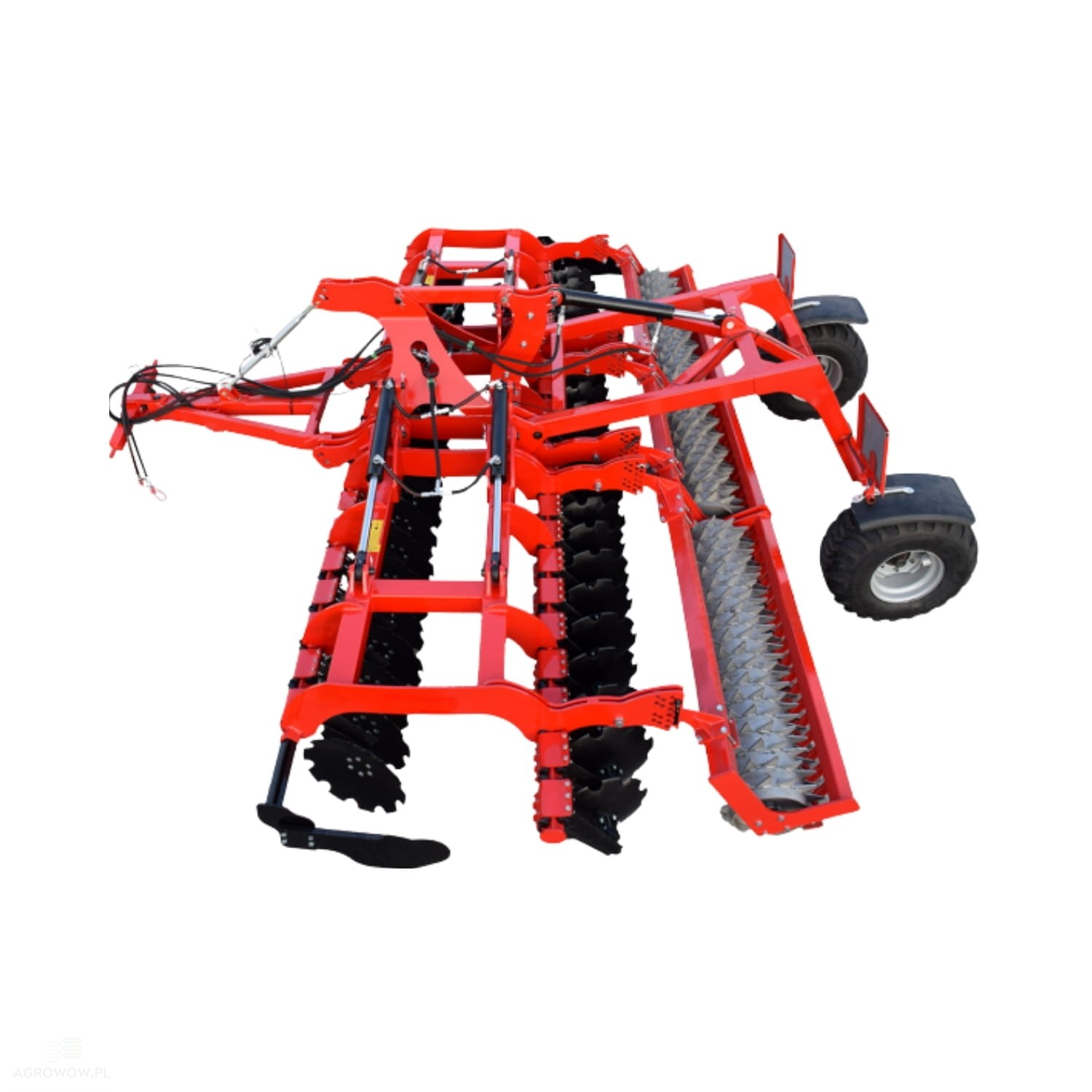

- Transport trolley + drawbar (+1150 kg)

A transport trolley with a drawbar is a functional solution that facilitates moving the machine both in the field and on access roads. The solid construction guarantees stability during transport, and the ergonomically designed drawbar allows for quick and convenient connecting and disconnecting of the machine, increasing the comfort of its use.

Detailed Description:

• The ROTOS disc harrow is a modern, robust agricultural machine designed for intensive soil cultivation, enabling efficient preparation of the ground over large areas.

• Thanks to advanced technologies and solid construction, the device performs well both in traditional cultivation systems and in reduced tillage methods.

• A working width of 6000 mm allows for quick and precise soil preparation for sowing, which significantly increases work efficiency.

• The machine is equipped with 48 discs with a diameter of 560, 610, or 660 mm, made of high-grade boron steel, guaranteeing resistance to abrasive wear and a long service life.

• A disc row spacing at a level of 1200 mm ensures effective mixing and loosening of the soil, improving its structure and moisture retention capacity.

• A hydraulic system with four cylinders enables smooth adjustment of the machine's operation, adapting its performance to various soil conditions.

• Rubber rollers used in the damping system effectively reduce vibrations, protecting the structure against excessive loads and extending its service life.

• The reinforced frame and 6-hole hubs ensure exceptional stability and durability, allowing for long-term and trouble-free operation.

• The rear tubular or string roller additionally levels the soil surface, improving its moisture storage capacity and preparing it for the next stages of cultivation.

• A universal hitch system of category II and III enables easy connection of the machine to various tractor models with power ranging from 180 to 250 HP, ensuring its versatility.

• A work efficiency at a level of 5.0-7.0 ha/h makes the ROTOS harrow an ideal solution for large farms that expect maximum efficiency and time savings.

• Side screens increase working precision, and powder coating protects the structure against corrosion and mechanical damage, ensuring its long service life.

• The ROTOS disc harrow is an excellent choice for farmers looking for a reliable, efficient, and easy-to-operate machine for professional soil cultivation.
